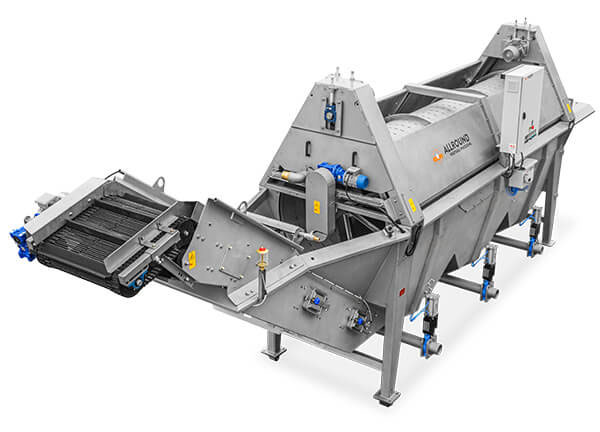

Washing machine U
The vegetable washing machine is designed to clean produce by removing dirt from it.
The vegetable washing machine is designed to clean produce by removing dirt from it.

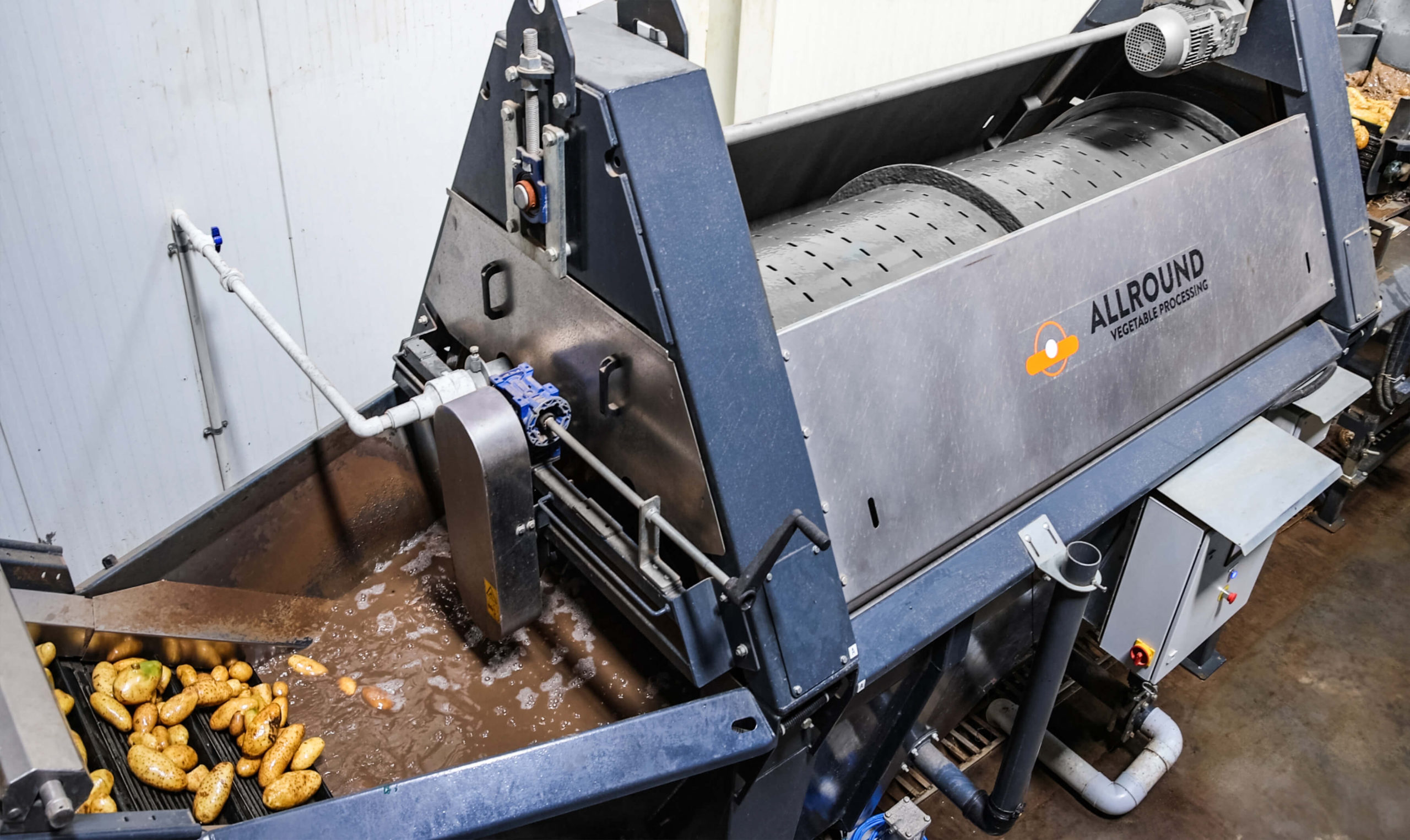

In a washing machine of the U type, produce can be partially or fully submerged in water during washing. The produce enters the machine via an infeed chute with a water inlet to prevent the sticking of clay and soil. As the drum rotates, vegetables rub against each other and the drum for a gentle clean. Cleats inside the drum maximize washing performance.
The drum of the washing machine plays a very important role in cleaning produce. The choice of a drum depends on the crop and soil condition. The washing machine U type is available with different drum options to choose from. Various cleat options inside the drum are available to provide suitable agitation and movement of produce inside the drum.
In washing machines U type, the flow of produce is controlled by a valve, which can be operated manually or automatically.
Soil and debris collect in the basin underneath the rotating drum. Drain valves regularly to clear debris build-up. Spray tubes can be fitted to rinse the inside of the drum.
The outfeed produce conveyor discharges the produce from the machine at a suitable height and it provides gentle handling. The height of the subframe can vary from 0-3 meters.
Characteristics
- Removable side panels – Easy to access internal parts
- Variable speed-controlled drum – Speed adjustment to control washing intensity
- Manual or automatic outfeed drum valve
- Drum stabilizer and alignment rollers
- Round and octagon shapes of drums are available to choose from
Construction of the drum can be U-profile or perforated
- Straight or curved agitation cleats inside the drum provide good agitation and control movement product inside the drum
- Inspection hatches for quick, easy cleaning and maintenance
- Water management can be with manual or automatic valves with valves and level meters

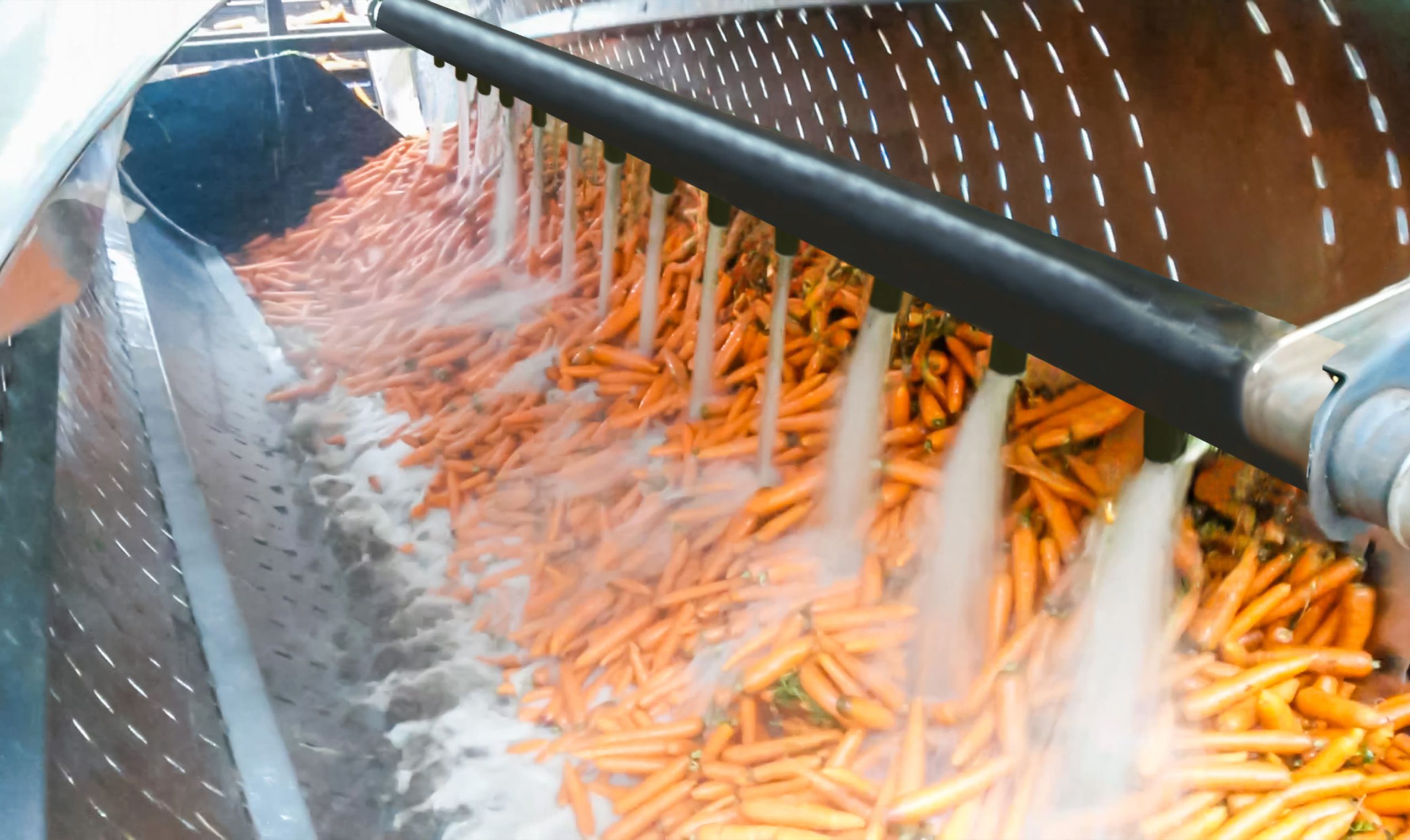

- Spray tube on outfeed produce conveyor to spray fresh water
- Easily accessible drive system and positioned out of water
Specifications
| U 170 | U 300 | U 450 | U 500 | U 600 | |
|---|---|---|---|---|---|
| Length of the drum (in cm) | 170 | 300 | 450 | 500 | 600 |
| Diameter of the drum (in cm) | 80 | 100, 120 | 120 | 160 | 190 |
Options
- Material and treatment (frame)
- Material and treatment (plating)
- Drum shape
- Drum
- Material and treatment (cleats)
- Cleats
- Material and treatment (product conveyor)
- Electrical control
- Material and treatment (electrical panel)
- Water management
- Cleaning
- Adjustment drum valve
- Material and treatment (subframe)
- Height of subframe
