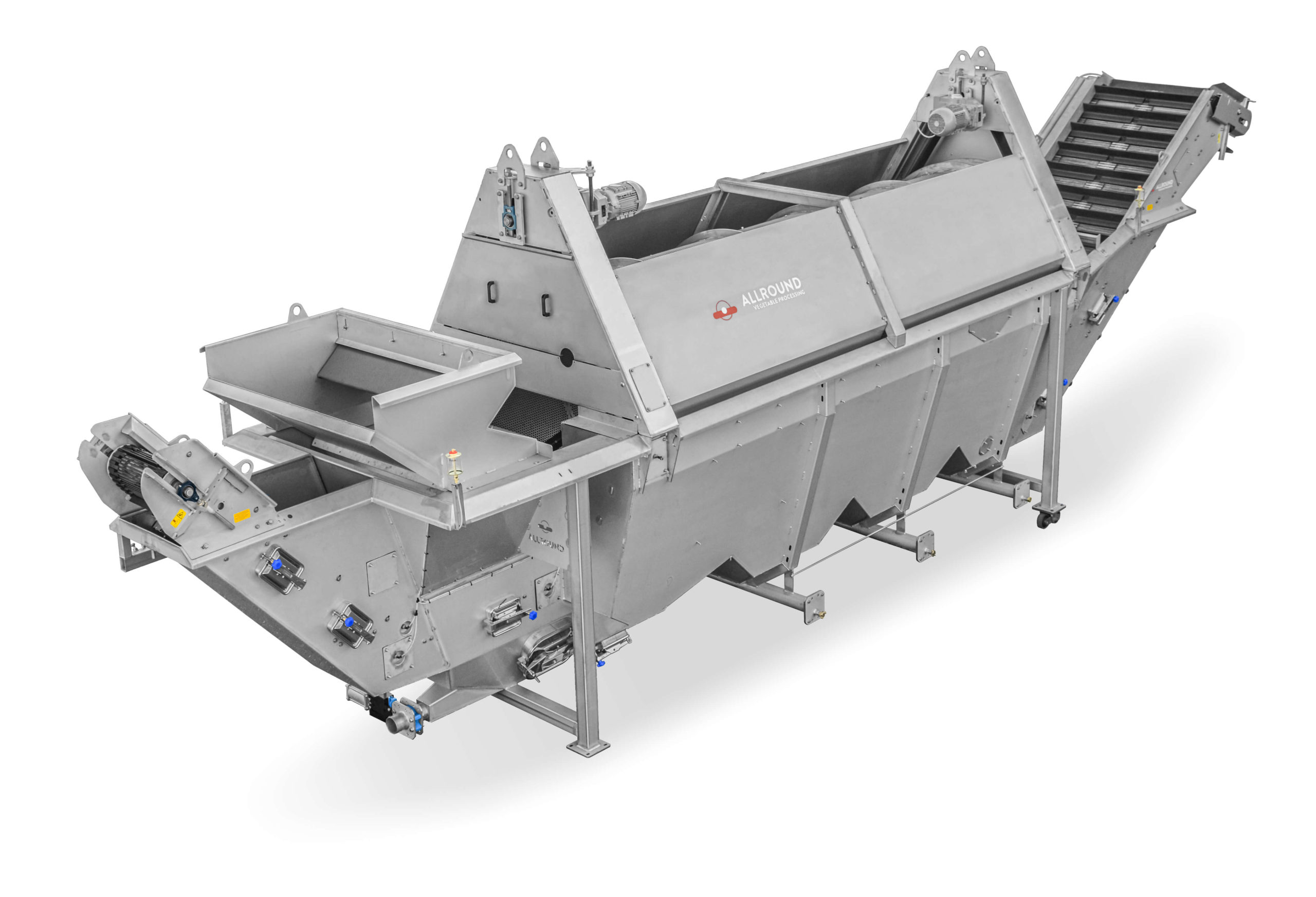

Washing machine PD

​The washing machine is designed to clean produce by removing any stones, clods, and debris from it.

Product Information

The washing machine is designed to remove any stones, clods, and debris at the start of the wash system to ensure a significant reduction in product damage and bruising. Additionally, this design prolongs the life of subsequent wash line systems by ensuring only the intended product makes it through to the next stages along the wash line.

The process starts from the infeed. After the produce falls into the water, it floats to a rotating drum. While the produce floats, heavy stones and debris sink into a waste belt and are effectively removed to prevent damage to the produce. The produce is transported by the rotating drum towards a product belt. During transport, the produce is cleaned by water inside the drum.

In washing machines PD type, the flow of produce is controlled by a valve, which can be operated manually or automatically. The height of the subframe can vary from 0-3 meters.

Characteristics

  • Designed to integrate with a destoner for better removal of heavy impurities like stones, clods, and debris

  • Drum available in round or octagonal shape as per requirement

  • Water management can be with manual or automatic valves with valves and level meters

  • A spray tube is included to clean the produce

  • Includes both product and stone conveyors for smooth operation

  • Construction of the drum can be U-profile or perforated

  • Cleats inside the drum provide good agitation and control product movement inside the drum

Specifications

PD 300 – 100 PD 450 – 120 PD 500 – 130 PD 500 – 160
Length of the drum (in cm) 300 450 500 500
Diameter of the drum (in cm) 100 120 130 160

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
Zinc sprayed painted mild steel
Frame is made from sandblasted, zinc sprayed and painted mild steel. The bearings and drive/idle rollers are from mild steel
  • Material and treatment (plating)
Zinc plated steel
The plating is made from zinc plated steel
Stainless steel
The plating is made from stainless steel AISI304
  • Drum shape
Round
The drum is round shaped
Octagon
The drum is octagon shaped
  • Drum
U-profile gap 10 mm
The drum is made from stainless steel AISI304, u-profile with gaps 10 mm
Perforated plate round 12 mm
The drum is made from stainless steel AISI304, perforated plate with rounds 12 mm
Perforated plate slot 12 x 40 mm
The drum is made from stainless steel AISI304, perforated plate with slots 12 x 40 mm
  • Material and treatment (cleats)
Stainless steel
The cleats are made of stainless steel AISI304
Rubber
The cleats are made of rubber
  • Cleats
Straight
The cleats are straight shaped
Turned
The cleats are shaped turned
  • Material and treatment (product conveyor)
Mild steel
The product conveyor is made from mild steel, covered with rubber. The cleats height is 50 mm. The gap size is 5 mm
Stainless steel
The product conveyor is made from stainless steel AISI304, covered with rubber. The cleats height is 50 mm. The gap size is 5 mm
  • Material and treatment (stone conveyor)
Mild steel
The stone conveyor is made from mild steel. The cleats height is 40 mm. The gap size is 10 mm
Stainless steel
The stone conveyor is made from stainless steel AISI304. The cleats height is 40 mm. The gap size is 10 mm
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Water management
Manual
The valves can be operated manually. The water level must be regulated manually
Automatic
The valves are operated automatically. The water level is regulated automatically
  • Cleaning
Spray tube product conveyor
A spray tube is included to clean the produce
  • Adjustment drum valve
Manual
The outlet valve can be adjusted manually
Automatic
The outlet valve can be adjusted automatically
  • Material and treatment (subframe)
Painted mild steel
It is made from painted mild steel
Stainless steel
It is made from stainless steel AISI304
Galvanized steel
It is made from galvanized steel
  • Height of subframe
Height of subframe
0 to 3 meter
