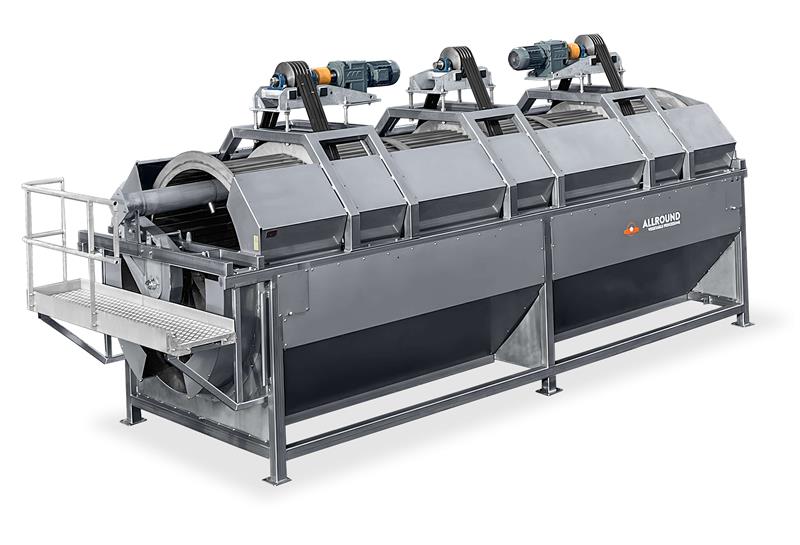

Washing machine C

The vegetable washing machine is designed to clean produce by removing soil and dirt from it.

Product Information

The vegetable washing machine is designed to clean produce by removing soil and dirt from it.

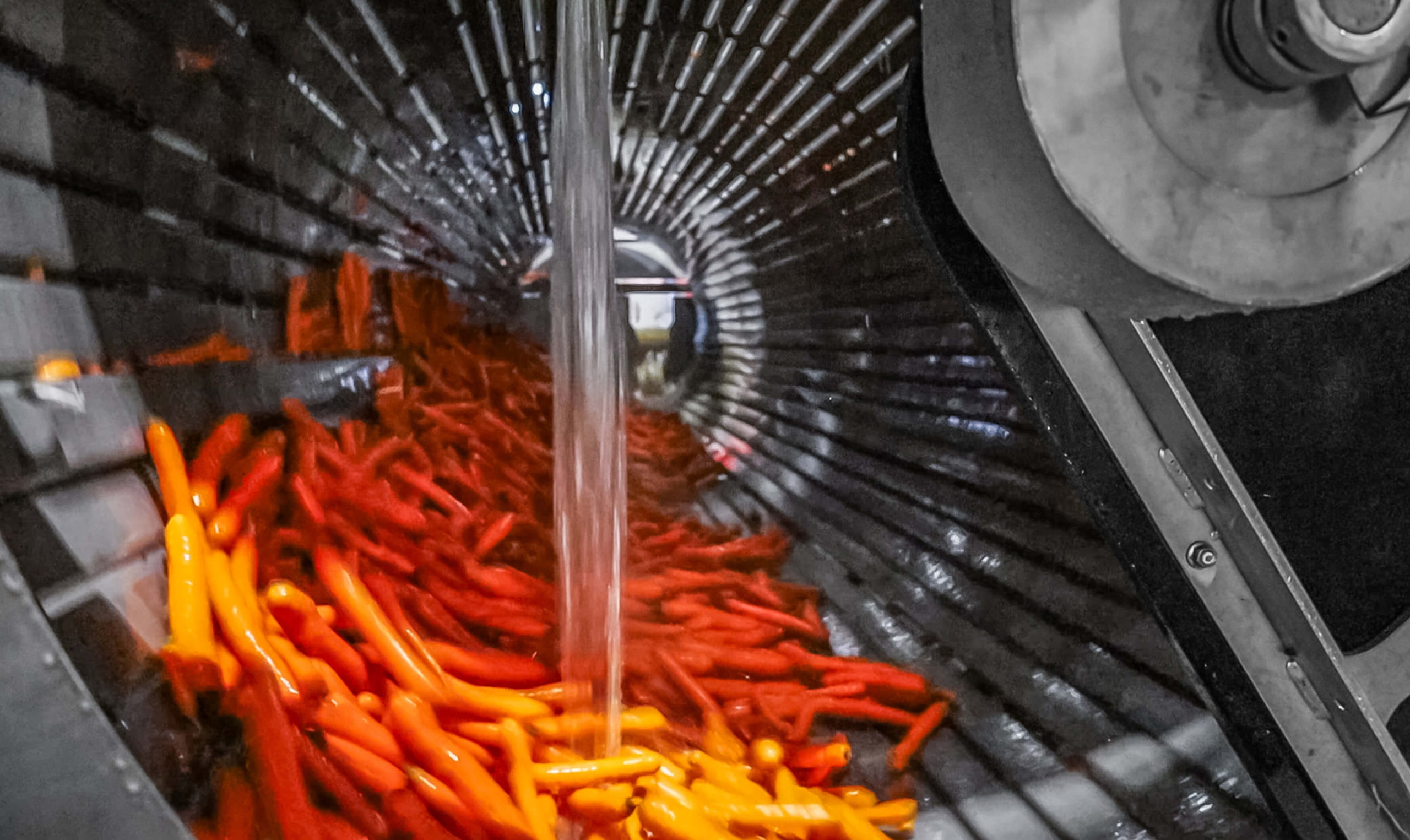

The washing machine C type is a dry washer. In this type of washing machine, the produce is not submerged in water. Rotating the drum sets the produce in motion, creating friction between the produce, and causing the produce to be “rubbed” clean. The produce is cleaned using a spraying tube mounted inside the drum.

The drum of the washing machine plays a very important role in produce cleaning. The choice of a drum depends on the crop and soil condition. The washing machine C type has different drum options. Various cleat options inside the drum are available to provide suitable agitation.

In washing machine C type the flow of produce is controlled by a drum valve, which can be operated manually or automatically. The height of the subframe can vary from 0-3 meters. The water gutter is made from stainless steel AISI304.

Characteristics

  • Rinsing the produce by friction in a rotating drum
  • Variable speed control
  • Round or octagon shape of drums are available to choose from
  • Construction of the drum can be U profile or perforated
  • Cleats available to control flow produce on outfeed of drum
  • Cleats inside the drum provide good agitation of produce

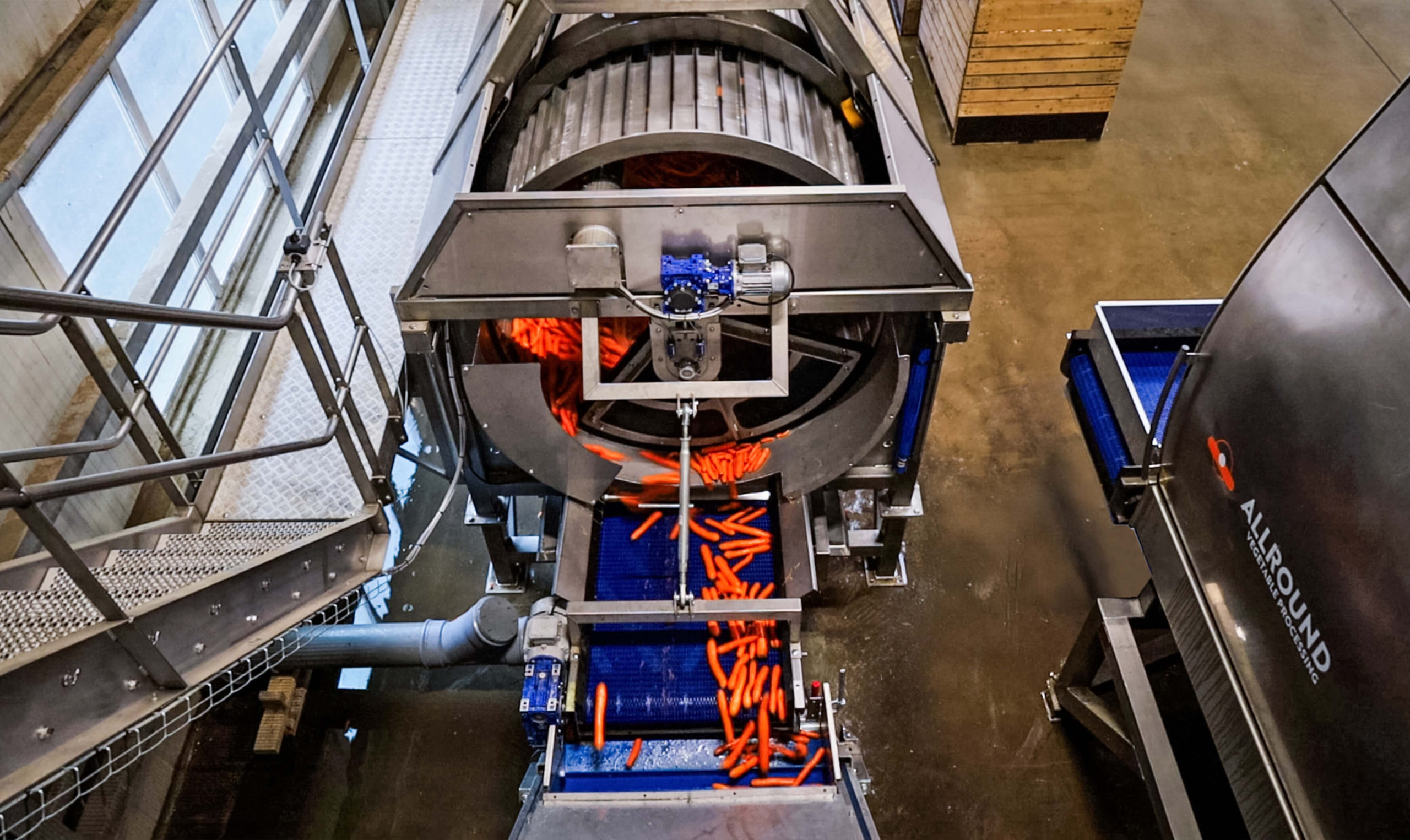

  • Manual or automatic outfeed drum valve
  • Drum stabilizer and alignment rollers

Specifications

  C 170 C 300 C 450 C 500 C 600 C 800
Length of the drum (in cm) 170 300 450 500 600 800
Diameter of the drum (in cm) 80 100 120 160 190 160

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
Painted galvanized mild steel
Frame is made from thermal zinc sprayed and painted mild steel. The bearings and drive/idle rollers are from mild steel
  • Material and treatment (plating)
Zinc plated steel
The plating is made from zinc plated steel
Stainless steel
The plating is made from stainless steel AISI304
  • Infeed
Bin
The infeed of the washing machine is a reception bin
Conveyor
The infeed of the washing machine is made for a conveyor
Flume
The infeed of the washing machine is made for a flume
  • Drum shape
Round
The drum is round shaped
Octagon
The drum is octagon shaped
  • Drum
U-profile gap 10 mm
The drum is made of u-profile material and the gaps are 10 mm
Perforated plate round 12 mm
The drum is made of perforated plate with rounds 12 mm
Perforated plate slot 12 x 40 mm
The drum is made of perforated plate with slots 12 x 40 mm
  • Material and treatment (cleats)
Stainless steel
The cleats are made of stainless steel AISI304
Rubber
The cleats are made of rubber
  • Cleats
Straight
The type of cleats is straight
Turned
The type of cleats is turned
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Adjustment drum valve
Manual
The outlet valve can be adjusted manually
Automatic
The outlet valve can be adjusted automatically
  • Material and treatment (subframe)
Painted mild steel
It is made from painted mild steel
Stainless steel
It is made from stainless steel AISI304
Galvanized steel
It is made from galvanized steel
  • Height of subframe
Height of subframe
0 to 3 meter
  • Water gutter
Water collection
The water gutter is made from stainless steel AISI304
