Box tipper
The box tippers are designed to feed processing lines or machines.
The principle is that a box is placed in the machine,
which then slowly tilts the box so that a hopper or elevator is filled.
Types and specifications
![Z 160 600×600](https://www.allroundvp.com/wp-content/uploads/2018/01/Z-160-600x600-1.jpg)
Z 160
Rotation angle (Max.) | 140° |
Width of the box (Min.-Max.) in cm | 100-160 |
Height of the box (Min.-Max.) in cm | 90-140 |
Depth of the box (Min.-Max.) in cm | 80-120 |
Weight of the box (Max.) in kg | 1250 |
![Z 180 600×600-1](https://www.allroundvp.com/wp-content/uploads/2018/01/Z-180-600x600-1-1.jpg)
Z 180
Rotation angle (Max.) | 140° |
Width of the box (Min.-Max.) in cm | 162-180 |
Height of the box (Min.-Max.) in cm | 90-140 |
Depth of the box (Min.-Max.) in cm | 80-120 |
Weight of the box (Min.-Max.) in kg | 2500 |
![ZT1604](https://www.allroundvp.com/wp-content/uploads/2018/01/ZT1604.jpg)
ZT 120
Rotation angle (Max.) | 170° |
Width of the box (Min.-Max.) in cm | 80-120 |
Height of the box (Min.-Max.) in cm | 85-125 |
Depth of the box (Min.-Max.) in cm | 80-120 |
Weight of the box (Max.) in kg | 1200 |
![3127377b-7d1f-45c7-814b-cffc5634cba9](https://www.allroundvp.com/wp-content/uploads/2020/09/3127377b-7d1f-45c7-814b-cffc5634cba9-1.jpg)
ZT 160
Rotation angle (Max.) | 170° |
Width of the box (Min.-Max.) in cm | 80-160 |
Height of the box (Min.-Max.) in cm | 85-125 |
Depth of the box (Min.-Max.) in cm | 80-120 |
Weight of the box (Max.) in kg | 1500 |
![ZT 160 600×600 copy](https://www.allroundvp.com/wp-content/uploads/2018/01/ZT-160-600x600-copy.jpg)
ZT 180
Rotation angle (Max.) | 170° |
Width of the box (Min.-Max.) in cm | 80-180 |
Height of the box (Min.-Max.) in cm | 85-125 |
Depth of the box (Min.-Max.) in cm | 80-120 |
Weight of the box (Max.) in kg | 1750 |

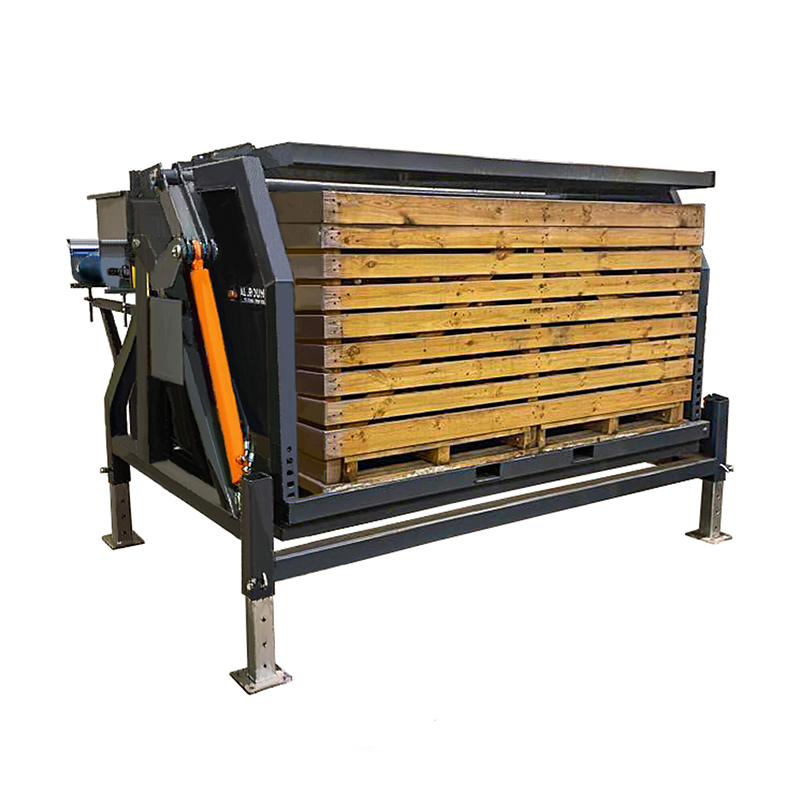

![5bd7c045-ea62-48f0-b53f-2bb2b988b250](https://www.allroundvp.com/wp-content/uploads/2020/09/5bd7c045-ea62-48f0-b53f-2bb2b988b250-1.jpg)
ZT 240
Rotation angle (Max.) | 170° |
Width of the box (Min.-Max.) in cm | 80-240 |
Height of the box (Min.-Max.) in cm | 85-125 |
Depth of the box (Min.-Max.) in cm | 80-120 |
Weight of the box (Max.) in kg | 2500 |

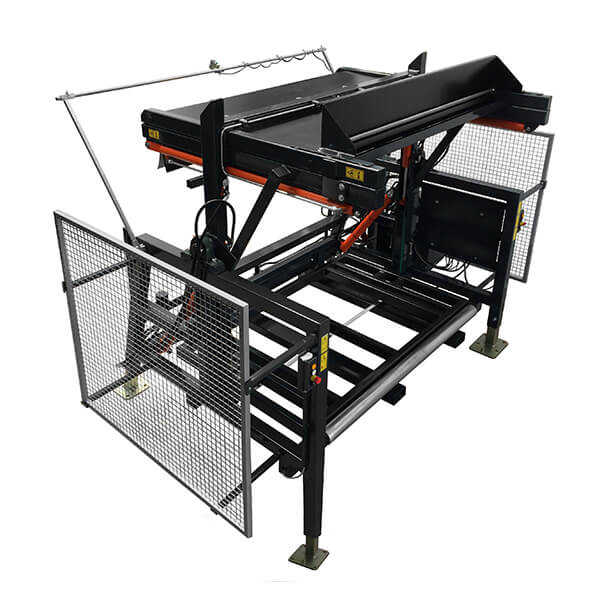

![ZC 160 600×600 copy](https://www.allroundvp.com/wp-content/uploads/2018/01/ZC-160-600x600-copy.jpg)
ZD 120
Rotation angle (Max.) | 135° |
Width of the box (Min.-Max.) in cm | 100-120 |
Height of the box (Min.-Max.) in cm | 90-100 |
Depth of the box (Min.-Max.) in cm | 100-120 |
Weight of the box (Max.) in kg | 1000 |
![ZD150600x600](https://www.allroundvp.com/wp-content/uploads/2018/01/ZD150600x600.jpg)
ZD 150
Rotation angle (Max.) | 135° |
Width of the box (Min.-Max.) in cm | 140-150 |
Height of the box (Min.-Max.) in cm | 90-100 |
Depth of the box (Min.-Max.) in cm | 100-120 |
Weight of the box (Max.) in kg | 1250 |
![Droplimit-ZD-160 Droplimit ZD 160](https://www.allroundvp.com/wp-content/uploads/2017/08/Droplimit.png)
ZD 160
Rotation angle (Max.) | 135° |
Width of the box (Min.-Max.) in cm | 150-160 |
Height of the box (Min.-Max.) in cm | 100-125 |
Depth of the box (Min.-Max.) in cm | 100-120 |
Weight of the box (Max.) in kg | 1500 |
![ZC 160 600×600 copy1](https://www.allroundvp.com/wp-content/uploads/2018/01/ZC-160-600x600-copy1.jpg)
ZD 180
Rotation angle (Max.) | 135° |
Width of the box (Min.-Max.) in cm | 170-180 |
Height of the box (Min.-Max.) in cm | 100-125 |
Depth of the box (Min.-Max.) in cm | 100-120 |
Weight of the box (Max.) in kg | 1700 |
![ZC 160 600×600](https://www.allroundvp.com/wp-content/uploads/2018/01/ZC-160-600x600-1.jpg)
ZC 160
Rotation angle (Max.) | 140° |
Width of the box (Min.-Max.) in cm | 100-160 |
Height of the box in cm | 125 cm |
Depth of the box (Min.-Max.) in cm | 80-120 |
Weight of the box (Max.) in kg | 2500 |
Options
Material and treatment (frame)
- Painted mild steelFrame and plating is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
- Hot dipped galvanizedFrame is made from hot dipped galvanized steel. The bearings and drive/idle rollers are from mild steel. The plating is from stainless steel
Electrical control

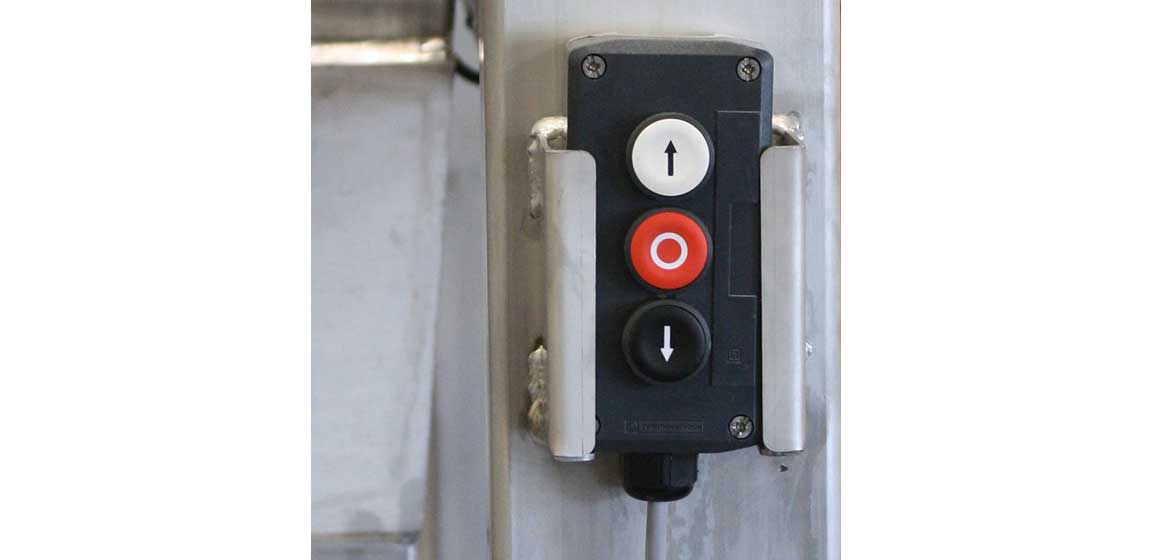

- Stand-aloneMotors, necessary sensors, switch box and control box
Material and treatment (electrical panel)
- Painted mild steelThe electrical panel is made from painted mild steel
- Stainless steelThe electrical panel is made from stainless steel
Wireless remote control
- WirelessA wireless remote control is included. The machine can be controlled from a distance

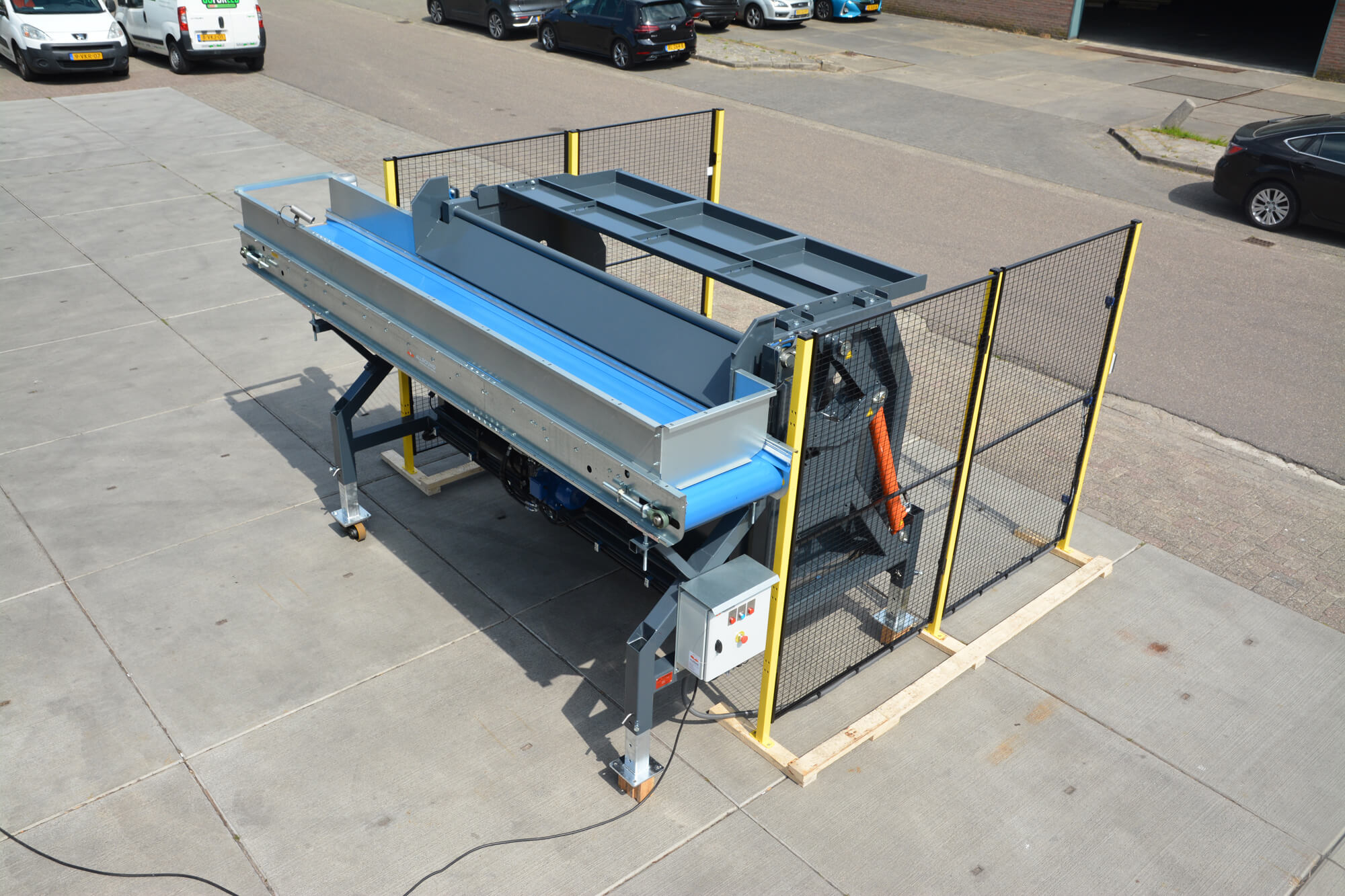

Safety fence
- FenceSafety fences with a sensor are included. The sensor detects if someone walks between the fences and will stop the functioning of the machine
Emptying function
- Shake functionThe box can be shaken to try take out the last product left in the box
Dosing function
- SensorA dosing sensor detects when the produce piles up on the belt and when the box needs to be stopped or lifted
Frequency inverter
- Speed adjustmentA frequency inverter will control the tipping speed of the box tipper
