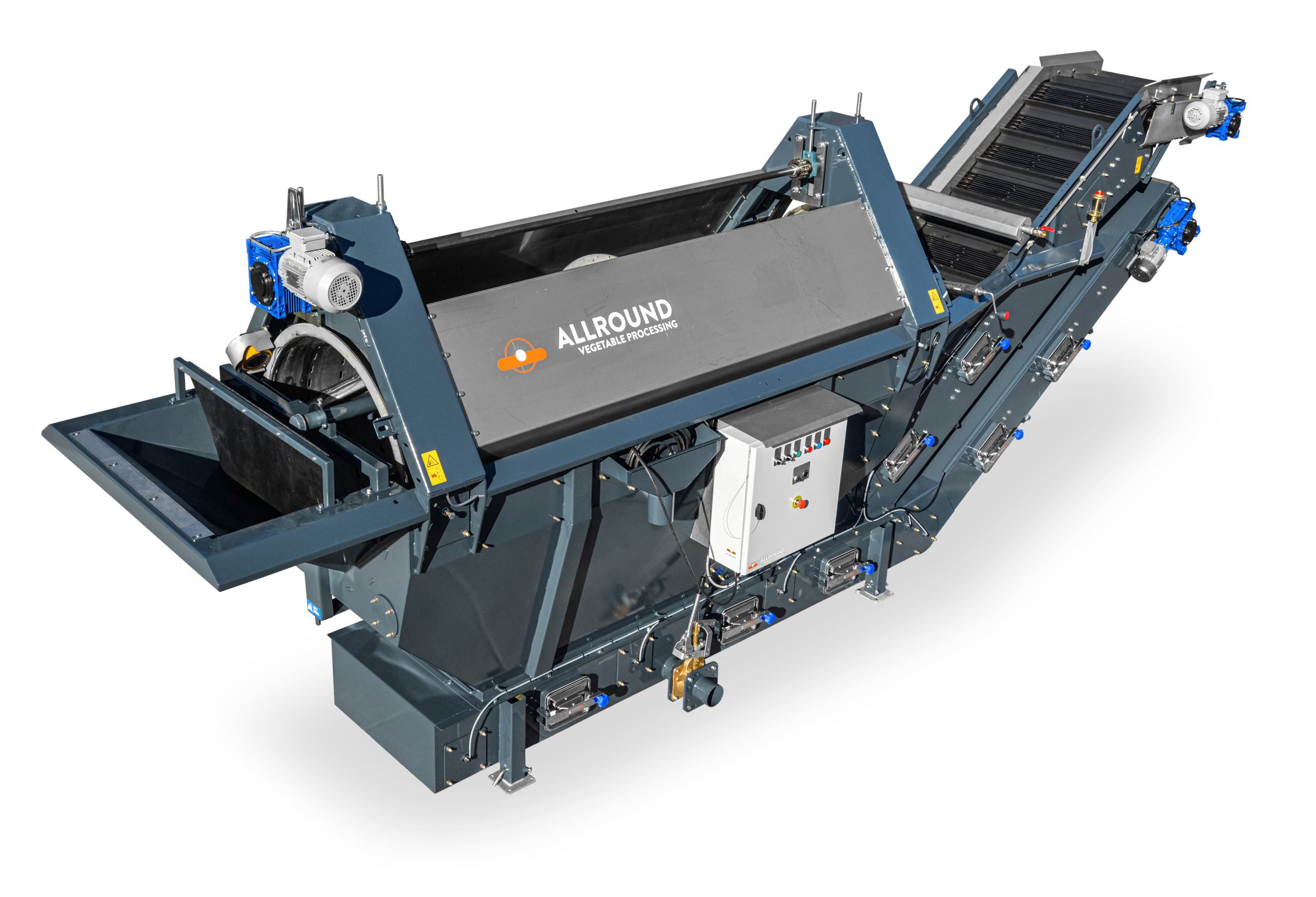

Washing machine UK

​The vegetable washing machine is designed to clean produce by removing dirt and sludge from it.

Product Information

TIn a UK type washing machine, produce can be submerged in water fully or partially while being washed. The produce enters the machine through an infeed chute equipped with a water inlet to prevent clay and soil from adhering together. As the drum rotates, produce rub against each other and the drum, providing a gentle cleaning. Cleats inside the drum improve washing efficiency.

In this vegetable washing machine, we have included a slurry chain that takes out the sludge in the machine. Because of this, the UK type vegetable wash line is particularly suitable to operate with an internal water recirculation system.

Characteristics

  • Removable side panels – Easy to access internal parts

  • Variable speed-controlled drum – Speed adjustment to control washing intensity

  • Drum stabilizer and alignment rollers

  • Round and octagon shapes of drums are available to choose from

  • Construction of the drum can be U-profile or perforated

  • Straight or curved cleats inside the drum provide good agitation and control product movement inside the drum

  • Inspection hatches for quick, easy cleaning and maintenance

  • Water management can be with manual or automatic valves with valves and level meters

  • Spray tube on the outfeed of the produce conveyor to spray fresh water

  • Easily accessible drive system and positioned out of the water

Specifications

UK 300 – 100 UK 450 – 120 UK 500 – 160
Length of the drum (in cm) 300 450 500
Diameter of the drum (in cm) 100 120 160

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
Zinc sprayed painted mild steel
Frame is made from sandblasted, zinc sprayed and painted mild steel. The bearings and drive/idle rollers are from mild steel
  • Material and treatment (plating)
Zinc plated steel
The plating is made from zinc plated steel
Stainless steel
The plating is made from stainless steel AISI304
  • Drum shape
Round
The drum is round shaped
Octagon
The drum is octagon shaped
  • Drum
U-profile gap 10 mm
The drum is made from stainless steel AISI304, u-profile with gaps 10 mm
Perforated plate round 12 mm
The drum is made from stainless steel AISI304, perforated plate with rounds 12 mm
Perforated plate slot 12 x 40 mm
The drum is made from stainless steel AISI304, perforated plate with slots 12 x 40 mm
  • Material and treatment (cleats)
Rubber
The cleats are made of rubber
  • Cleats
Straight
The cleats are straight shaped
Turned
The cleats are shaped turned
  • Material and treatment (product conveyor)
Mild steel
The product conveyor is made from mild steel, covered with rubber. The cleats height is 50 mm. The gap size is 5 mm
Stainless steel
The product conveyor is made from stainless steel AISI304, covered with rubber. The cleats height is 50 mm. The gap size is 5 mm
  • Waste chain conveyor
Chain conveyor
The chain is made from rubber
The cleats are made from steel and the cleats height is 60 mm and 30 mm below the chain
The distance between the cleats is 200 mm
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Water management
Manual
The valves can be operated manually. The water level must be regulated manually
Automatic
The valves are operated automatically. The water level is regulated automatically
  • Cleaning
Spray tube product conveyor
A spray tube is included to clean the produce
  • Adjustment drum valve
Manual
The outlet valve can be adjusted manually
Automatic
The outlet valve can be adjusted automatically
  • Material and treatment (subframe)
Painted mild steel
It is made from painted mild steel
Stainless steel
It is made from stainless steel AISI304
Galvanized steel
It is made from galvanized steel
  • Height of subframe
Height of subframe
0 to 3 meter
