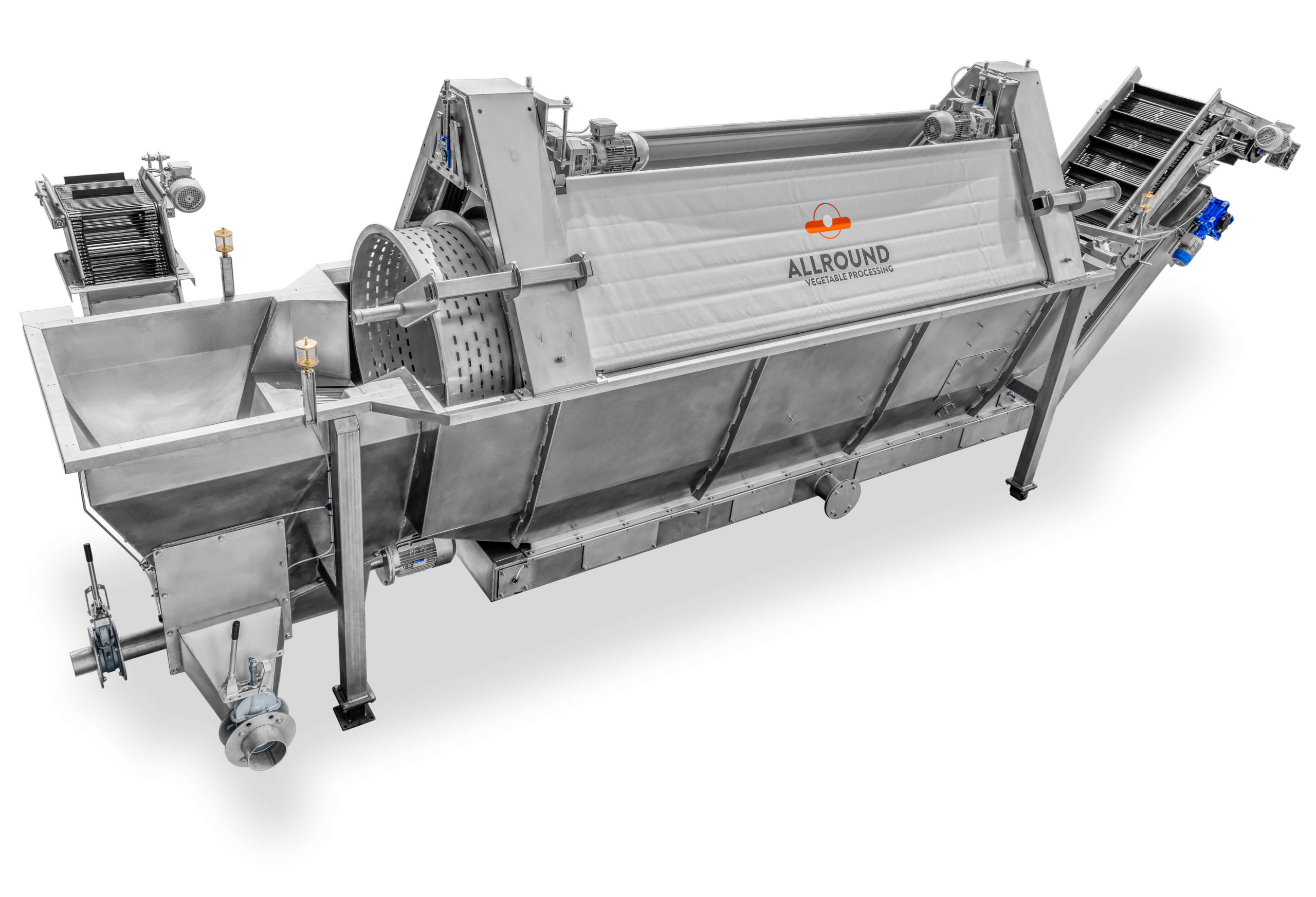

Washing machine PDK

​The washing machine effectively removes stones, clods, debris, and sludge from produce.

Product Information

The PDK range of washing machines are designed for potatoes that are grown on soil with a lot of clods and stones. The PDK type vegetable washing machine is particularly suitable for operating with an internal water recirculation system. Furthermore, this design extends the life of the following wash line systems, which ensures that only the intended product passes through to the next stages of the wash line.

The process starts with the infeed. After falling into the water, the product floats to a rotating drum. While the product floats, heavy stones and debris sink into a waste belt and are efficiently removed to protect the produce. The rotating drum transports the produce towards a product belt. During transportation, the produce is washed inside the drum using water. The vegetable wash line has a slurry chain under the machine. This slurry chain removes sludge from the bottom of the machine.

Characteristics

  • Designed to integrate with a destoner for better removal of heavy impurities like stones, clods, and debris

  • The drum is available in round or octagonal shape as per requirement

  • The slurry chain removes sludge from the bottom of the machine

  • Water management can be with manual or automatic valves with valves and level meters

  • A spray tube is included to clean the produce

  • Includes both product and stone conveyors for smooth operation

  • Construction of the drum can be U-profile or perforated

  • Cleats inside the drum provide good agitation and control product movement inside the drum

Specifications

PDK 300 – 100 PDK 450 – 120 PDK 500 – 160
Length of the drum (in cm) 300 450 500
Diameter of the drum (in cm) 100 120 160

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
Zinc sprayed painted mild steel
Frame is made from sandblasted, zinc sprayed and painted mild steel. The bearings and drive/idle rollers are from mild steel
  • Material and treatment (plating)
Zinc plated steel
The plating is made from zinc plated steel
Stainless steel
The plating is made from stainless steel AISI304
  • Drum shape
Round
The drum is round shaped
Octagon
The drum is octagon shaped
  • Drum
U-profile gap 10 mm
The drum is made from stainless steel AISI304, u-profile with gaps 10 mm
Perforated plate round 12 mm
The drum is made from stainless steel AISI304, perforated plate with rounds 12 mm
Perforated plate slot 12 x 40 mm
The drum is made from stainless steel AISI304, perforated plate with slots 12 x 40 mm
  • Material and treatment (cleats)
Stainless steel
The cleats are made of stainless steel AISI304
Rubber
The cleats are made of rubber
  • Cleats
Straight
The cleats are straight shaped
Turned
The cleats are shaped turned
  • Material and treatment (product conveyor)
Mild steel
The product conveyor is made from mild steel, covered with rubber. The cleats height is 50 mm. The gap size is 5 mm
Stainless steel
The product conveyor is made from stainless steel AISI304, covered with rubber. The cleats height is 50 mm. The gap size is 5 mm
  • Material and treatment (stone conveyor)
Mild steel
The stone conveyor is made from mild steel. The cleats height is 40 mm. The gap size is 10 mm
Stainless steel
The stone conveyor is made from stainless steel AISI304. The cleats height is 40 mm. The gap size is 10 mm
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Water management
Manual
The valves can be operated manually. The water level must be regulated manually
Automatic
The valves are operated automatically. The water level is regulated automatically
  • Cleaning
Spray tube product conveyor
A spray tube is included to clean the produce
  • Adjustment drum valve
Manual
The outlet valve can be adjusted manually
Automatic
The outlet valve can be adjusted automatically
  • Material and treatment (subframe)
Painted mild steel
It is made from painted mild steel
Stainless steel
It is made from stainless steel AISI304
Galvanized steel
It is made from galvanized steel
  • Height of subframe
Height of subframe
0 to 3 meter
