Transport conveyor TCS

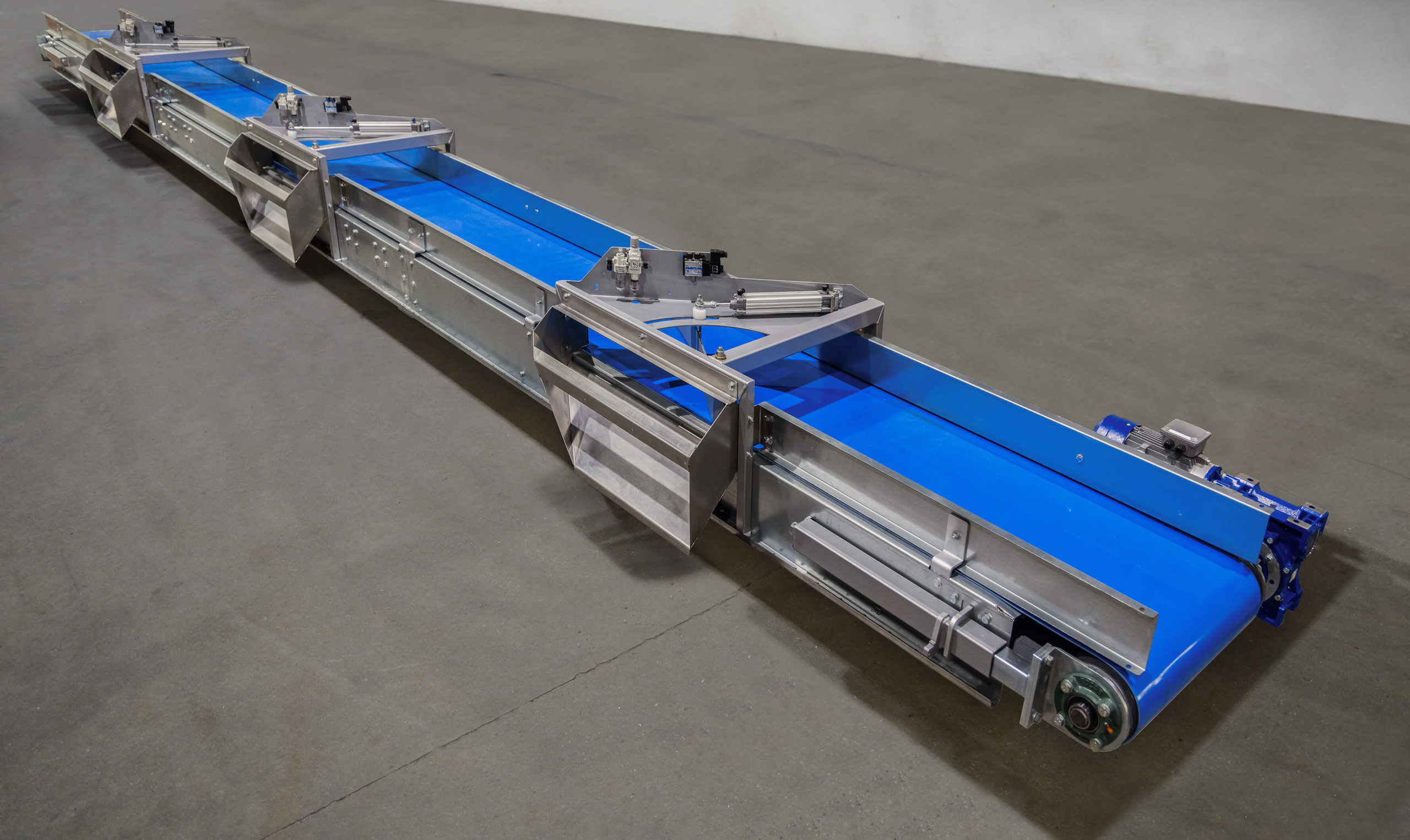

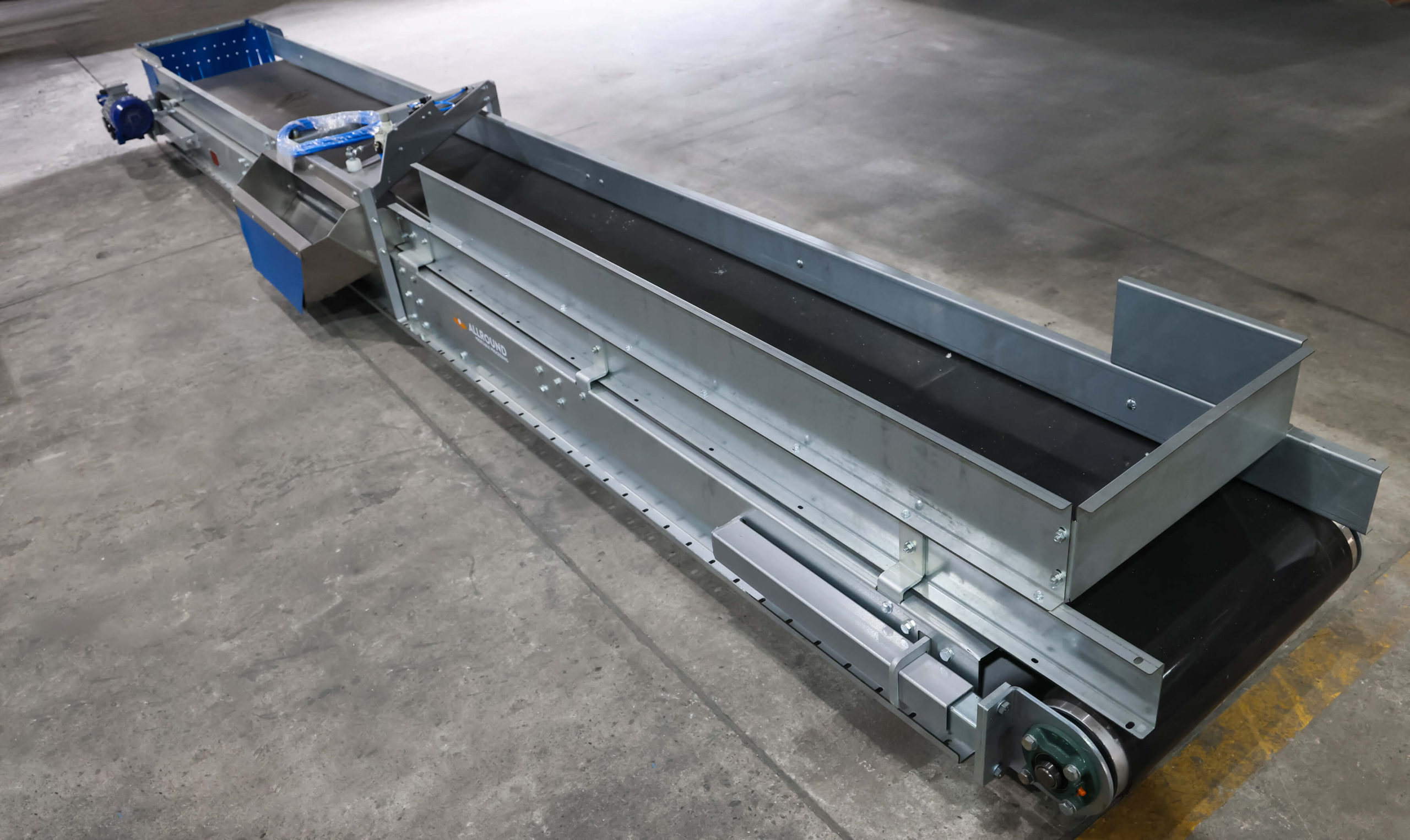

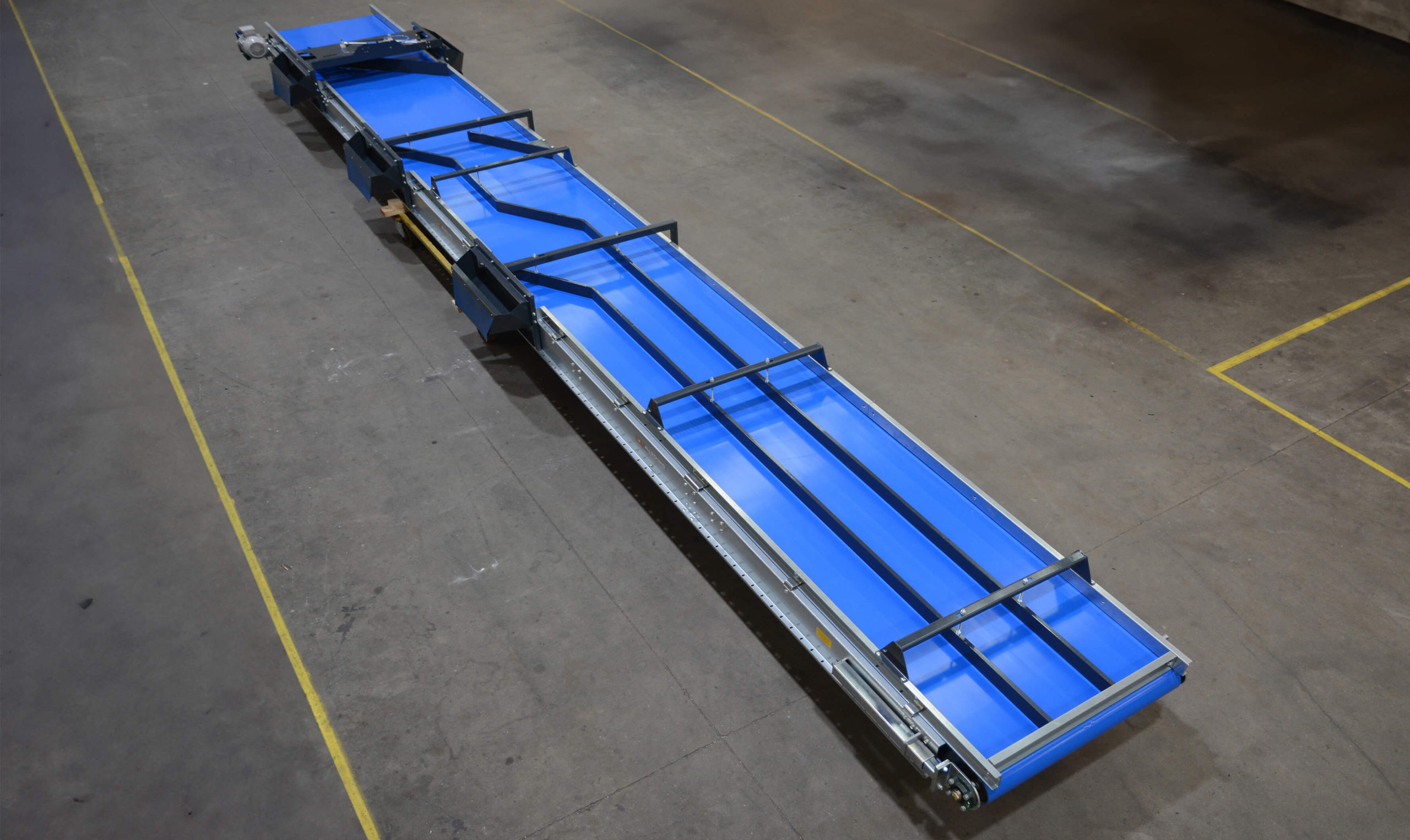

The transport belt is designed for conveying. This type is the transport belt with slides.

Product Information

The transport belt is designed for conveying. This type is the transport belt with slides. The standard conveyor is supplied with a painted mild steel frame, and the bearings and drive/idle rollers are made of mild steel. On demand, the Frame can be supplied with stainless steel AISI304 and zinc plated steel, but the bearings and drive/idle rollers are made of mild steel.

The belt can be made of PVC, PU, and rubber. On demand, A frequency inverter can be included to control the speed. The standard conveyor is supplied with a cover mounted on the bottom and top of the machine, made from zinc plated steel. On demand, it can be made of stainless steel AISI304.

Characteristics

  • Belt available in 60 – 240, in steps of 20 cm, and 100 – 240, in steps of 25 cm
  • The belt can be made of PVC, PU, and rubber

  • On demand, a frequency inverter can be included to control the speed

  • On demand, the topside cover and bottom side cover can be made from zinc plated steel or stainless steel

  • A product sensor is included

Specifications

TCS
Width of the machine (cm) 60 t/m 240, steps of 20 cm
Length of the machine (cm) 100 t/m 2500, steps of 25 cm
Belt speed (m/s) 0.58 m/s (based on 50Hz)

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
Zinc plated steel
Frame is made from zinc plated steel. The bearings and drive/idle rollers are from mild steel
  • Belt
PVC
The belt is made of PVC
PU
The belt is made of PU
Rubber
The belt is made of rubber
  • Slides
Fixed slides
There is fixed slide included
Manual slides
There is slide included that can be adjusted manually
Automatic slides
There is slide included that can be adjusted automatically
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Frequency inverter
Speed adjustment
A frequency inverter is used to control the speed
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Material and treatment (bottomside cover)
Zinc plated steel
A cover is mounted on the bottom of the machine, made from zinc plated steel. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on the bottom of the machine, made from stainless steel AISI304. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
  • Material and treatment (topside cover)
Zinc plated steel
A cover is mounted on top of the machine, made from zinc plated steel. The length of the topside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on top of the machine, made from stainless steel AISI304. The length of the topside cover is 0 t/m 2500, steps of 25 cm
  • Material and treatment (legs)
Stainless steel
The legs are made from stainless steel AISI304
Painted mild steel
The legs are made from painted mild steel
Galvanized steel
The legs are made from galvanized steel
  • Height of legs
Height of legs
0 – 7 meter
  • Divider
Fixed lane
A divider is mounted on the belt, to create 2 product flows. The divider is made from either painted mild steel or stainless steel
  • Switch
Maintenance
A maintenance switch is included
Start/stop
It is used to start and stop the belt
  • Product sensor
Product
The product’s height is determined by the product sensor
  • Bracket
Bracket
Bracket is used to mount the product sensor
  • Motor on top
On top
The motor is placed on top of the machine
  • Extra motor
Extra motor
An extra motor is included to make sure the belt can move both ways. Available options are 0.37 KW, 0.75 KW, 1.1 KW, 1.5 KW, 2.2 KW or 3 KW. If this option is selected, the originally selected power (kW) must be divided between the two motors
