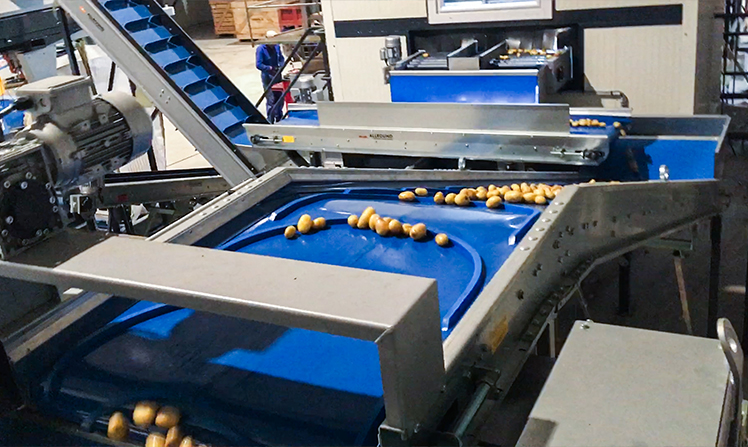

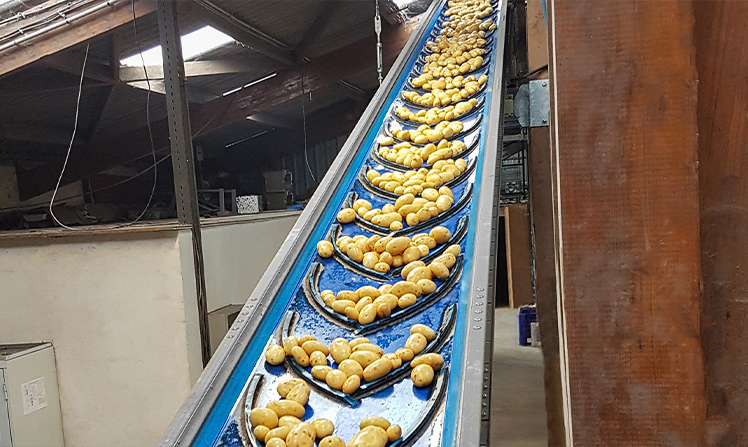

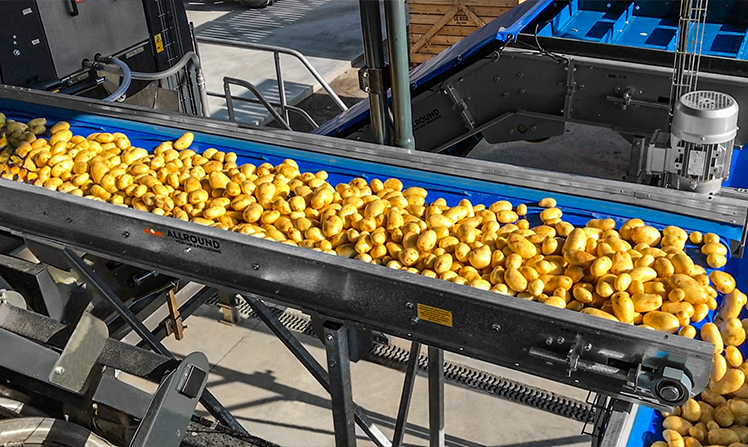

Transport conveyor TCCH

The transport belt is designed for conveying. This type

is the transport belt with high side panels and cleats.

Types and specifications

See More Images

TCCH

Width of the machine (cm) 20, 40, 60, 80, 100, 120
Length of the machine (cm) 100 t/m 2500, steps of 25 cm

Options

Material and treatment (frame)

  • Painted mild steel
    Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel

  • Stainless steel
    Frame is made from stainless steel. The bearings and drive/idle rollers are from mild steel

  • Zinc plated steel
    Frame is made from zinc plated steel. The bearings and drive/idle rollers are from mild steel

Belt

  • PVC
    The belt is made of PVC

  • PU
    The belt is made of PU

  • Rubber
    The belt is made of rubber

Cleats

  • Straight
    The type of cleats is straight

  • Staggered
    The type of cleats is Staggered

Cleats height

  • 40
    The height of the cleats is 40 mm

Electrical control

  • No electric
    Motors only. Wiring, additional sensors and/or control panel are not included

  • Stand-alone
    Motors, necessary sensors, switch box and control box

  • Central control in line
    Motors and necessary sensors

Frequency inverter

  • Speed adjustment
    A frequency inverter is included to control the speed

Material and treatment (electrical panel)

  • Painted mild steel
    The electrical panel is made from painted mild steel

  • Stainless steel
    The electrical panel is made from stainless steel

Material and treatment (bottomside cover)

  • Zinc plated steel
    A cover is mounted on the bottom of the machine, made from zinc plated steel.

  • Stainless steel
    A cover is mounted on the bottom of the machine, made from stainless steel.

  • Length of bottomside cover
    0 t/m 2500, steps of 25 cm

Material and treatment (topside cover)

  • Zinc plated steel
    A cover is mounted on top of the machine, made from zinc plated steel

  • Stainless steel
    A cover is mounted on top of the machine, made from stainless steel

  • Length of topside cover
    0 t/m 2500, steps of 25 cm

Switch

  • Reverse
    It is used to change the direction of the belt

  • Start/stop
    It is used to start and stop the belt
