Transport conveyor TCBH

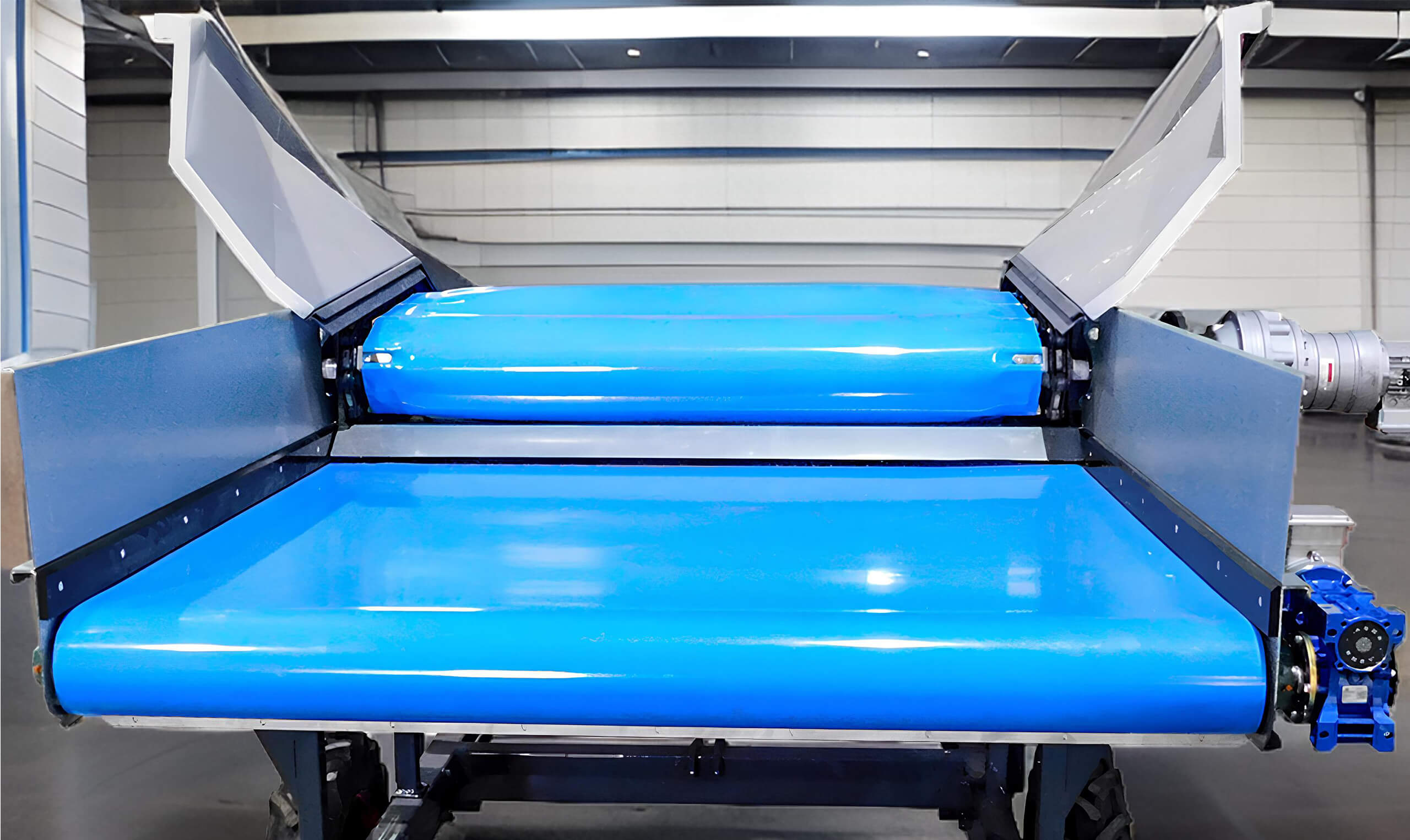

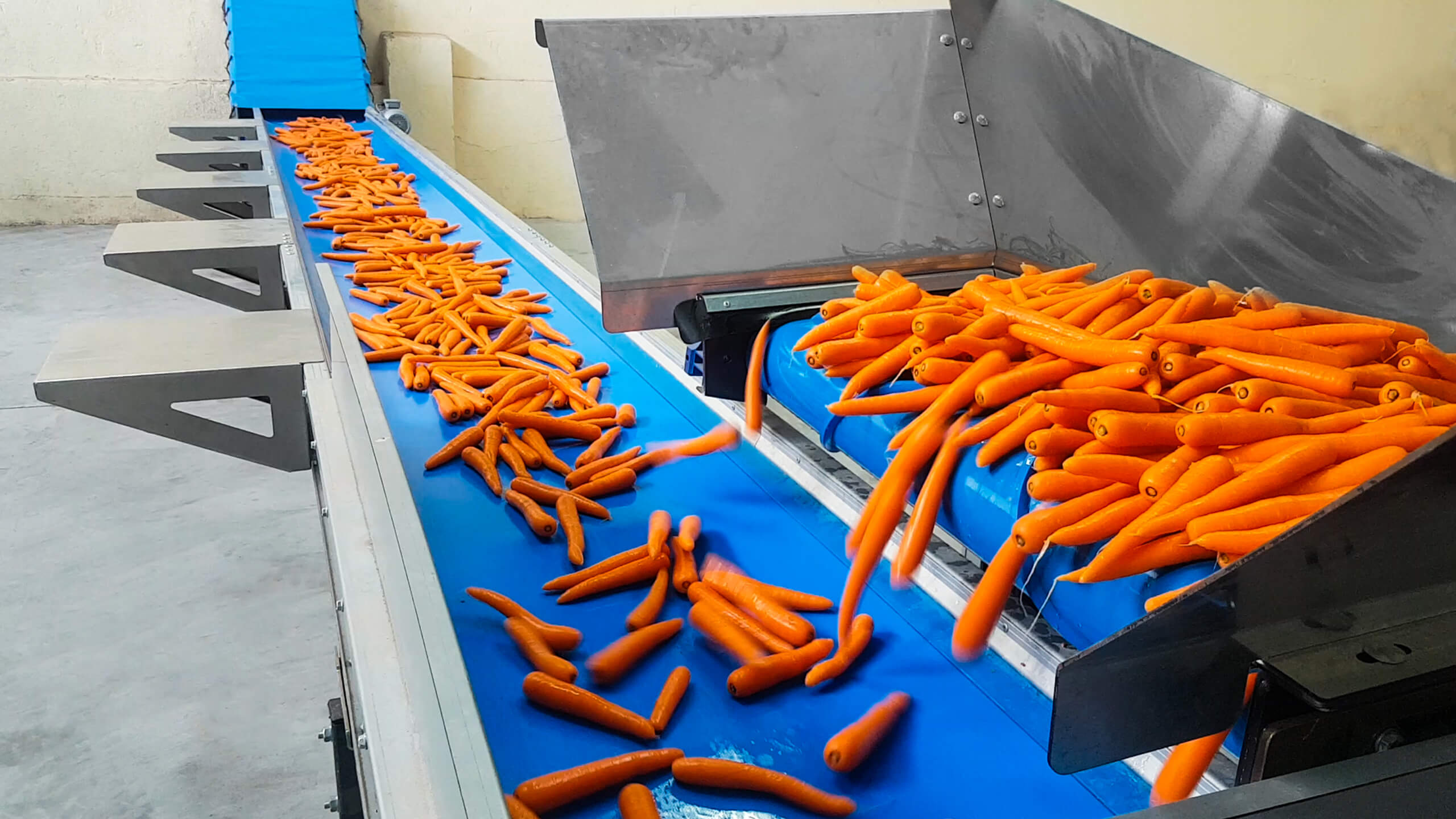

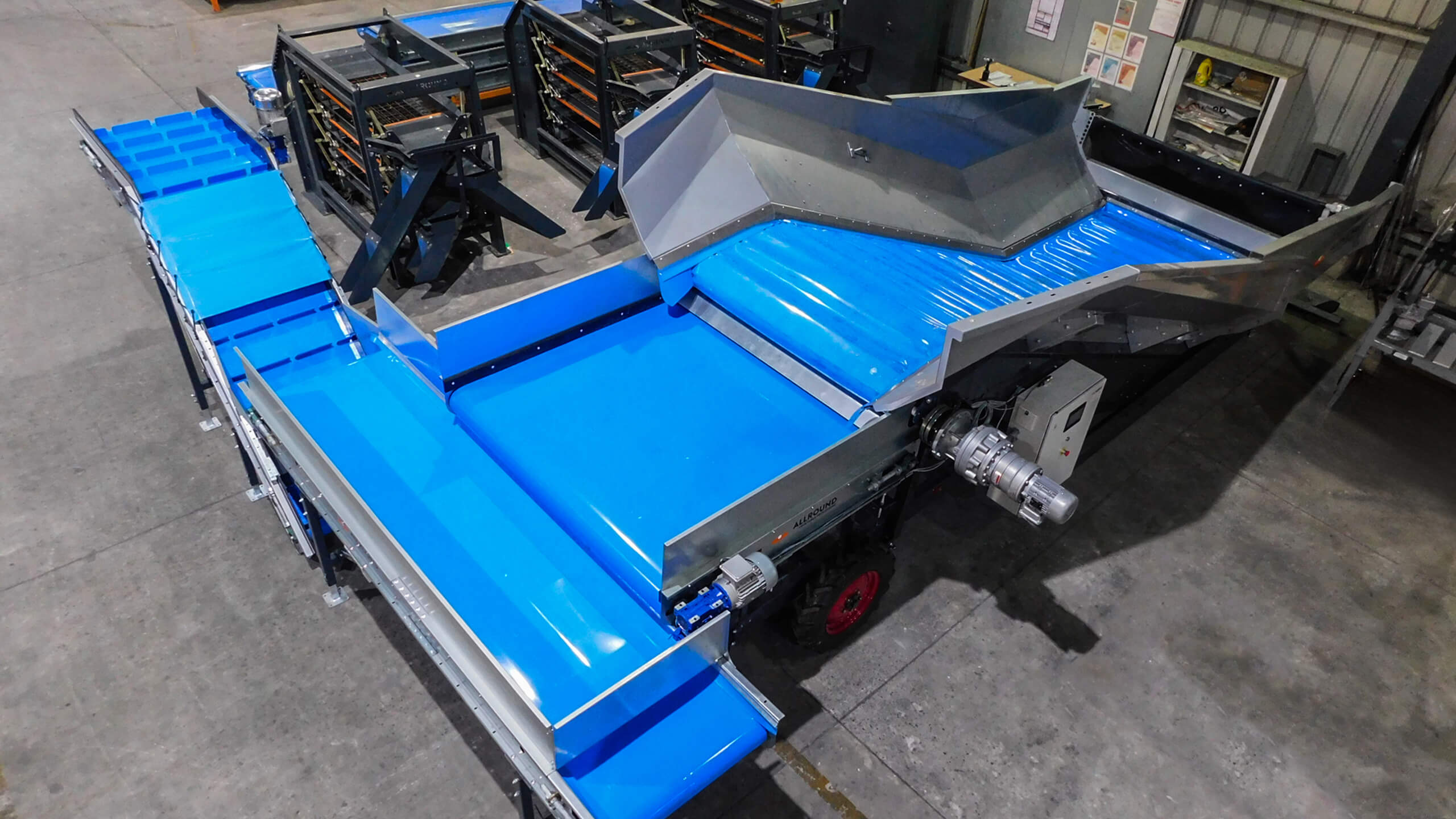

The transport belt is designed for conveying. This type is the transport belt with high side panels and inner frame. On demand, the belt can be made of PVC, PU, or rubber.
The transport belt is designed for conveying. This type is the transport belt with high side panels and inner frame. On demand, the belt can be made of PVC, PU, or rubber. Belts can be supplied with straight cleats and the size of the cleats is 17 x 11 (W x H).
On demand, a cover is mounted on the top and bottom of the machine. This cover can be made from zinc steel or stainless steel. On demand, a frequency inverter is included to control the speed.
Characteristics
- Belt available in 100 – 1200 in steps of 25 cm
- On demand, the type of cleats is straight 17×11
- On demand, the topside cover and bottom side cover can be made from zinc plated steel or stainless steel
- On demand, a frequency inverter is included to control the speed
- Available in various options like zinc plated steel, stainless steel, and painted mild steel
Specifications
| TCBH | |
|---|---|
| Width of the machine (cm) | 20 to 260, steps of 20 or 10 cm |
| Length of the machine (cm) | 100 to 2500, steps of 25 cm |
Options
- Material and treatment (frame)
Zinc plated steel
Frame is made from zinc plated steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
- Belt
PVC
The belt is made of PVC
PU
The belt is made of PU
Rubber
The belt is made of rubber
- Cleats
Straight
The type of cleats is straight
- Cleats size
17 x 11
The size of the cleats is 17 x 11 (W x H)
- Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
- Frequency inverter
Speed adjustment
A frequency inverter is included to control the speed
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
- Material and treatment (bottomside cover)
Zinc plated steel
A cover is mounted on the bottom of the machine, made from zinc plated steel. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on the bottom of the machine, made from stainless steel AISI304. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
- Material and treatment (topside cover)
Zinc plated steel
A cover is mounted on top of the machine, made from zinc plated steel. The length of the topside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on top of the machine, made from stainless steel AISI304. The length of the topside cover is 0 t/m 2500, steps of 25 cm
- Material and treatment (legs)
Stainless steel
It is made from stainless steel AISI304
Painted mild steel
It is made from painted mild steel
Galvanized steel
It is made from galvanized steel
- Height of legs
Height of legs
0 – 7 meter
- Switch
Maintenance
A maintenance switch is included
Reverse
It is used to change the direction of the belt
Start/stop
It is used to start and stop the belt
- Product sensor
Sensor
The product’s height is determined by the product sensor
- Bracket
Bracket
Bracket is used to mount the product sensor
- Motor on top
On top
The motor is placed on top of the machine
- Extra motor
Extra motor
An extra motor is included to make sure the belt can move both ways. Available options are 0.37 KW, 0.75 KW, 1.1 KW, 1.5 KW, 2.2 KW or 3 KW. If this option is selected, the originally selected power (kW) must be divided between the two motors
