Transport conveyor FB

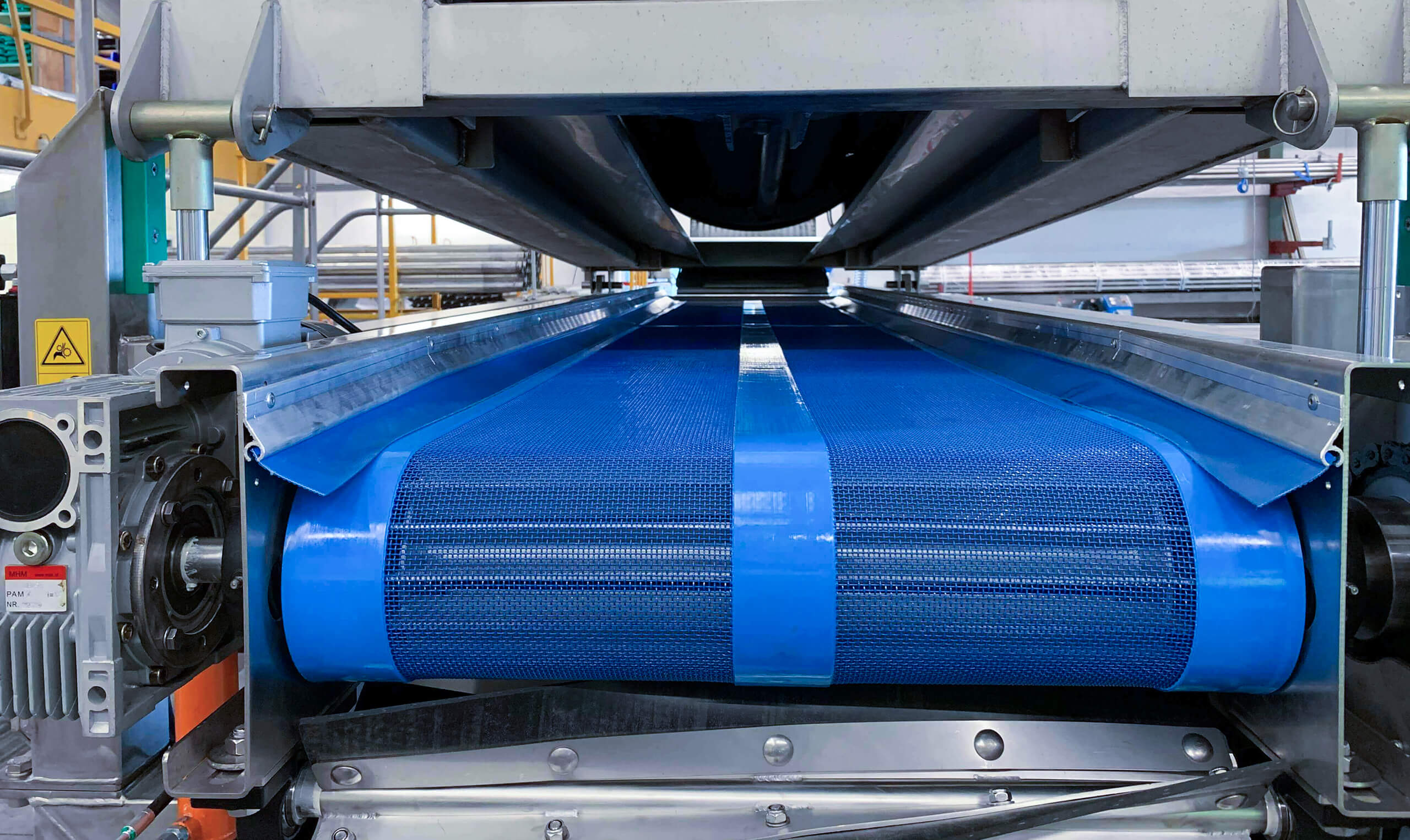

This transport conveyor is designed to convey the organic dirt from the drainage water of the washing line. Depending upon your produce, the belt can be supplied with a square opening of 1 mm, 2 mm, and 3 mm.

Product Information

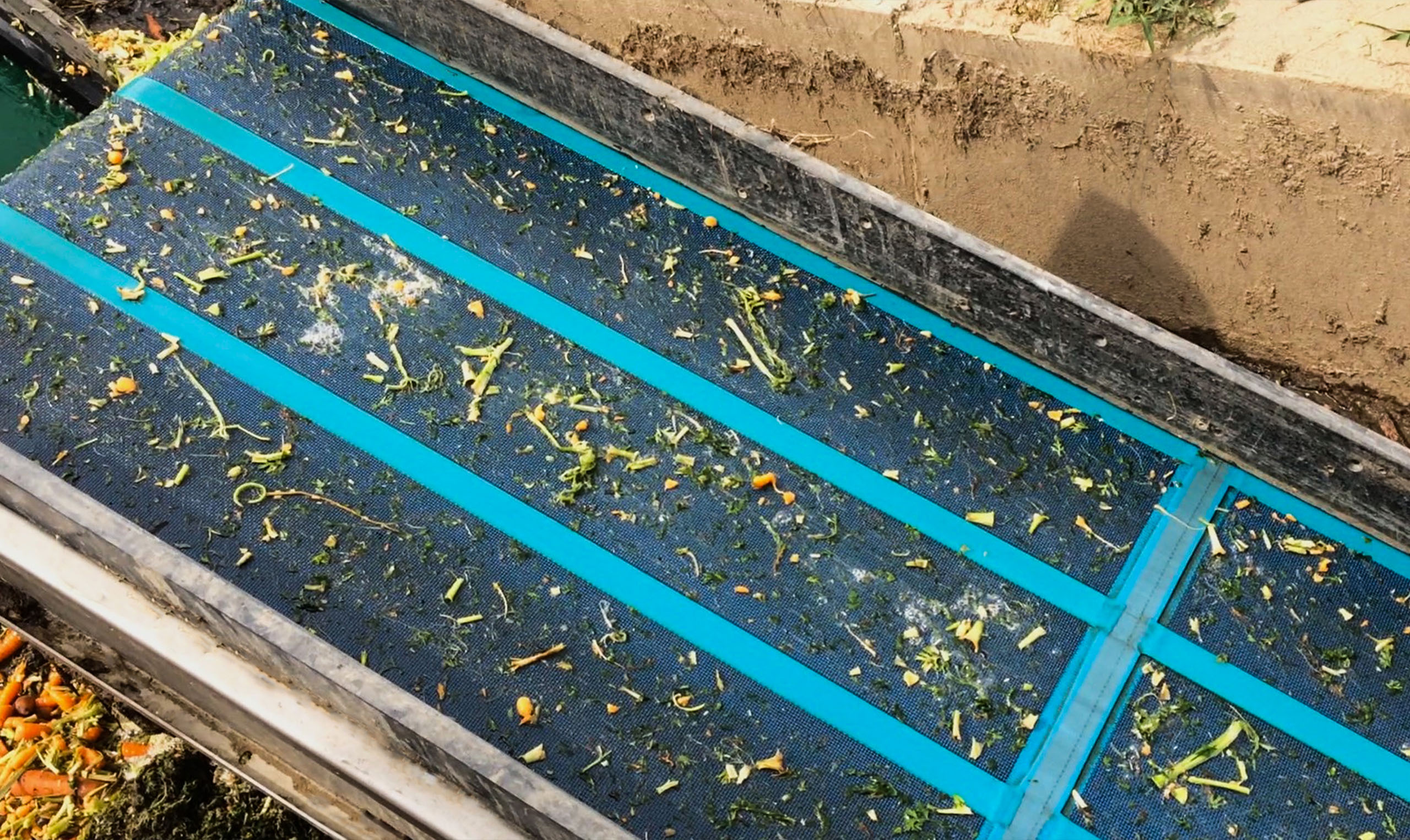

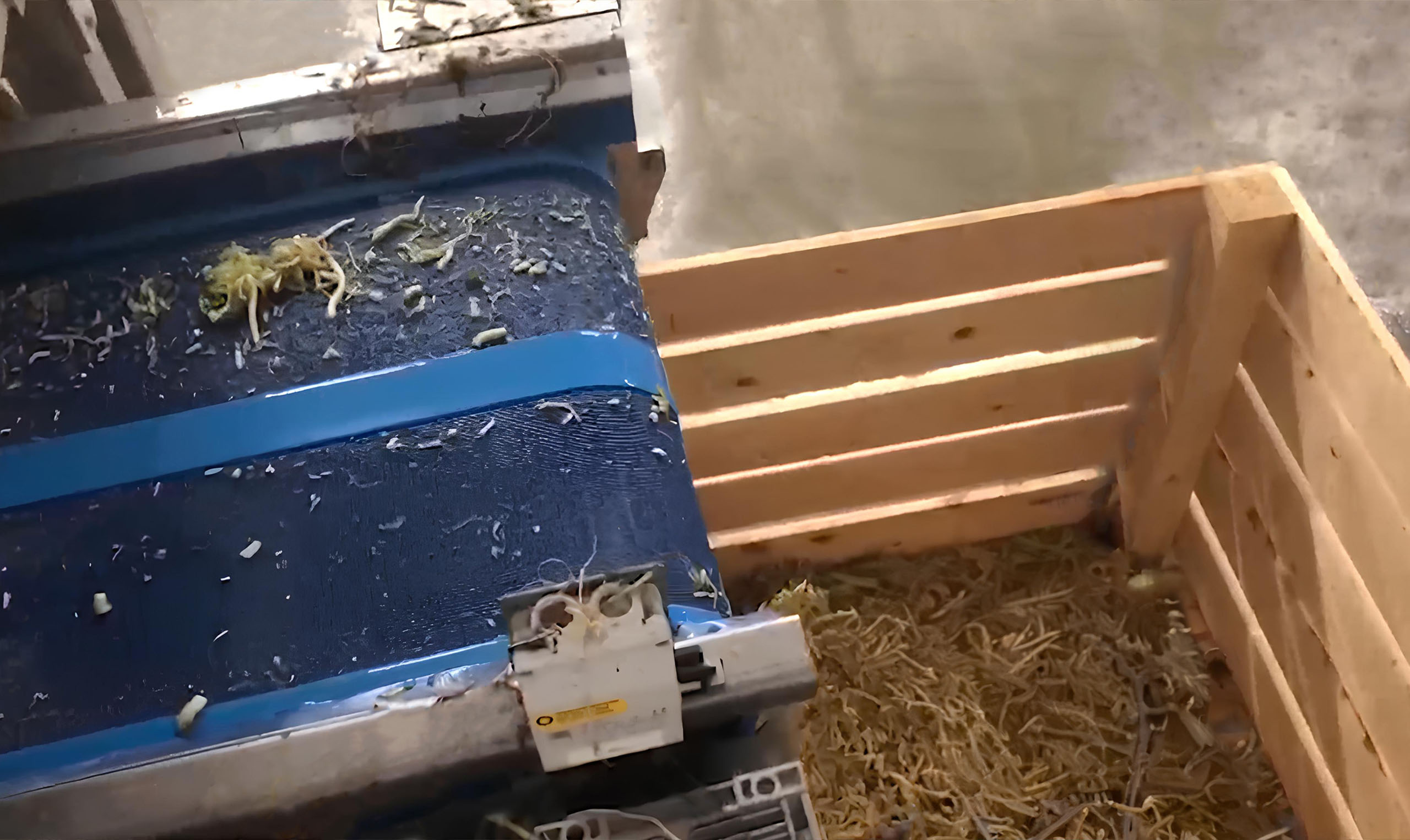

This transport conveyor is designed to convey the organic dirt from the drainage water of the washing line. Water is cleaned through the belt, while dirt stays behind and is transported away. A filter mill is included at the end of the belt to take out dirt that sticks to the belt.

Depending upon your produce, the belt can be supplied with a square opening of 1 mm, 2 mm, and 3 mm. An on demand frequency inverter can be added to control the speed of the belt.

An extra motor can be included on demand to ensure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors.

Characteristics

  • On demand, a square can be supplied with opening of 1 mm, 2 mm, and 3 mm
  • A frequency inverter can be added on demand
  • An extra motor can be included on demand
  • On demand, the machine can be supplied in stainless steel and mild steel
  • Available in 40, 60, 80, 100, and 120 cm width
  • On demand, the conveyor can be supplied with a product sensor on and off the conveyor to detect the level of the waste Inside the dirt box
  • Various lengths of conveyor are available according to your line design

Specifications

Model FB 40 FB 60 FB 80 FB 100 FB 120
Width of the machine (cm) 40 60 80 100 120
Length of the machine (cm) 125 t/m 1000, steps of 25 cm 125 t/m 1000, steps of 25 cm 125 t/m 1000, steps of 25 cm 125 t/m 1000, steps of 25 cm 125 t/m 1000, steps of 25 cm

Options

  • Material and treatment (frame)
Stainless steel
Frame is made from stainless steel. The bearings and drive/idle rollers are from mild steel
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Zinc plated steel
Frame is made from zinc plated steel. The bearings and drive/idle rollers are from mild steel
  • Belt
Mesh square opening 1 mm
Mesh belt, with square opening of 1 mm
Mesh square opening 2 mm
Mesh belt, with square opening of 2 mm
Mesh square opening 3 mm
Mesh belt, with square opening of 3 mm
  • Electrical control
No electric
Motors only. Wiring, additional sensors and/or control panel are not included
Stand-alone
Motors, necessary sensors, switch box and control box
Central control in line
Motors and necessary sensors
  • Frequency inverter
Speed adjustment
A frequency inverter is included to control the speed
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel
  • Legs
Amount of legs
Amount of legs depends on the design of belt
  • Switch
Maintenance
A maintenance switch is included
Reverse
A reverse switch is included
Start/stop
A start/stop switch is included
  • Product sensor
Sensor
A product sensor is included
  • Bracket
Bracket
There is a bracket included
  • Extra motor
0.37 kW
An extra 0.37 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
0.75 kW
An extra 0.75 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
1.1 kW
An extra 1.1 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
1.5 kW
An extra 1.5 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
2.2 kW
An extra 2.2 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
3 kW
An extra 3 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
