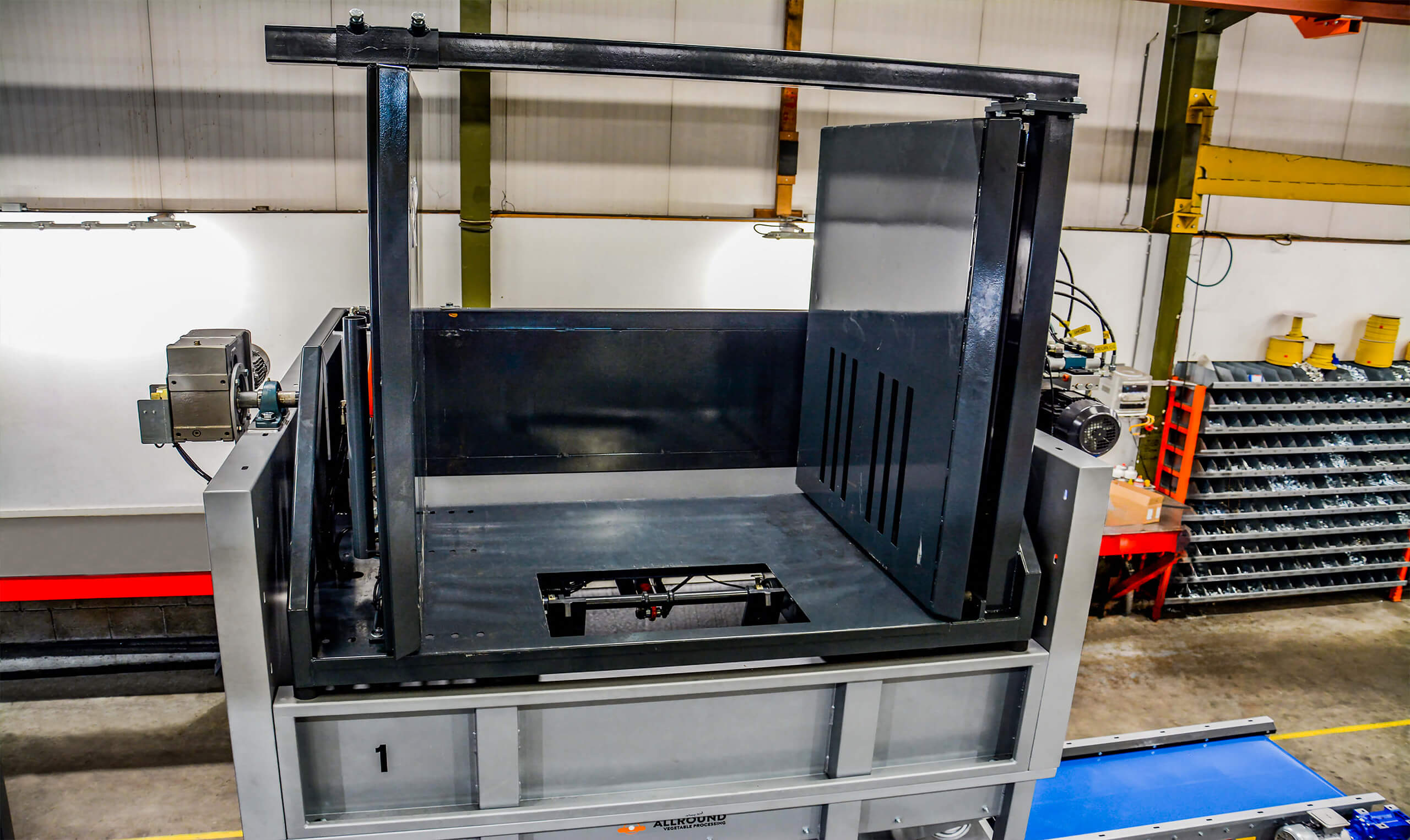

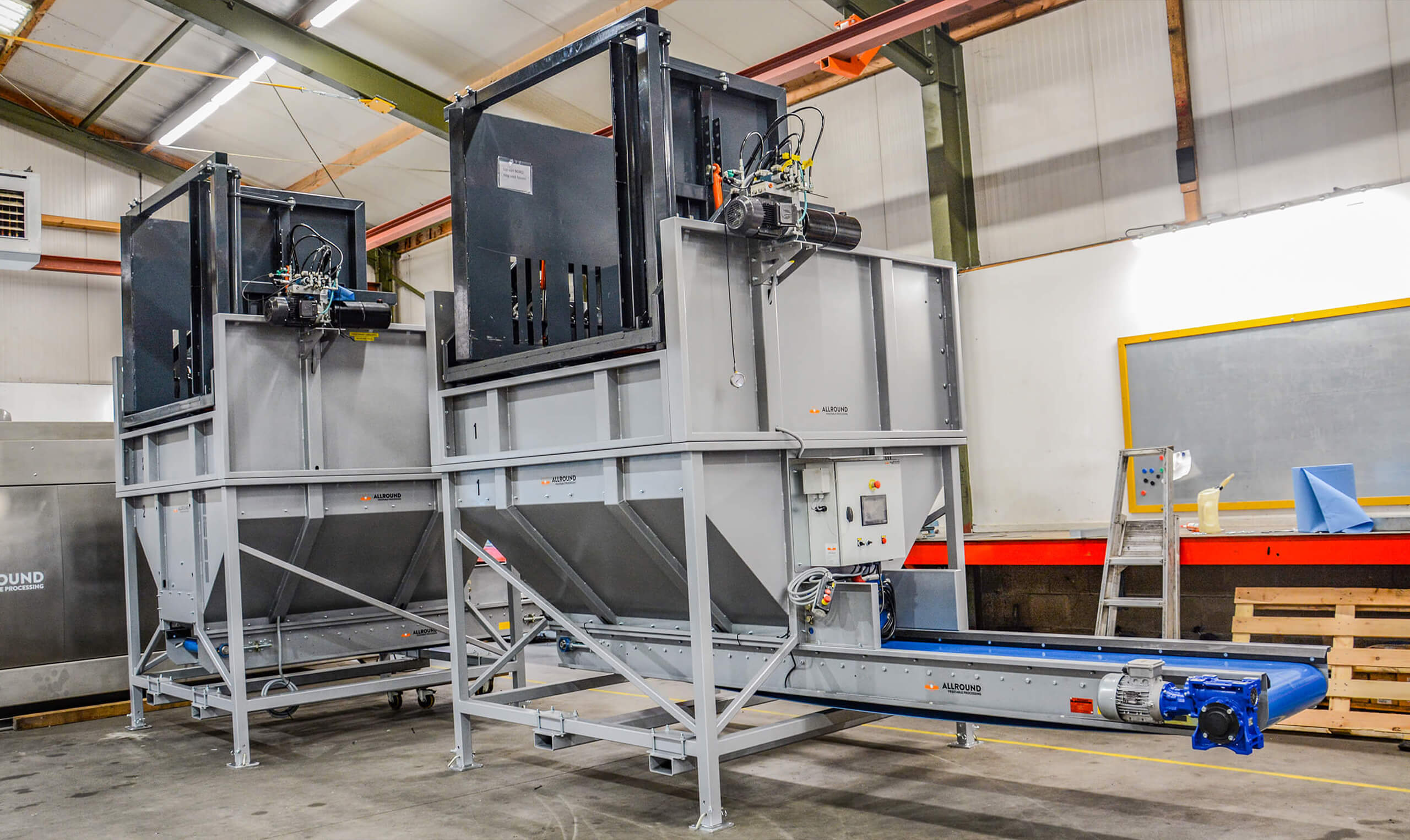

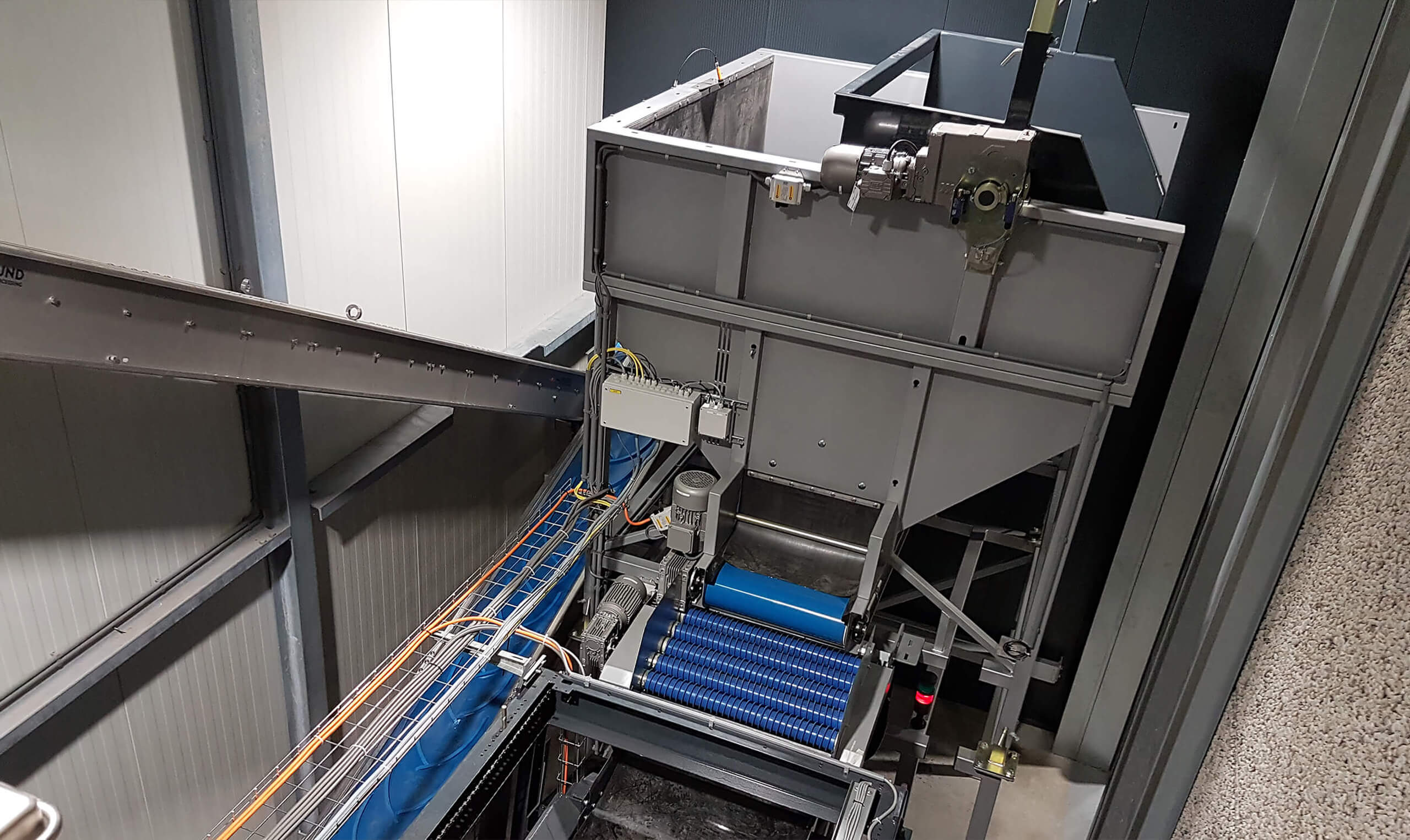

TThe storage hopper with box tipper is designed to act as a buffer with the capability to tip boxes. A box with produce is placed into the tipper, which then tips, allowing the produce to fall onto the fall breaker in the storage hopper. A transport conveyor is mounted at the bottom of the storage hopper to convey the produce out.
The storage hopper with box tipper is mainly used to feed packing lines. This machine can also be used to feed processing lines with a smaller capacity.
On demand, the machine can be supplied with a dust cover on top to ensure all dust remains inside the machine during tipping. On demand, the machine can be controlled remotely using a wireless remote control.
Characteristics
- We have models available for 1600, 1800 & 2400 mm wide boxes
- The available storage capacities are 1.5, 3, 3.5 & 7 cubic meters
- An integrated box tipper is placed on top of a storage hopper
- Used to feed packing or processing lines
- Soft loading inside the machine provides gentle handling
- On demand, the machine can be supplied with a dust cover on top
- On demand, a wireless remote control can be provided
- On demand, a ventilator can be provided for air recirculation
Specifications
| SHB 160 | SHB 180 | |
|---|---|---|
| Maximum width of the box (cm) | 160 | 180 |
| Content (m3) | 1.5, 3, 7 | 3.5, 7 |
Options
- Material and treatment (frame)
Painted mild steel
Frame is made from sandblasted and painted mild steel (special primer). The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel. The bearings and drive/idle rollers are from mild steel
Foodgrade painted
Frame is made from painted mild steel with food grade certificate. The bearings and drive/idle rollers are from mild steel
- Electrical control
Stand-alone
Motors, necessary sensors, switch box and control box
No electric
Motors and necessary sensors only. Wiring, additional sensors and/or control panel are not included
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel
- Remote control
Wireless
A wireless remote control is included. The machine can be controlled from a distance
Pulling cord
A pulling cord, to control the machine, can be mounted on the ceiling (no installation included)
- Soft landing
Fully
Soft landing is mounted at the bottom of the storage hopper
- Cover
Dust cover
A dust cover is mounted on top of the machine
- Automatic box clamping
Automatic box clamping
The box is clamped by a rod that automatically adjusts to the height of the box
- Tipping

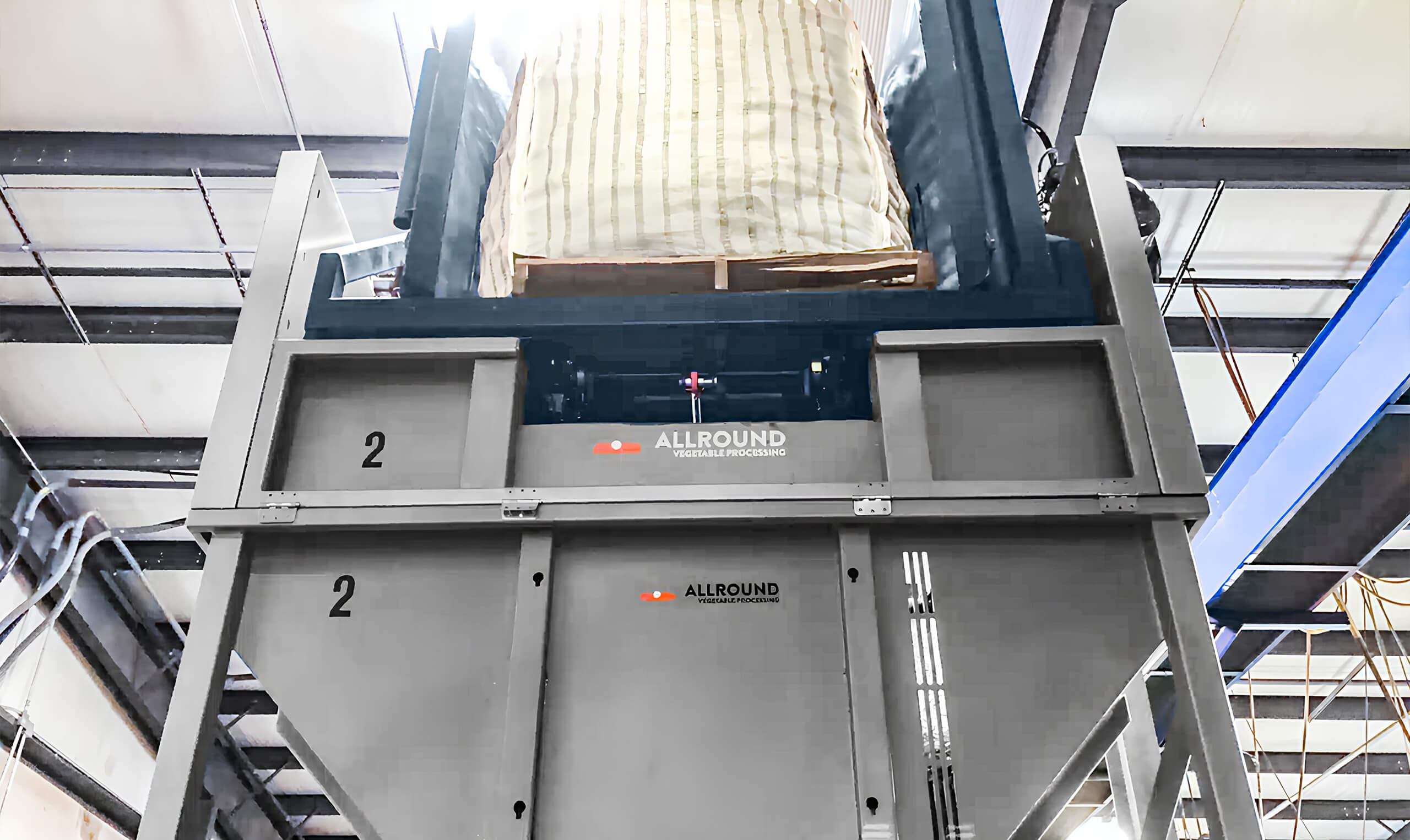

Big bag tipping
To be able to tip big bags with a storage hopper with box tipper. The big bags can not be higher than 140/150 cm. Claws will keep the big bag in place while tipping, therefore the big bag can not be reused after
- Hatch
Hatch
A hatch is mounted on the side of the machine. The hatch can be used to remove the product from the machine
- Ventilator
Ventilator
A ventilator is mounted on the machine
