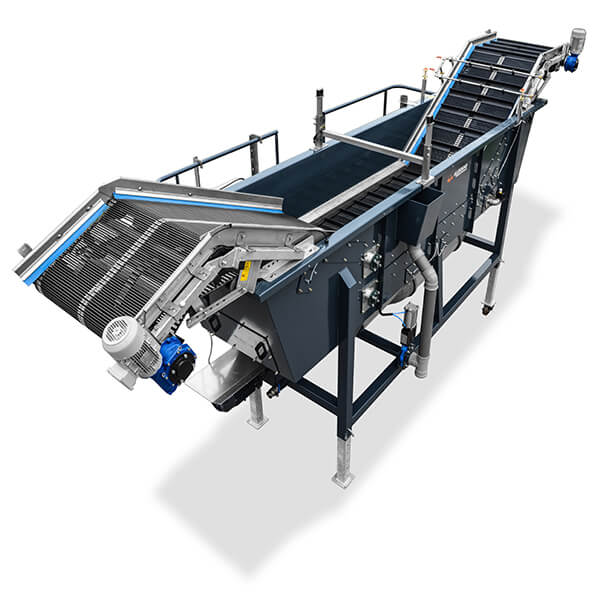

Skin Separator SKD

The skin separator removes loose pieces, skin, branches, and leaves from produce. The waste floats towards other belts.

Product Information

The skin separator removes loose pieces, skin, branches, and leaves from produce. The machine works on the principle that the product is heavier than the pieces that are to be taken out and therefore separates them. The waste floats towards other belts.

The standard machine is supplied with a frame made from sandblasted and painted mild steel (special primer), The product conveyor is also made from mild steel, covered with rubber, and bearings and drive/idle rollers are of mild steel. But on demand, the Frame and product conveyor can be made from stainless steel AISI304 but bearings and drive/idle rollers are of mild steel. The cleats height is always 30 mm.

In a standard machine, the stone conveyor is made from mild steel. But on demand, it can be made from stainless steel AISI304. The cleats height is always 40 mm and the gap size is 10 mm.

Characteristics

  • Machine available in 100 cm width of the belt

  • Product conveyor cleats height is 30 mm

  • Stone conveyor cleat height is 40 mm

  • A mill is mounted on top of the machine which transports the waste floating on the water to the waste outfeed
  • A roller is included for cleaning
  • A spray tube is included to clean the produce
  • The subframe can be made from painted mild steel, stainless steel AISI304, and galvanized mild steel
  • The height of the subframe can vary from 0-5 meters

Specifications

SKD 100
Width of the belt (in cm) 100

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from sandblasted and painted mild steel (special primer). The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
  • Material and treatment (product conveyor)
Mild steel
The product conveyor is made from mild steel, covered with rubber
The cleats height is always 30 mm
The gap size is 5 mm
Stainless steel
The product conveyor is made from stainless steel AISI304, covered with rubber
The cleats height is always 30 mm
The gap size is 5 mm
  • Material and treatment (stone conveyor)
Mild steel
The stone conveyor is made from mild steel
The cleats height is always 40 mm
The gap size is 10 mm
Stainless steel
The stone conveyor is made from stainless steel AISI304
The cleats height is always 40 mm
The gap size is 10 mm
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Water management
Manual
The valves can be operated manually. The water level must be regulated manually
Automatic
The valves are operated automatically. The water level is regulated automatically
  • Waste collection
Mill
A mill is mounted on top of the machine which transports the waste floating on the water to the waste outfeed
  • Cleaning
Roller
A roller is included for cleaning
Spray tube product conveyor
A spray tube is included to clean the produce
  • Material and treatment (subframe)
Painted mild steel
It is made from painted mild steel
Stainless steel
It is made from stainless steel AISI304
Galvanized steel
It is made from galvanized steel
  • Height of subframe
Height of subframe
0 to 5 meter
  • Water collection
Recirculation tank
A tank is included which receives the used water from the skin separator
