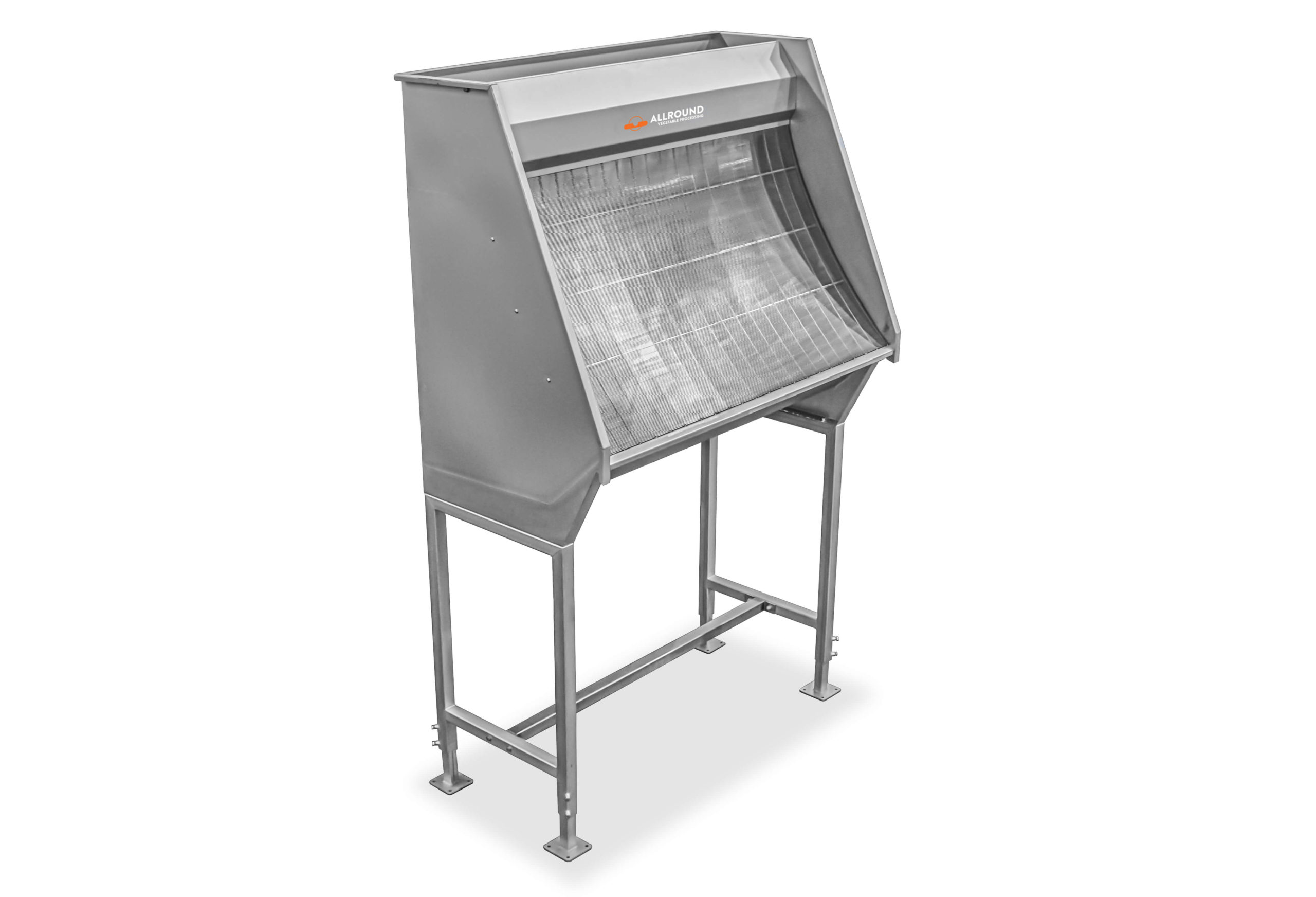

Sieve bow SB

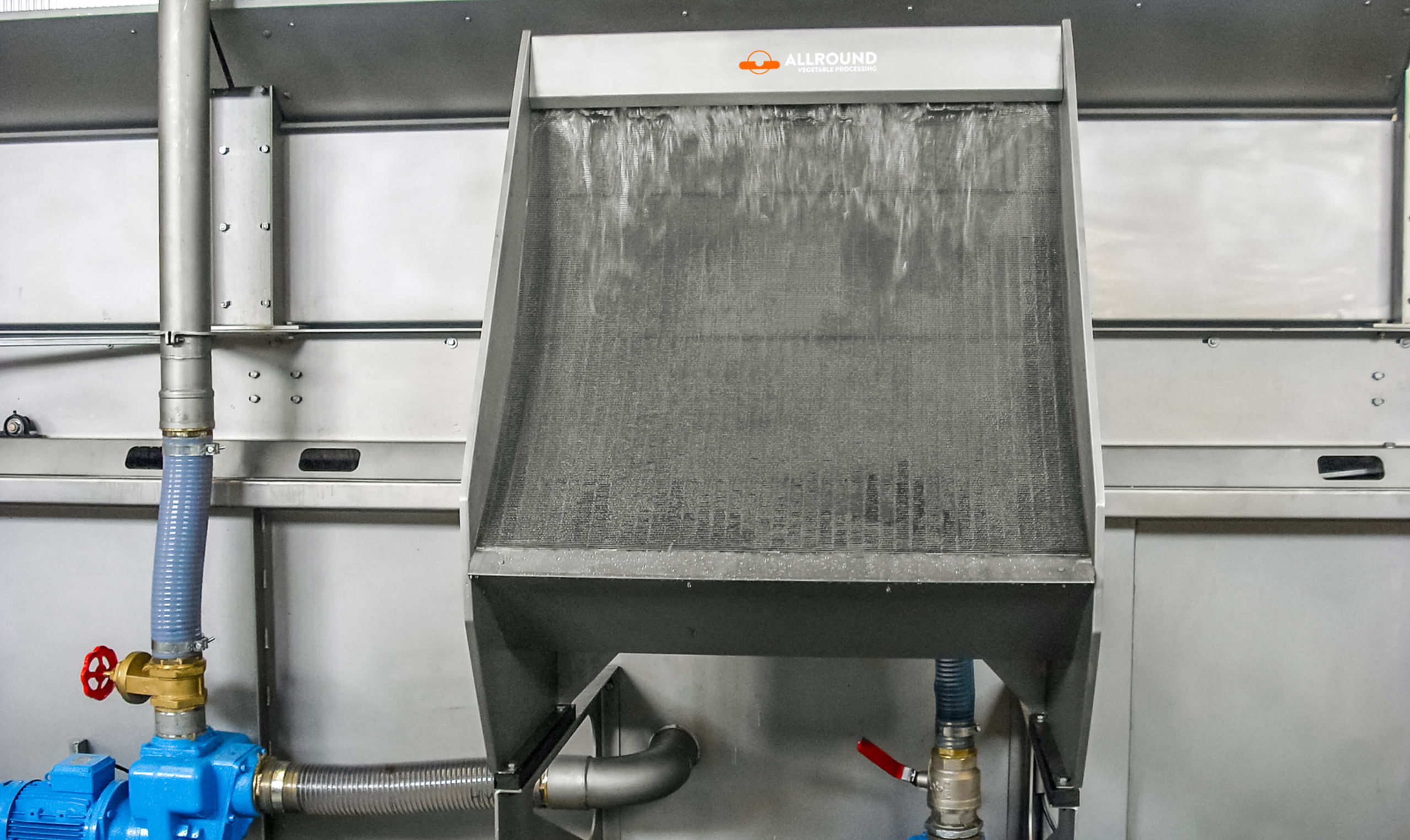

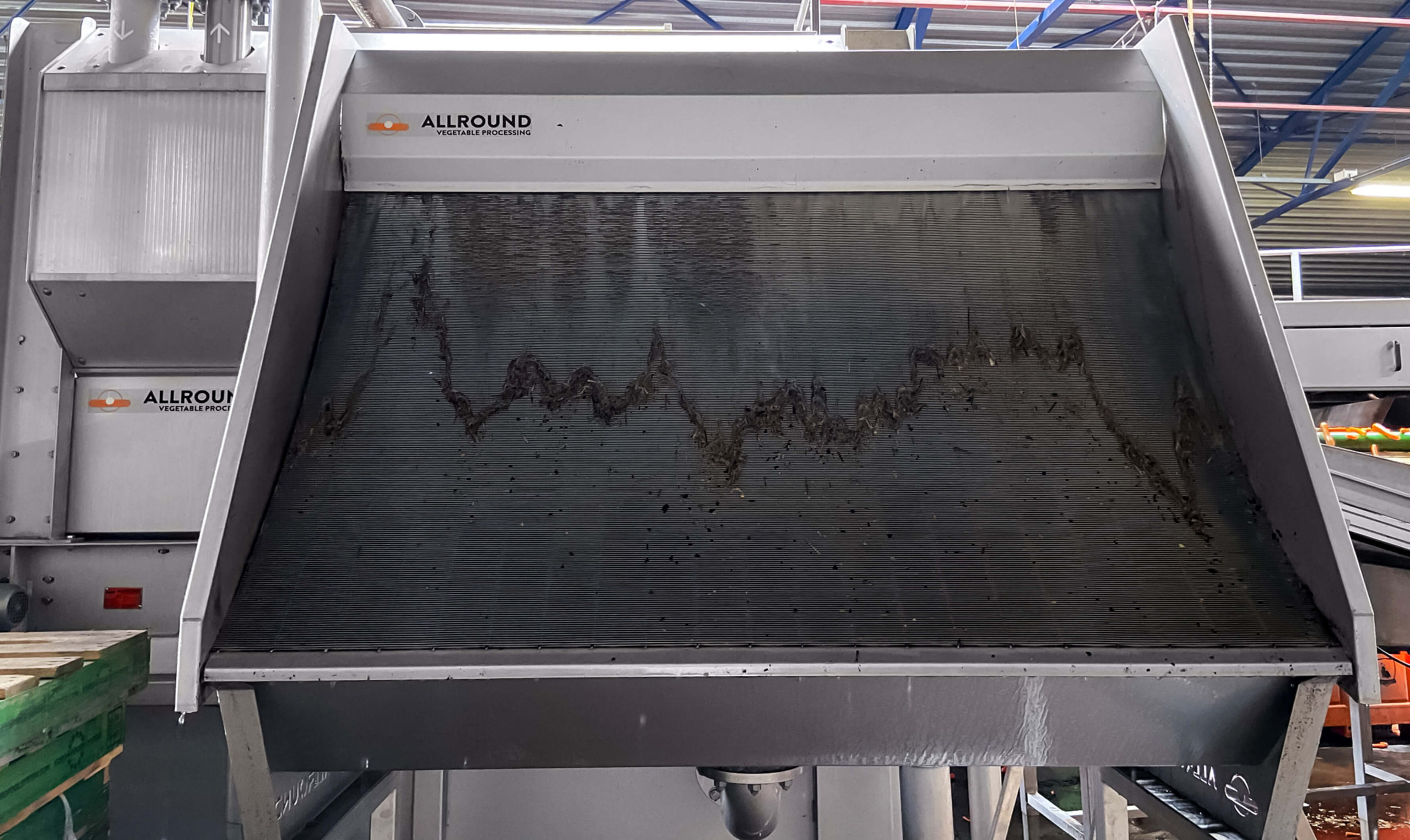

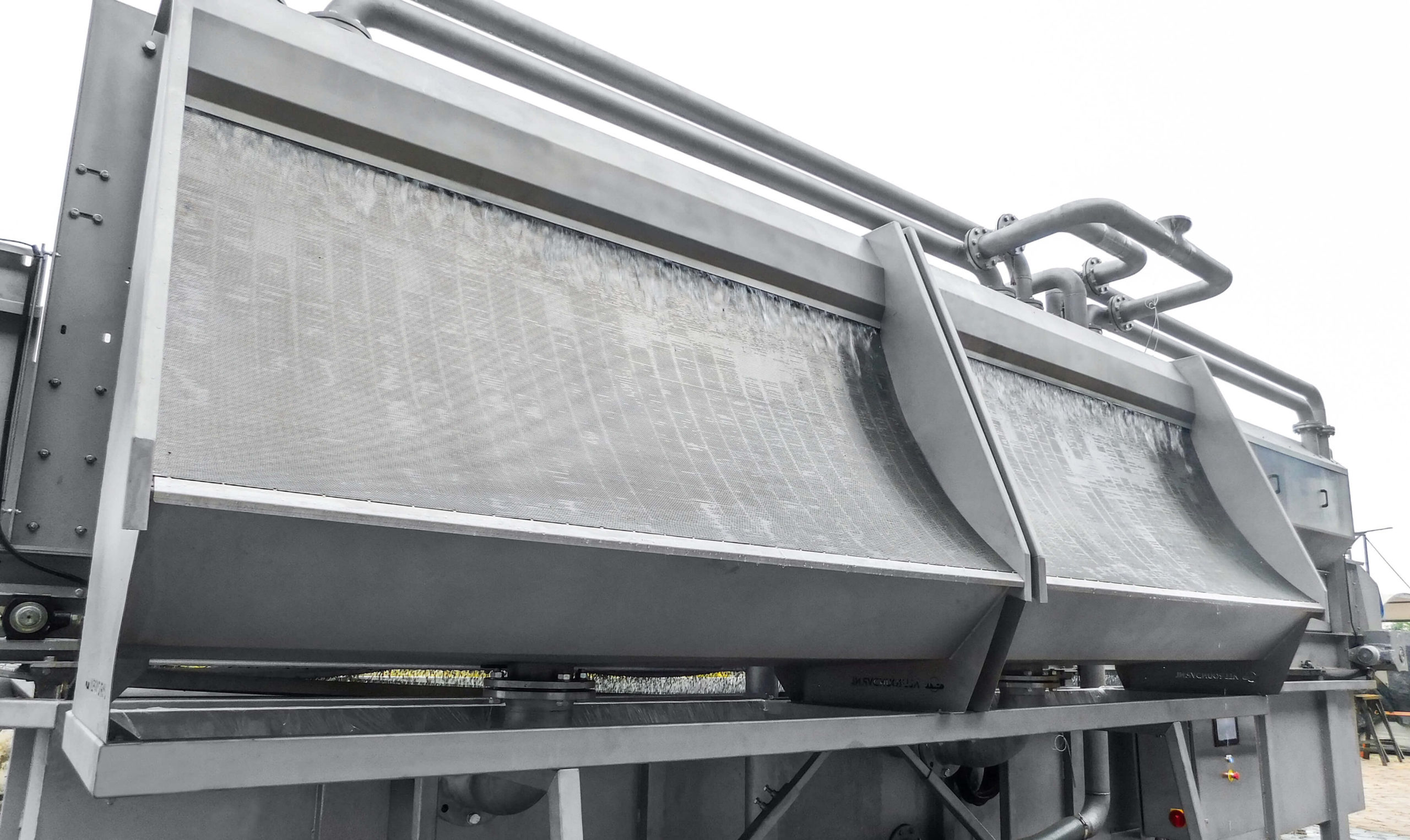

The sieve bow is designed for filtering. Water goes through the sieve while waste falls to the outfeed.
The sieve bow is specially designed for efficient filtration and separation processes. During operation, water passes through the precision screen surface, while solid waste is directed toward the outfeed for easy discharge. Its simple yet effective design ensures continuous filtration, reduced waste accumulation, and reliable performance across various processing applications.
Characteristics
Designed for efficient filtration and solid-liquid separation
Available in multiple machine widths: 100, 150, and 200 cm
Sieve gap sizes available in 0.1, 0.2, and 0.3 cm for different filtration requirements
Inlet flange connection: DN100
Customizable outlet flange connection
Plating made from durable stainless steel AISI304
Specifications
| SB 100 | SB 150 | SB 200 | |
|---|---|---|---|
| Width of the machine (in cm) | 100 | 150 | 200 |
| Gap size of the sieve (in cm) | 0.1 | 0.2 | 0.3 |
Options
- Material and treatment (plating)
- Material and treatment (subframe)
- Height of subframe
