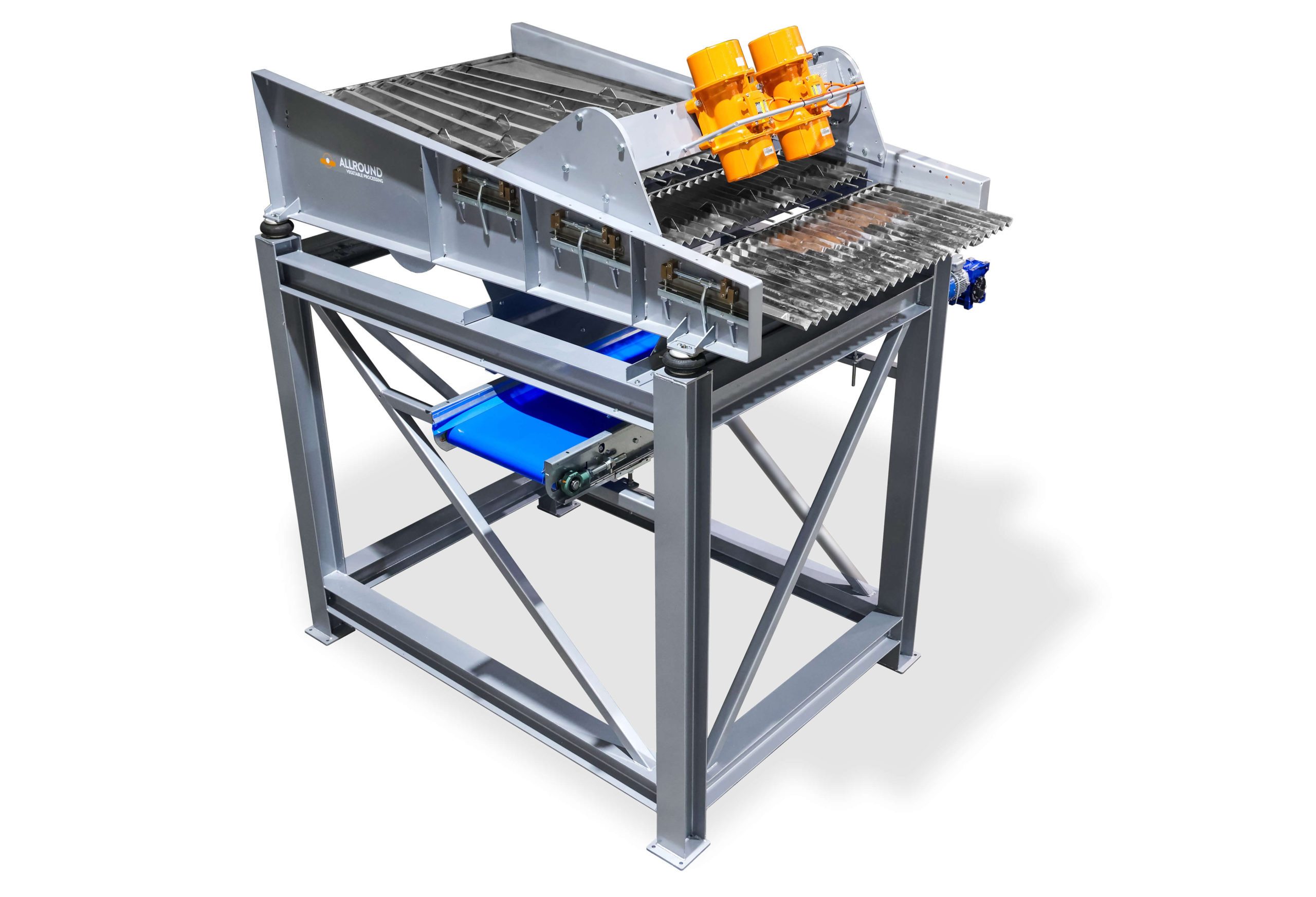

The chunk grader is made for grade out carrots or similarly shaped produce on length basis. The machine is designed to take out the oversized or undersized carrots. The chunk grader is designed to either remove oversized carrots (which won’t fit in the packaging) or broken and undersized carrots. This machine can be delivered with various numbers of gradings. The grader’s bed is made of stainless steel, ensuring the machine is 100% produce safe. The frame is made from galvanized steel to ensure a long lifespan.
Characteristics
The frame can be made from painted mild steel or galvanized mild steel, but the bed is always made from stainless steel AISI304
- Bed size can be 30, 60, and 115 mm
- The grading size can be adjusted manually/automatically
- A chute is included at the bottom of the machine. The chute will guide produce to a transport conveyor or box
A frequency inverter is included to control the speed
Specifications
| L 120 | L 150 | L 180 | |
|---|---|---|---|
| Width of the machine (in cm) | 120 | 150 | 180 |
| Amount of grades | 2 | 2 | 2 |
Options
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. Bed is made from stainless steel AISI304
Galvanized steel
Frame is made from galvanized mild steel. Bed is made from stainless steel AISI304
- Bed size
30 mm
Centre to centre distance is 30 mm
60 mm
Centre to centre distance is 60 mm
115 mm
Centre to centre distance is 115 mm
- Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
- Frequency inverter
Frequency inverter
A frequency inverter is included to control the speed
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
- Material and treatment (subframe)
Painted mild steel
It is made of Painted mild steel
Galvanized steel
It is made of galvanized mild steel
- Height of subframe
Height of subframe
0 – 7 meters
- Adjustment grading size
Manual
The grading size can be adjusted manually
Automatic
The grading size can be adjusted automatically
- Product collection – chute
Product collection – chute
A chute is included on the bottom of the machine. The chute will guide produce to a transport conveyor or box
