Leaf separator AS

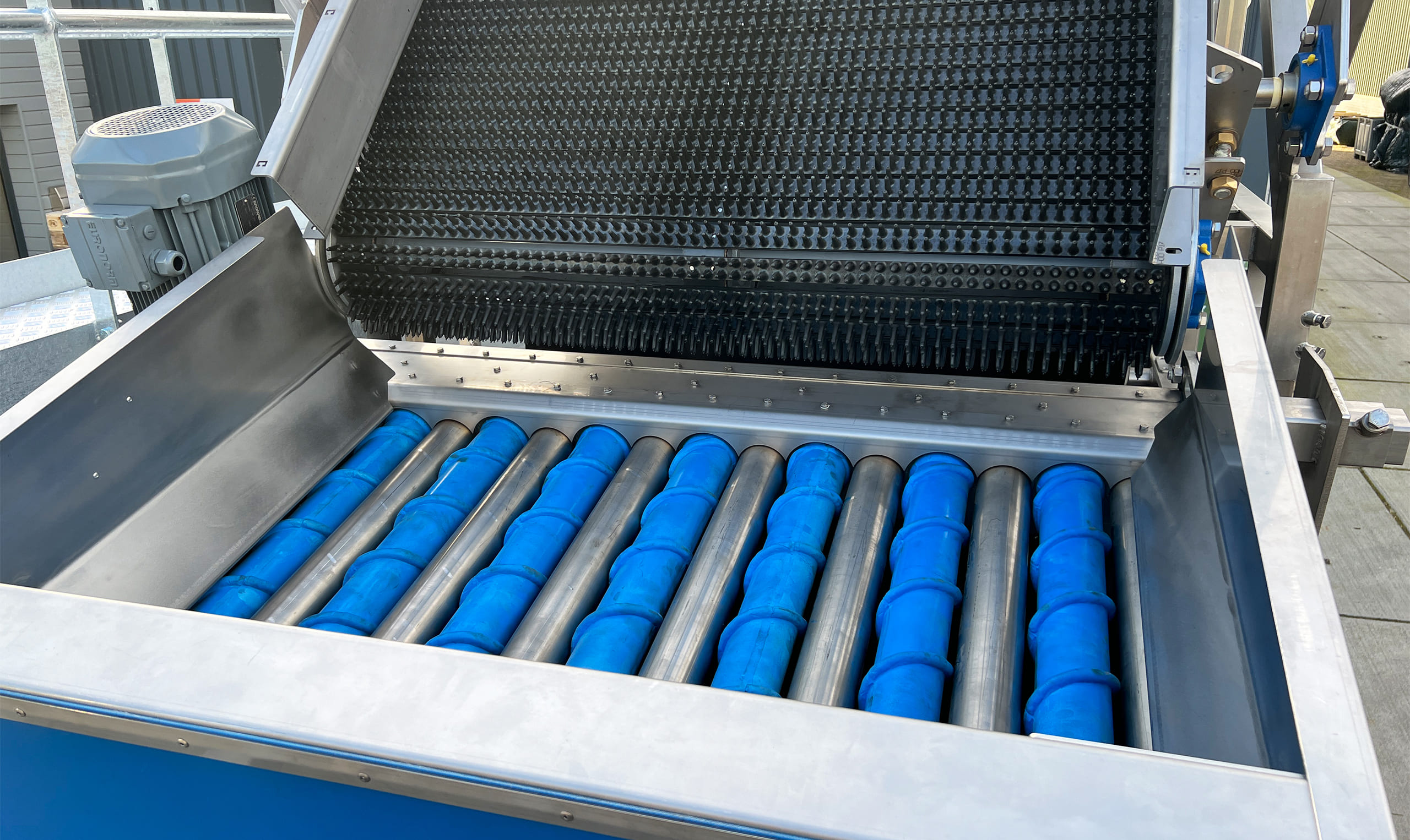

The leaf separator is used to remove leaves. The produce moves over a series of rollers, with waste falling between the rollers.

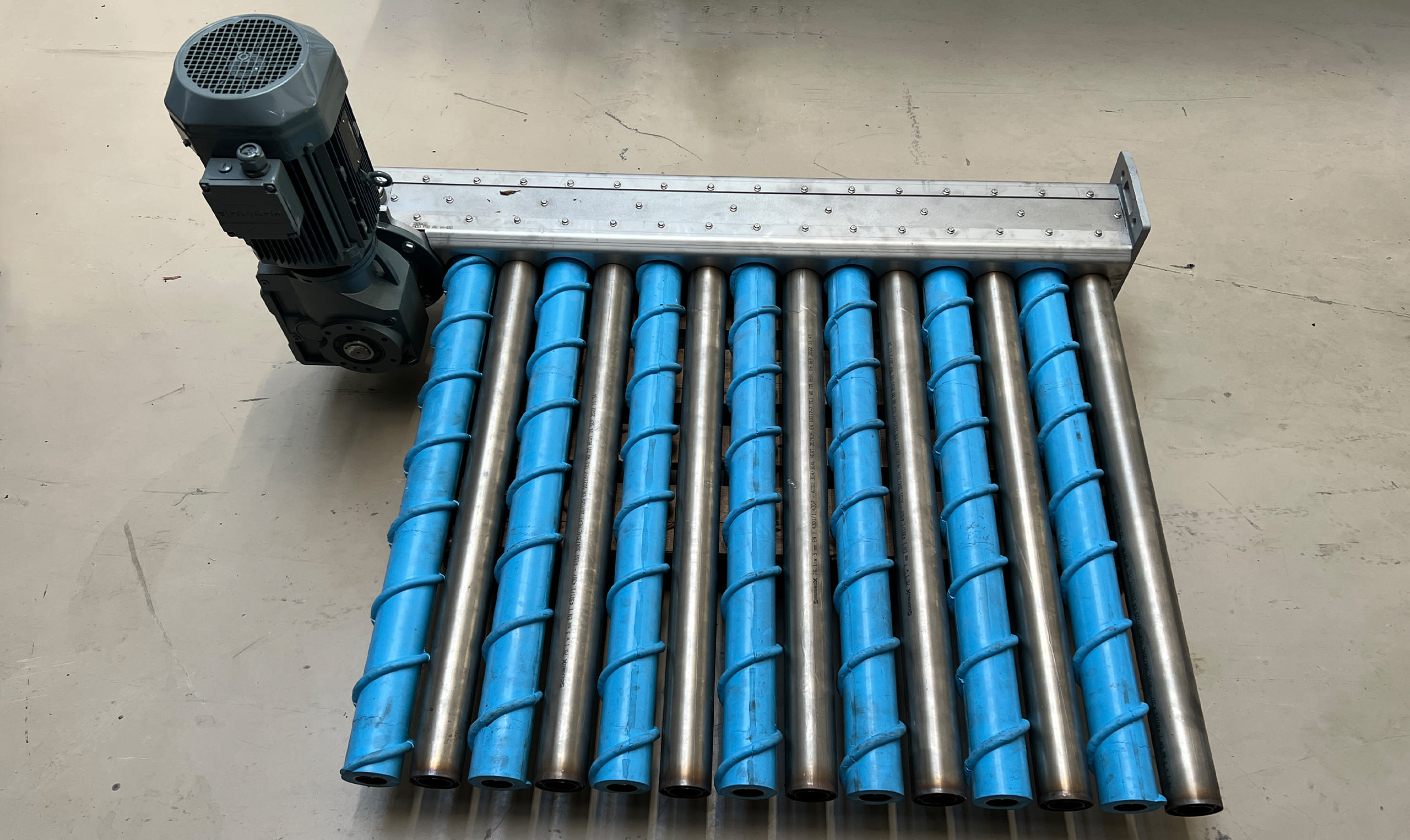

The leaf separator is used to remove leaves. The produce moves over a series of rollers, with waste falling between the rollers. The rollers are placed alternately, 7 rollers are from stainless steel, and 7 rollers are PU spiral.
The standard machine is supplied with a frame made from painted mild steel. On demand, the covers can be made from stainless steel AISI304. The bearings and drive/idle rollers are made of mild steel.

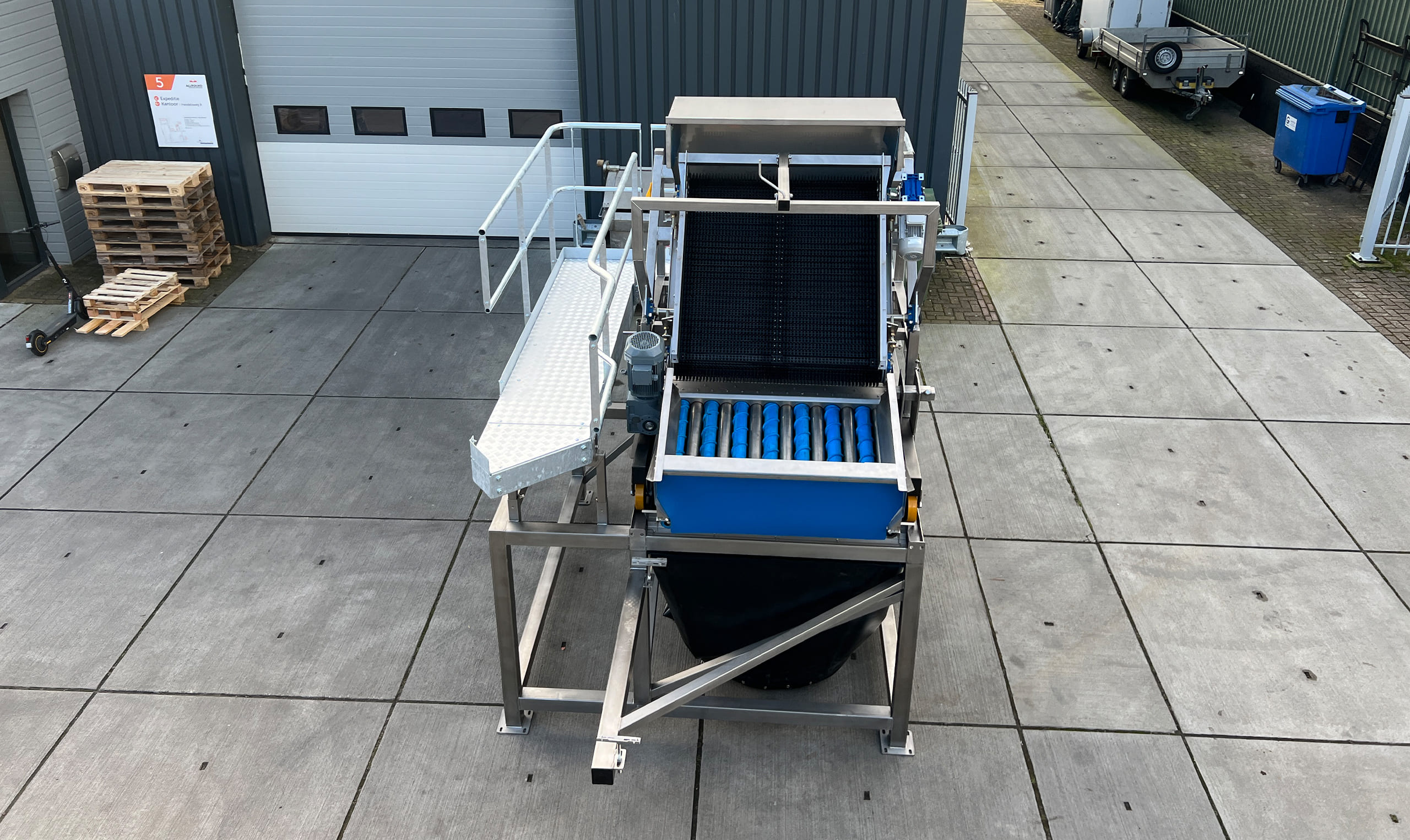

The standard machine is supplied with subframe are made from painted mild steel. It can be made on demand from stainless steel AISI304 and galvanized steel. The Height of the subframe can vary from 0-7 meters.
Characteristics
- Amount of rollers is 14
- 7 rollers are from stainless steel, and 7 rollers are PU spiral
- The length of the shaft is 100 cm
- Distances between: rollers 10 mm
- Diameters stainless steel: roller Ø 76 mm
- Diameters PU spiral: spiral Ø 102 mm, roller Ø 82 mm
Specifications
| AS 100 | |
|---|---|
| Length of the shaft (in cm) | 100 |
| Amount of rollers | 14 |
Options
- Material and treatment (frame)
- Electrical control
- Material and treatment (electrical panel)
- Material and treatment (subframe)
- Height of subframe
