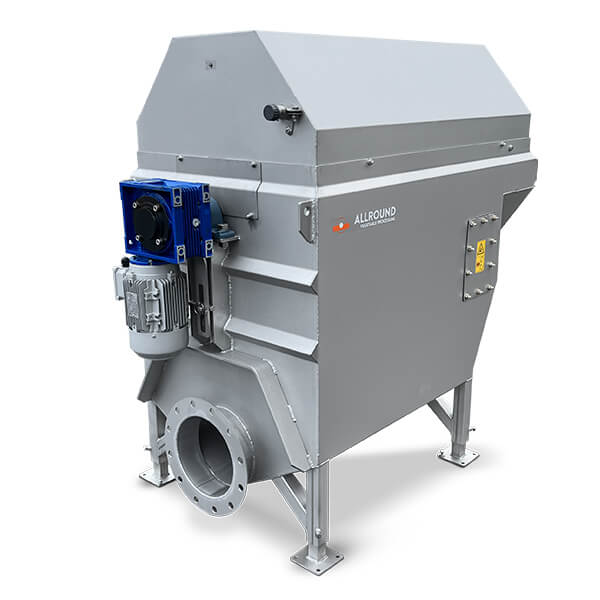

Filter drum
Minimize fresh water usage in vegetable washing and industrial food processing.
Minimize fresh water usage in vegetable washing and industrial food processing.
Filter drum is used to minimize fresh water usage in vegetable washing and industrial food processing via filtering the dirty water. The filtration process is done using a rotary drum where dirty water flows into the center of drum and passes through perforated drum screen to capture organic matter and other debris. The filter material is augured out of the machine to waste, while filter water is discharged back to washing process or water treatment plant.
Allround standard filter drum comes in frame of stainless steel AISI304, but bearings and idle/drive rollers are from mild steel.
The drum of filter drum can be supplied with either 2 or 3 mm opening, depending on amount of dirt. The capacity of machine is estimated about 180 m3 per hour, but also depends on the amount of dirt.
If required, the filter drum can be on subframe to accommodate height difference. The subframe can be made from painted mild steel, stainless steel AISI304 and galvanized steel. The height of the subframe can be varies from 0-7 meter.
Characteristics
- Diameter of drum is 100 cm
- Length of drum is 60 cm
- Drum made up of 2 or 3 mm round perforated holes
Minimize fresh water usage in vegetable washing and industrial food processing
- Remove water from waste which reduce weight of waste, resulting in reduction of waste disposal costs
- Flip up door to give easy access to drum for cleaning and maintenance
- Spray bar sprays water through drum to avoid blockage of holes of perforated drum
- Stainless steel AISI304 frame construction
Specifications
| FD 100 | |
|---|---|
| Length of the machine (in cm) | 100 |
| Diameter of the drum (in cm) | 60 |
Options
- Material and treatment (frame)
- Drum
The capacity of the machine depends on the amount of dirt
The capacity of the machine is estimated at 180 m³ per hour, but also depends on the amount of dirt
- Electrical control
- Material and treatment (electrical panel)
- Material and treatment (subframe)
- Height of subframe
