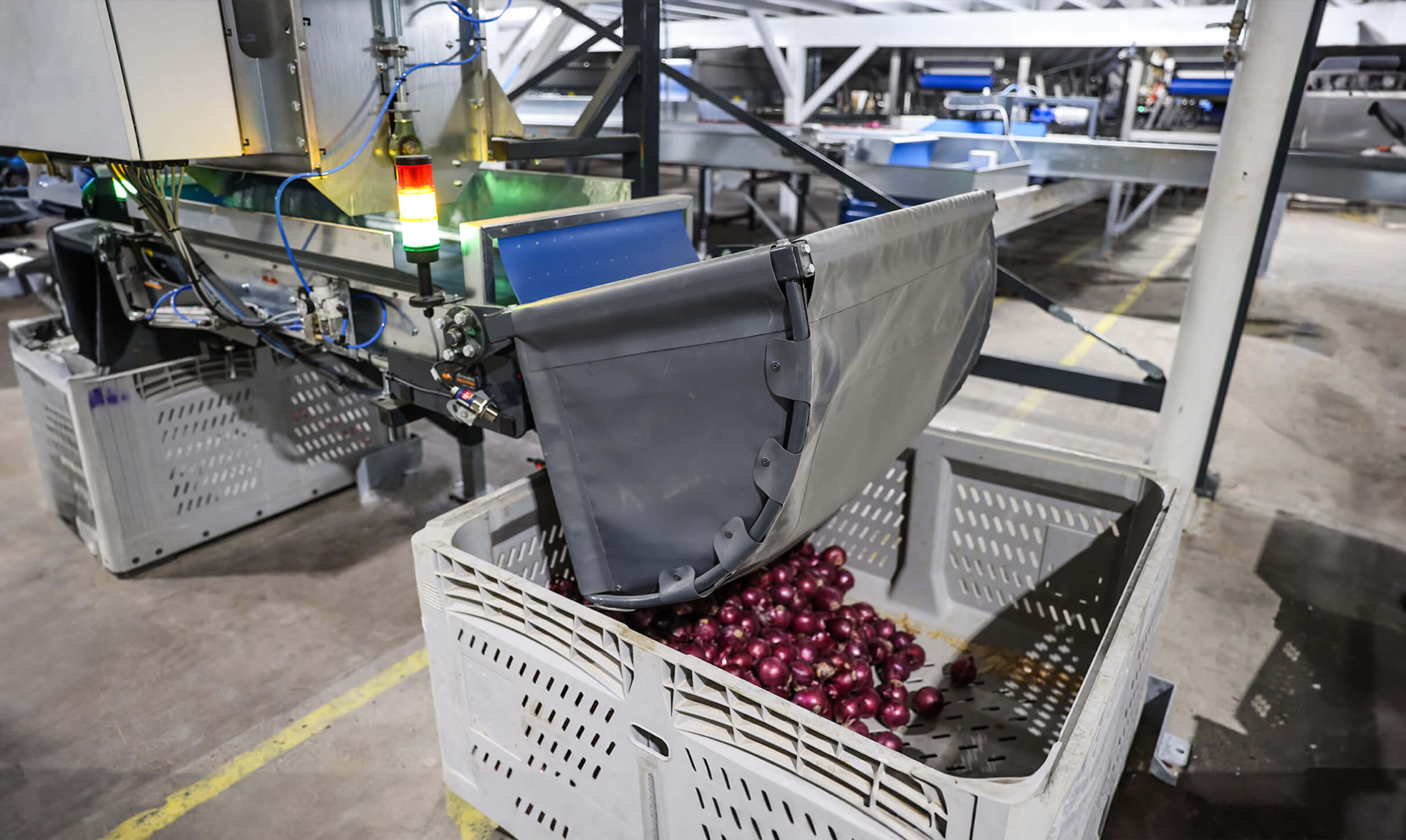

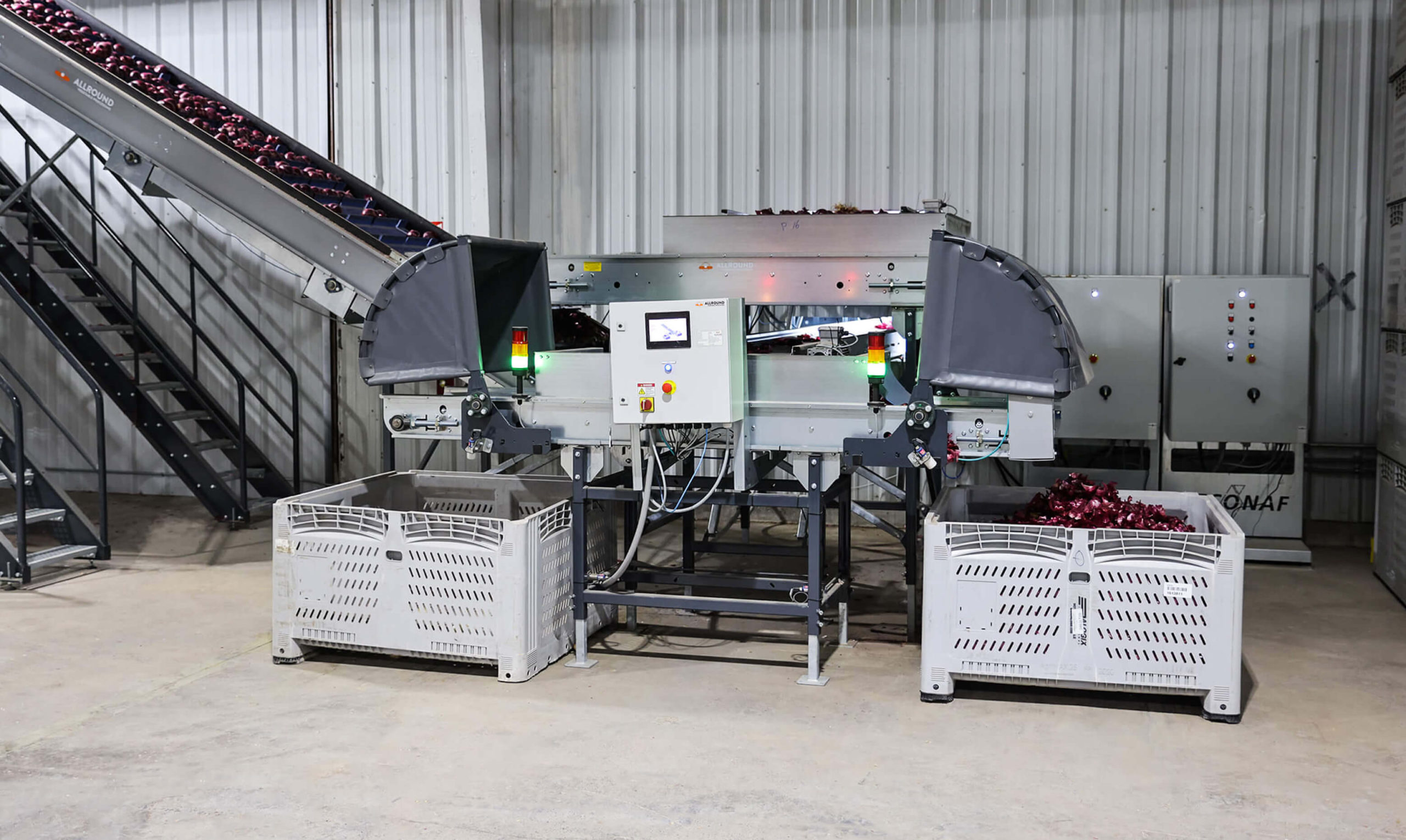

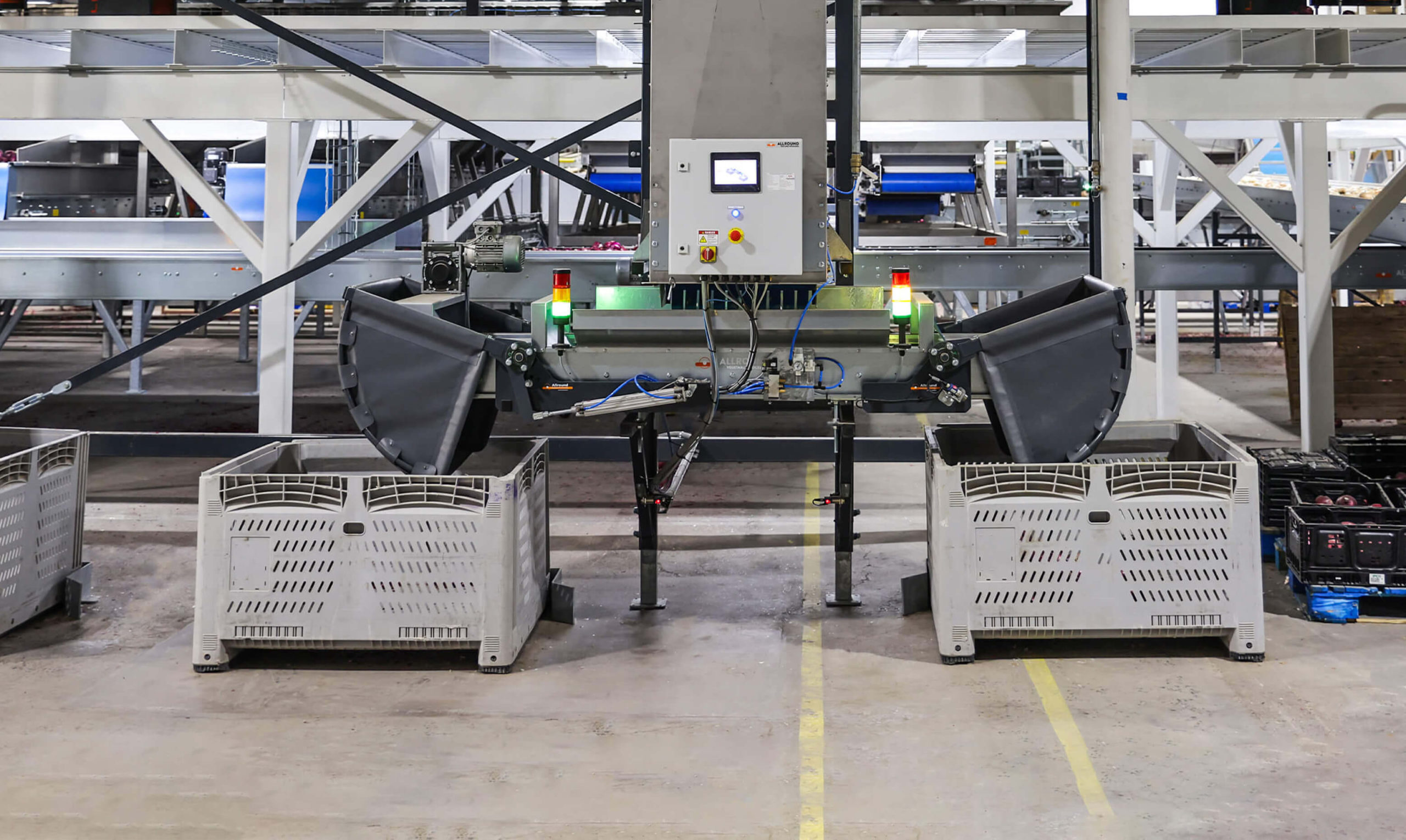

The fall damper is used for filling. The produce falls from chute to chute to reduce fall damage. When the sensor detects the produce, the machine retracts the chutes.
On demand, the machine can be available in painted mild steel or in stainless steel. The bearings and drive/idle rollers are made of mild steel. We have models available in 60 and 80 cm widths.
Characteristics
Models are available in 60 and 80 cm widths
- Produce falls from chute to chute to reduce fall damage
- A sensor detects the produce, the machine retracts the chutes
- On demand, the machine can be available in painted mild steel or in stainless steel
Specifications
| Model | FDP 40 | FDP 60 | FDP 80 | FDP 100 |
|---|---|---|---|---|
| Width of the machine (cm) | 40 | 60 | 80 | 100 |
Options
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
- Material and treatment (chutes)
PVC
The chutes are made from PVC
- Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
