Fall Damper FDE

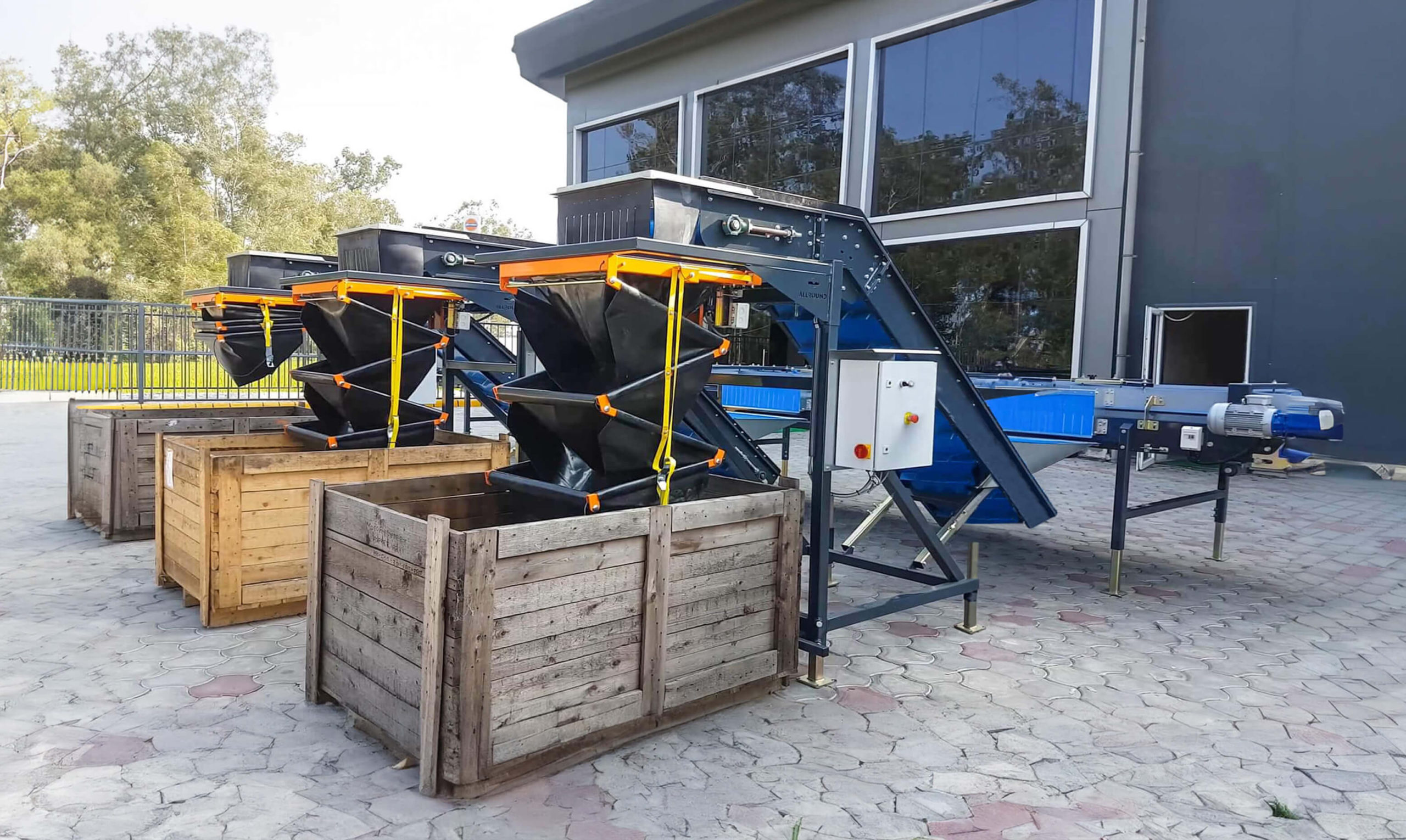

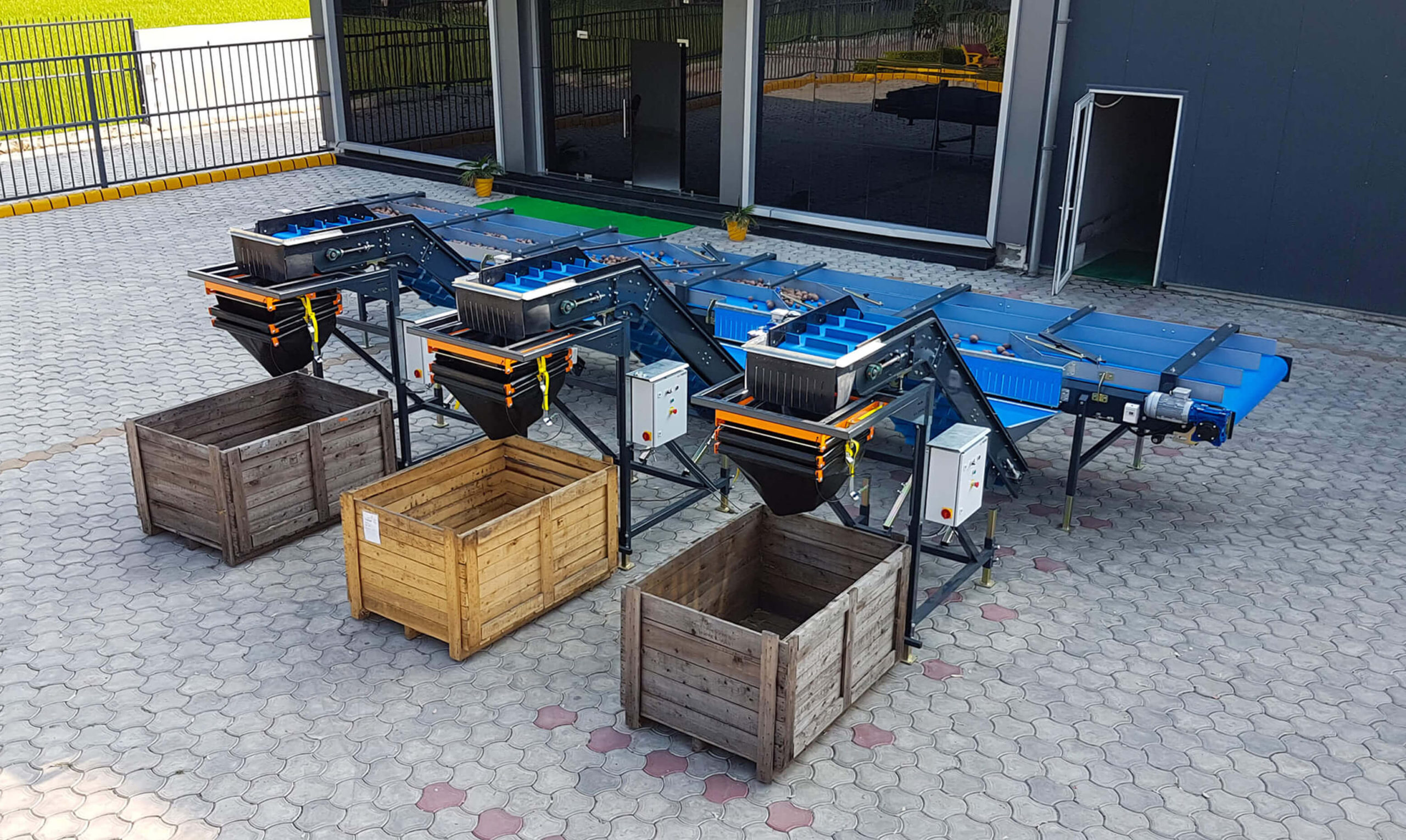

It fills boxes and big bags with potatoes, onions, and other vegetables. The filling is completed once the big bag/box is full or once the set weight is reached.

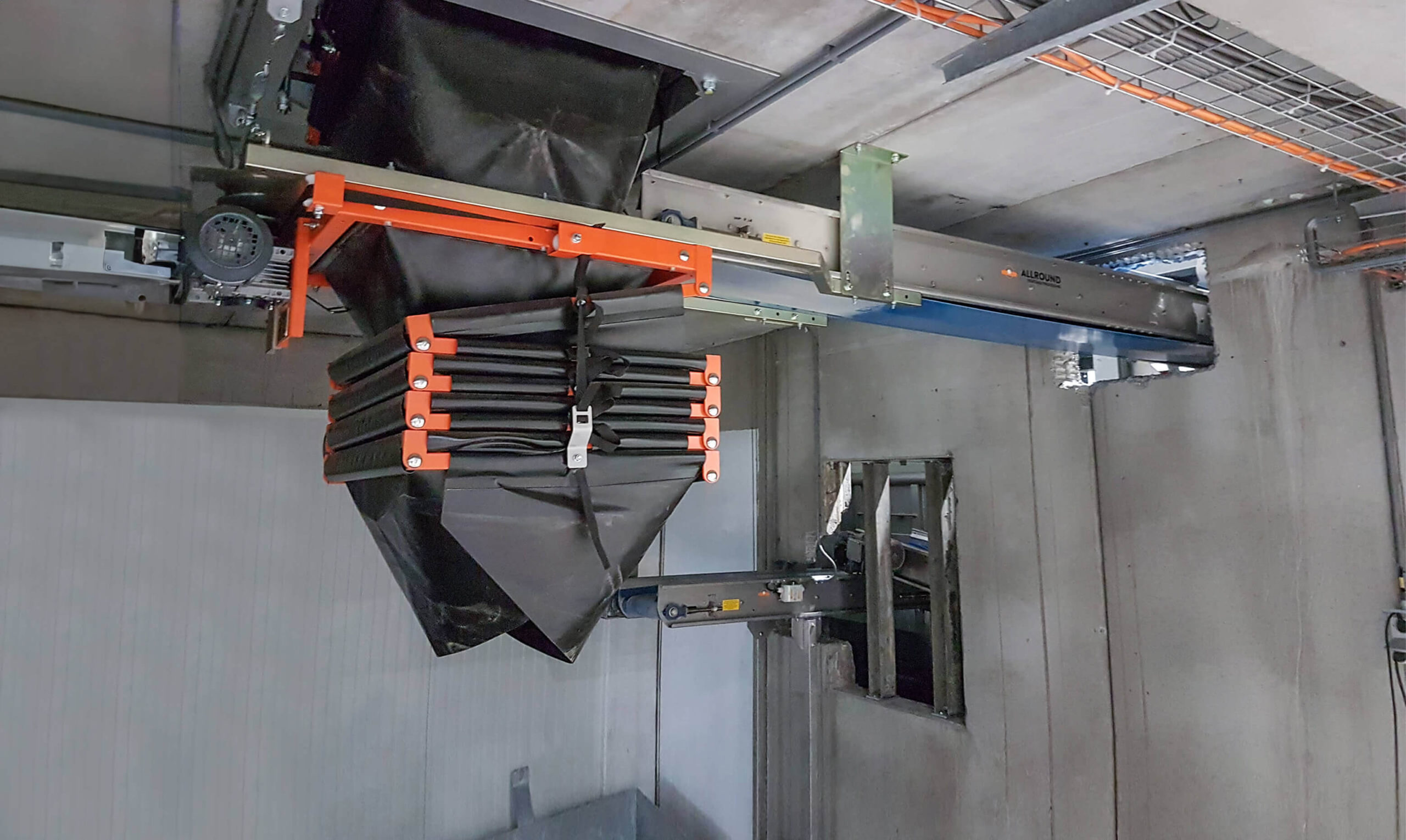

The fall damper is used for filling. The produce falls from chute to chute to reduce fall damage. When the sensor detects the produce, the machine retracts the chutes. It fills boxes and big bags with potatoes, onions, and other vegetables.
The device is equipped with a fall damper, which lifts automatically, while the product level is rising. The fall-dampers are made of two-layer, robust PVC material. A dust-resistant ultrasonic sensors control the filling process. The filling is completed once the big bag/box is full or once the set weight is reached.
On demand, the machine can be available in painted mild steel or in stainless steel. The bearings and drive/idle rollers are made of mild steel.
Characteristics
- Used for filling both boxes and big bags
- The number of chutes available from 3 to 12
- The filling is completed once the big bag/box is full
- A dust-resistant ultrasonic sensors control the filling process
- The sensor detects the produce, and the machine retracts the chutes
- The fall-dampers are made of two-layer
- Available in painted mild steel and stainless steel
Specifications
| FDE 60 | FDE 80 | |
|---|---|---|
| Width of the machine (cm) | 60 | 80 |
| Amount of chutes | 3, 4, 5, 6, 7, 8, 9, 10, 11 or 12 | 3, 4, 5, 6, 7, 8, 9, 10, 11 or 12 |
Options
- Material and treatment (frame)
- Material and treatment (chutes)
- Electrical control
- Material and treatment (electrical panel)
