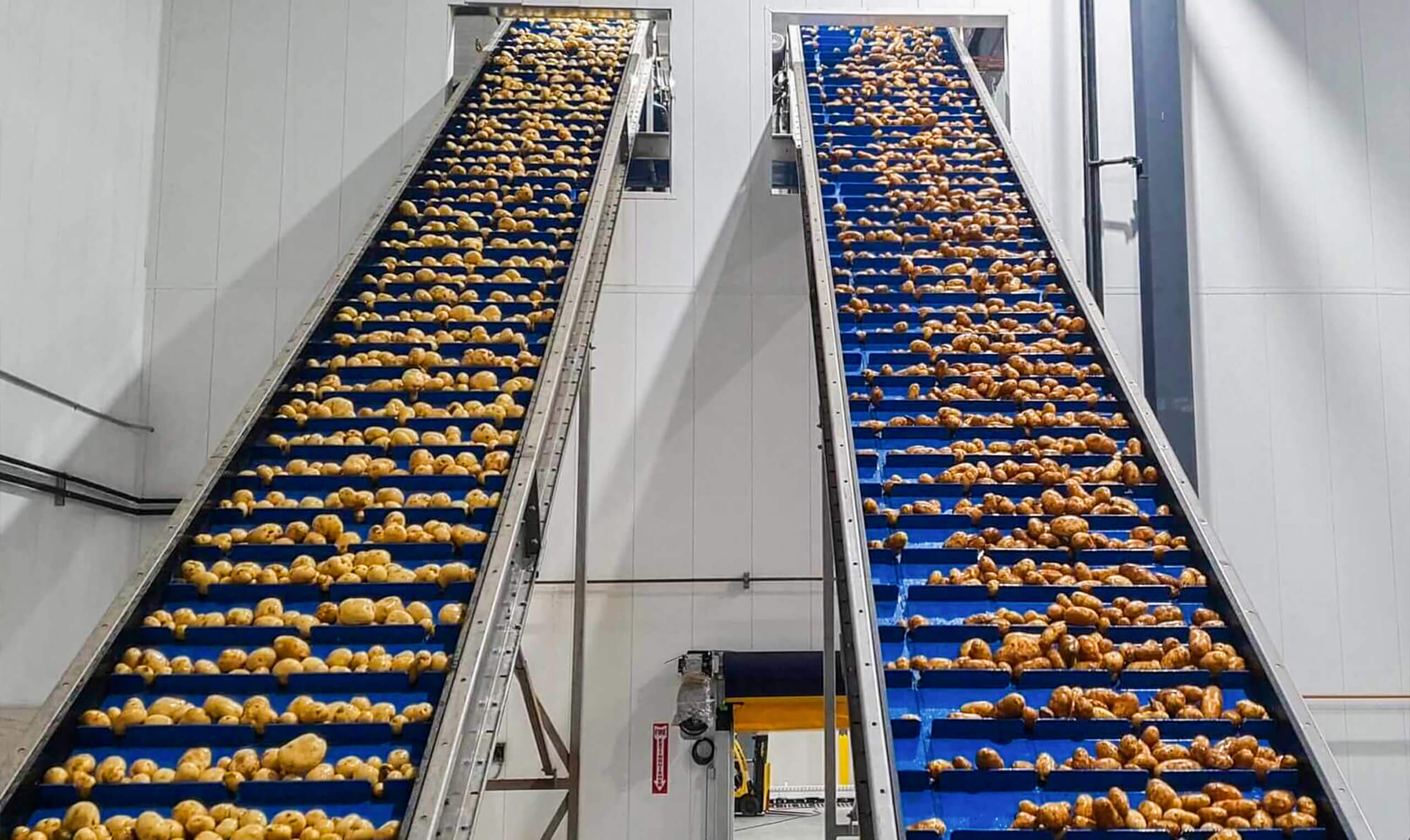

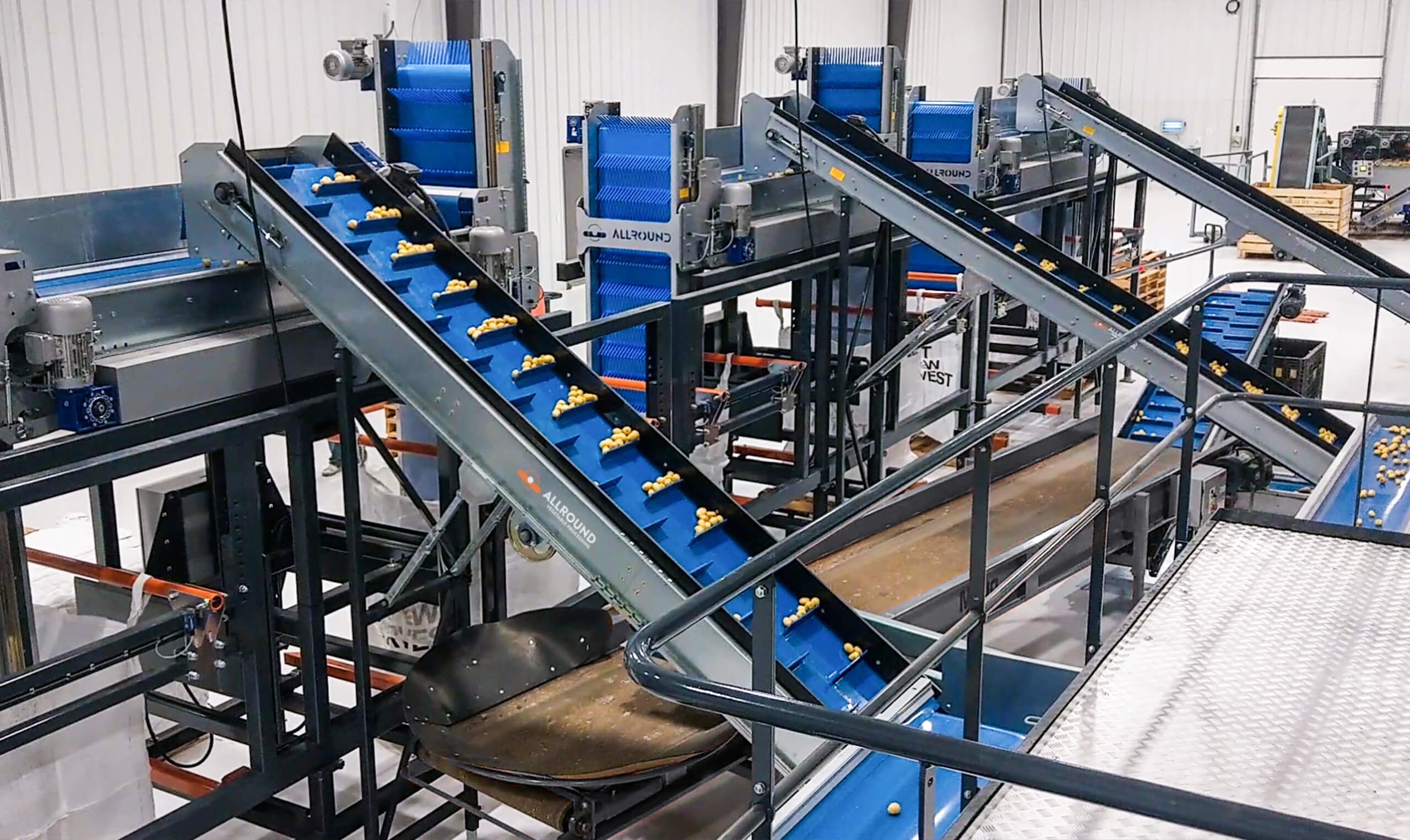

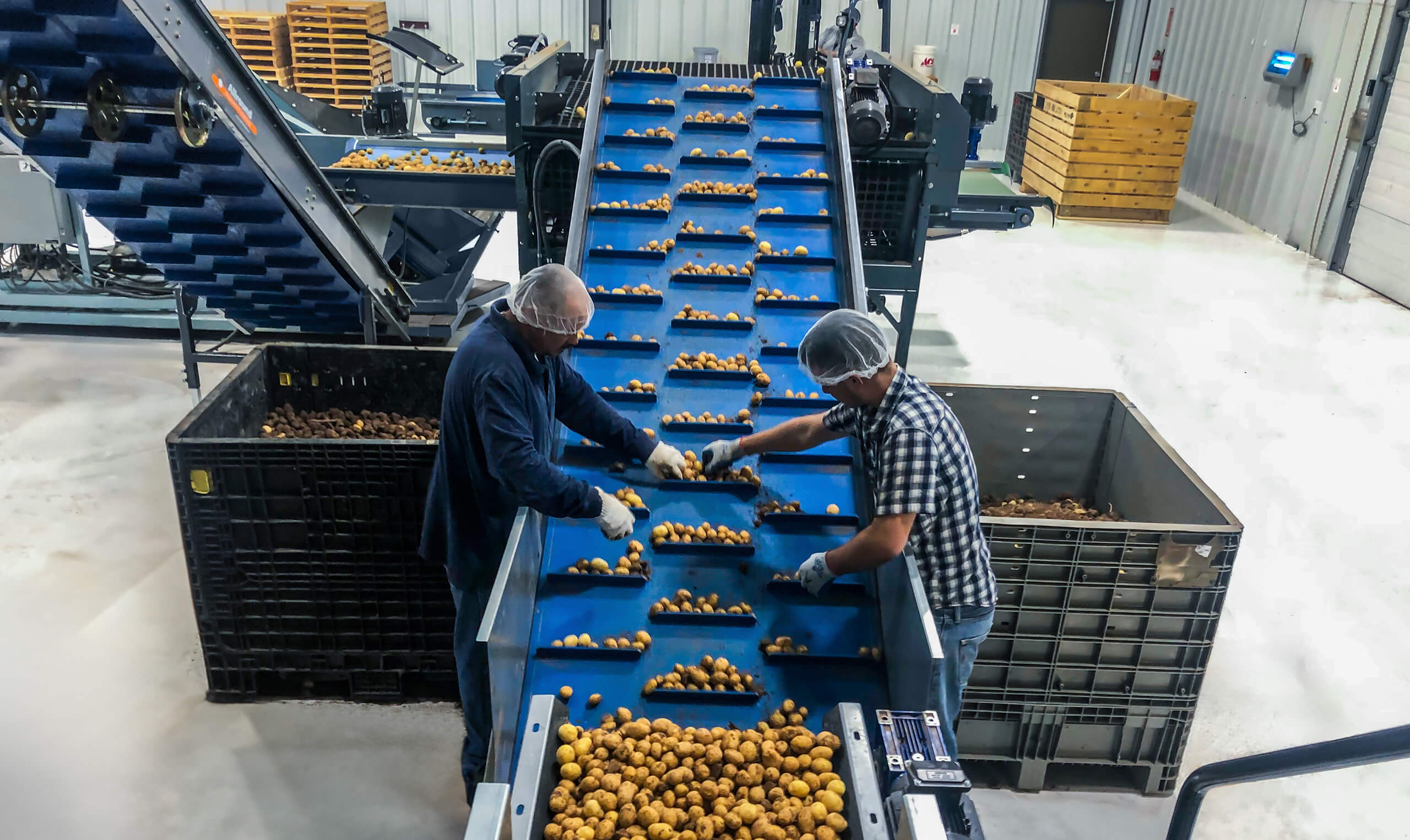

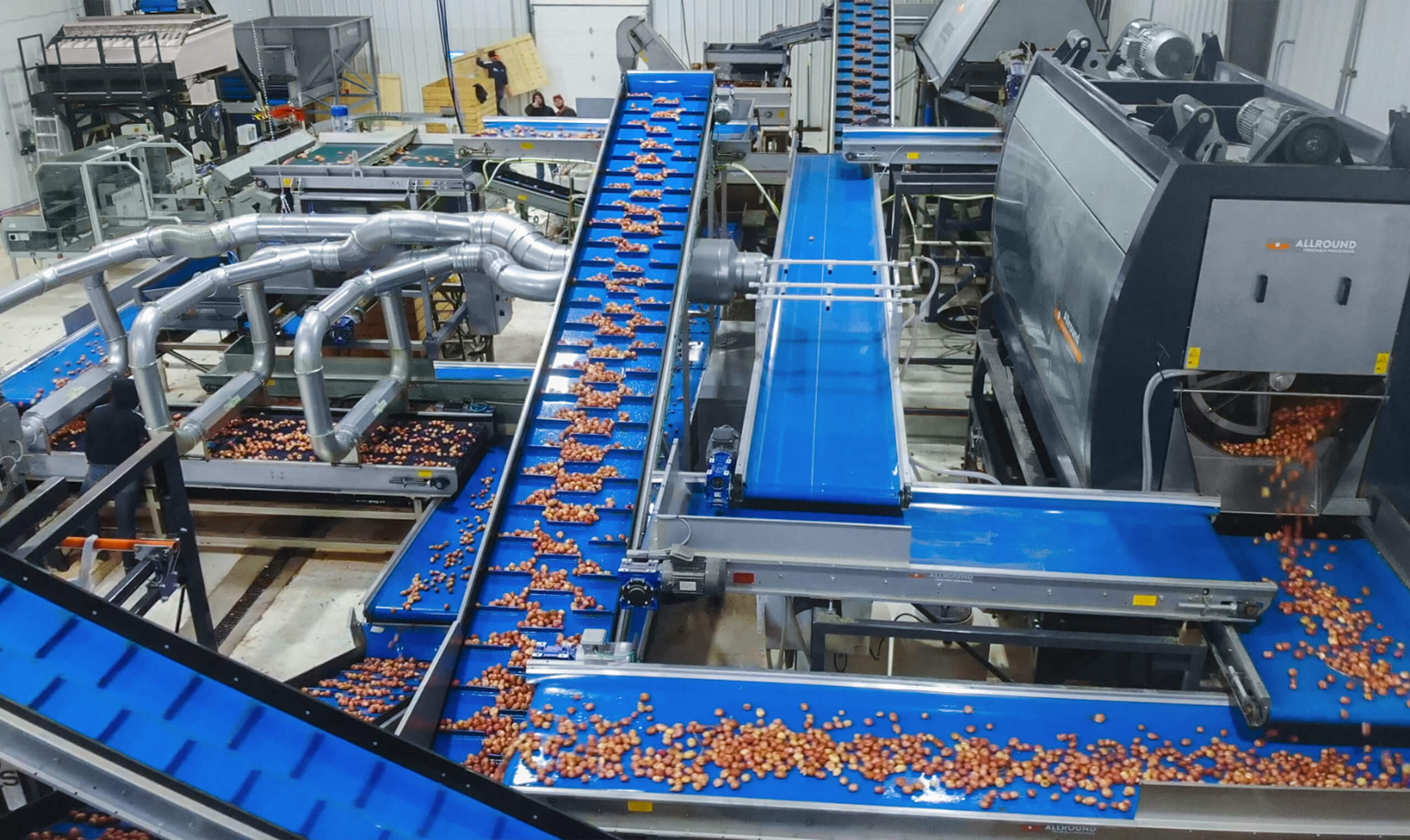

The Elevators are used to convey produce or waste at a certain height. They are mainly used to overcome height differences. This type of elevator is mainly straight.
The standard Elevator is supplied with a painted mild steel frame, and bearings and drive/idle rollers are of mild steel. On demand, the Frame can be supplied with stainless steel but bearings and drive/idle rollers are of mild steel.
Belts of elevators can be supplied in PVC, PU, and rubber depending upon application. On demand, the Bottom/top sides of the elevator can be covered with a cover made of zinc plated steel or stainless steel.
Characteristics
- Models are available in 40, 60, 80, 90, 100, 120, 140, 150, 170, and 230 cm width
- A backstop prevents produce roll-back
- The length of the machine is 225 t/m 2500, with steps of 25 cm
- The cleats are THW 75
- The length of topside cover is 0 t/m 2500, with steps of 25 cm
- The length of the legs can vary from 0-7 meters
- Belts of elevators can be supplied in PVC, PU, and rubber
Specifications
| Width of the machine (in cm) | Length of the machine | |
|---|---|---|
| ELR 40 | 40 | 225 t/m 2500, steps of 25 cm |
| ELR 60 | 60 | |
| ELR 80 | 80 | |
| ELR 90 | 90 | |
| ELR 100 | 100 | |
| ELR 120 | 120 | |
| ELR 140 | 140 | |
| ELR 150 | 150 | |
| ELR 170 | 170 | |
| ELR 230 | 230 |
Options
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
Zinc plated steel
Frame is made from zinc plated steel. The bearings and drive/idle rollers are from mild steel
- Belt
PVC
The belt is made of PVC
PU
The belt is made of PU
- Cleats
Straight
The type of cleats is straight
Staggered
The type of cleats is staggered
- Cleats height
60 mm
The height of the cleats is 60 mm
80 mm
The height of the cleats is 80 mm
- Cleats shape
THW 75
The cleats are THW 75
- Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15, 20 meter
Central control in line
Motors and necessary sensors
- Frequency inverter
Speed adjustment
A frequency inverter is included to control the speed
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
- Material and treatment (bottomside cover)
Zinc plated steel
A cover is mounted on the bottom of the machine, made from zinc plated steel. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on the bottom of the machine, made from stainless steel. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
- Material and treatment (topside cover)
Zinc plated steel
A cover is mounted on top of the machine, made from zinc plated steel. The length of the topside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on top of the machine, made from stainless steel. The length of the topside cover is 0 t/m 2500, steps of 25 cm
- Material and treatment (legs)
Stainless steel
It is made from stainless steel AISI304
Painted mild steel
It is made from painted mild steel
Galvanized steel
It is made from galvanized steel
- Length of legs
Length of legs
0 – 7 meter
- Support – wheels
wheels
The machine is fitted with wheels
