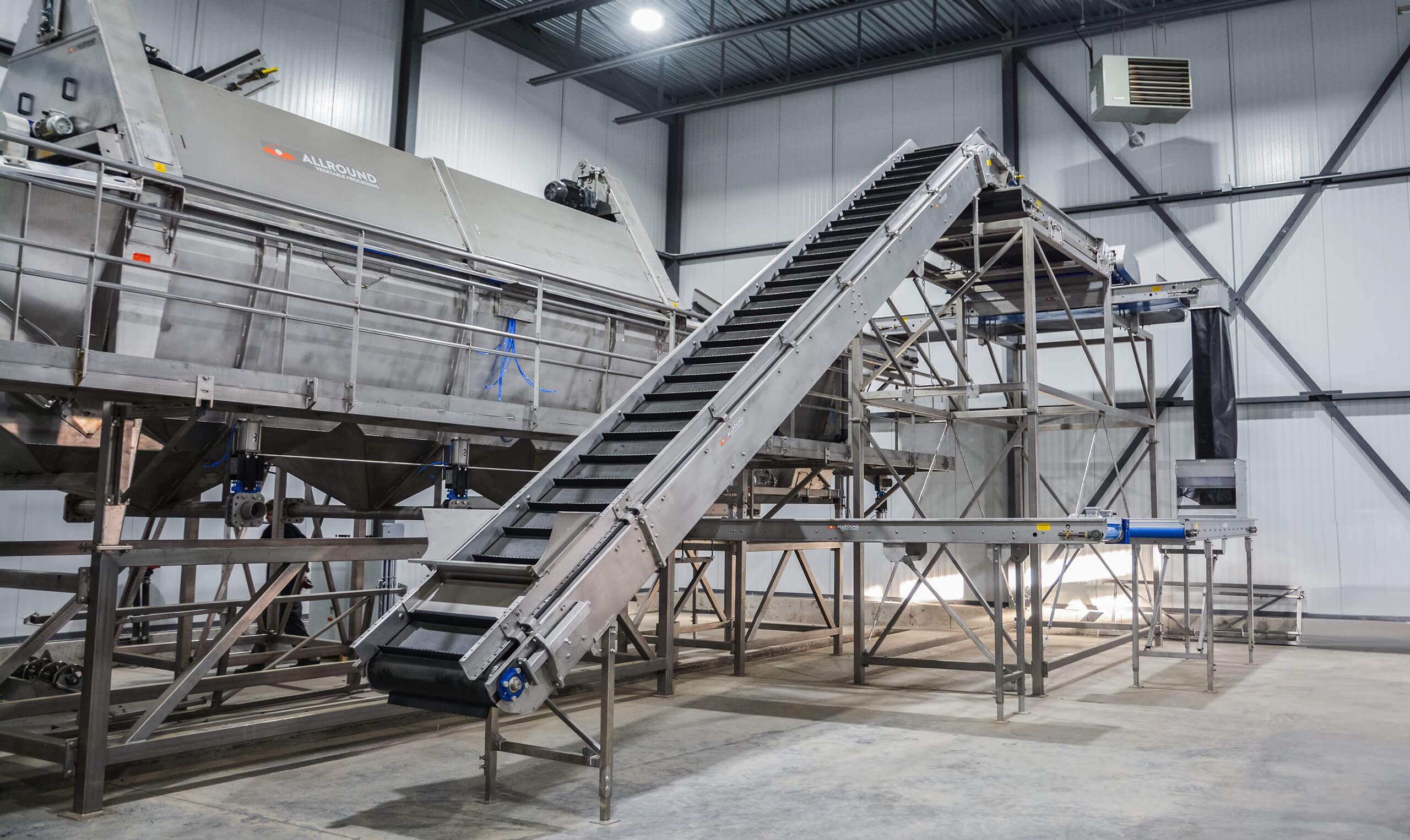

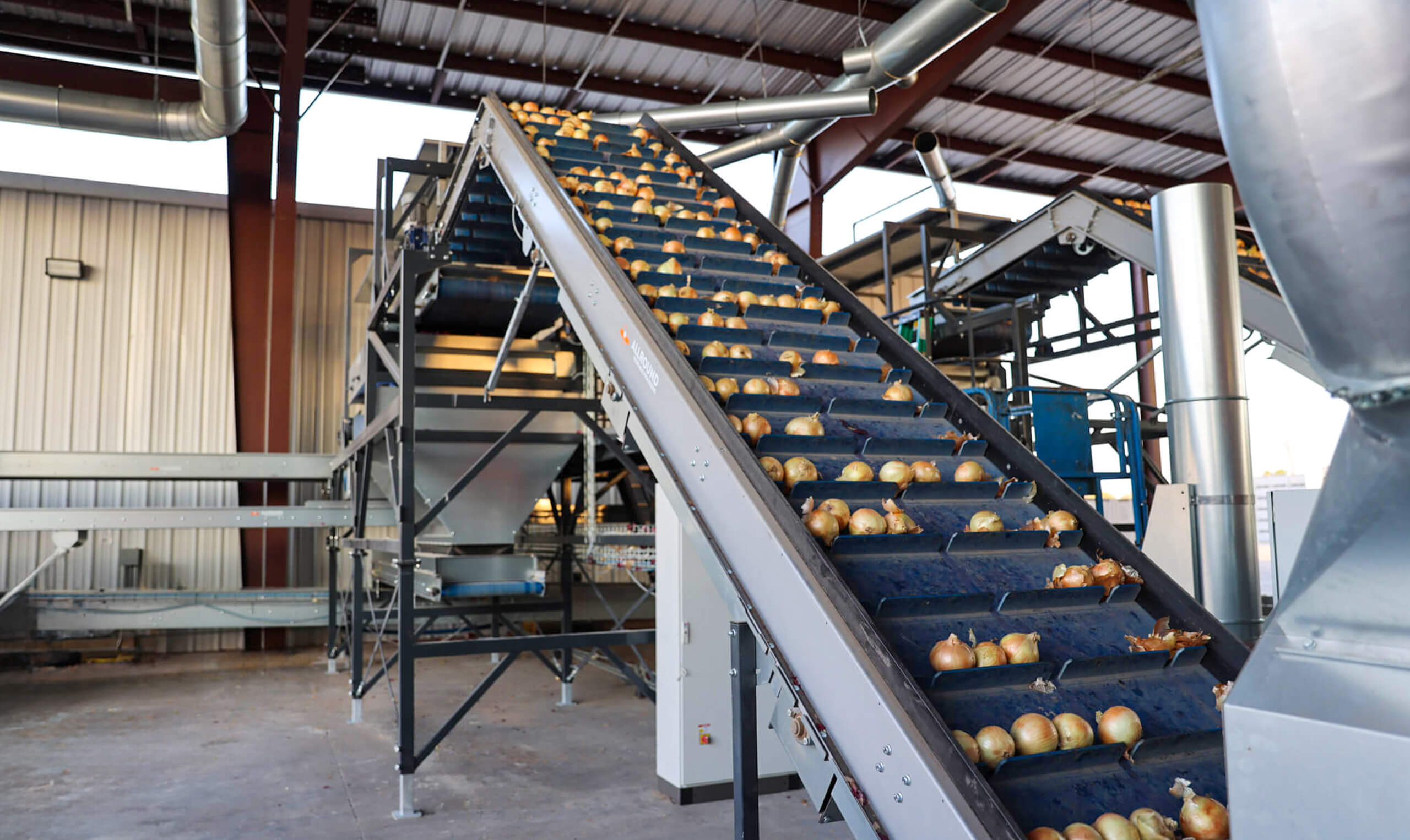

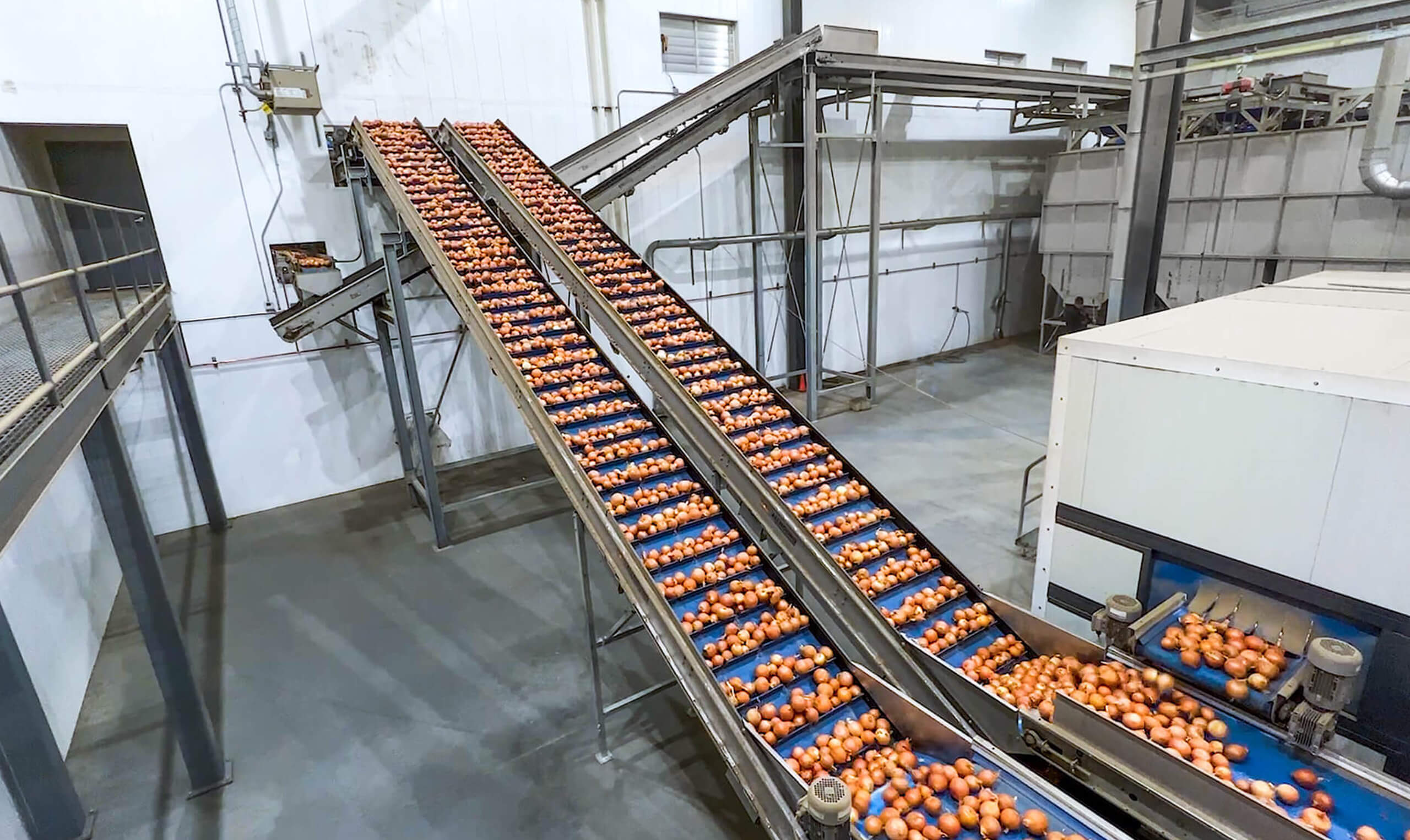

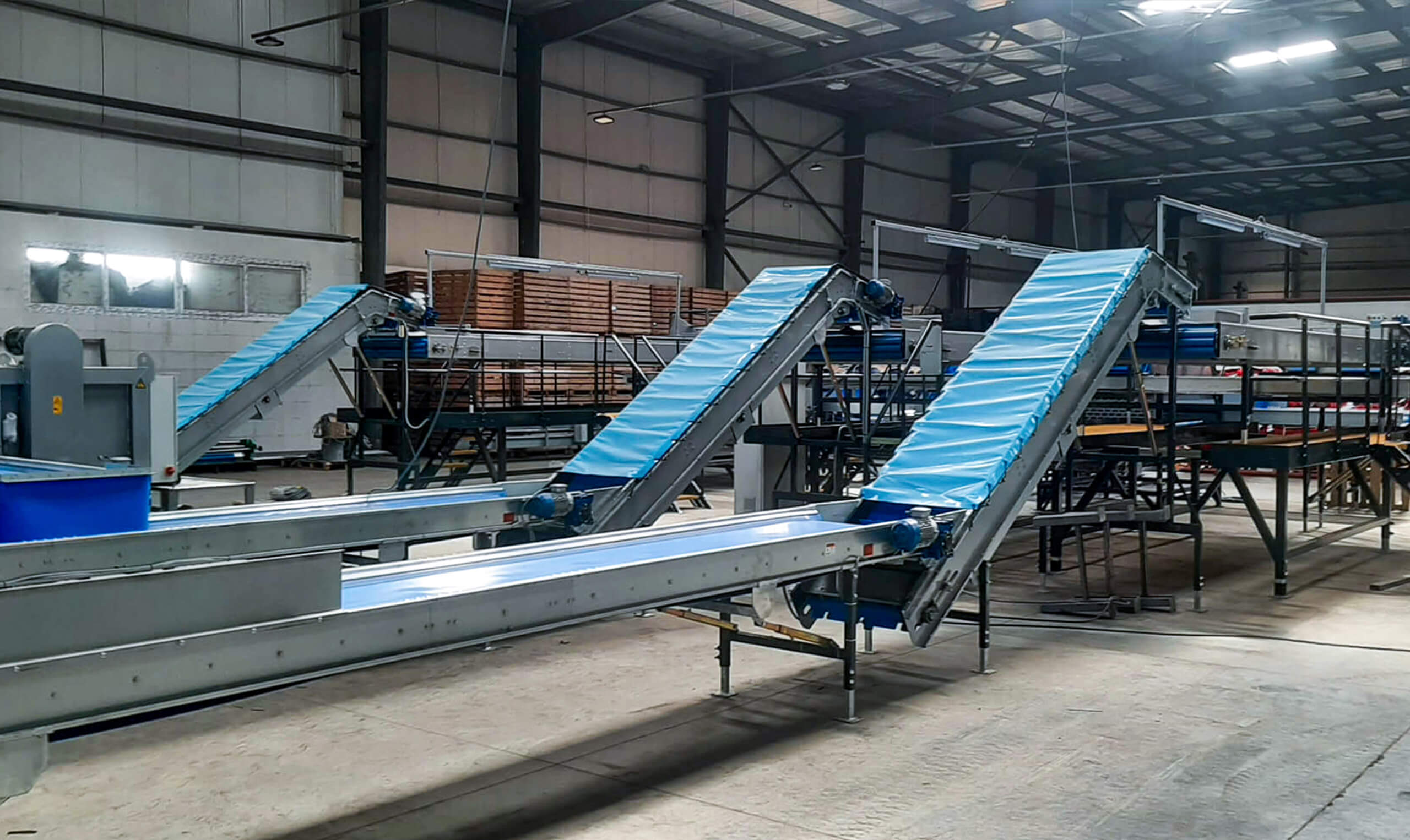

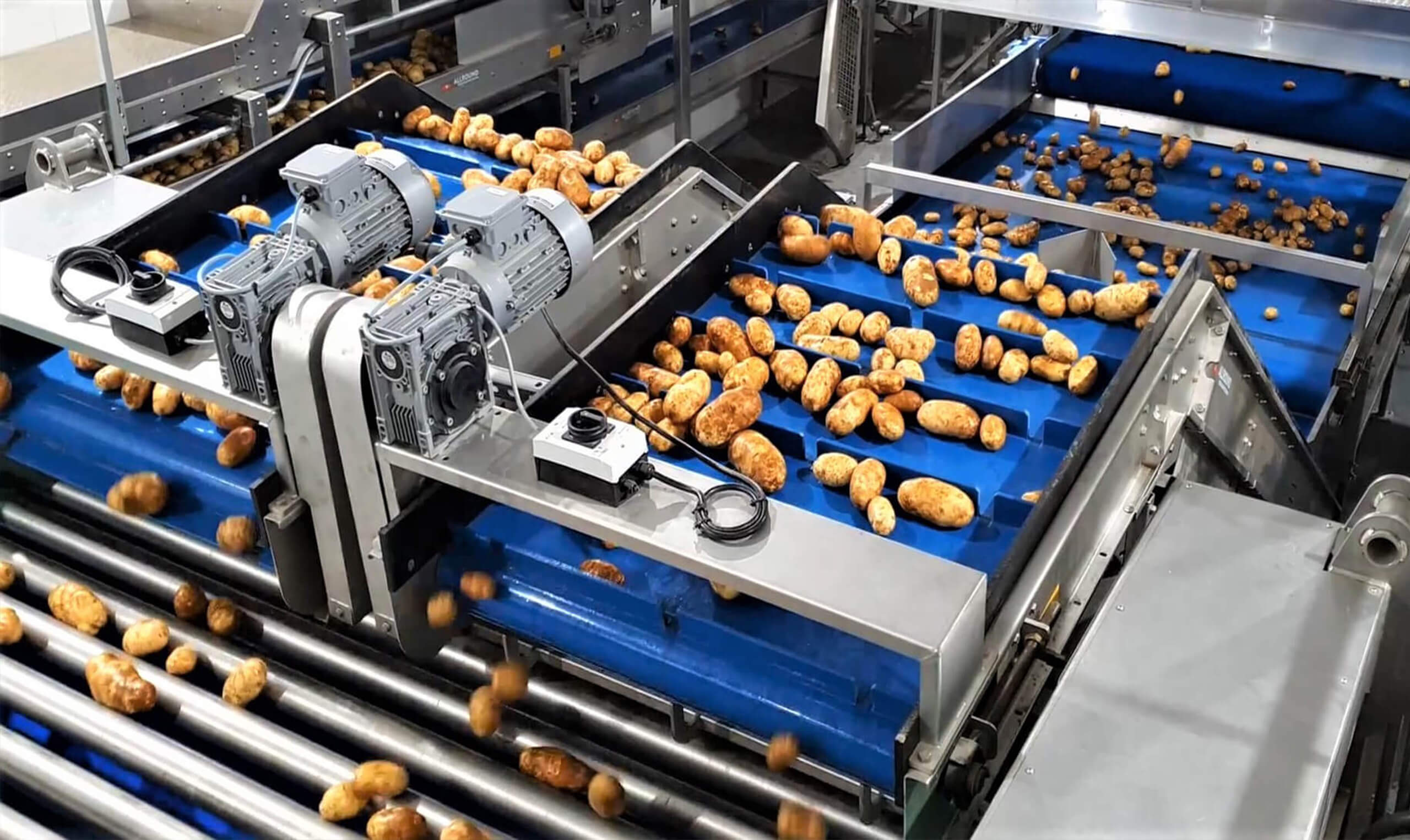

Where drop heights are a major concern elevator with swan neck comes into play. ELK type elevator transfer is produced at a certain height with minimal drop height.
The standard Elevator is supplied with a painted mild steel frame and plating, bearings, and drive/idle rollers are of mild steel. On demand, the Frame and plating can be supplied with stainless steel but bearings and drive/idle rollers are of mild steel.
The belt can be made of PVC, PU, and rubber. The height of the cleats are 40, 60, and 80 mm. On demand, the Bottom/top sides of the elevator can be covered with a cover made of zinc plated steel or stainless steel.
Characteristics
- Models are available in 40, 60, 80, 90, 100, 120, 140, 150, 170, and 230 cm width
- A backstop prevents produce roll-back
- The length of the straight part is 150 t/m 1500, with steps of 25 cm
- The length of the incline part is 75 t/m 1000, with steps of 25 cm
- The cleats are THW 75
- Belts of elevators can be supplied in PVC, PU, and rubber
Specifications
| Width of the machine (in cm) | Length of the straight part | Length of the incline part | |
|---|---|---|---|
| ELK 40 | 40 | 150 t/m 1500, steps of 25 cm | 75 t/m 1000, steps of 25 cm |
| ELK 60 | 60 | ||
| ELK 80 | 80 | ||
| ELK 90 | 90 | ||
| ELK 100 | 100 | ||
| ELK 120 | 120 | ||
| ELK 140 | 140 | ||
| ELK 150 | 150 | ||
| ELK 170 | 170 | ||
| ELK 230 | 230 |
Options
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel. Plating is from painted mild steel
Stainless steel
Frame is made from stainless steel. The bearings and drive/idle rollers are from mild steel. Plating is from stainless steel
- Belt
PVC
The belt is made of PVC
PU
The belt is made of PU
Rubber
The belt is made of Rubber
- Cleats
Cleats height
The height of the cleats is 40 mm, 60 mm or 80 mm
Cleats shape
The cleats are THW 75
- Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel
Central control in line
Motors and necessary sensors
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel
- Material and treatment (bottomside cover)
Zinc plated steel
A cover is mounted on the bottom of the machine, made from zinc plated steel. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on the bottom of the machine, made from stainless steel. The length of the bottomside cover is 0 t/m 2500, steps of 25 cm
- Material and treatment (topside cover)
Zinc plated steel
A cover is mounted on top of the machine, made from zinc plated steel. The length of the topside cover is 0 t/m 2500, steps of 25 cm
Stainless steel
A cover is mounted on top of the machine, made from stainless steel. The length of the topside cover is 0 t/m 2500, steps of 25 cm
- Motor
Motor on top
A motor is mounted on top
