Cabbage processing line C3 series

Category: Cabbage lines

Allround Cabbage Lines are especially designed to allow companies to process cabbage in a safer, cleaner and more efficient way. As the outer leafs of the cabbage is usually cleaned before selling the product, there is a lot of labor involved.

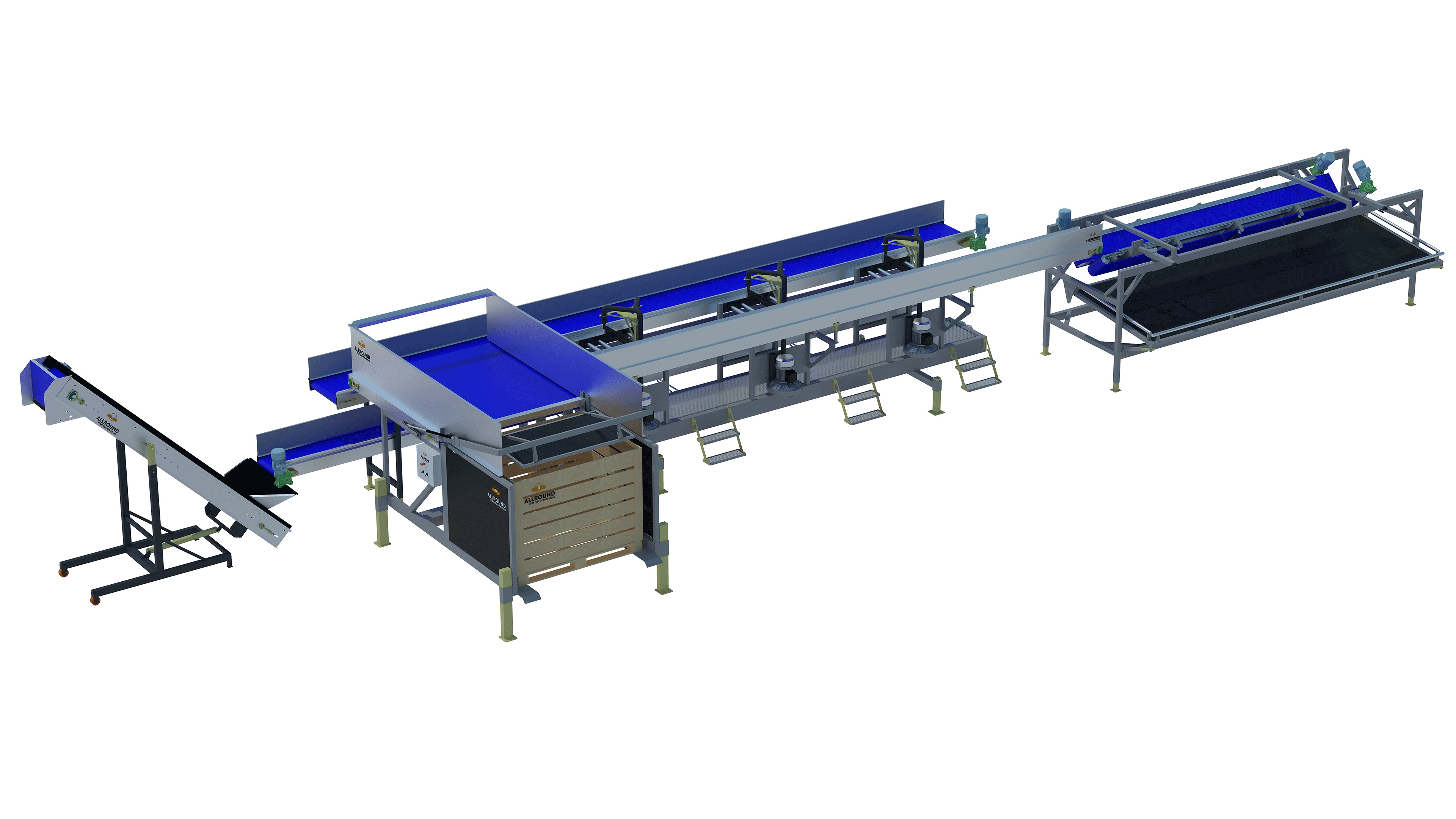

With the Allround Cabbage Lines, this labor is reduced to a minimum. First a box of cabbages is loaded into the special cabbage box tipper. This cabbage box tipper is designed to eliminate the falling height. the box is turned onto a belt, which then gently feeds the line.

The capacity of the line depends on the number of cleaning stations. 1 cleaning station gives approximately 1 ton of capacity per hour. The underside of the cabbage is cut off, and with an air beam the outer leafs are blown off.

After the cleaning, there are several options to consider for grading and packaging, depending on the needs of the customer.

No drawing






    Estimated capacity (tons/hour)

     Product Small Big
    Cabbage 0.8 1.2

    Machinary list

    Machines Type
     Box tipper ZC 160
     Product belt  TB 900-60
    Clearing station  C3
     Waste belt  TB 1000-40
     Waste collection belt  TCC 350-40
     Transport belt  TC 750-20
    Cabbage size grader  CG 450
