Brushing machine BRF

The brushing machine is designed to clean vegetables and potatoes using flat brushes. They can operate wet or dry.

Product Information

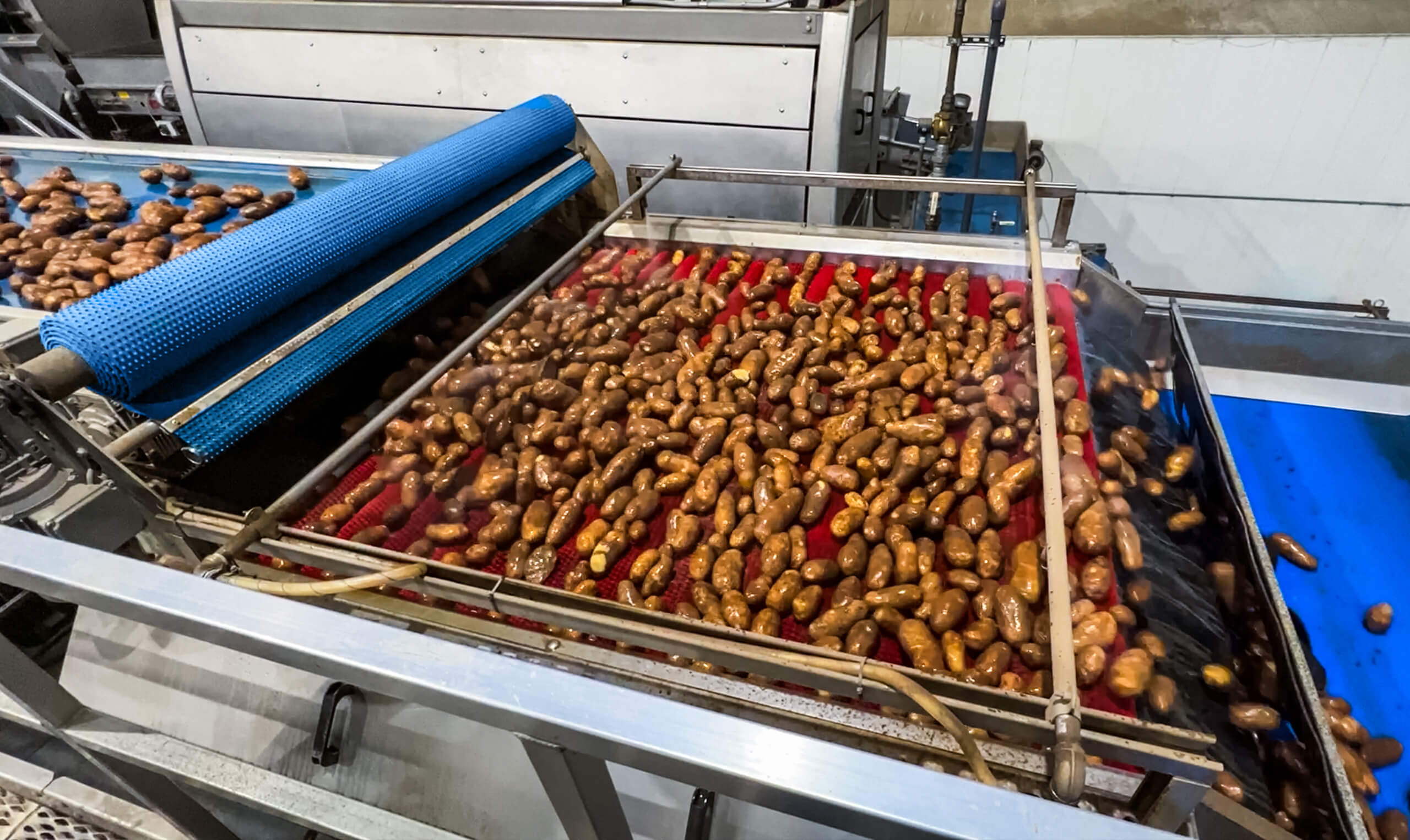

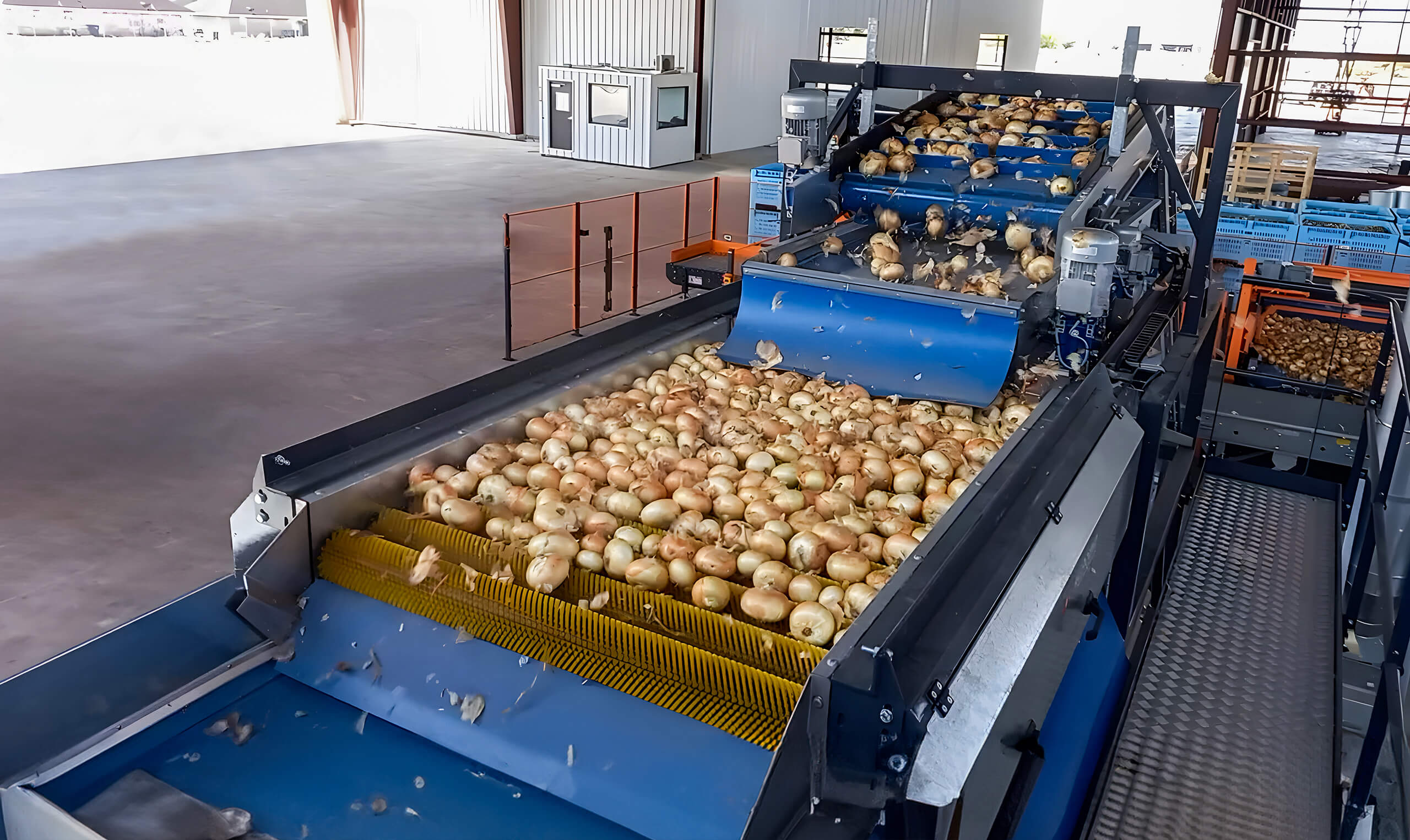

The brushing machine is designed to clean vegetables and potatoes using flat brushes. The produce is transferred over the brushes and rollers by other produce pushing it from behind, while soil, dust, or skins fall between the rollers. This machine can be used for wet and dry products.

Allround standard brushing machine comes with a frame of painted mild steel. However, on demand frame can be made up of stainless steel AISI304. Various widths and numbers of rollers are available to choose from depending on the amount of dirt and crop type. On demand, each roller can be configured with different hardness brushes.

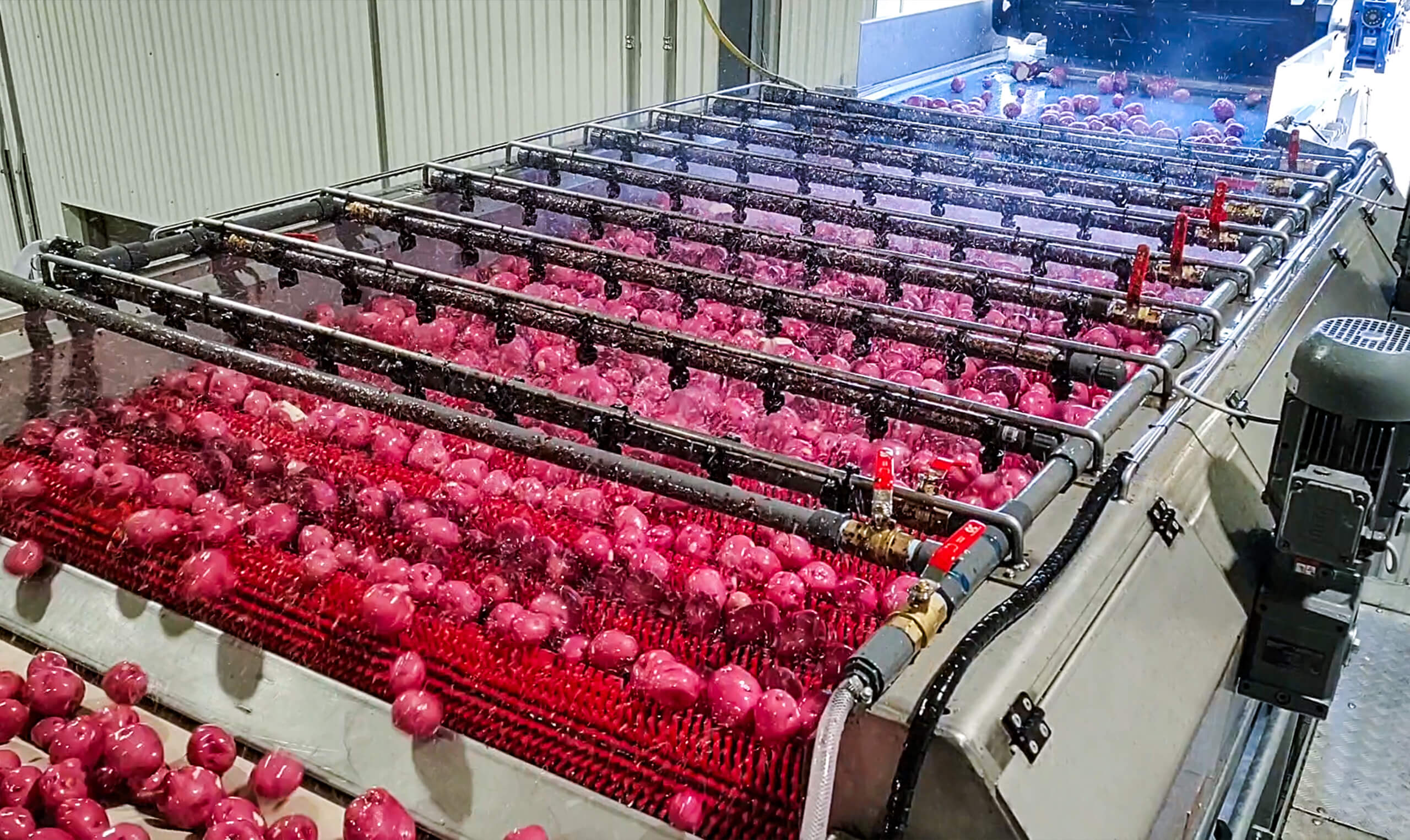

Various types of brushes are available according to their hardness. On demand, the number of spray bars can be integrated on top of the machine for water rising and chemical applications.

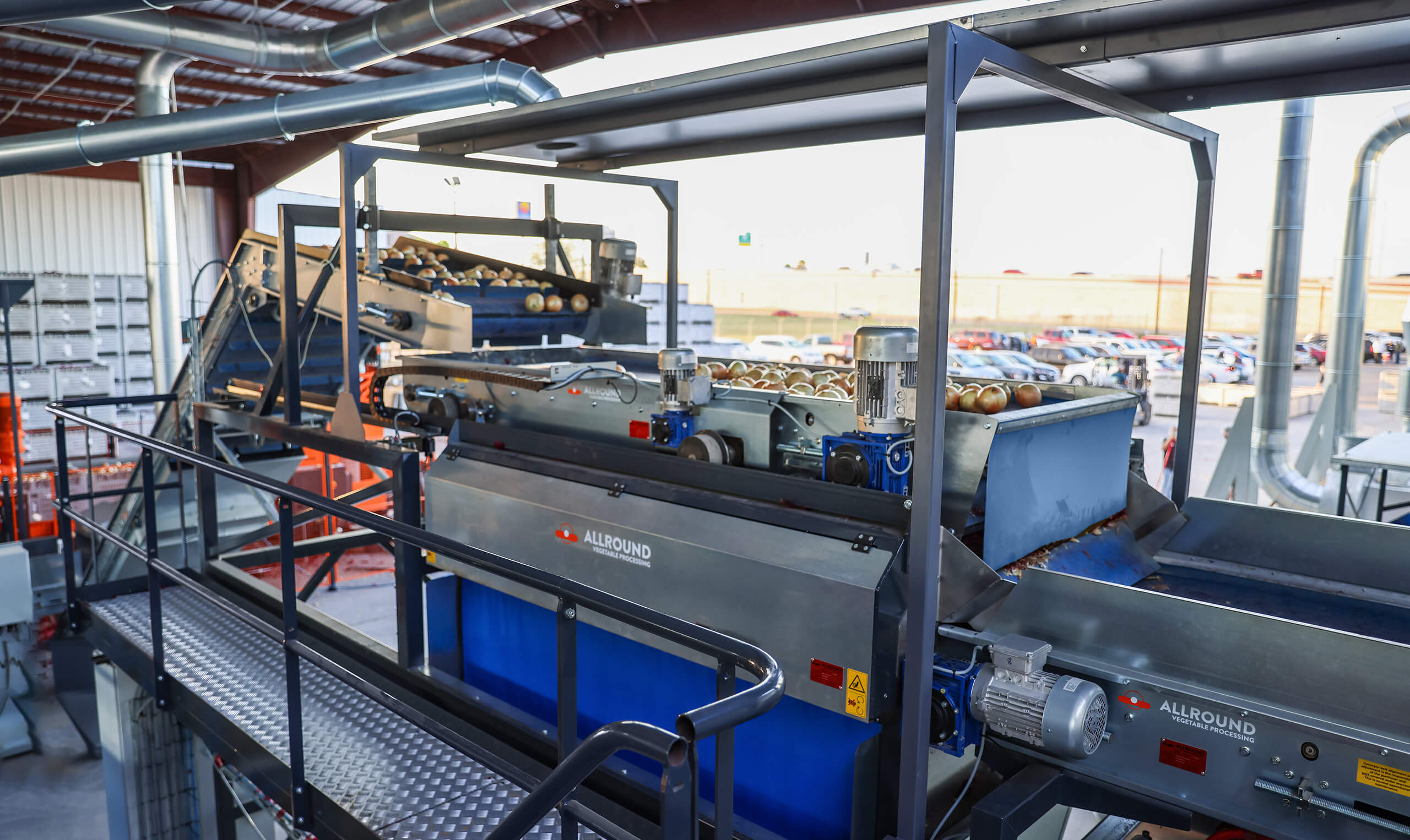

If required, the brushing machine can be on the subframe to accommodate height differences. The subframe can be made from painted mild steel, stainless steel AISI304, and galvanized steel. The height of the subframe can be varies from 0-5 meters.

Characteristics

  • Models available in 90, 110, 130, 150, and 180 cm width
  • Models available in 10, 15, and 20 amount of rollers

  • Spray bars allow chemical application and produce rinsing

  • The water catchment tray collects waste water. Easy cleaning access

  • Belt driven design is more reliable than chain-driven design and less maintenance

  • No drop between modules means multiple flatbeds can be combined. This is an efficient use of space and the most gentle form of handling

  • Modular build to mix and match functionality, and flexibility, and can modify set-up at a later date

  • Designed with few catchment areas reduces dirt trapping

Specifications

  BRF 90 BRF 110 BRF 130 BRF 150 BRF 180
Width of the machine (in cm) 90 110 130 150 180
Amount of rollers 10, 15, 20 10, 15, 20 10, 15, 20 10, 15, 20 10, 15, 20

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel
Stainless steel
Frame is made from stainless steel AISI304
  • Spray bar on top
Spray bar(s)
There are 1 to 5 spray bars on top
  • Roller
Gummy
It is used to reduce the amount of water
  • Brush hardness
0.2 mm
Black
0.25 mm
Yellow
0.3 mm
Red
0.35 mm
Grey
0.4 mm
Green
0.45 mm
Blue
0.7 mm
Black
1.2 mm
White
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Subframe (electrical panel)
Mounted on machine
The electrical panel is mounted on the machine
Mounted on wall
The electrical panel is mounted on the wall. The length of the cable between the machine and the electrical panel is 5, 10, 15 or 20 meter
Subframe
The electrical panel is mounted on a subframe. The length of the cable between the machine and the electrical panel is 5, 10, 15 or 20 meter. The subframe is made from stainless steel AISI304, painted mild steel, galvanized steel
  • Material and treatment (subframe)
Painted mild steel
It is made from painted mild steel
Stainless steel
It is made from stainless steel AISI304
Galvanized steel
It is made from galvanized steel
  • Height of subframe
Height of subframe
0 to 5 meter
  • Bearing greasing
Manual
The bearings can be greased manually
Automatic
The bearings are greased automatically
