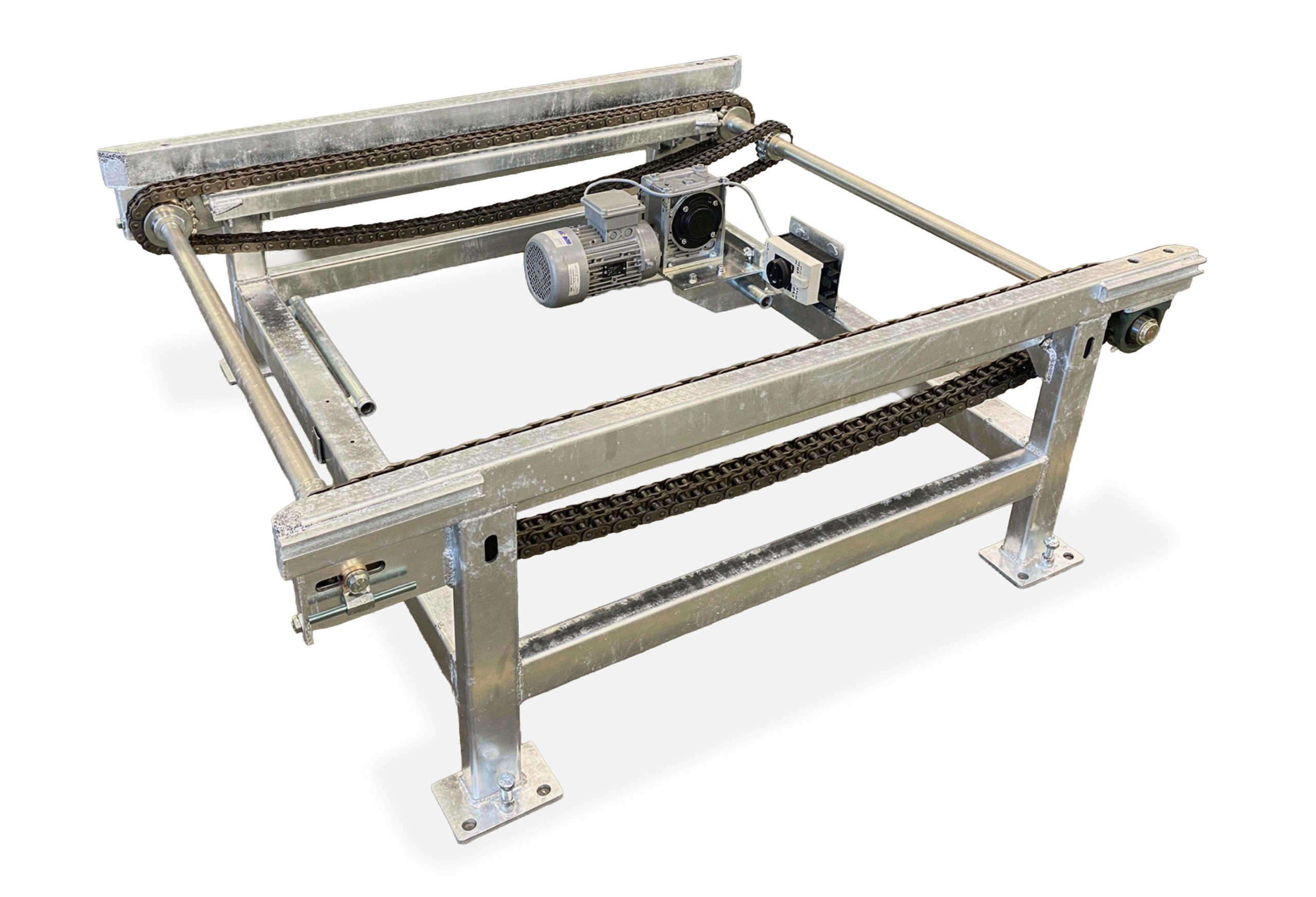

Box transport unit BTU
The box transport unit is used to transport boxes. The box is transported along a track.
The box transport unit is used to transport boxes. The box is transported along a track.
The system ensures smooth and reliable box movement throughout the production line. Its robust design supports efficient and continuous material handling operations.
Characteristics
Efficient box transportation along tracks
Capacity up to 120 boxes/hour
Optional frequency inverter for speed adjustment
Available in painted mild steel or galvanized steel
Optional automated control with motors and sensors
Reliable and efficient box handling solution
Specifications
| BTU | |
|---|---|
| Length of the machine | Depends on the amount of boxes |
| Width of the box (in cm) | Upto 240, steps of 1 cm |
| Depth of the box (in cm) | Upto 150, steps of 1 cm |
| Amount of boxes | 1, 2 |
| Capacity | 120 boxes per hour |
OptionsItems marked with * are optional
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel and zinc plating. The bearings and drive/idle rollers are from mild steel. The chain is made from mild steel
Galvanized steel
Frame is made from galvanized steel and stainless steel AISI304 plating. The bearings and drive/idle rollers are from mild steel. The chain is made from mild steel
- Electrical control
No electric
Motors and necessary sensors
Central control in line
Motors and necessary sensors
- Frequency inverter*
Speed adjustment
A frequency inverter is included to control the speed
