Box transport unit BTT

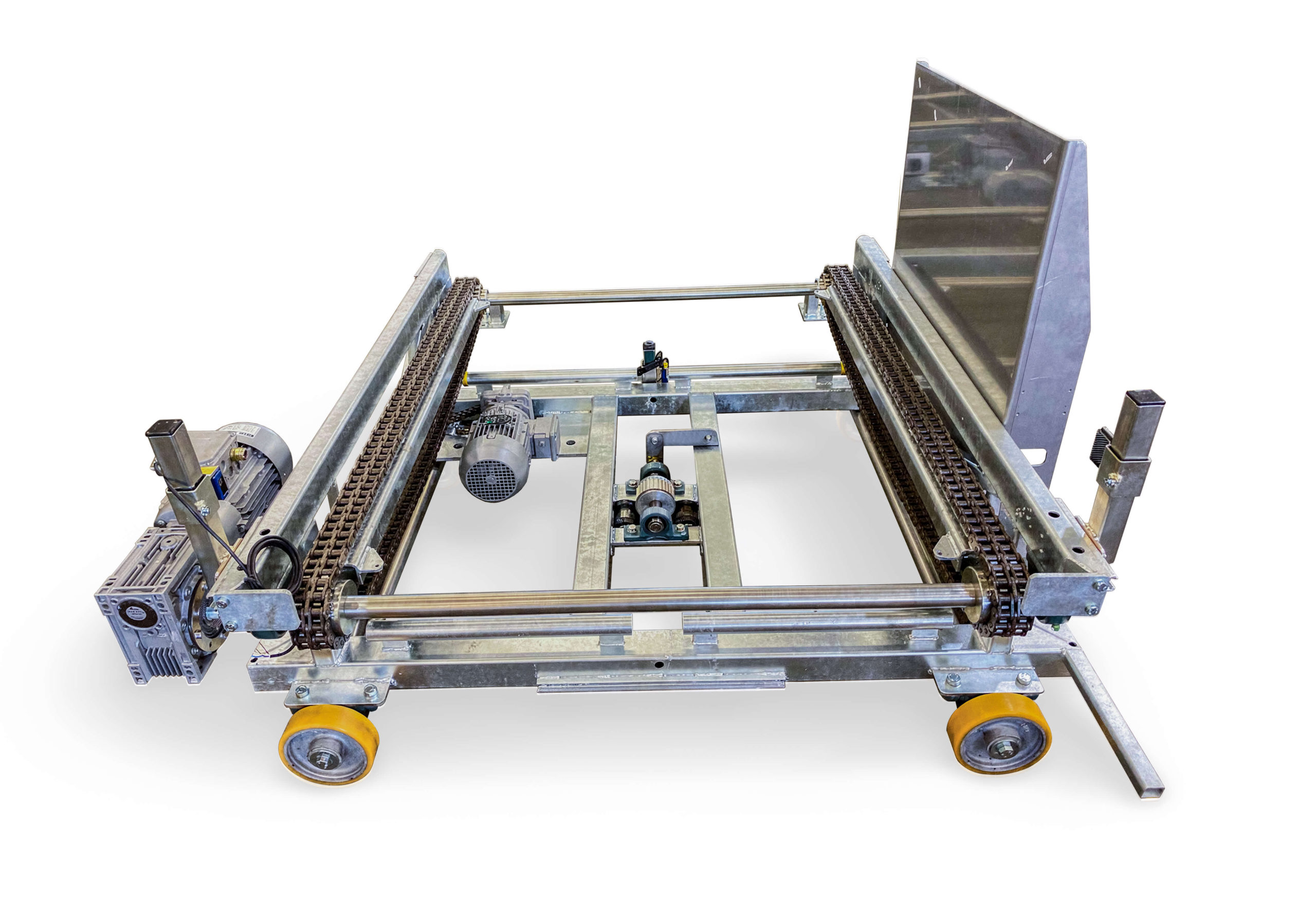

The box transport trolley transports boxes by moving them from one track to another.
The box transport trolley is used to transport boxes. The box is transported along a track onto the trolley. The trolley drives the box to another track, and the box is transported onto this track.
This system enables efficient transport of boxes between different tracks. Its robust design ensures smooth, reliable, and continuous material handling operations.
Characteristics
Specifications
| BTT | |
|---|---|
| Width of the box (in cm) | Upto 240, steps of 1 cm |
| Depth of the box (in cm) | Upto 150, steps of 1 cm |
| Speed (m/s) | 1.5 |
OptionsItems marked with * are optional
- Rails
Rails
Cable tray and rails are used to guide the trolley
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel and zinc plating. The bearings and drive/idle rollers are from mild steel. The chain is made from mild steel
Galvanized steel
Frame is made from galvanized steel and stainless steel AISI304 plating. The bearings and drive/idle rollers are from mild steel. The chain is made from mild steel
- Electrical control
No electric
Motors and necessary sensors
Central control in line
Motors and necessary sensors
- Frequency inverter*
Speed adjustment
A frequency inverter is included to control the speed
