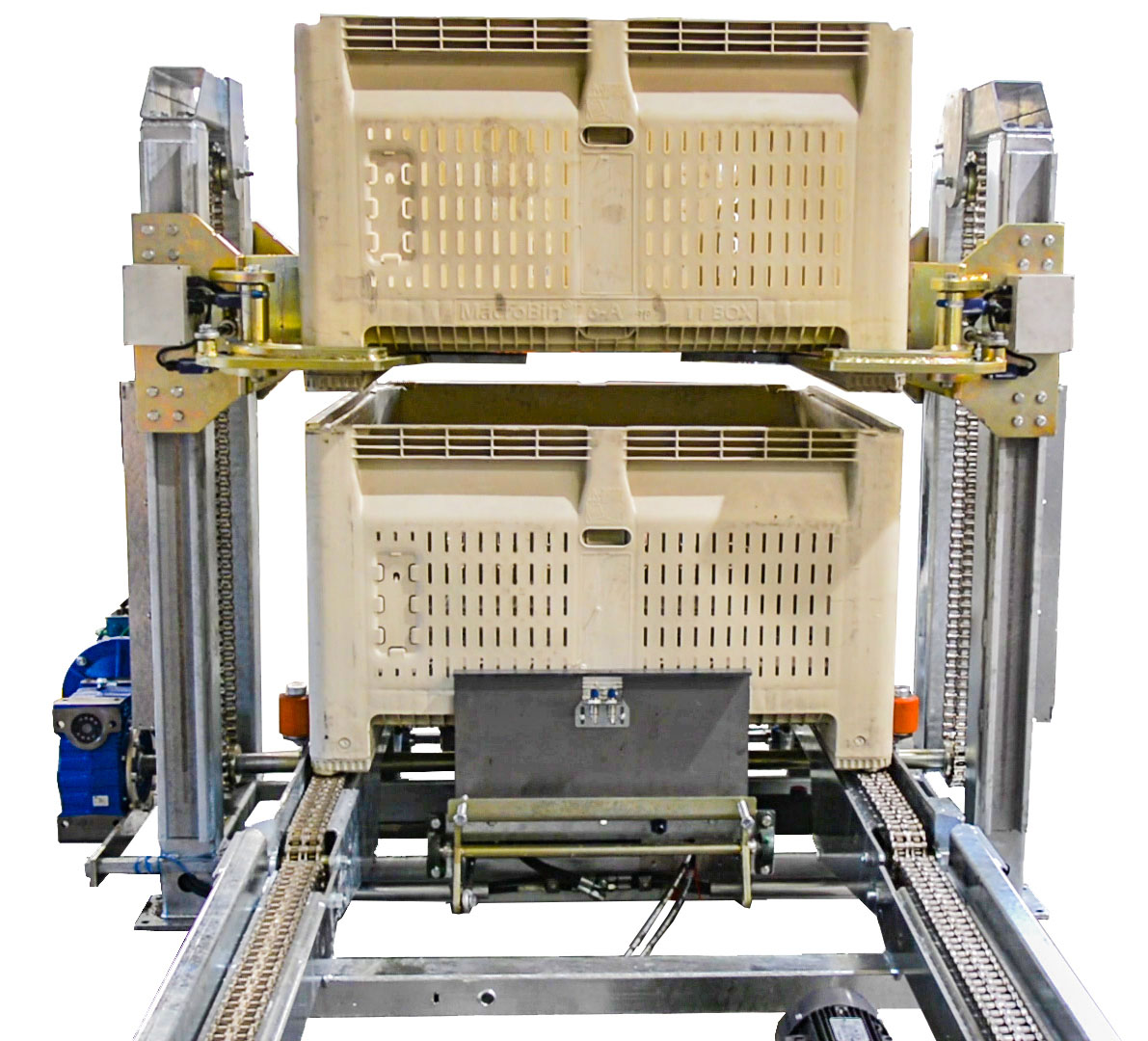

Box transport unit BS
The box stacker automatically stacks boxes by lifting and positioning them on top of each other, with a stacking capacity of up to 3 boxes.

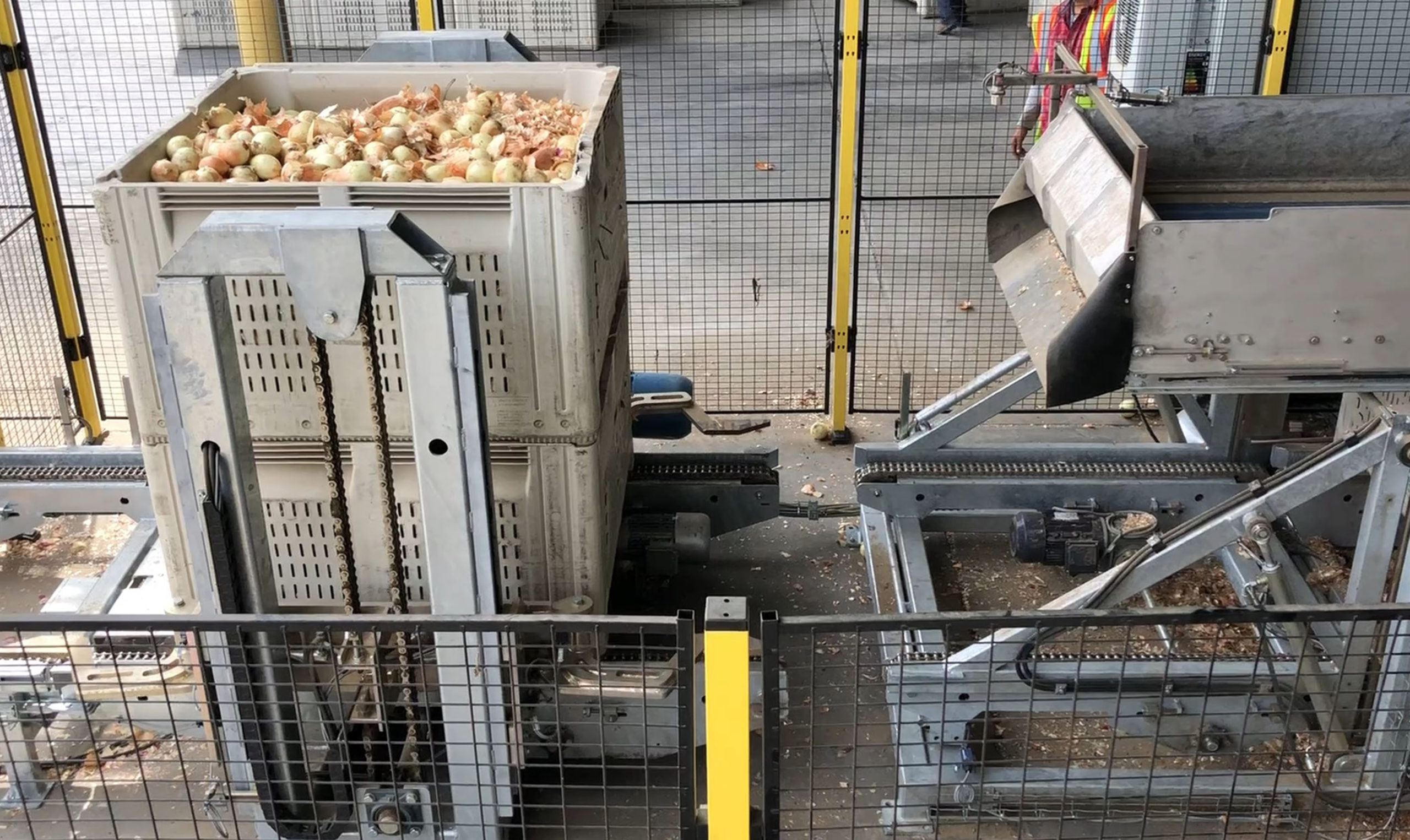

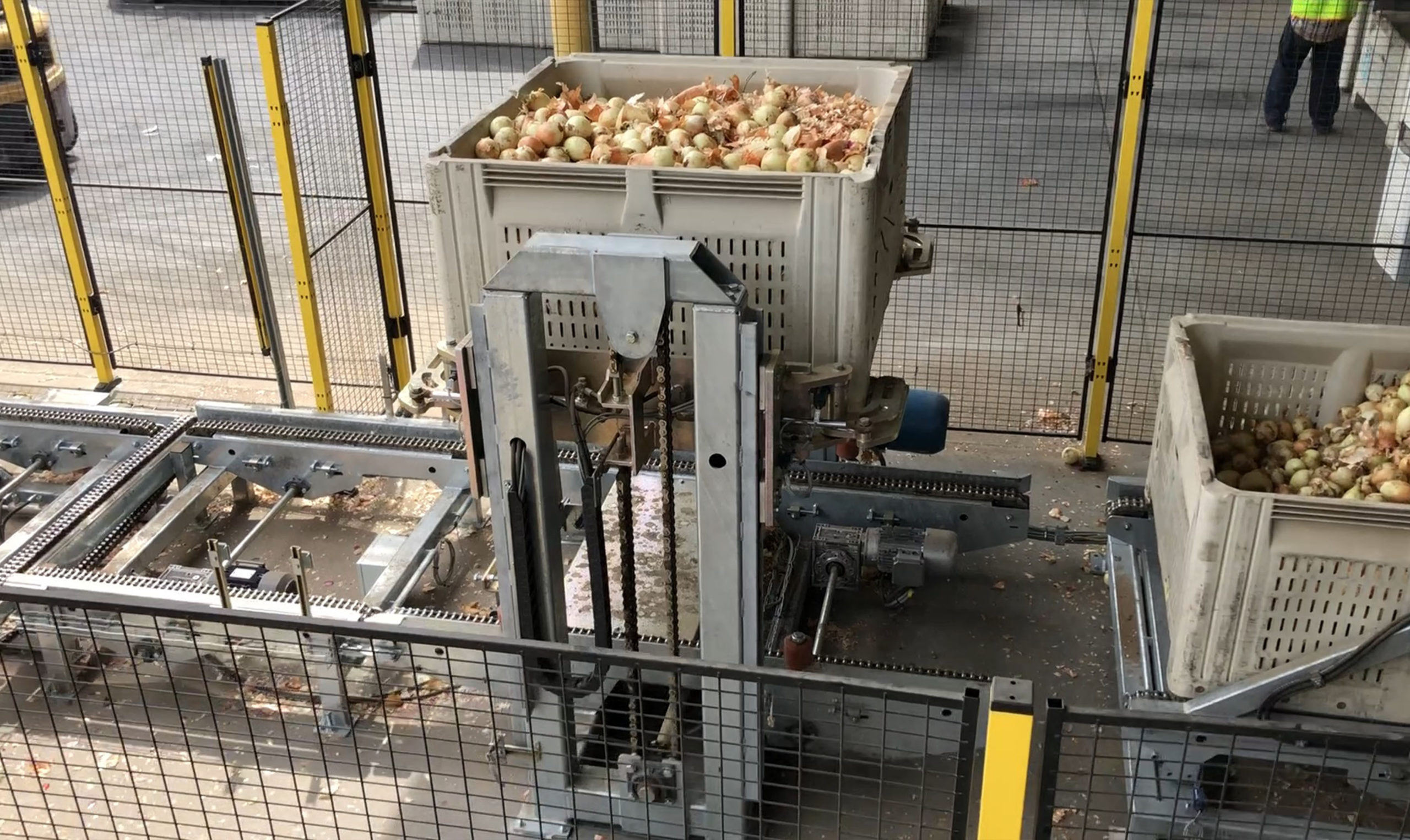

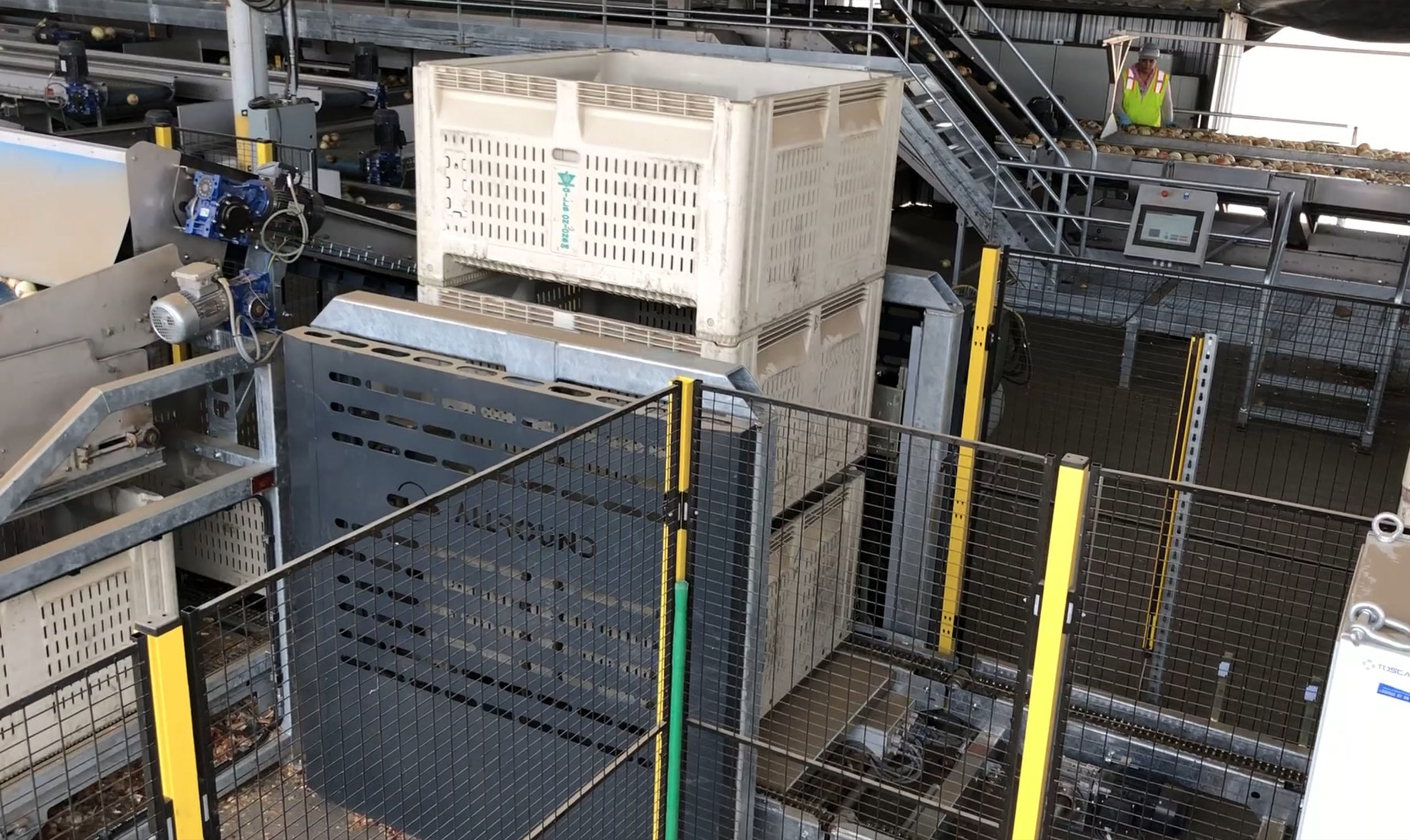

The box stacker is used to stack boxes. The box is transported along a track and stops on a position. The machine lifts the box so another box can be transported and stops below it. The box in the upper position stacks on top of the other box to a maximum of 3 boxes.
The system enables efficient box stacking while reducing manual handling. It provides reliable operation and optimized use of available space.
Characteristics
Specifications
| BS | |
|---|---|
| Width of the box (in cm) | Upto 240, steps of 1 cm |
| Depth of the box (in cm) | Upto 150, steps of 1 cm |
| Amount of boxes | 1, 2 |
OptionsItems marked with * are optional
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel and zinc plating. The bearings and drive/idle rollers are from mild steel
Galvanized steel
Frame is made from galvanized steel and stainless steel AISI304 plating. The bearings and drive/idle rollers are from mild steel
- Electrical control
No electric
Motors and necessary sensors
Central control in line
Motors and necessary sensors
- Frequency inverter*
Speed adjustment
A frequency inverter is included to control the speed
