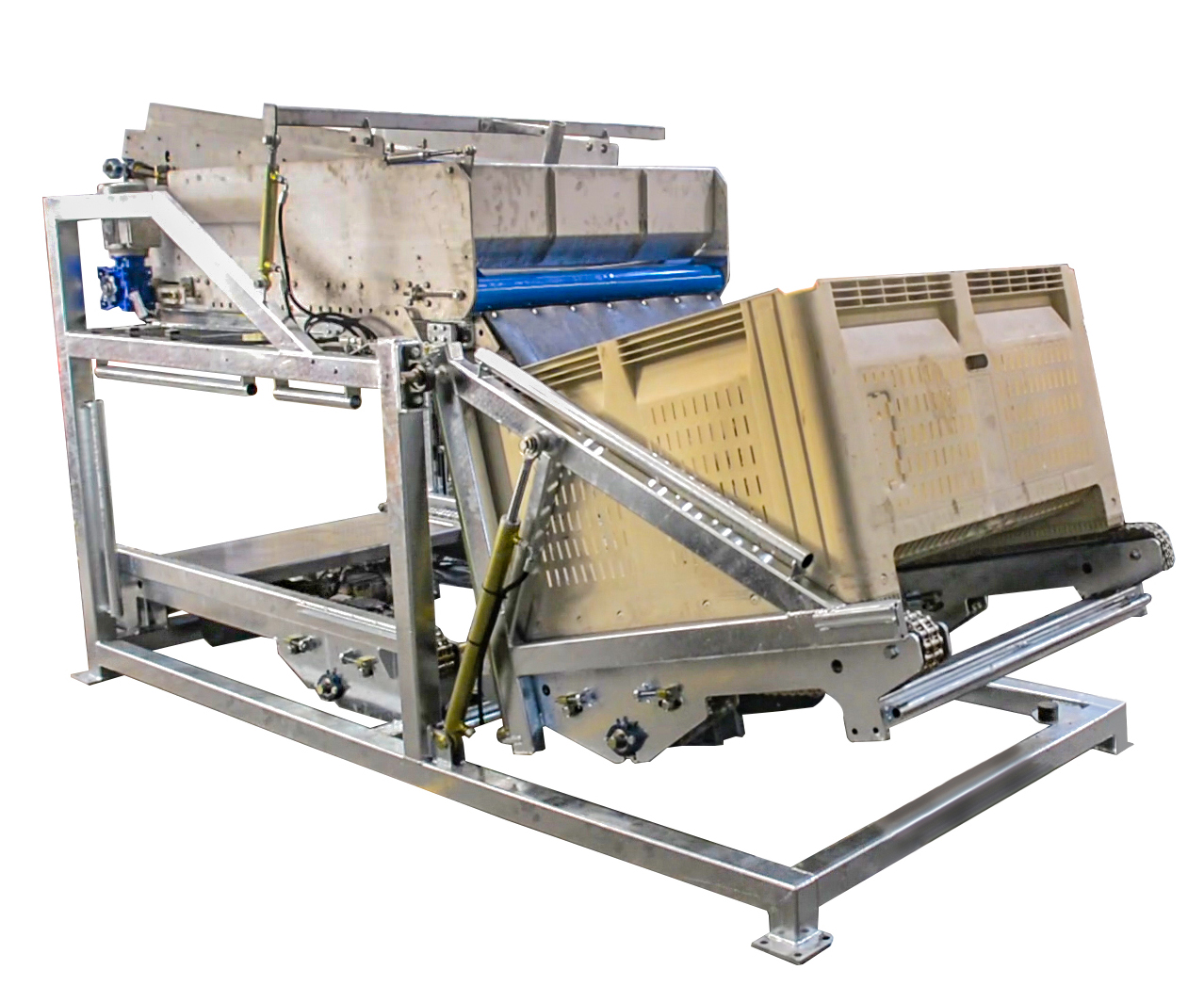

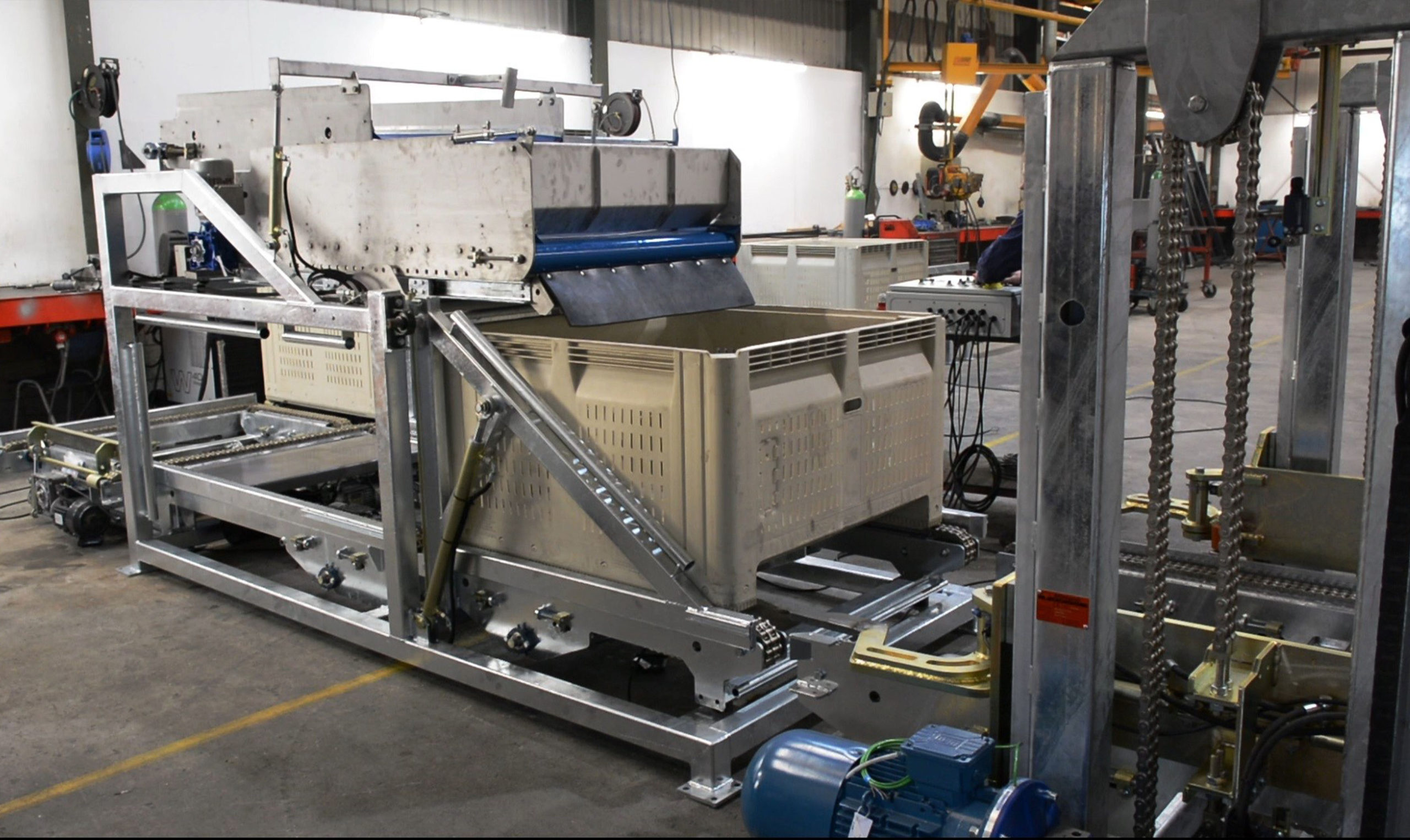

Box transport unit BFU

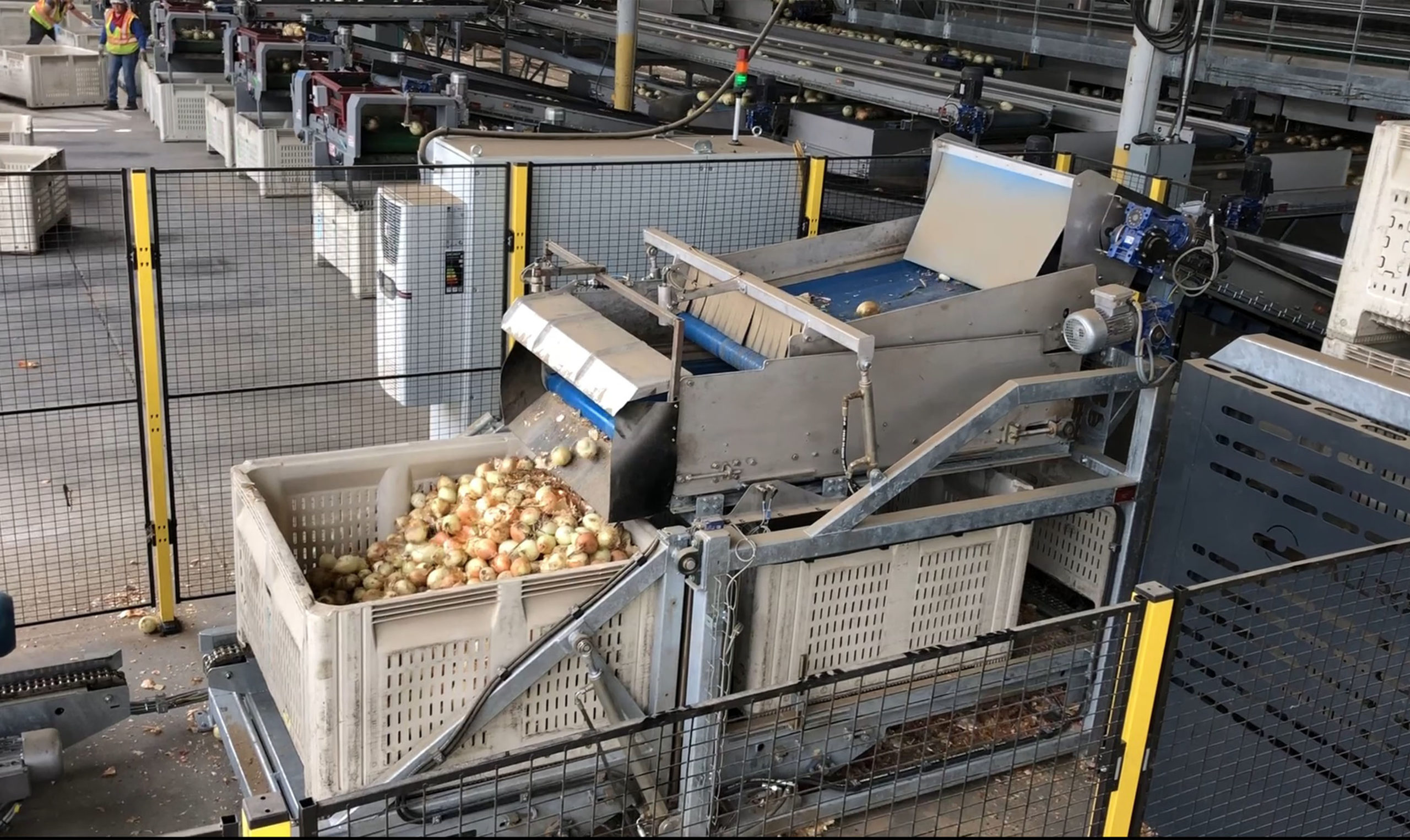

The box filling station automatically fills boxes by tilting them into position during filling. It also functions as a buffer, ensuring a continuous and efficient product flow.
The box filling station is used to fill boxes. The box is transported along a track and stops on a position. The box tilts to the upper position, and the machine starts filling. The box lowers when being filled. The station will also act as a buffer so that the supply can continue.
This ensures a continuous and efficient filling process with minimal interruption to the production flow. The robust design provides reliable operation and consistent box filling performance.
Characteristics
Specifications
| BFU | |
|---|---|
| Width of the box (in cm) | Upto 160, steps of 1 cm |
| Depth of the box (in cm) | Upto 150, steps of 1 cm |
| Height of the box (in cm) | Upto 150, steps of 1 cm |
OptionsItems marked with * are optional
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel and zinc plating. The bearings and drive/idle rollers are from mild steel. The chain is made from mild steel
Galvanized steel
Frame is made from galvanized steel and stainless steel AISI304 plating. The bearings and drive/idle rollers are from mild steel. The chain is made from mild steel
- Belt
PVC
The belt is made of PVC
- Electrical control
No electric
Motors and necessary sensors
Central control in line
Motors and necessary sensors
- Frequency inverter*
Speed adjustment
A frequency inverter is included to control the speed
