Box transport unit BDU

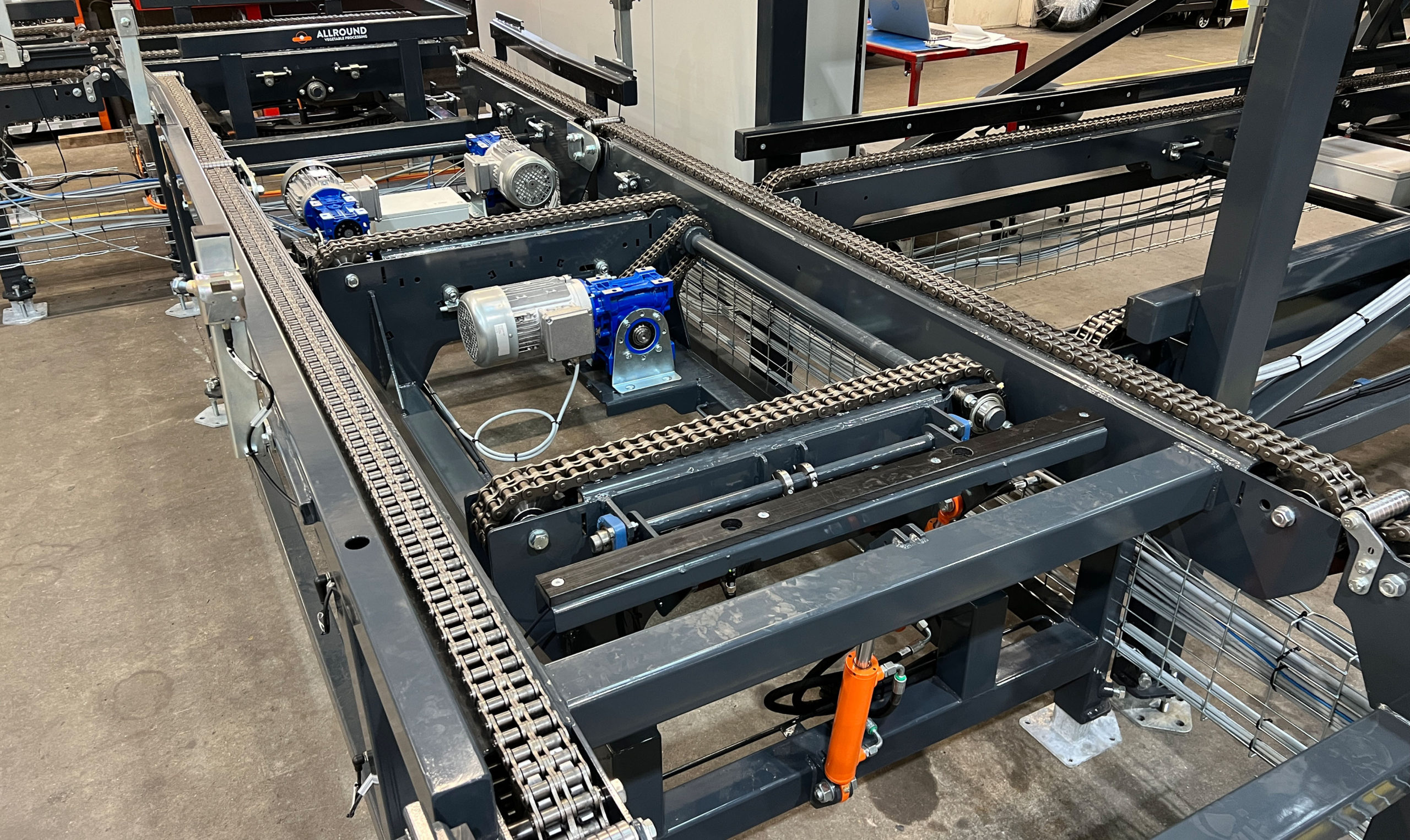

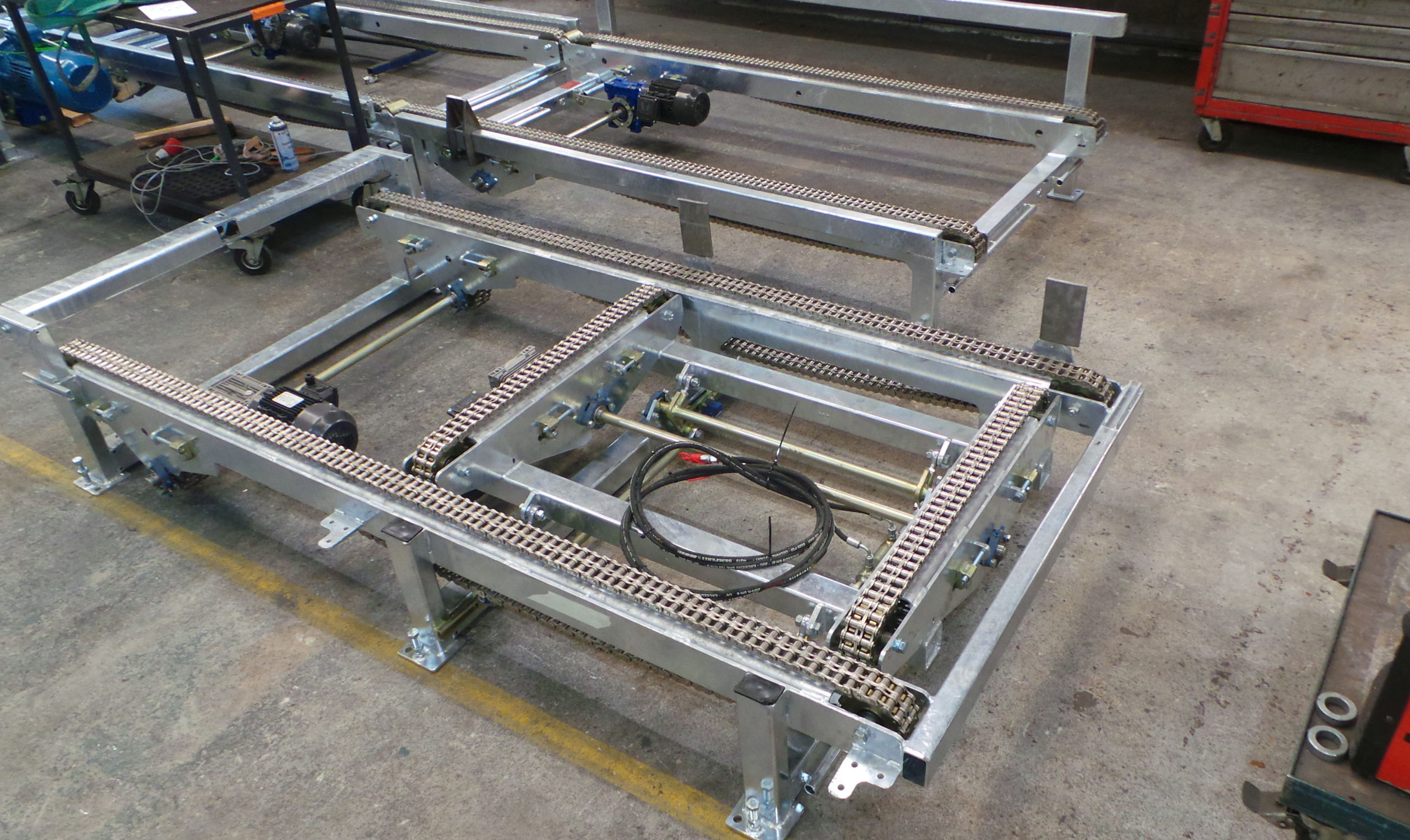

The box two-directional transport unit transports boxes and redirects them to a different track path through a vertical track transfer mechanism.
The box two-directional transport unit is used to transport boxes. The box is transported along a track and stops on a position. Then the track is going down while another track is going up and the box is transported along that track in a different direction.
This system enables smooth and efficient transfer of boxes between tracks. Its robust design helps optimize material flow and reduces manual handling in processing and packaging operations.
Characteristics
Two-directional box transport system
Capacity up to 120 boxes/hour
Optional frequency inverter for speed adjustment
Available in painted mild steel or galvanized steel
Optional automated control with motors and sensors
Reliable and efficient box handling
Specifications
| BDU | |
|---|---|
| Width of the box (in cm) | Upto 240, steps of 1 cm |
| Depth of the box (in cm) | Upto 150, steps of 1 cm |
| Length of the machine | Depends upon the amount of boxes |
| Amount of boxes | 1, 2 |
| Capacity | 120 boxes per hour |
OptionsItems marked with * are optional
- Material and treatment (frame)
- Electrical control
- Frequency inverter*
