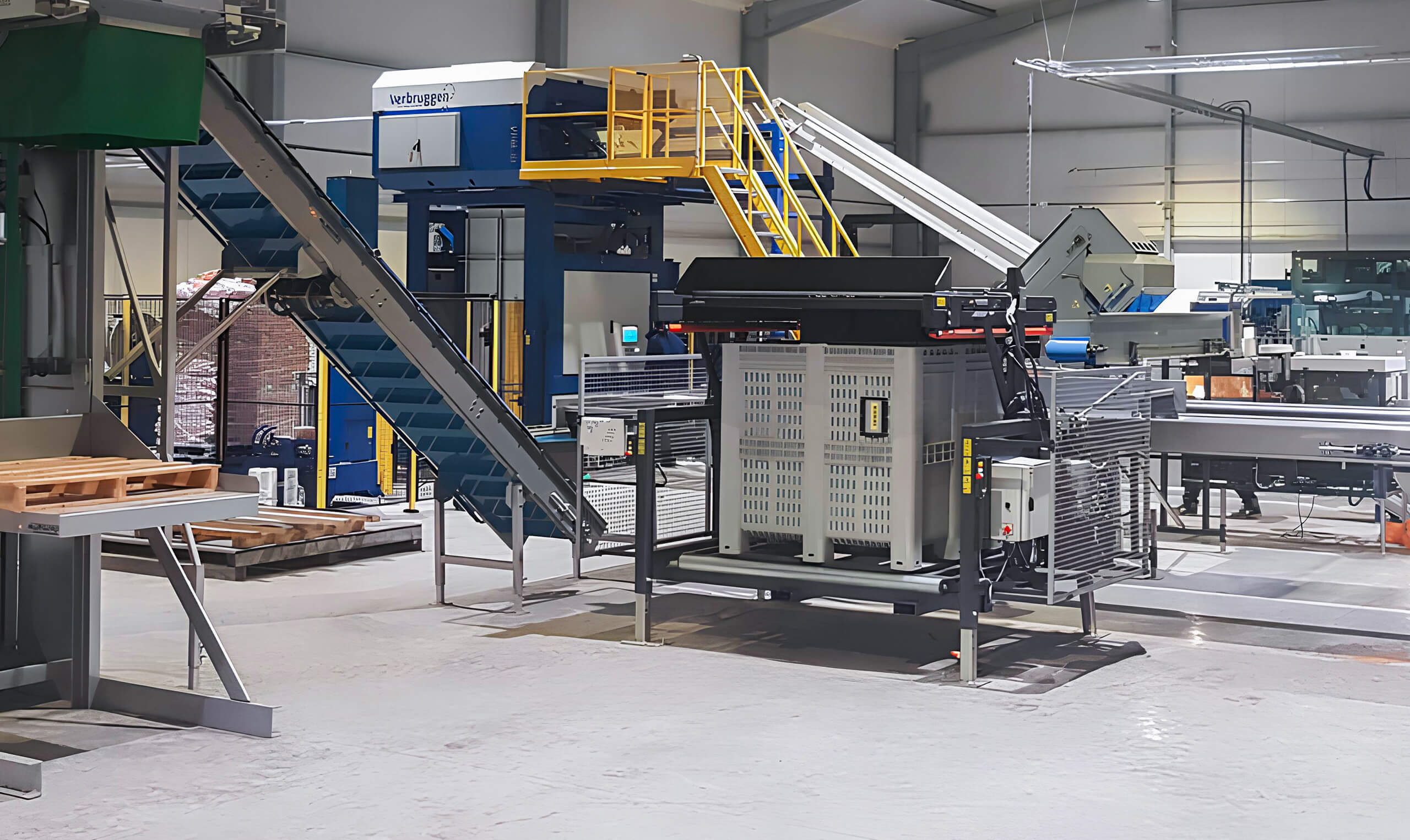

This box tipper is designed for a gentle handling of produce. With this box tipping system, the drop height will be limited. This means that it exposes the produce to less risk of being damaged by a drop.

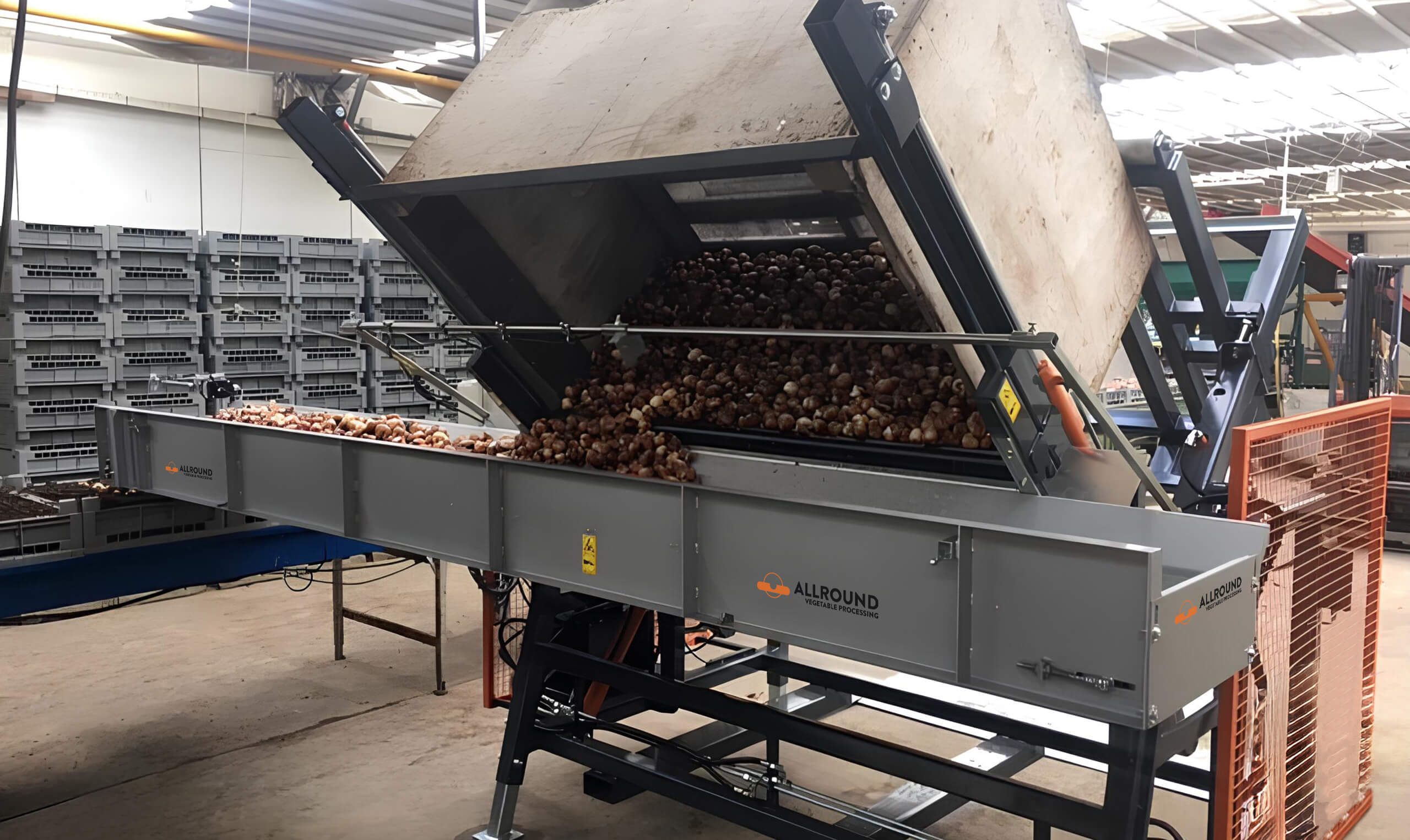

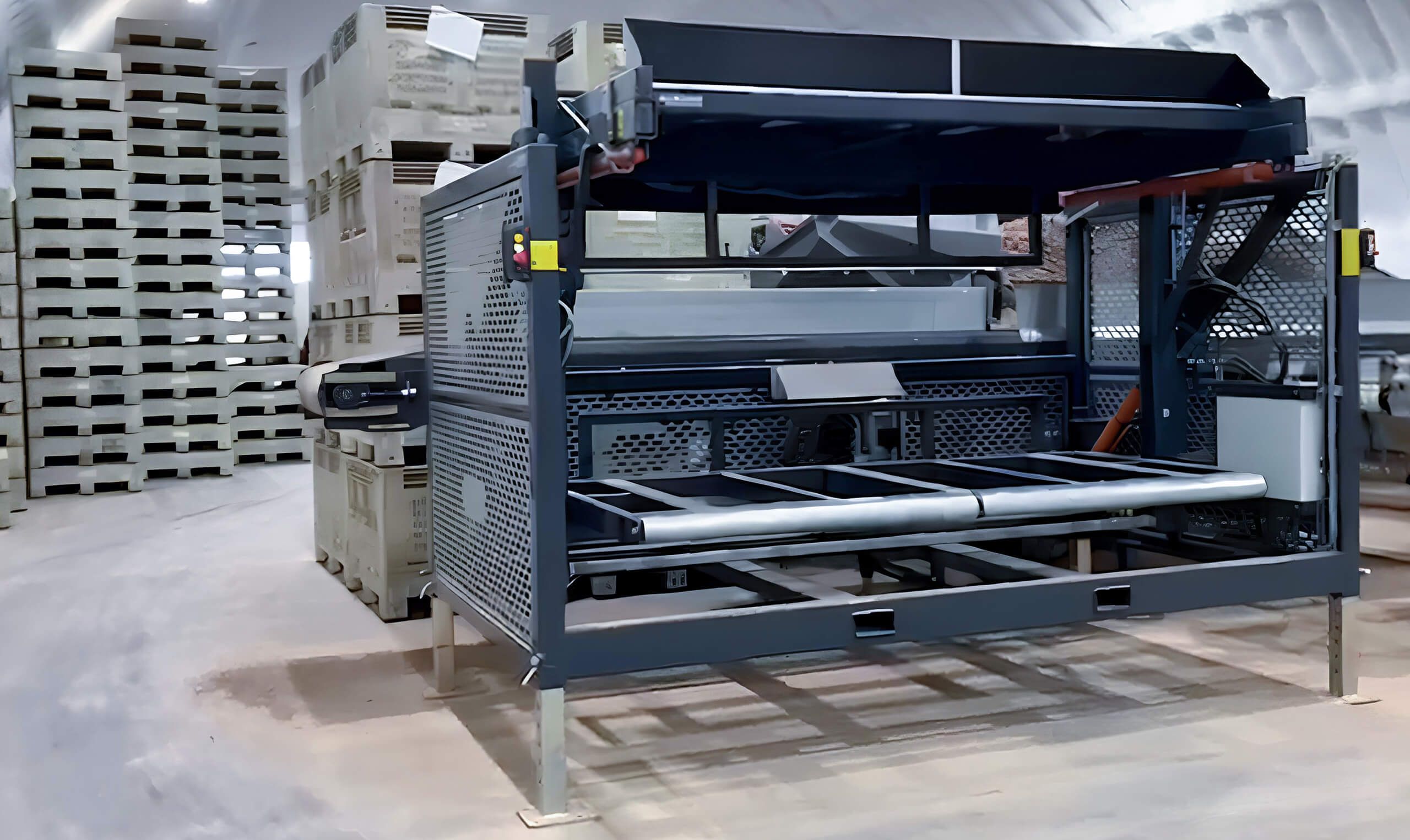

The box tipper is used to tip boxes. After the box is placed, the box rotates to a position under an angle of 135°. Then, the box moves diagonally upwards. While the box is moving up, it is emptied.
On demand, a sensor can be installed to detect and control the produce output. This sensor sends a signal to start or stop the rotation of the box

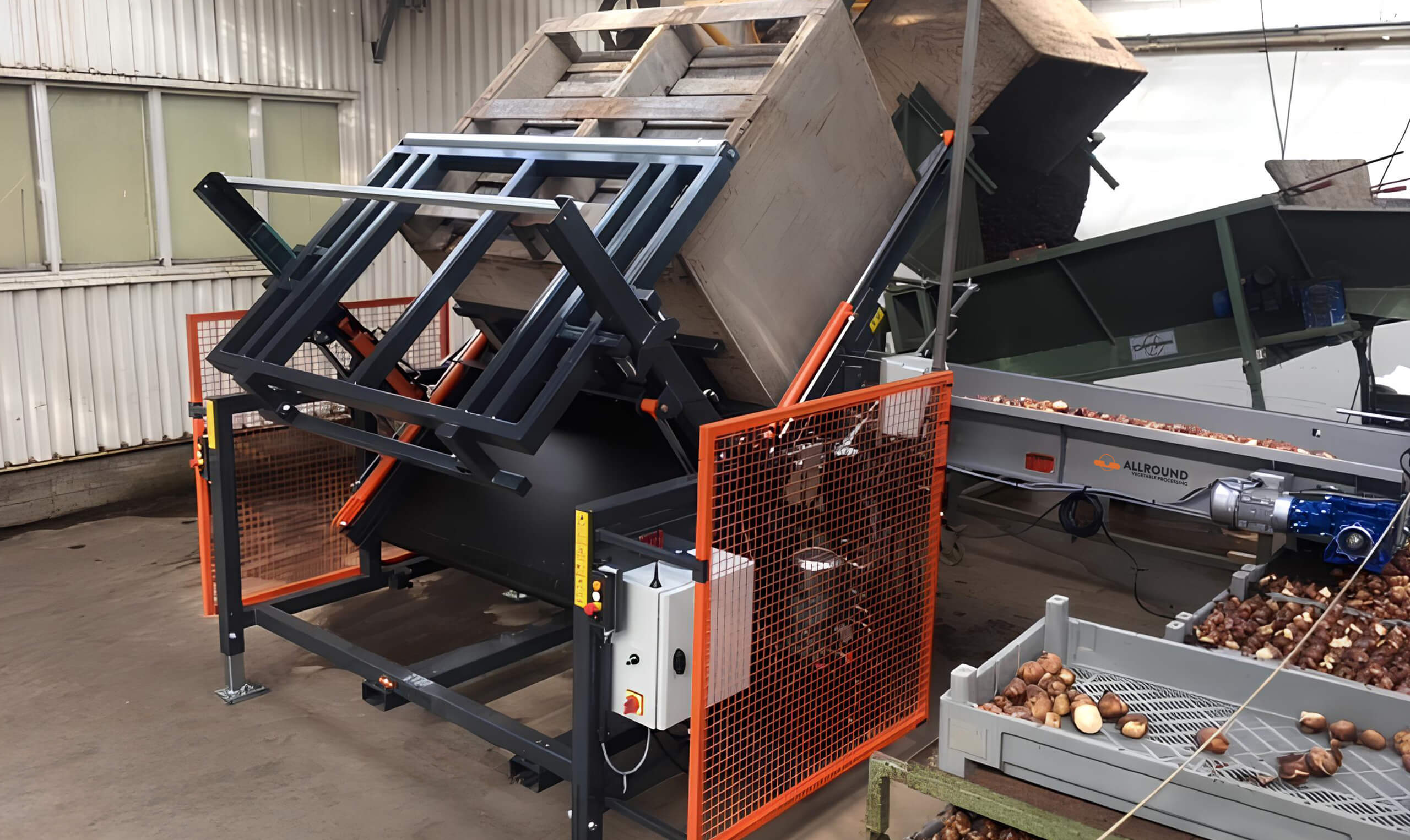

On demand, the box tipper can be provided with safety fences, sirens & warning lights to enhance safety.
Characteristics
- We have models available for 1200, 1500, 1600 & 1800 mm wide boxes
- Designed for a gentle handling of produce
- Durable and robust construction to handle heavy loads & forklift impacts
- A rubber lid to protect produce against damage during the tipping cycle
- Tipping rotation to 135° ensures complete discharge of produce
- The maximum weight of the box varies from 1000 to 1700 kg
- On demand, a subframe can be made to overcome a height difference
- On demand, a sensor can be installed to detect and control the produce output
- On demand, safety fences, a siren & warning lights can be provided to enhance safety
Specifications
| ZD 120 | ZD 150 | ZD 160 | ZD 180 | |
|---|---|---|---|---|
| Rotation angle (max) in deg | 135 | 135 | 135 | 135 |
| Width of the box (min-max) in cm | 100-120 | 140-150 | 150-160 | 170-180 |
| Height of the box (min-max) in cm | 90-100 | 90-100 | 100-125 | 100-125 |
| Depth of the box (min-max) in cm | 100-120 | 100-120 | 100-120 | 100-120 |
| Weight of the box (max) in kg | 1000 | 1250 | 1500 | 1700 |
Options
- Material and treatment (frame)
Painted mild steel
Frame and plating is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Hot dipped galvanized
Frame is made from hot dipped galvanized steel. The bearings and drive/idle rollers are from mild steel. The plating is from stainless steel
- Electrical control
Stand-alone
Motors, necessary sensors, switch box and control box
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel
- Wireless remote control
Wireless
A wireless remote control is included. The machine can be controlled from a distance
- Safety fence
Fence
Safety fences with a sensor are included. The sensor detects if someone walks between the fences and will stop the functioning of the machine
- Frequency inverter
Speed adjustment
A frequency inverter will control the tipping speed of the box tipper
- Dosing function
Dosing sensor
A dosing sensor detects when the produce piles up on the belt and when the box needs to be stopped or lifted
