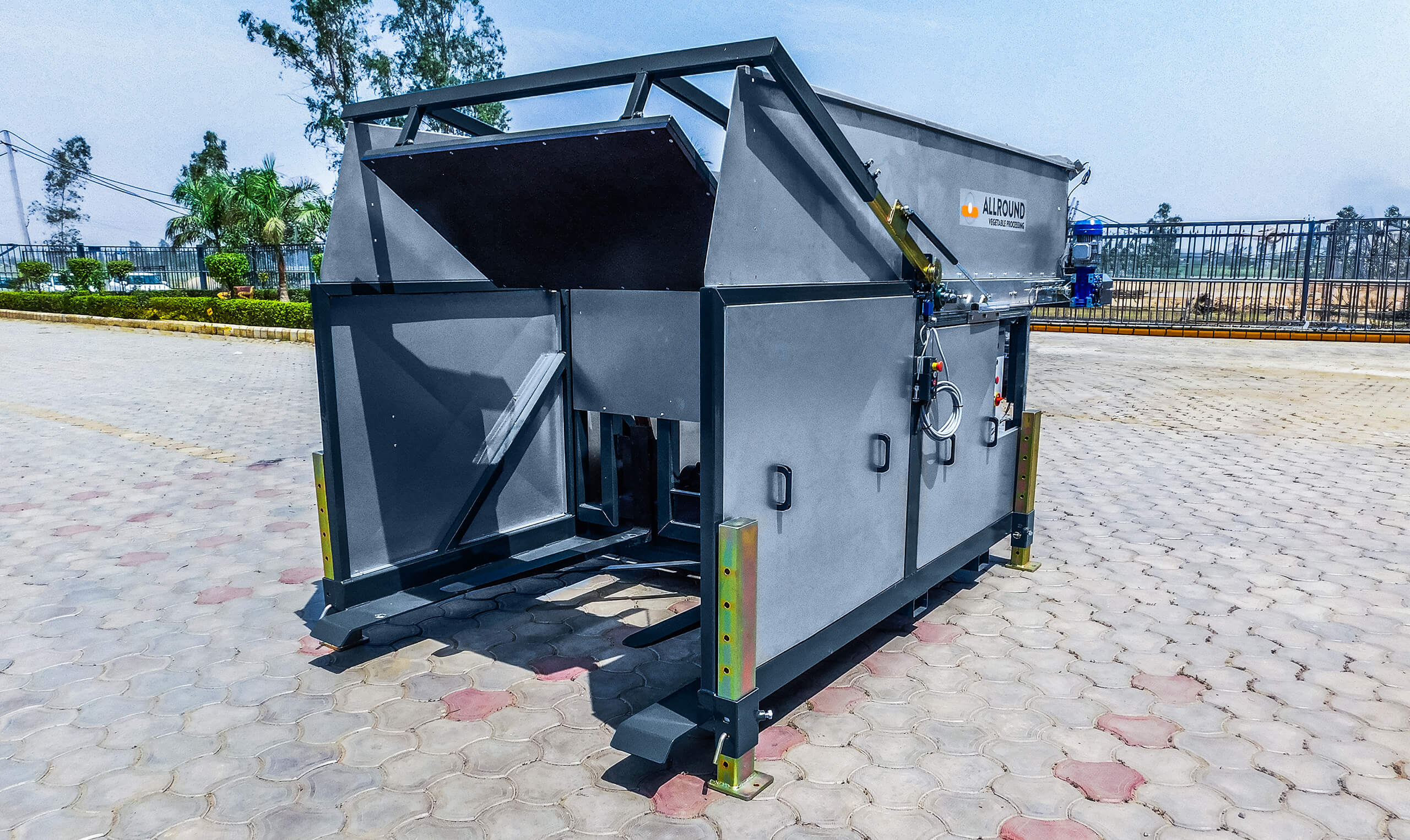

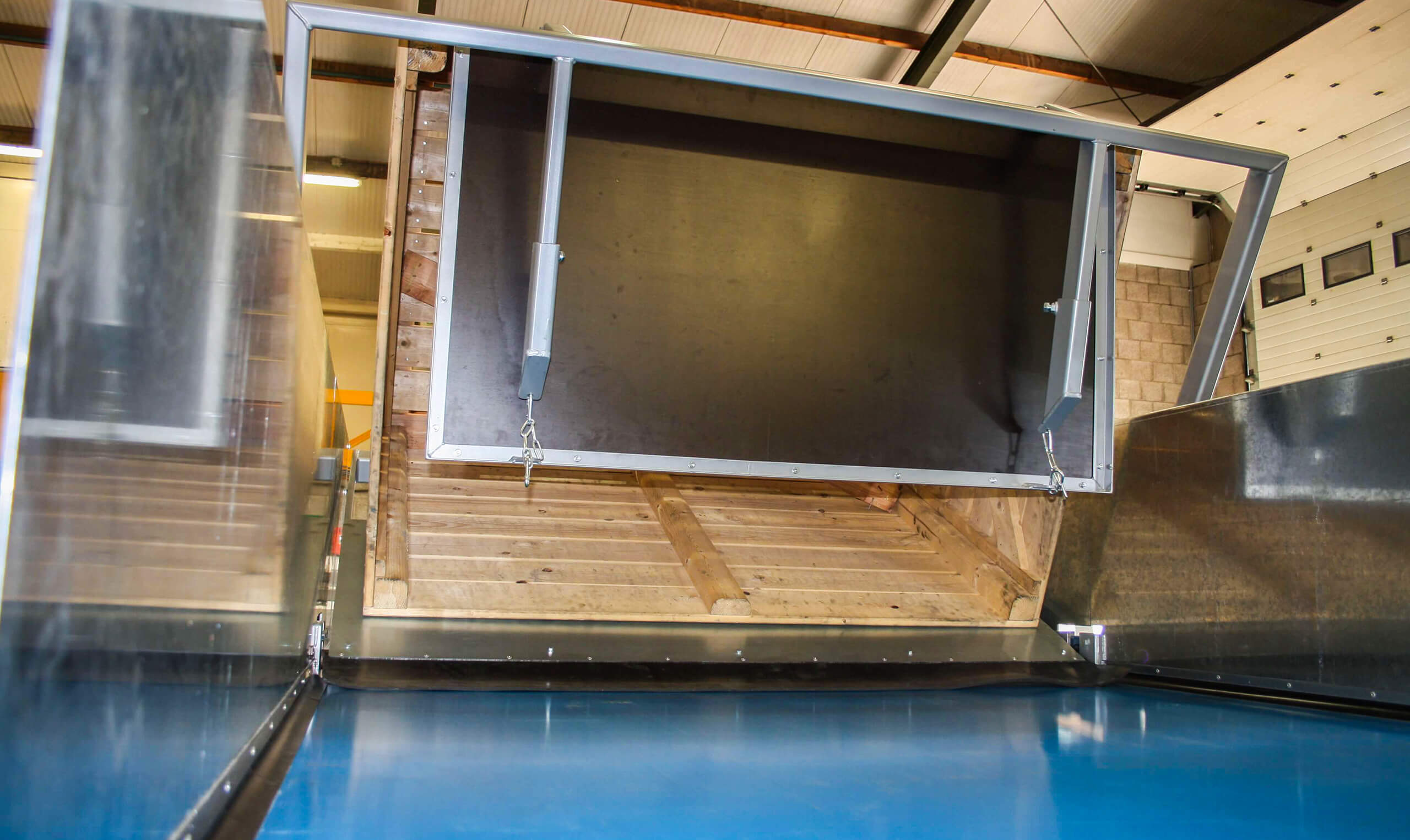

This box tipper is designed for cabbage. The box tipper is used to tip boxes. After the box is placed, the box tilts to the upper position. While the box is going up, the box is emptying onto a transport conveyor. A sensor will be installed to detect and control the produce output. This sensor sends a signal to start or stop the rotation of the box. The box tipper is available in mild painted and stainless steel.
A sensor will be installed to detect and control the produce output. This sensor sends a signal to start or stop the rotation of the box

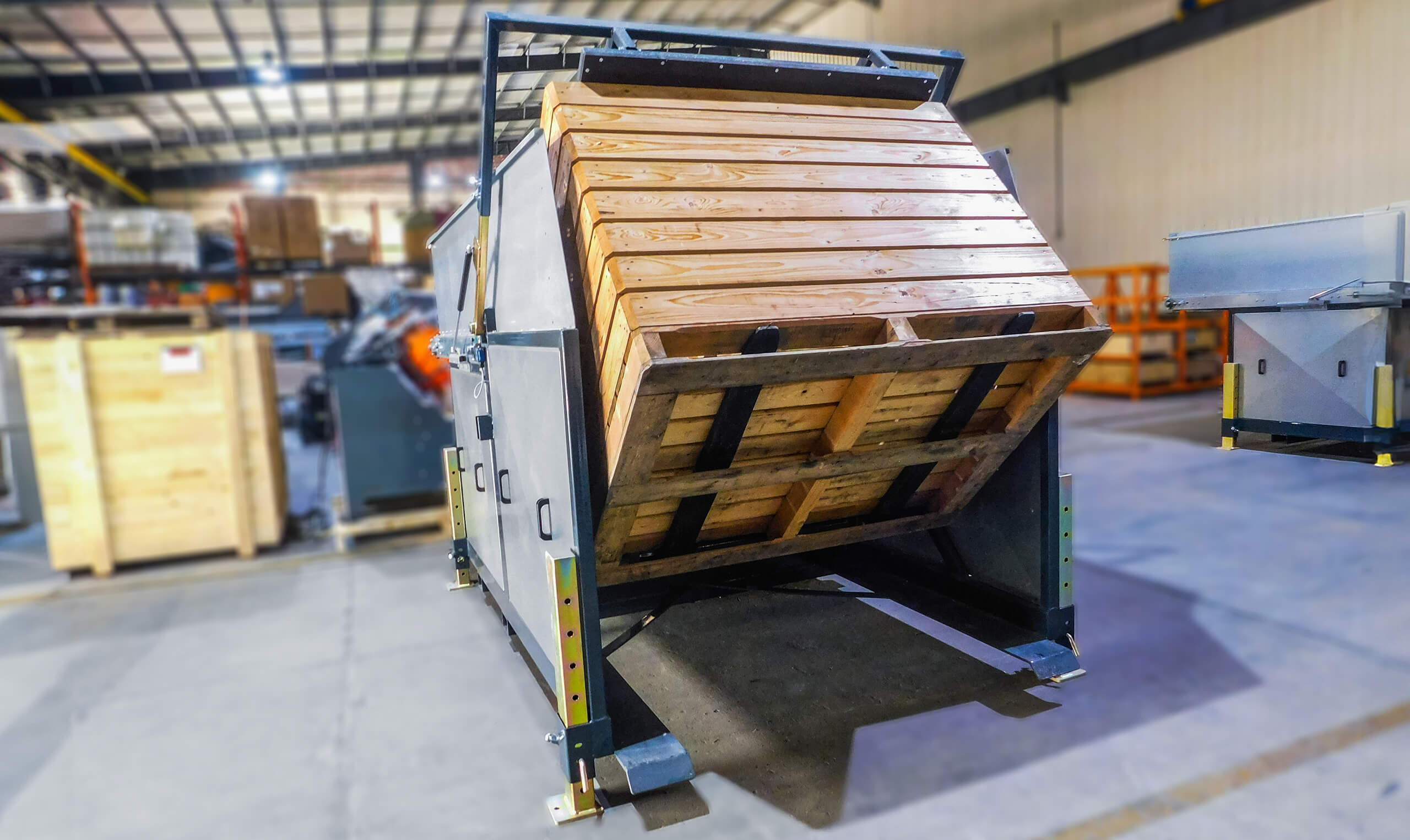

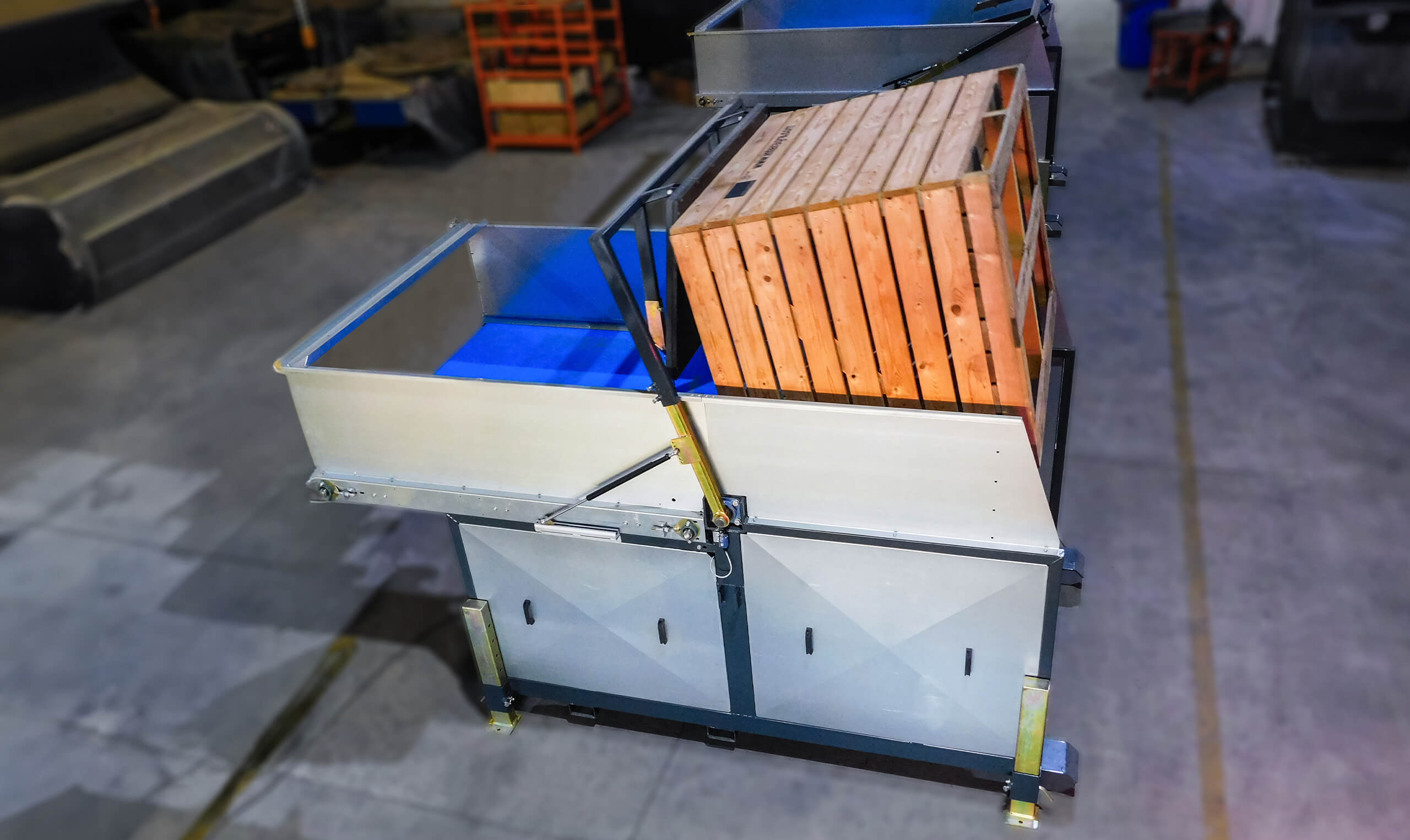

This box tipper is designed to minimize the drop height of the product. This is done by rotating the box to angle of 140° on a transport conveyor, which will gently feed the next position.
On demand, the box tipper can be provided with safety fences, sirens & warning lights to enhance safety.
On demand, the machine can be controlled remotely using a wireless remote control.
Characteristics
- We have one model available for 1600 mm wide boxes
- Especially designed for cabbage to minimize the drop height
- A heavy-duty cylinder is used so that it can handle heavy load requirements
- Durable and robust construction to handle heavy loads & forklift impacts
- Tipping rotation to 140° ensures complete discharge of produce
- The maximum weight of the box is 2500 kg
- On demand, a subframe can be made to overcome a height difference
- On demand, a wireless remote control can be provided
- On demand, safety fences, a siren & warning lights can be provided to enhance safety
Specifications
| ZC 160 | |
|---|---|
| Rotation angle (max) in deg | 140 |
| Width of the box (min-max) in cm | 100-160 |
| Height of the box in cm | 125 |
| Depth of the box (min-max) in cm | 80-120 |
| Weight of the box (max) in kg | 2500 |
Options
- Material and treatment (frame)
- Electrical control
- Material and treatment (electrical panel)
- Wireless remote control
- Safety fence
