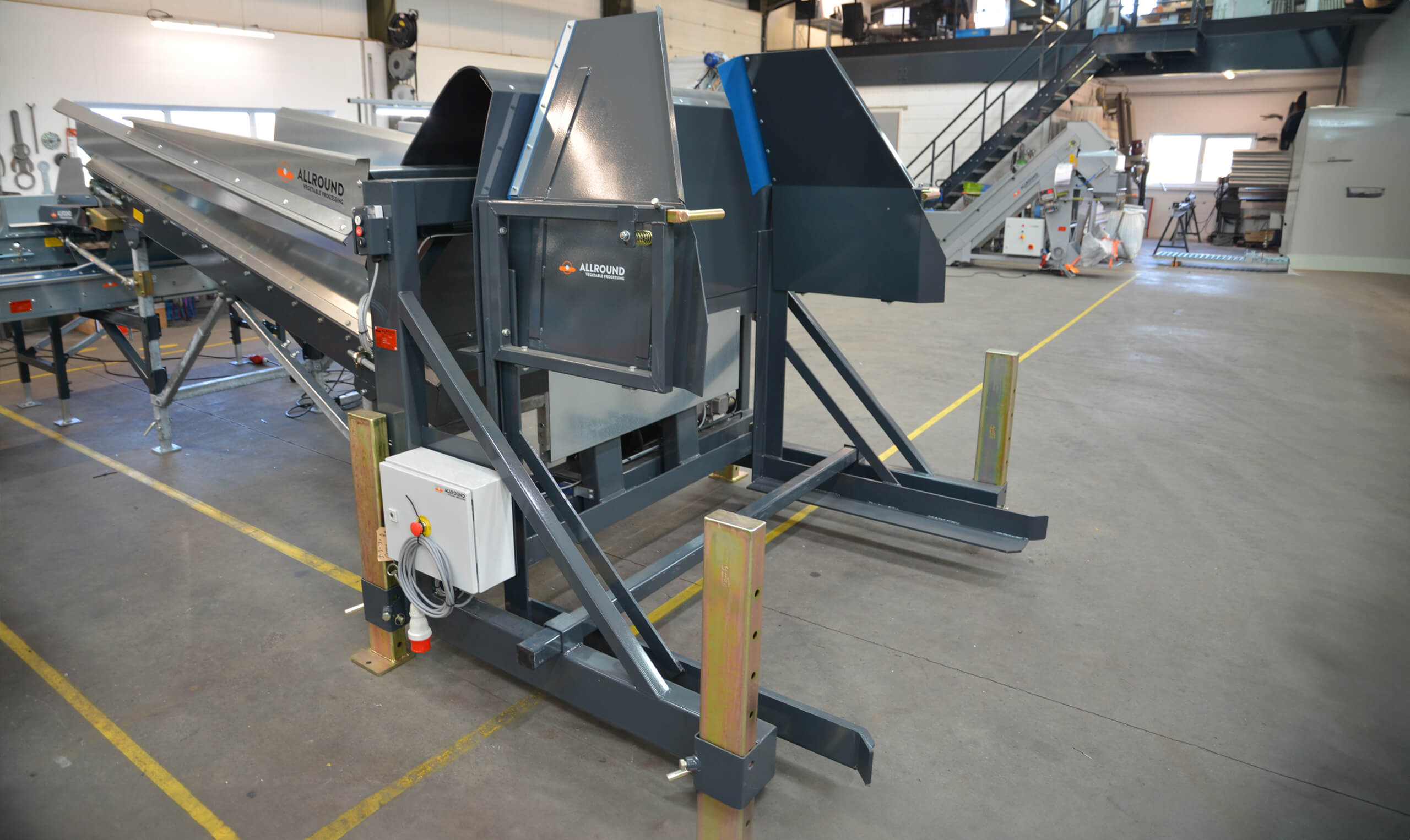

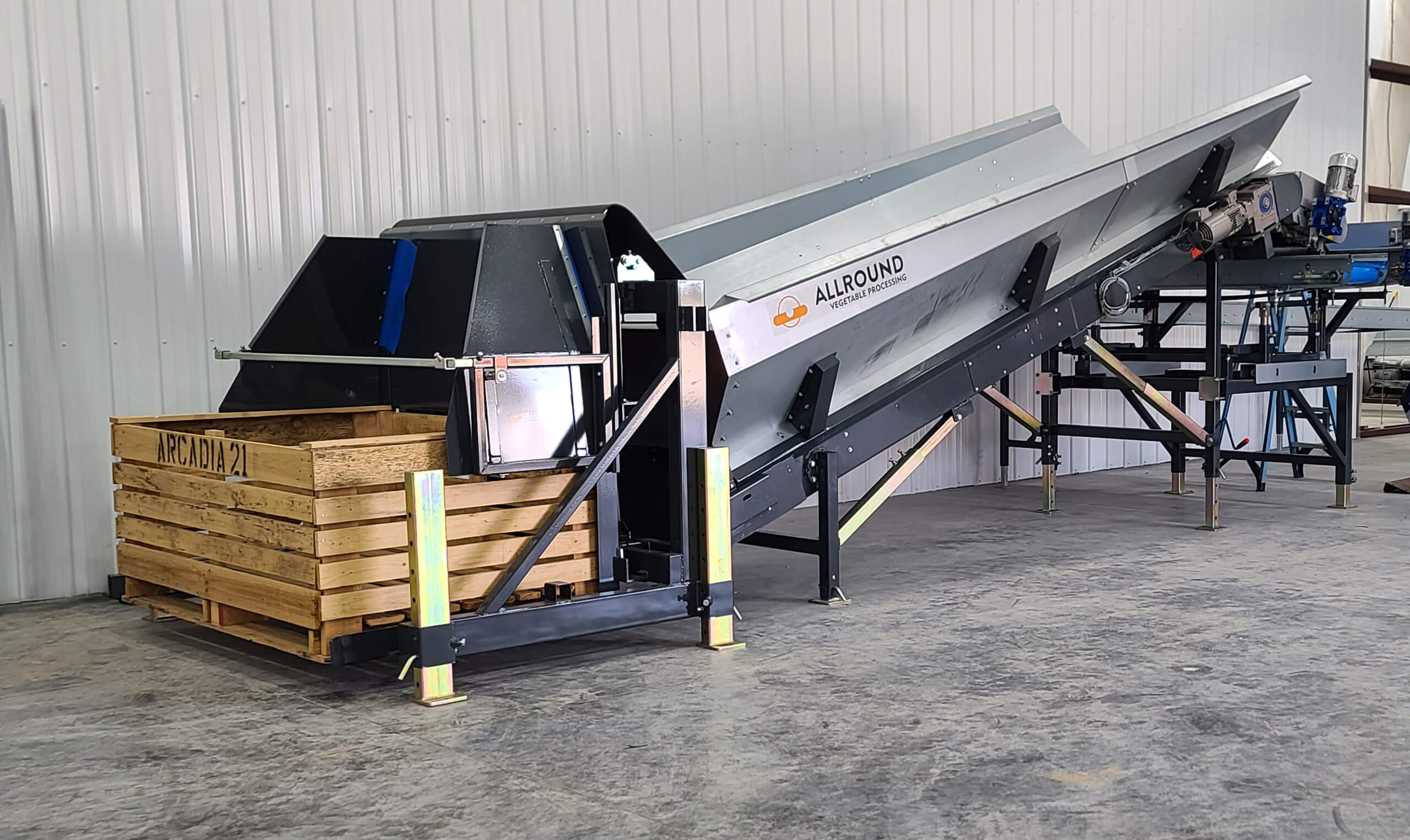

This box tipper is designed to empty filled boxes into a wet/dry hopper or transport conveyor, depending on the design of your line. On demand, a wireless remote control can be included. With this option the machine can be controlled from a distance.

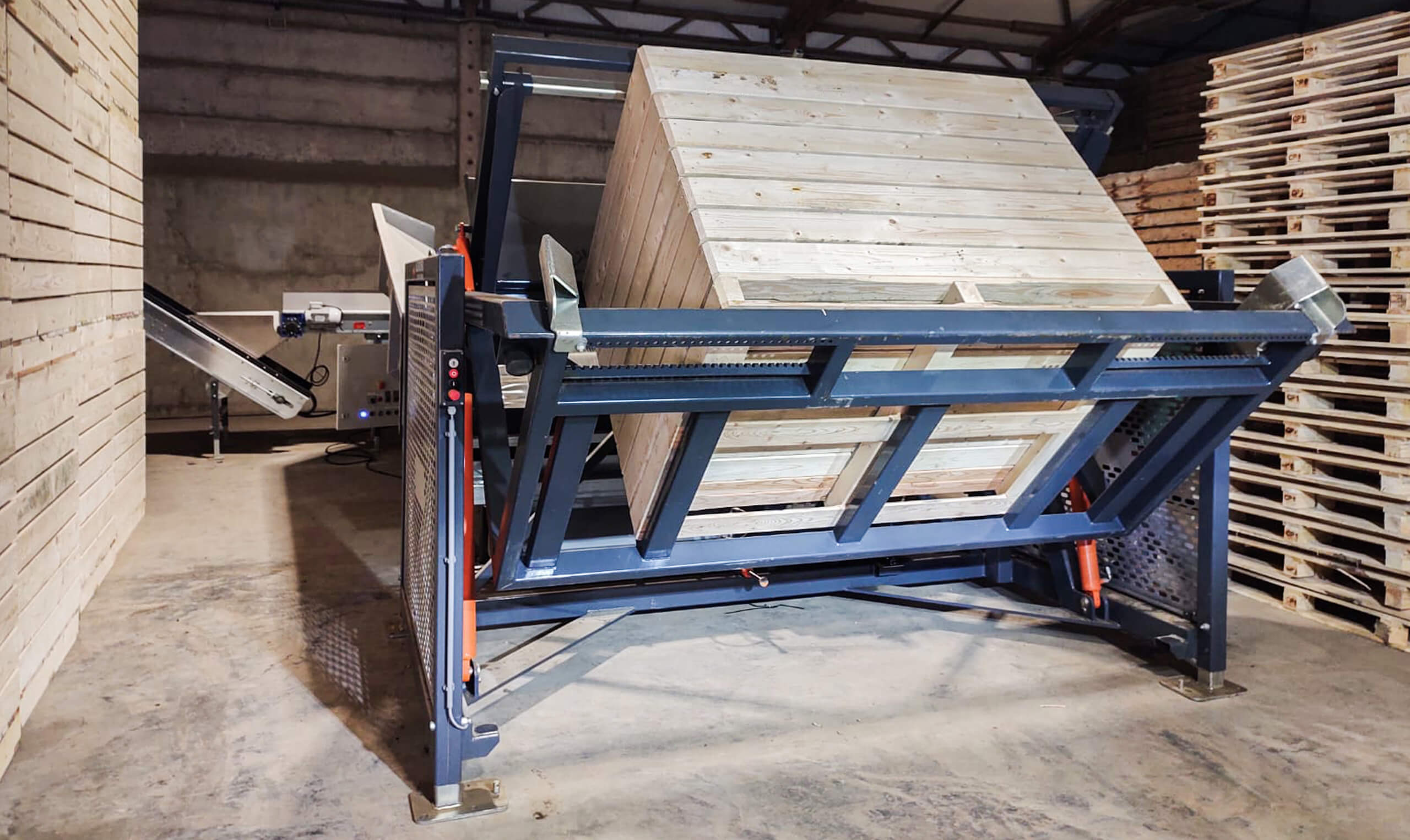

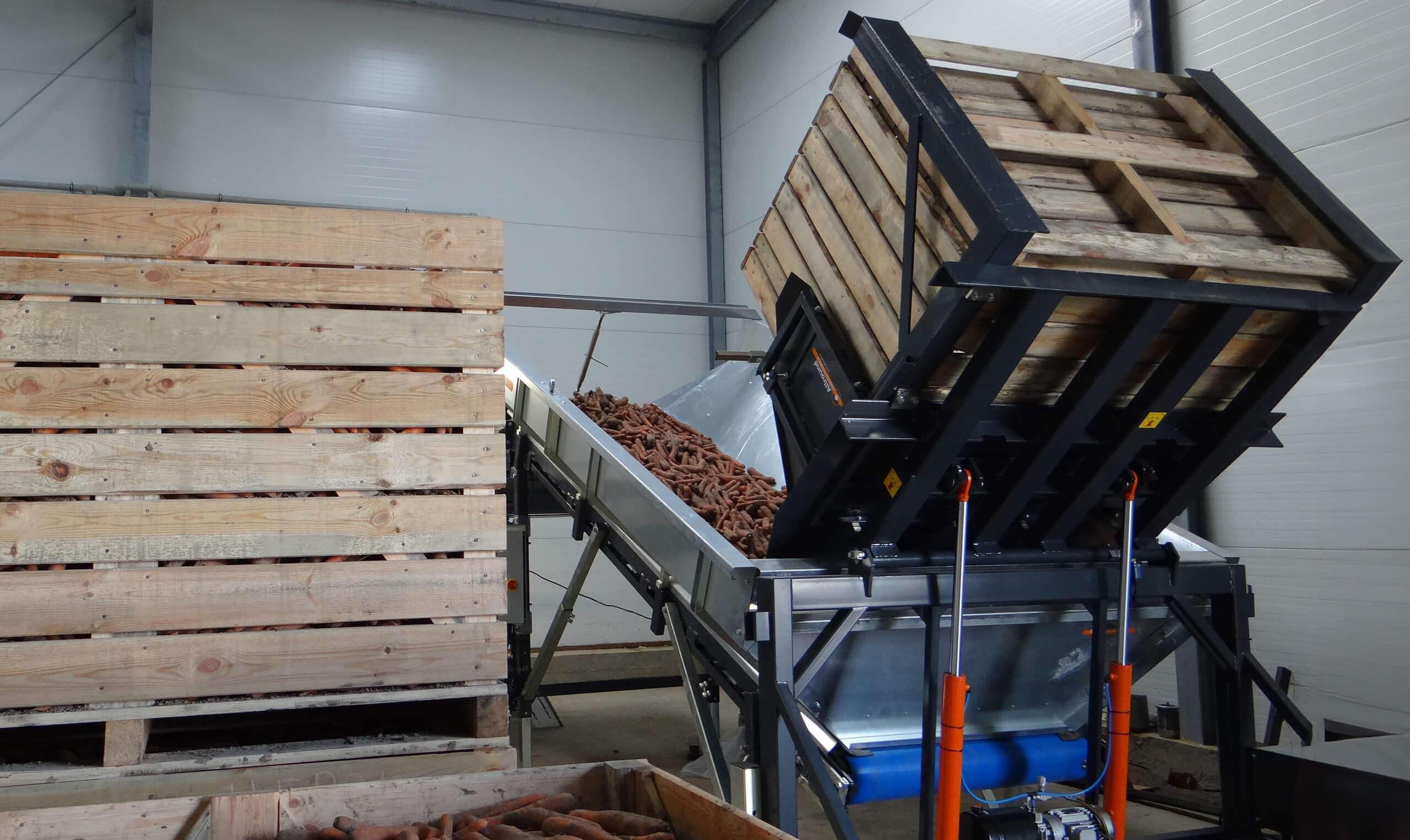

A box with produce is loaded into the box tipper by a forklift. After pressing the start button, the tipping motion begins. The box rotates to an angle of 140°, so all produce is dumped into the next position. The empty box will automatically return to the default position. The cycle can be stopped at any time.
On demand, the box tipper can be provided with safety fences, sirens & warning lights to enhance safety.
Characteristics
We have models available for 1600 & 1800 mm wide boxes
A heavy-duty cylinder is used so that it can handle heavy load requirements
Durable and robust construction to handle heavy loads & forklift impacts
Tipping rotation to 140° ensures complete discharge of produce
The maximum weight of the box is either 1250 or 2500 kg
On demand, a subframe can be made to overcome a height difference
On demand, a wireless remote control can be provided
On demand, a shake function can be included to take out the last produce left in the box
On demand, safety fences, a siren & warning lights can be provided to enhance safety
Specifications
| Z 160 | Z 180 | |
|---|---|---|
| Rotation angle (max) in deg | 140 | 140 |
| Width of the box (min-max) in cm | 100-160 | 162-180 |
| Height of the box (min-max) in cm | 90-140 | 90-140 |
| Depth of the box (min-max) in cm | 80-120 | 80-120 |
| Weight of the box (max) in kg | 1250 | 2500 |
Options
- Material and treatment (frame)
- Electrical control
- Material and treatment (electrical panel)
- Wireless remote control
- Safety fence
- Emptying function
- Dosing function
