The onion topper is designed to remove the tail and foliage of onions and shallots cleanly and safely with rotating blades, while also removing loose skin and dirt.

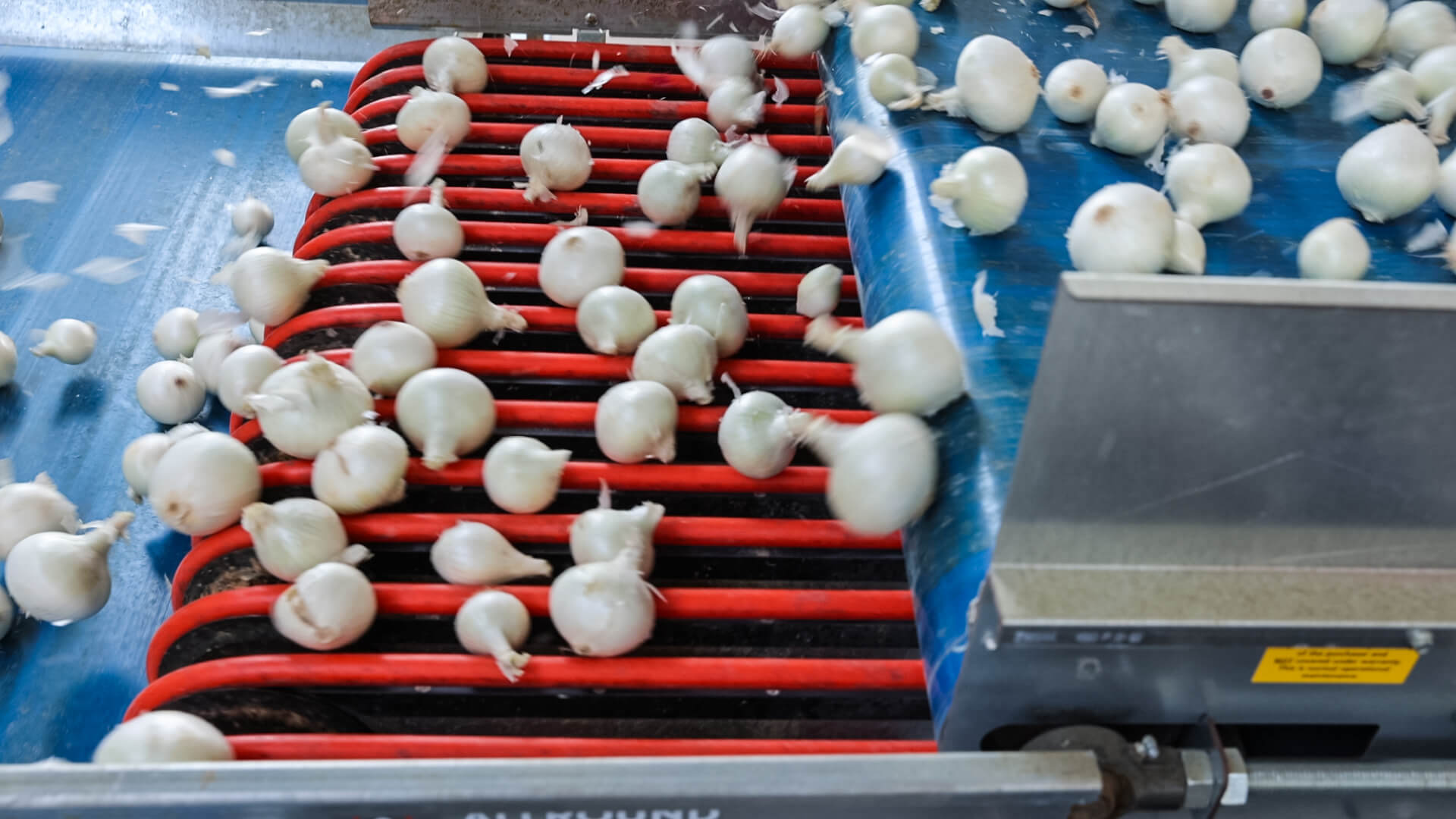

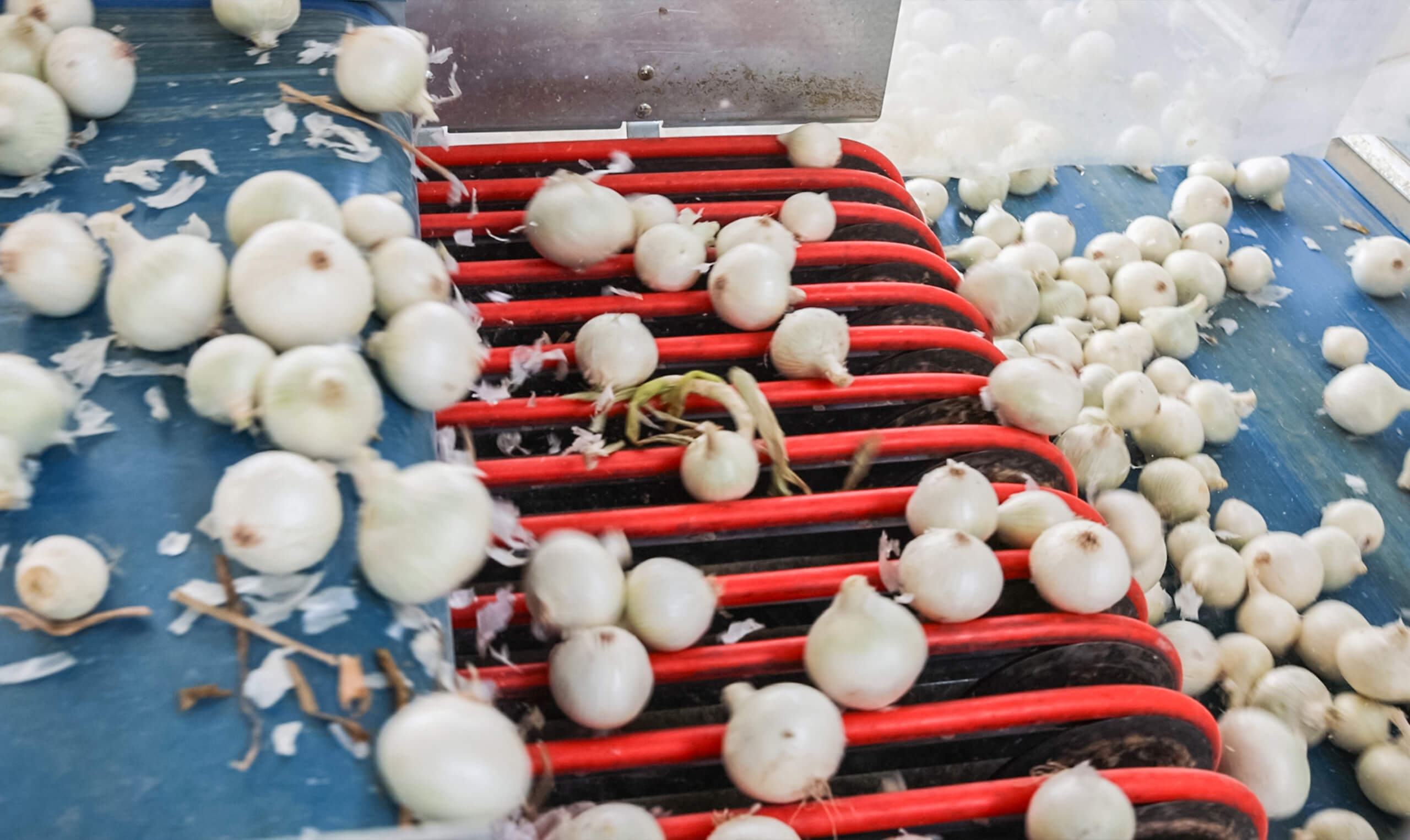

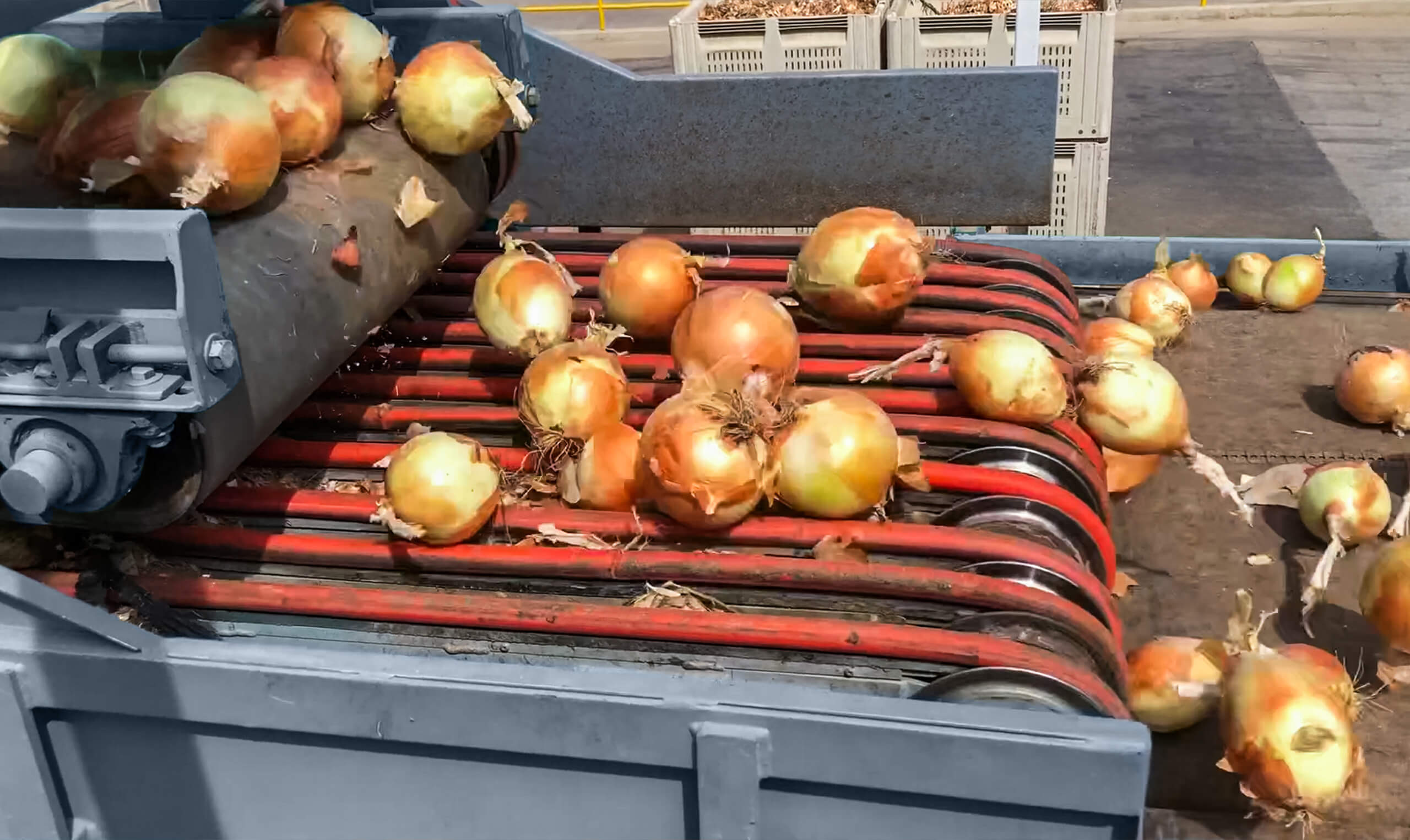

The string grader is designed to separate smaller from bigger size produce. In a string grader produce rolls over the strings to the outfeed. Undersized produce falls between the strings.
The string grader has various applications like undersize removal or as a pregrader for onion toppers. By separating smaller from bigger produce, the capacity per individual onion topper increases. Pregrading also increases the quality of the topping process.

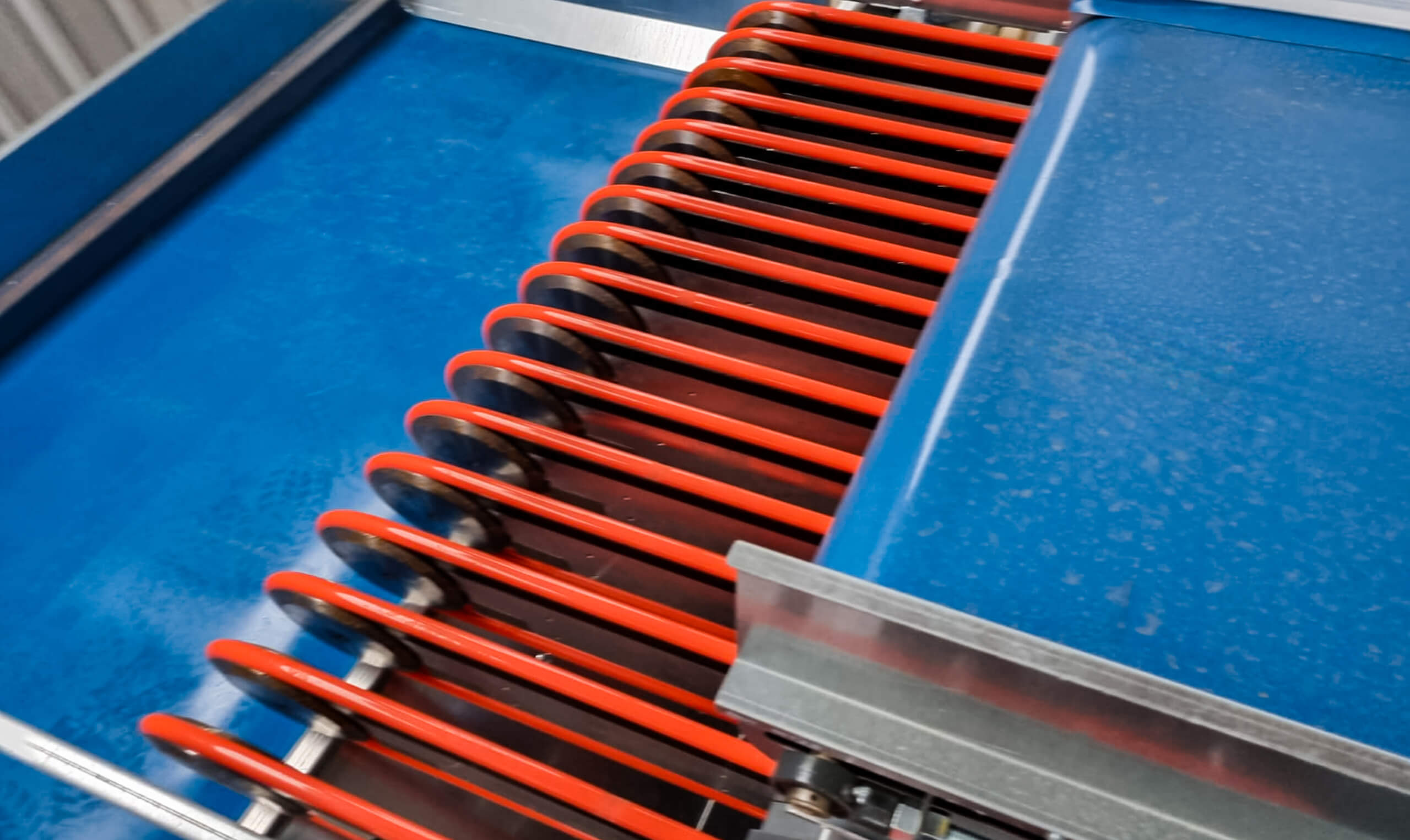

The String grader has 17 strings of 70 cm long which can be adjusted between 50-75 mm. The diameter of the strings is 25 mm. The size adjustment of strings can be manual or automatic.

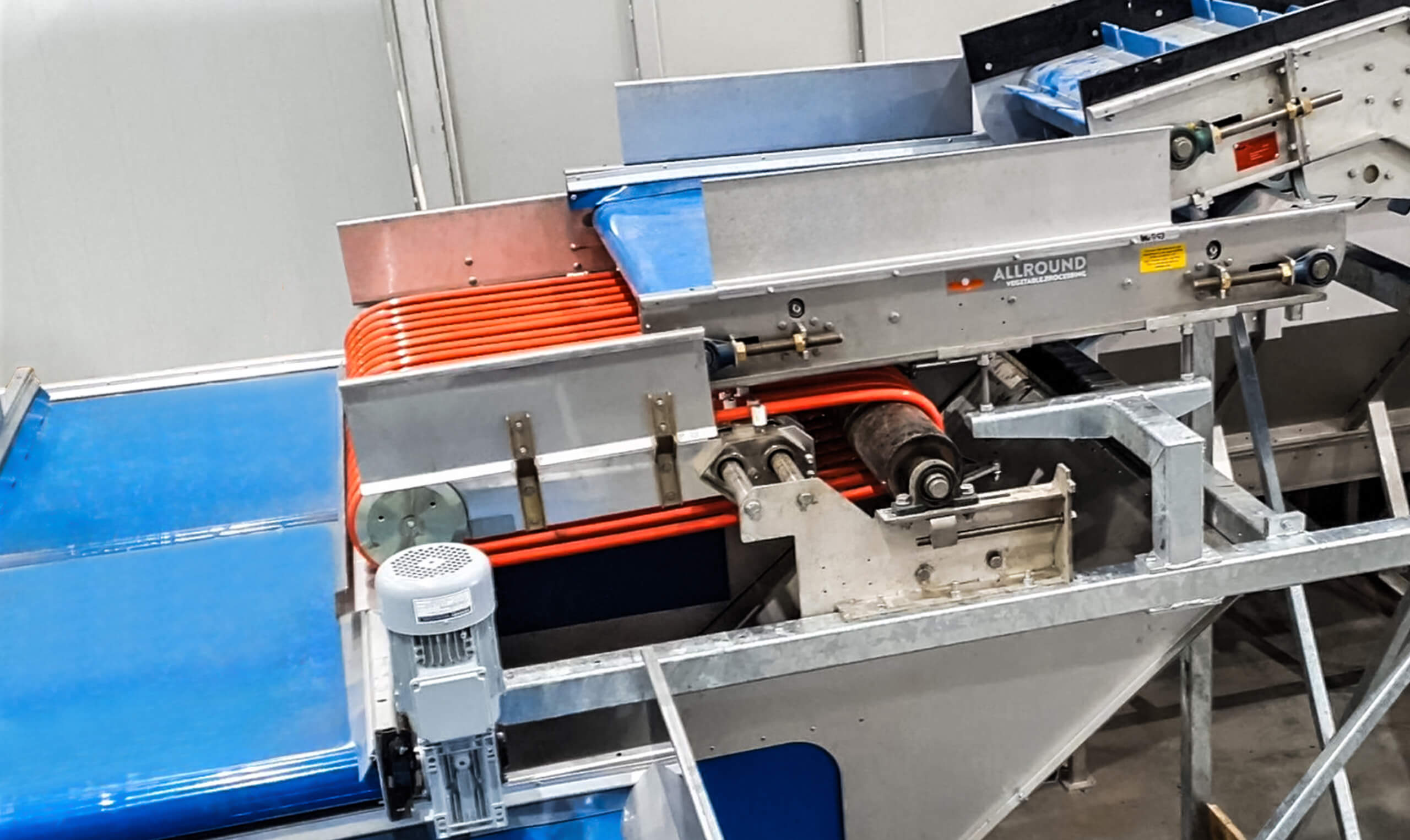

If required, the string grader can be on the subframe to accommodate height differences. The subframe can be made from painted mild steel, stainless steel, and galvanized steel. The height of the subframe can be varies from 0-7 meters.
Characteristics
Separate smaller from bigger produce
- Used as a pregrader for onion topper for efficient topping effect
- 17 strings of 70 cm long
- The diameter of the strings is 25 mm
- Size adjustment between strings is 50-75 mm
- The size adjustment of strings can be manual or automatic
- Waste collection either via a chute or transport conveyor
Specifications
| PS 70 | |
|---|---|
| Length of the string (in cm) | 70 |
| Amount of strings | 17 |
| Distance between strings (in mm) | 50 – 75 |
| Diameter of strings (in mm) | Ø 25 |
Options
- Material and treatment (frame)
- Electrical control
- Material and treatment (electrical panel)
- Material and treatment (subframe)
- Height of subframe
- Adjustment grading size
- Waste collection
