Home / Dry cleaning / Adjustable separator DRE

Adjustable separator DRE

The adjustable separator is used to pre-clean the produce. The produce moves over the rollers, while dirt and skins fall between the rollers.

Product Information

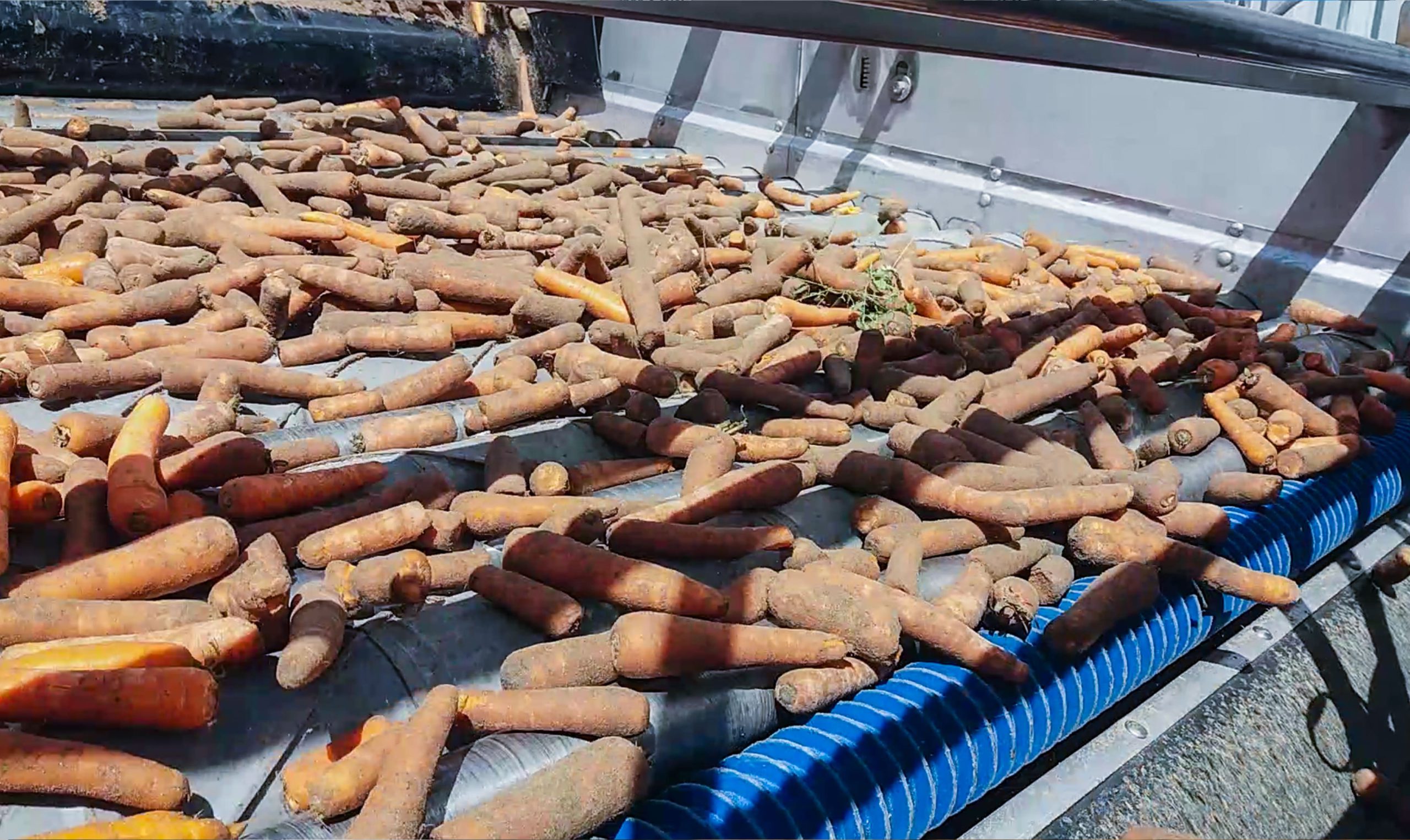

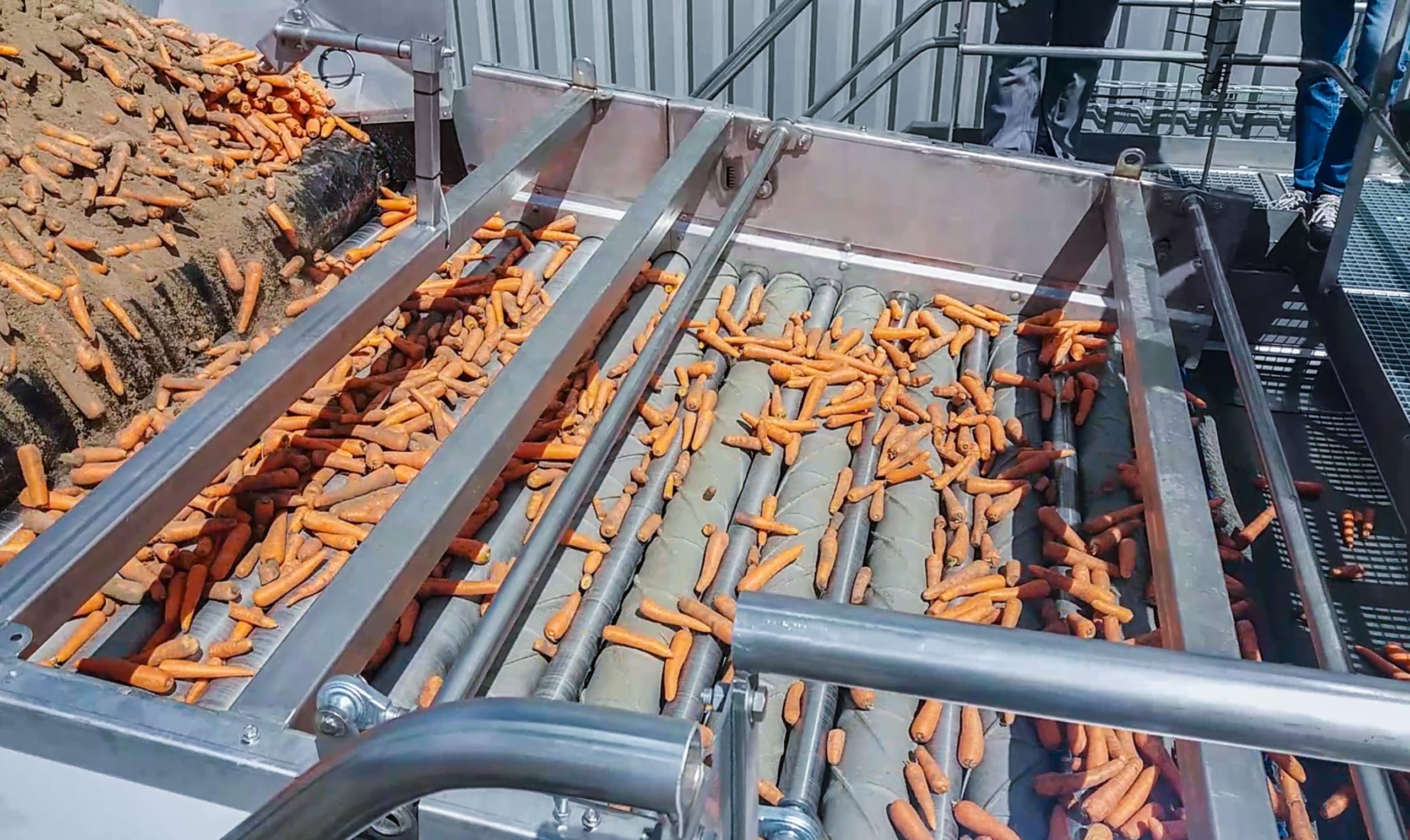

The adjustable separator is designed for efficient pre-cleaning of vegetables and produce, ensuring the removal of dirt, foliage, skins, and stones before further processing. As the product moves over the rollers, loose dirt and waste fall through the adjustable gaps between them.

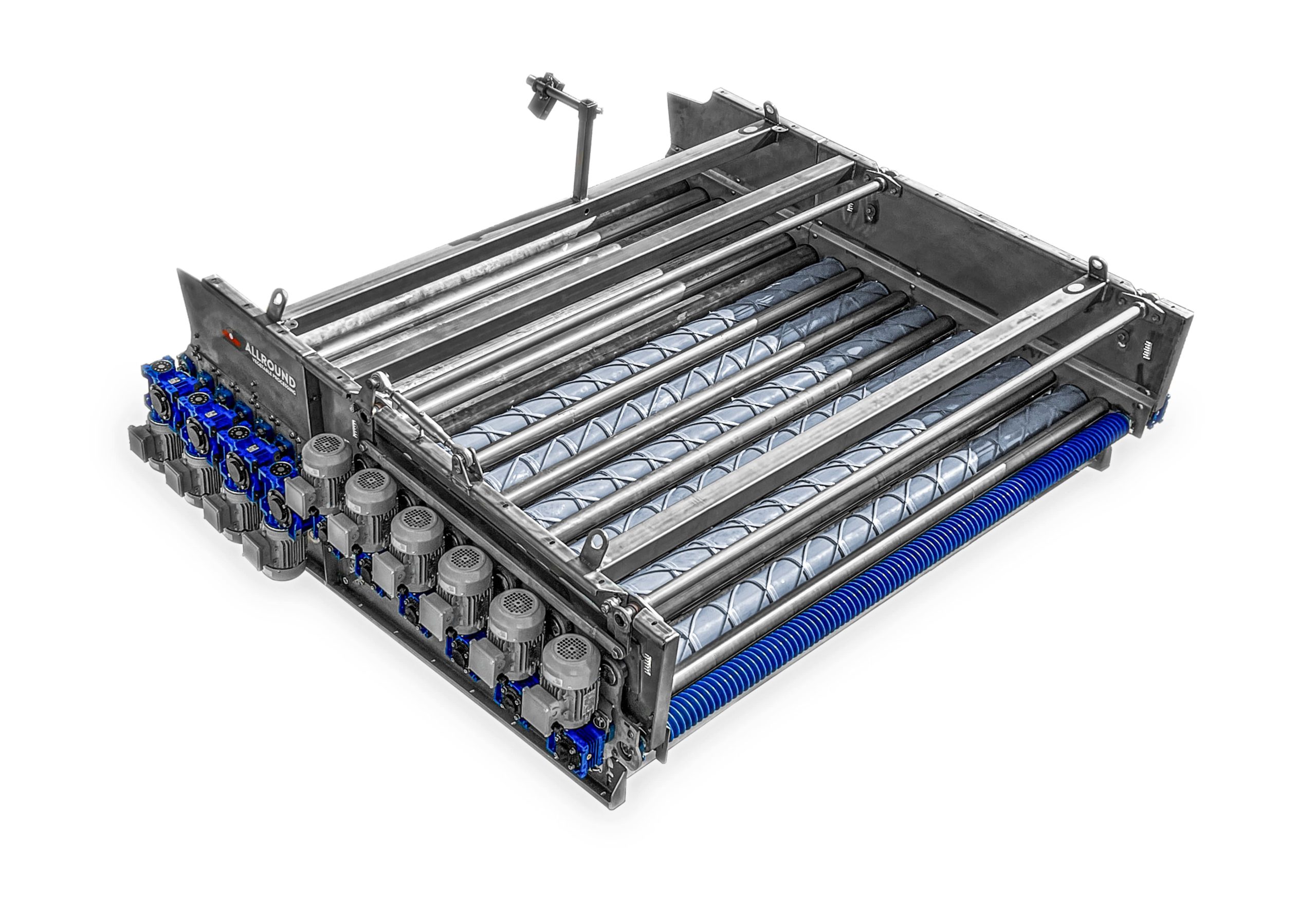

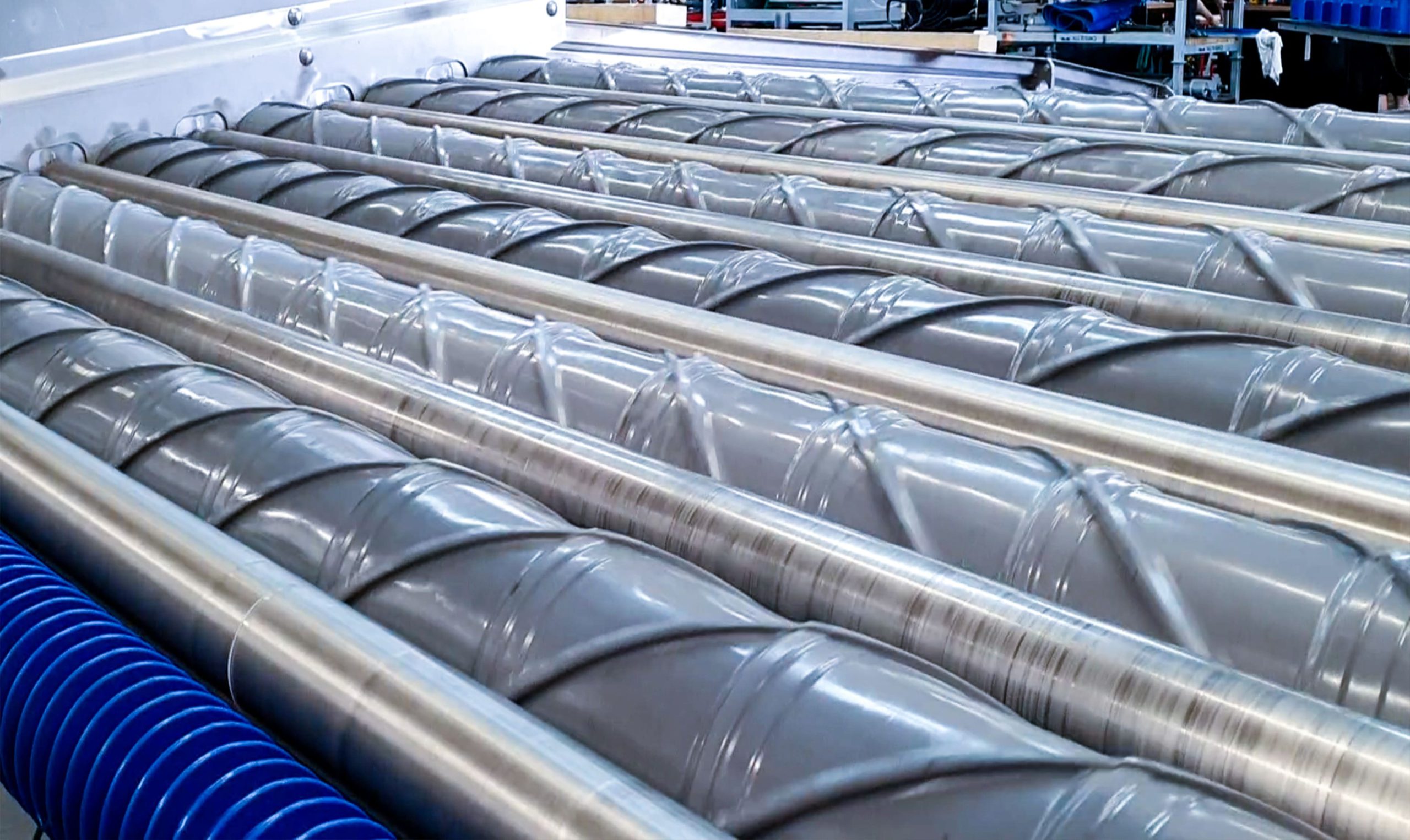

The machine is equipped with a large spiral roller and a small stainless steel roller, where specially designed carriers guide dirt and foliage through the stainless steel rolls for optimal cleaning performance. Because of the hollow openings in the spiral rollers, stones can easily pass through as the rollers slightly deform. For larger stones, the stainless steel roller automatically moves forward to create additional space and returns to its original position once the stone has passed. The speed, gap, direction, and height of the stainless steel roller are fully adjustable, allowing precise control based on product requirements.

Characteristics

  • The machine is only available with 13 rollers

  • The gap size can be adjusted manually/automatically. The smaller (stainless steel AISI304) rollers can be adjusted up, down, forward, and backward in relation to the bigger (spiral) rollers
  • The gap size is adjustable between 5 mm and 32 mm
  • The hollow design of the spiral rollers allows them to flex slightly, enabling stones to pass through smoothly without interrupting the cleaning process
  • The last roller can be made from stainless steel AISI304 or PU spiral
  • On demand a frequency inverter can be included to control the speed

Specifications

DRE 240
Width of the rollers (in cm) 240
Amount of rollers 13

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
  • Last roller
Stainless steel
The last roller is made from stainless steel AISI304
PU spiral
The last roller is PU spiral
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Frequency inverter
Speed adjustment
A frequency inverter is included to control the speed
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Material and treatment (subframe)
Painted mild steel
It is made from painted mild steel
Stainless steel
It is made from stainless steel AISI304
Galvanized steel
It is made from galvanized steel
  • Height of subframe
Height of subframe
0 to 7 meter
  • Adjustment gap size
Manual
The gap size can be adjusted manually. The smaller (stainless steel AISI304) rollers can be adjusted up, down, forward and backward in relation to the bigger (spiral) rollers. The gap size is adjustable between 5 mm and 32 mm
Automatic
The gap size can be adjusted automatically. The smaller (stainless steel AISI304) rollers can be adjusted up, down, forward and backward in relation to the bigger (spiral) rollers. The gap size is adjustable between 5 mm and 32 mm
