Filter system

The Allround filter system is designed to eliminate leaves, dirt, and both organic and solid waste from drain water.

Product Information

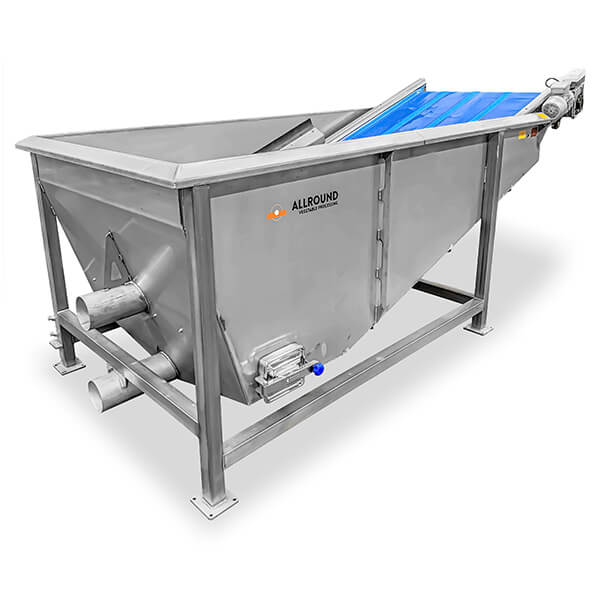

The Allround filter system is designed to eliminate leaves, dirt, and both organic and solid waste from drain water. The filter belt is integrated with a tank and filter conveyor, featuring inlet and outlet pipes.

Drain water from vegetable washing enters the filter system through a flume or pipe and then passes through the filter conveyor. As the water passes through the conveyor, contaminants are left behind and are transported outside the tank to a dirt box or central waste conveyor.

The standard Allround filter system features a frame made of mild steel, along with mild steel bearings and idle/drive rollers. However, the frame can be customized to stainless steel AISI304 upon request, while the bearings and rollers will remain mild steel.

The mesh belt of the filter conveyor is available with square openings of 1, 2, and 3 mm. The choice of mesh belt depends on the level of dirt present in the raw product.

If required, the filter system can be on the subframe to accommodate height differences. The subframe can be made from painted mild steel, stainless steel, and galvanized steel. The height of the subframe can vary from 0-3 meters.

Characteristics

  • The width of the machine is 120 cm
  • The length of the machine is 350 cm
  • Mesh belt available 1, 2, and 3 mm square openings
  • is designed to eliminate leaves, dirt, and both organic and solid waste from drain water
  • On demand, a subframe can be added under the filter system to raise the height
  • The subframe can be made from painted mild steel, stainless steel, and galvanized steel.
  • The height of the subframe varies from 0 – 3 Meters

Specifications

  FBT 350-120
Width of the belt (in cm) 120
Length of the belt (in cm) 350

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from sandblasted and painted mild steel (special primer). The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
  • Belt
Mesh square opening 1 mm
Mesh belt, with square opening of 1 mm
Mesh square opening 2 mm
Mesh belt, with square opening of 2 mm
Mesh square opening 3 mm
Mesh belt, with square opening of 3 mm
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Material and treatment (subframe)
Painted mild steel
It is made from painted mild steel
Stainless steel
It is made from stainless steel AISI304
Galvanized steel
It is made from galvanized steel
  • Height of subframe
Height of subframe
0 to 3 meter
