Space finder ASF

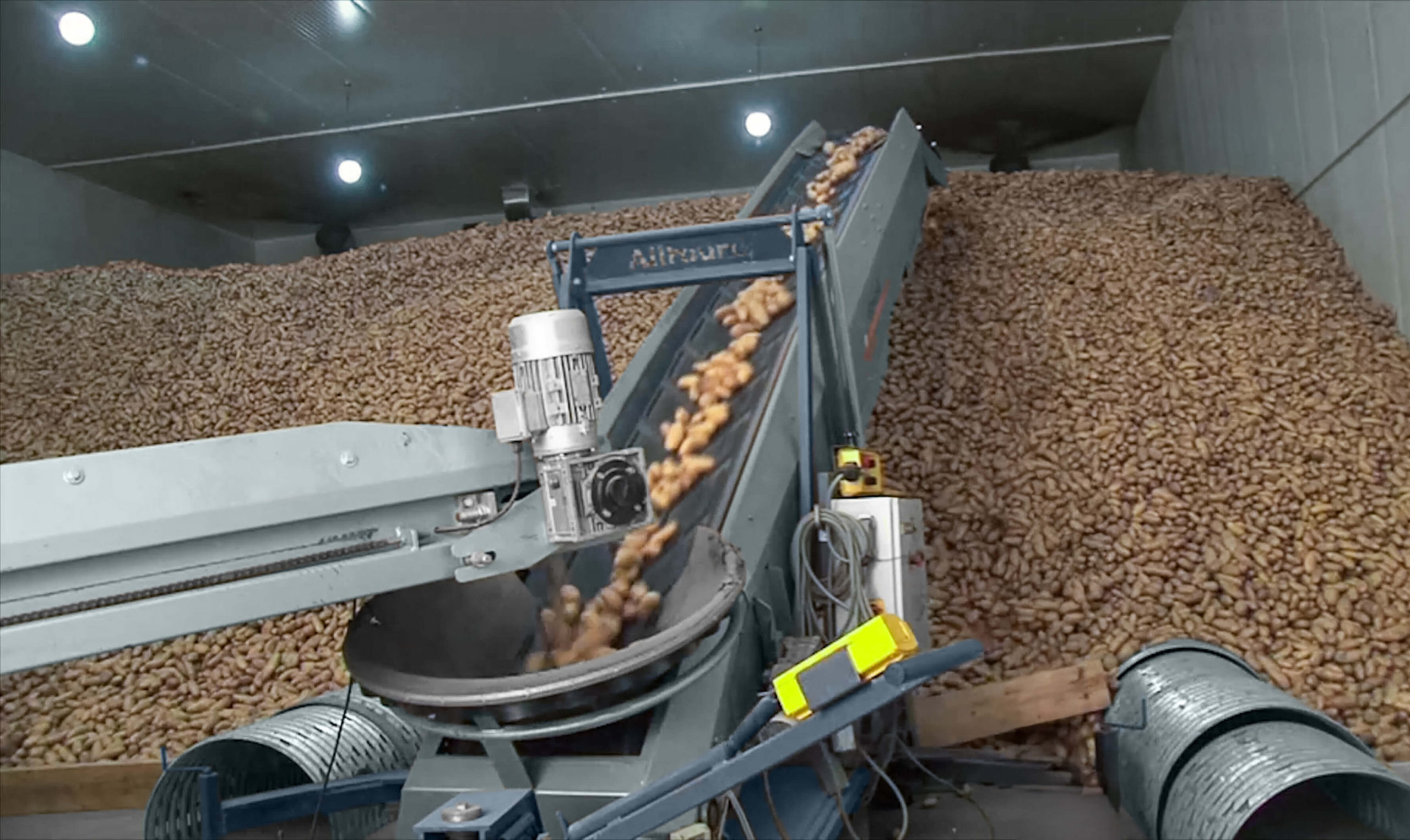

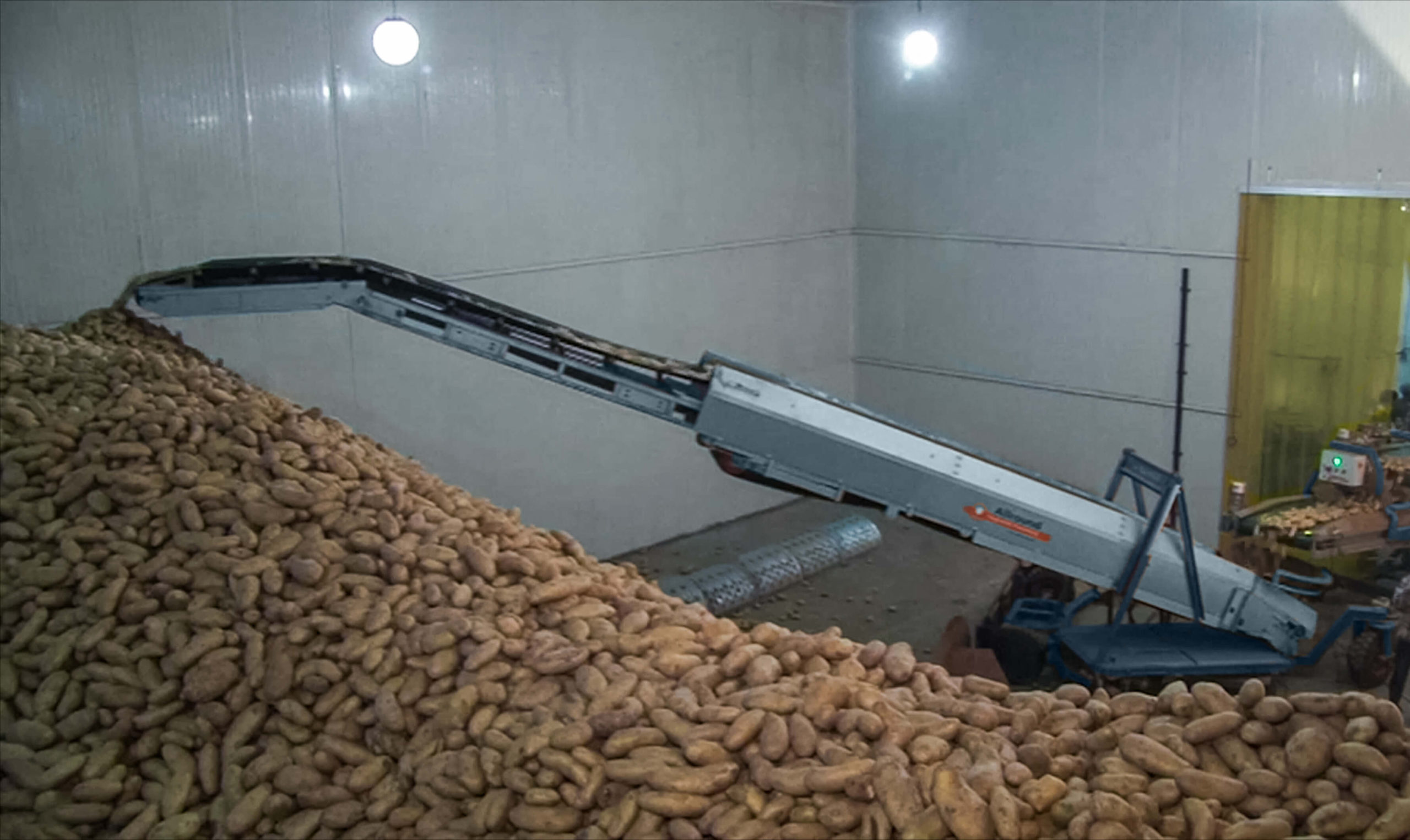

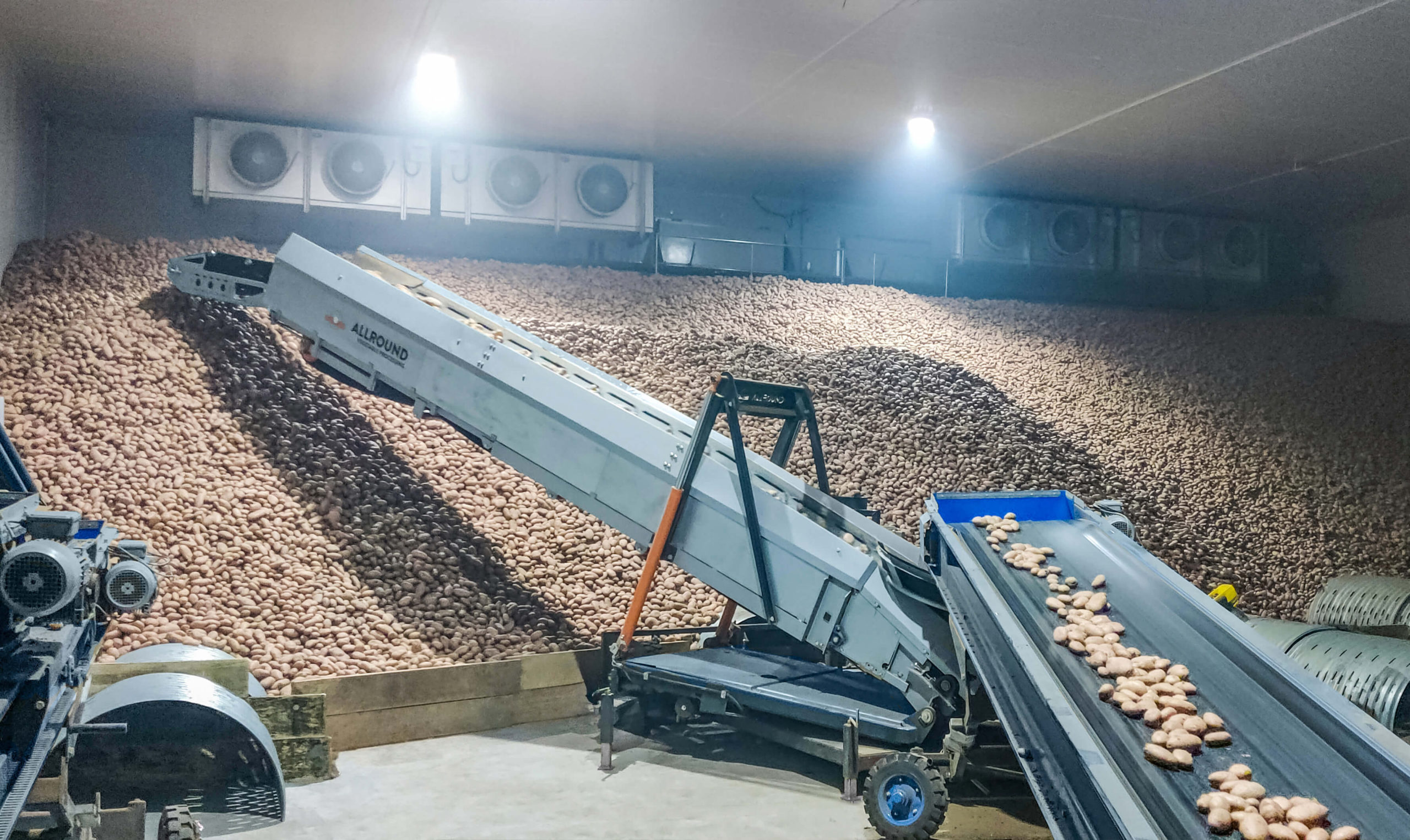

Space finder is designed in such a way that bulk stores are filled in the most effective manner.

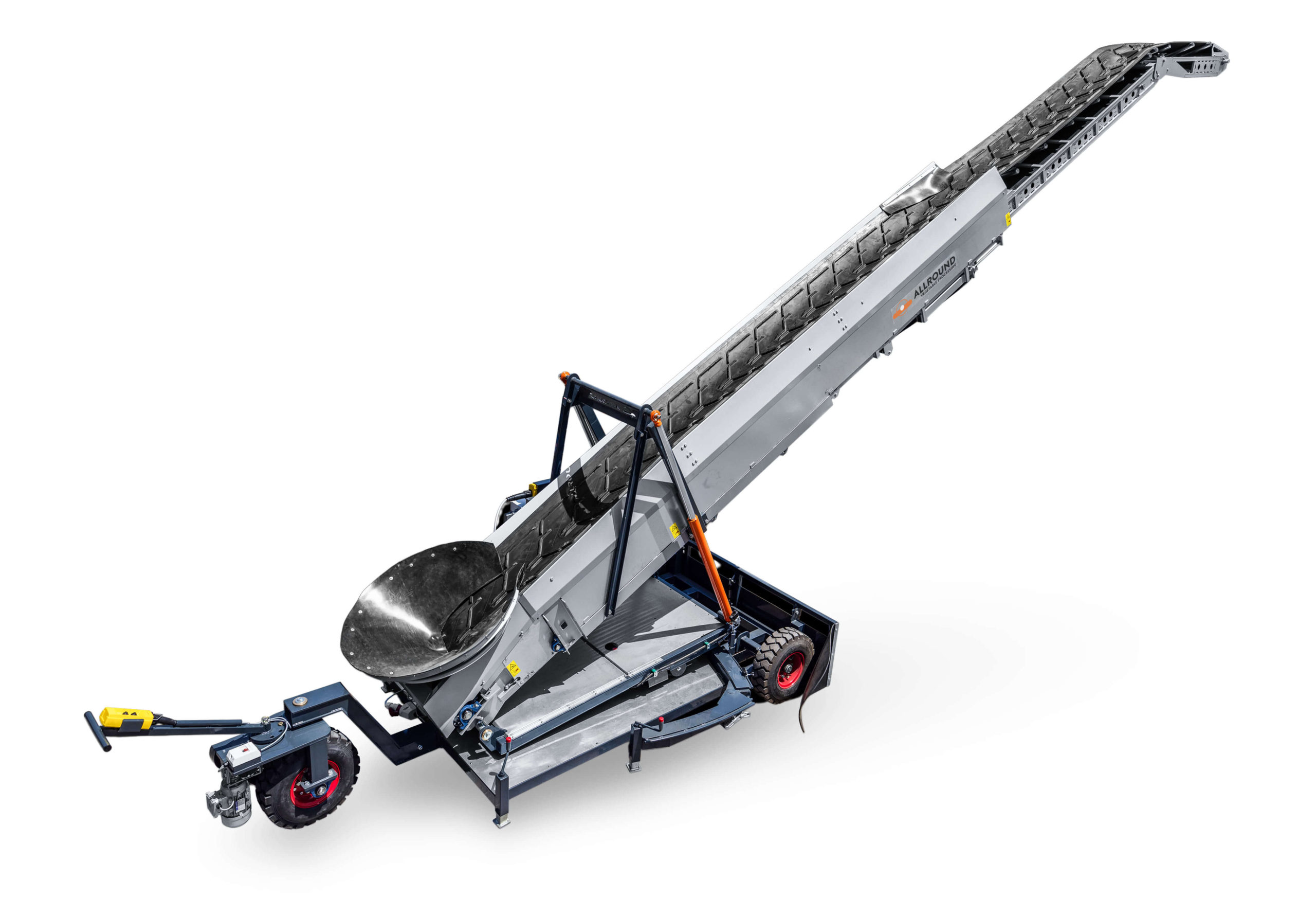

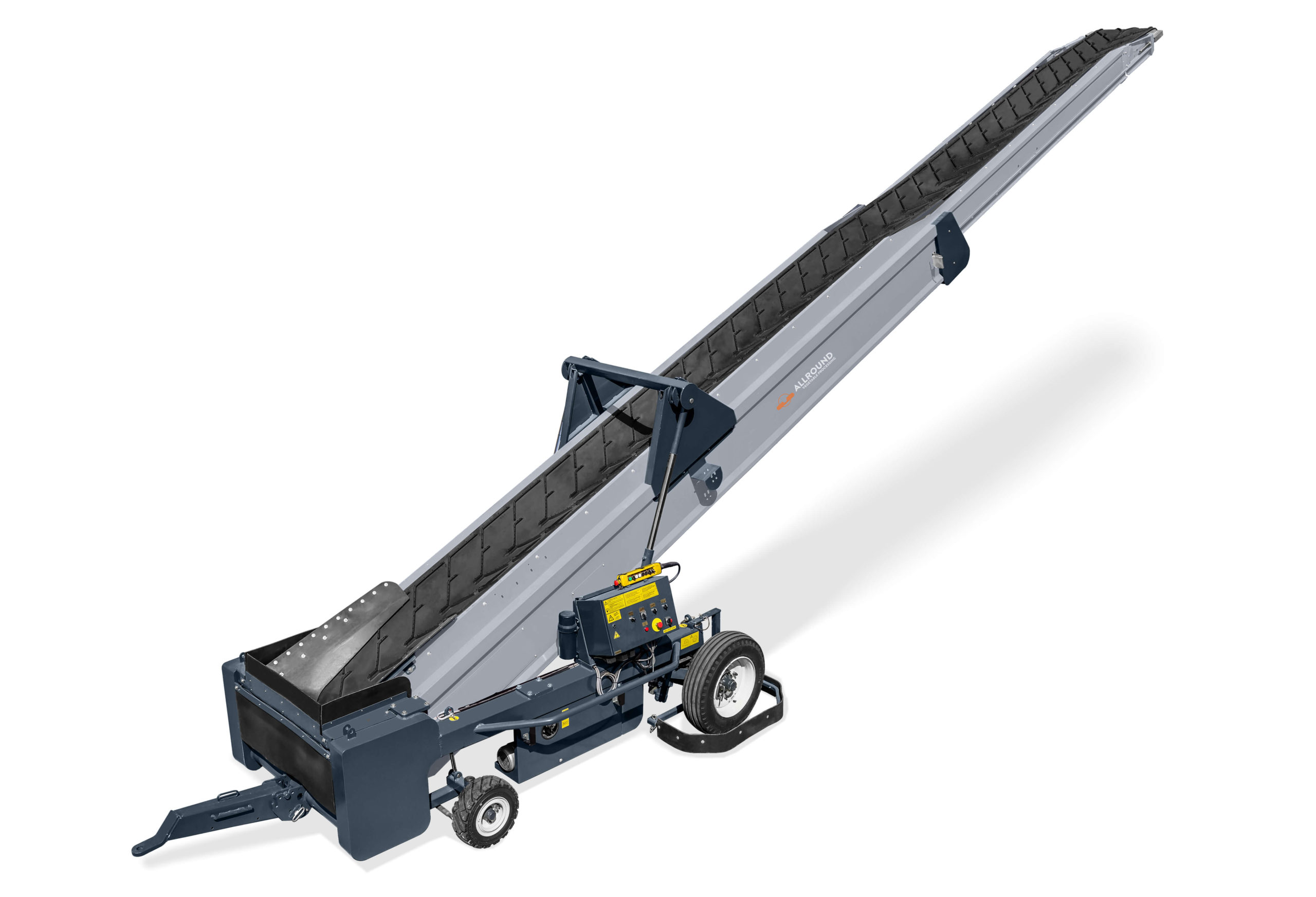

The space finder is designed for the efficient filling of bulk storage facilities. It consists of a conveyor mounted on a mobile frame with wheels, making it easy to move and position as required.
The conveyor length and angle can be adjusted for flexible operation. The belt ensures high capacity and gentle product handling while running above the frame to prevent damage.
The nodding conveyor end allows controlled filling, and the small return roller ensures a minimal drop height. The end-mounted drive provides maximum traction with variable or two-speed options.
Sensors enable automatic pivoting and direction changes. The machine can be operated manually or automatically, with optional support from a wireless remote control and LED work light.
Characteristics
The width of the machine is 70 cm
- The frame can be made from painted mild steel
- The bearings and drive/idle rollers are made from mild steel
The belt is made of rubber and type of cleat is chevron
- The machine has a total weight of 3900 kg, ensuring stability during operation
The machine offers a capacity of up to 90 tons per hour
The maximum discharge height reaches up to 6 meters
The machine provides a maximum reach of 9.15 metres from the wheels
It is built with a wheelbase of 2.4 metres for stability and easy movement
On demand, a wireless remote control allows flexible manual operation
On demand, an LED work light can be added, which ensures good visibility during operation
Specifications
| ASF 1350-70 | |
|---|---|
| Width of the belt (in cm) | 70 |
| Belt length (in cm) | 870 – 1300 |
| Minimum drop height (in cm) | 80 |
| Maximum height (in cm) | 600 |
| Wheel base (in cm) | 240 |
| Swinging angle (on wheels) (in deg) | 180 |
| Total load (in kW) | 5.5 |
- Material and treatment (frame)
- Belt
- Cleat
- Electrical control
- Material and treatment (electrical panel)
