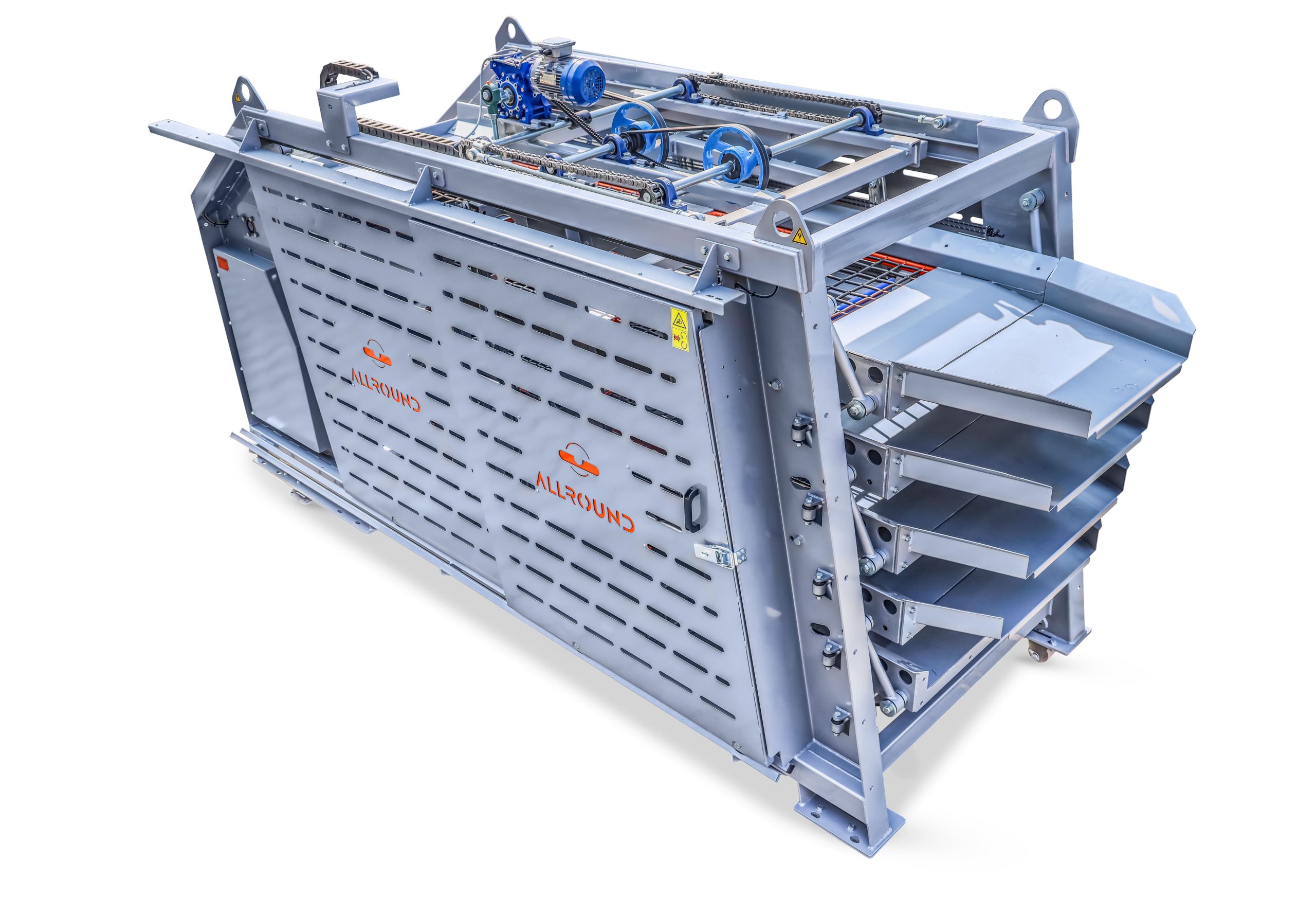

The shake grader is designed to grade produce according to the square size with four-dimensional grading. The produce is fed to the top of the machine onto the top sieve. The sieves in the machine shake in sequential frequencies, which causes the produce to move along on the sieves. The movements of the sieves are caused by the motor on the front side of the machine. This motor drives a crankshaft. The crankshaft causes the shaking of the sieves. The motor of the machine has a computer controlled frequency inverter, which causes the sieves to shake in several sequential frequencies.
Characteristics
Specifications
| SG 60 | SG 80 | SG 120 | SG 160 | |
|---|---|---|---|---|
| Width of the sieves (in cm) | 60 | 80 | 120 | 160 |
| Amount of sieve decks | 3, 4 | 3, 4, 5 | 3, 4, 5 | 3, 4, 5 |
Options
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel. The doors are made from painted mild steel
Galvanized steel
Frame is made from galvanized steel. The bearings and drive/idle rollers are from mild steel. The doors are made from stainless steel AISI304
- Sieve changing side
Left
The sieves can be changed on the left side of the machine (produce perspective)
Right
The sieves can be changed on the right side of the machine (produce perspective)
- Doors
Doors
Doors are included on the sides of the machine
- Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel with HMI. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
- Sieves
Sieves
Sieves will be offered separatly
- Material and treatment (subframe)
Painted mild steel
It is made of Painted mild steel
Galvanized steel
It is made of galvanized mild steel
- Height of subframe
Height of subframe
0 – 7 meters
- Product collection – chute set
Chute set
Chutes are included
- Cleaning – double sieve cleaner
Double sieve cleaner
A double sieve cleaner is included
- Bag holder
Bag holder
A bag holder is included to fill the bags
