Project Description






Hydro cooler

Categorie: Cooling

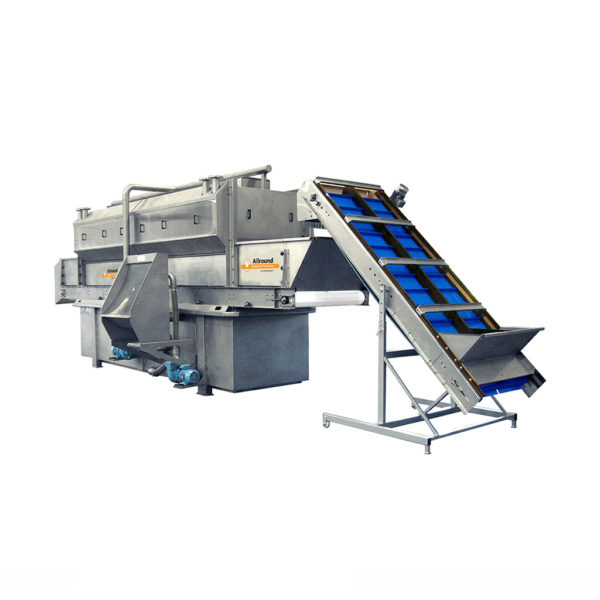

The Allround VP hydrocooler is designed to cool down the produce, especially carrots, before transportation. This dramatically increases the shelf-life of the produce.

Allround VP is able to deliver hydrocoolers that are capable of cooling produce from a very low volume, to very large quantities.

Types and Specifications

HC 75

Capacity 75 kW
Pump 50 m³
Cooling plates 23 pieces
Intralox belt length 5500 mm
Drawing

HC 100

Capacity 100 kW
Pump 67 m³
Cooling plates 30 pieces
Intralox belt length 7000 mm
Drawing

HC 150

Capacity 150 kW
Pump 100 m³
Cooling plates 45 pieces
Intralox belt length 7000 mm
Drawing

HC 200

Capacity 200 kW
Pump 134 m³
Cooling plates 60 pieces
Intralox belt length 9500 mm
Drawing

HC 300

Capacity 300 kW
Pump 210 m³
Cooling plates 90 pieces
Intralox belt length 12500 mm
Drawing

Options

Installation parts

Intralox belt

Included to all types: The produce is transported by a Intralox® flush grid, which is a special open polyethylene belt for the food industry. The cooling unit is a ‘Bitzer’ air cooled condensing unit with semi hermetic reciprocating compressor, with an air cooled Helpman condensing unit. Furtherore, the liquid receiver is TÜV tested.

Estimated capacity
(tons/hour)

HC 75 HC 100 HC 150 HC 200 HC 300
Baby carrots 3 4.5 6.5 9 13.5
