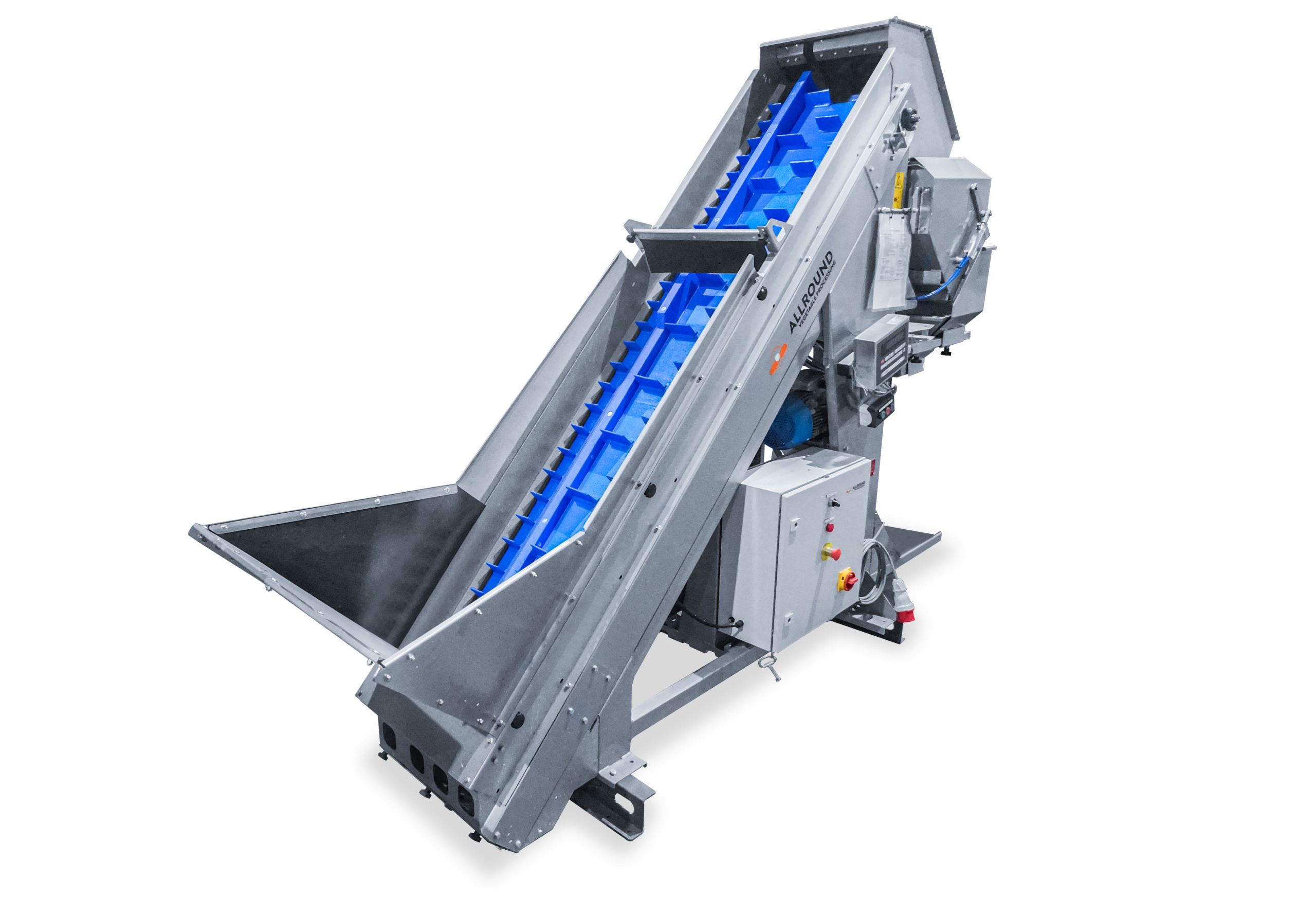

Weighing machine AW
The weighing machine AW is manufactured with both single and double belt feed systems.
The weighing machine is designed for weighing. The produce is transported diagonally up by a belt towards a bin. When the weight is reached*, the bottom side of the bin can be opened with a foot pedal, and produce falls into a bag, box, or conveyor. Wheels are included so the machine can easily be moved.
The machine with 1 belt is typically used for root products. The machine with 2 belts is typically used for round products. When the weight is almost reached, one belt stops running, and the other one keeps running until the weight is reached.
Characteristics
Ideal for packaging weights ranging from 5 kg to 50 kg
Suitable for root and round shape produce and vegetables
The machine with 1 belt is typically used for root produce
The machine with 2 belts is typically used for round produce
Available in 250 or 350 cm belt length
The height of the cleats is 50 mm
Frame is made from painted mild steel
The electrical panel is made from painted mild steel
Specifications
| AW 50-01-250 | AW 50-01-350 | AW 50-02-250 | AW 50-02-350 | |
|---|---|---|---|---|
| Number of belts | 01 | 01 | 02 | 02 |
| Length of belt (in cm) | 250 | 350 | 250 | 350 |
Options
- Material and treatment (frame)
- Cleats height
- Electrical control
- Material and treatment (electrical panel)
