Transport conveyor TO

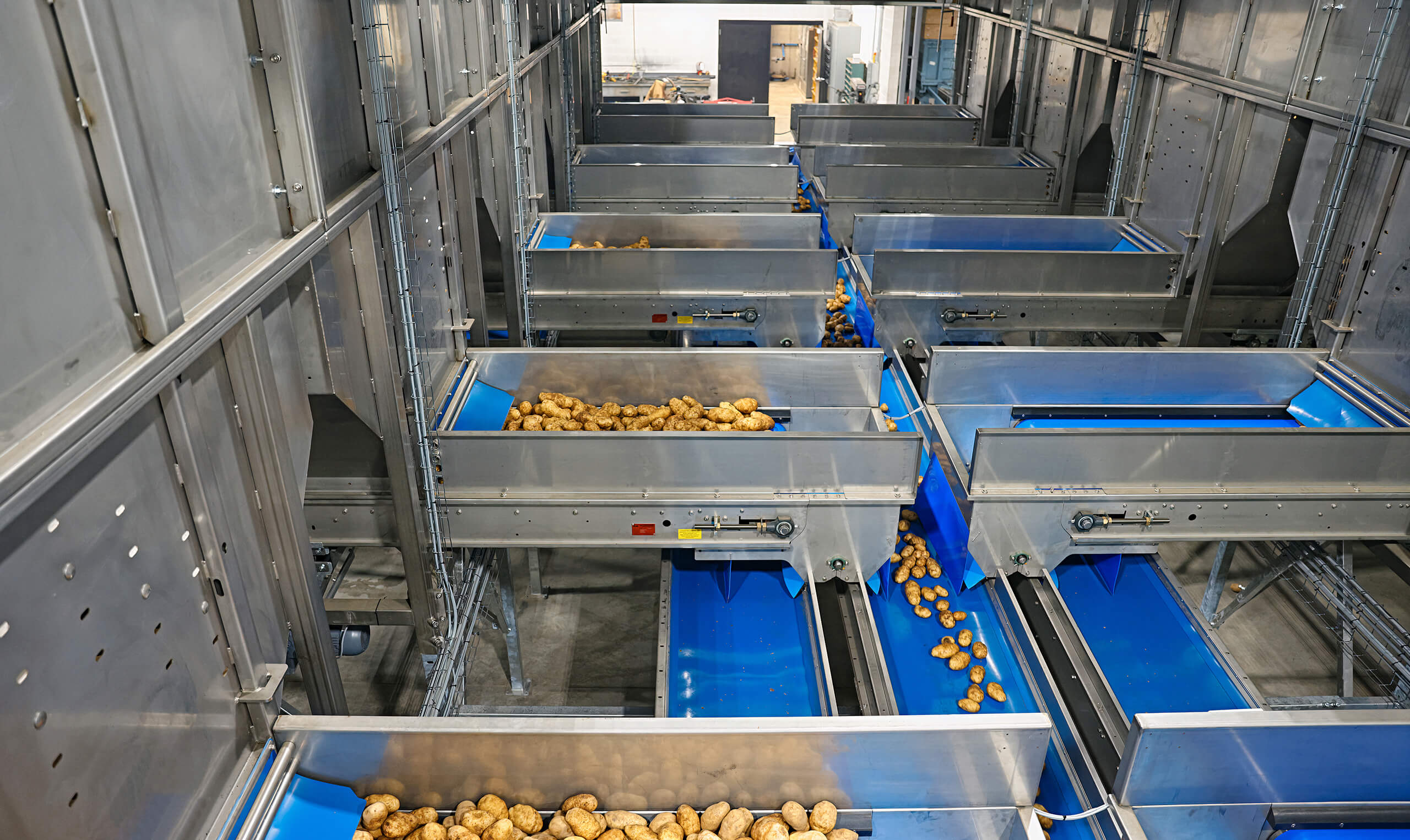

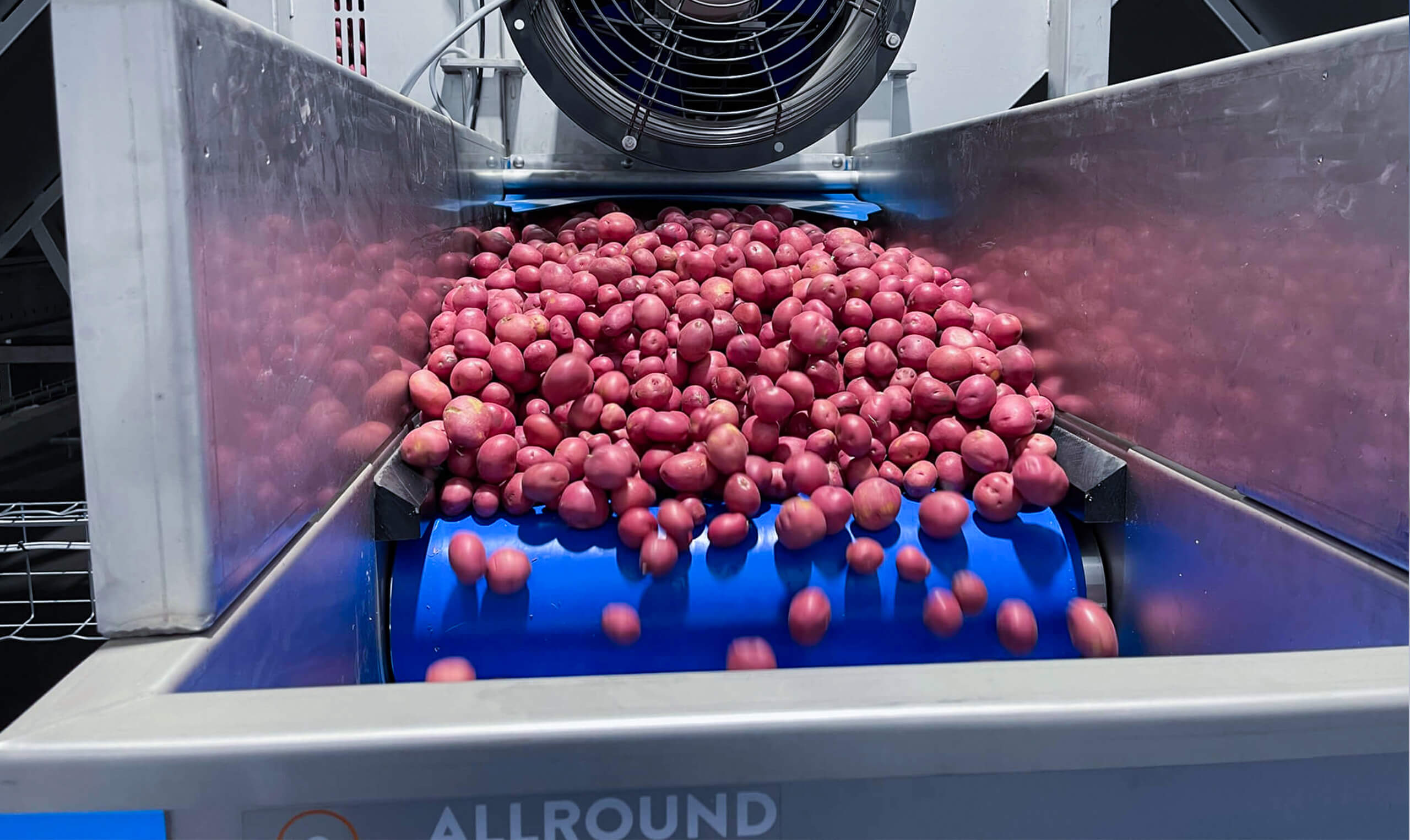

The transport belt is designed for conveying. This type is the transport belt with an inner frame. On demand, the belt can be made of PVC, PU, or rubber.

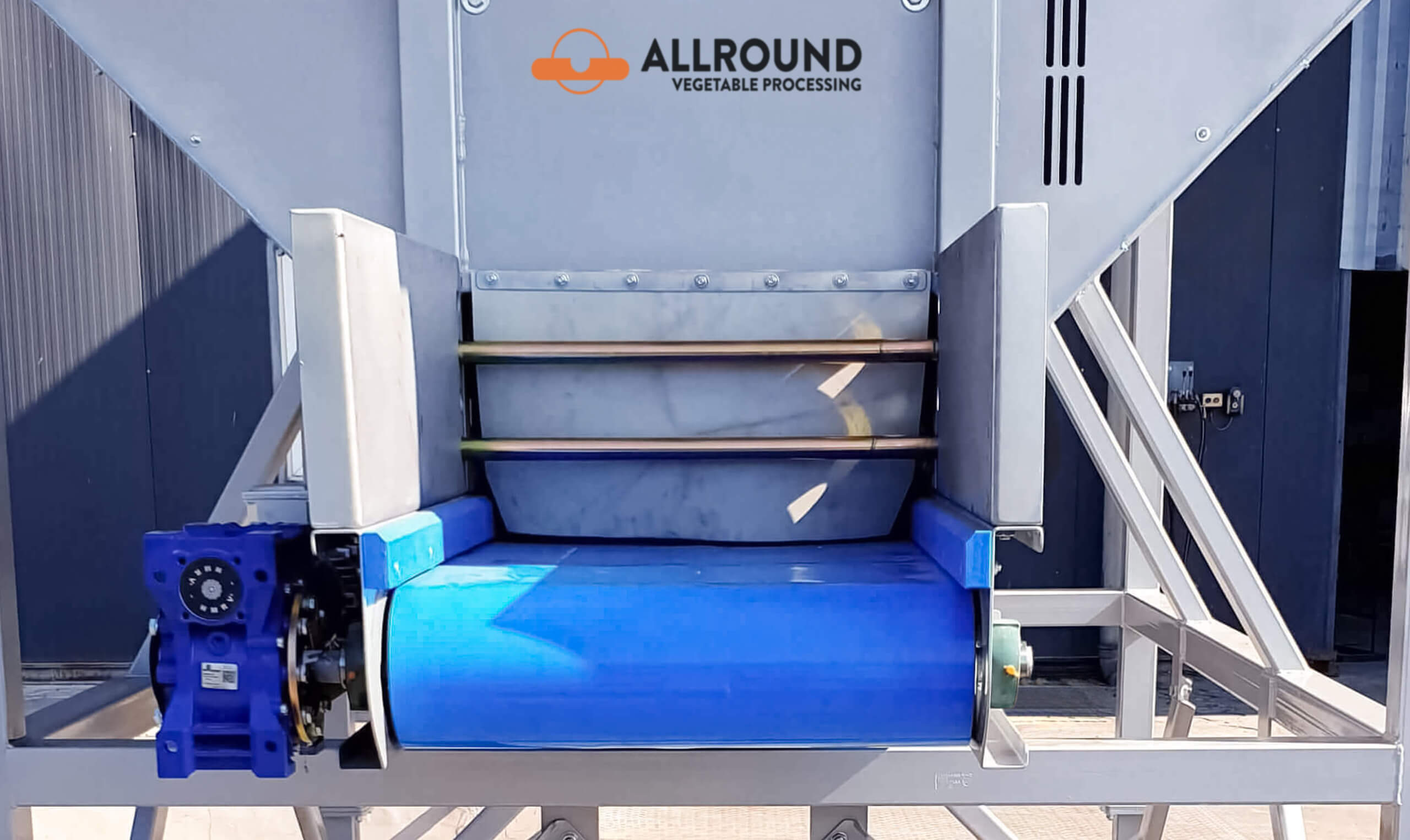

The transport belt is designed for conveying. This type is mounted under a storage hopper to unload the product. On demand, the belt can be made of PVC and PU.
An extra motor can be included on demand to ensure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors. On demand, a frequency inverter is included to control the speed.
Characteristics
- Belt available in 250 – 1000 in steps of 25 cm
- An extra motor can be included on demand
- Available in various options like zinc plated steel, stainless steel, and painted mild steel
- On demand, a frequency inverter is included to control the speed
Specifications
| TO 60 | TO 80 | |
|---|---|---|
| Width of the machine (cm) | 60 | 80 |
| Length of the machine (cm) | 250 t/m 1000, steps of 25 cm | 250 t/m 1000, steps of 25 cm |
Options
- Material and treatment (frame)
Zinc plated steel
Frame is made from zinc plated steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel. The bearings and drive/idle rollers are from mild steel
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
- Belt
PVC
The belt is made of PVC
PU
The belt is made of PU
- Cleats size
17 x 11
The size of the cleats is 17 x 11 (W x H)
- Electrical control
No electric
Motors only. Wiring, additional sensors and/or control panel are not included
Stand-alone
Motors, necessary sensors, switch box and control box
Central control in line
Motors and necessary sensors
- Frequency inverter
Speed adjustment
A frequency inverter is used to control the speed
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel
- Switch
Maintenance
A maintenance switch is included
Reverse
It is used to change the direction of the belt
Start/stop
It is used to start and stop the belt
- Product sensor
Product
A product sensor is included
- Bracket
Bracket
There is a bracket included

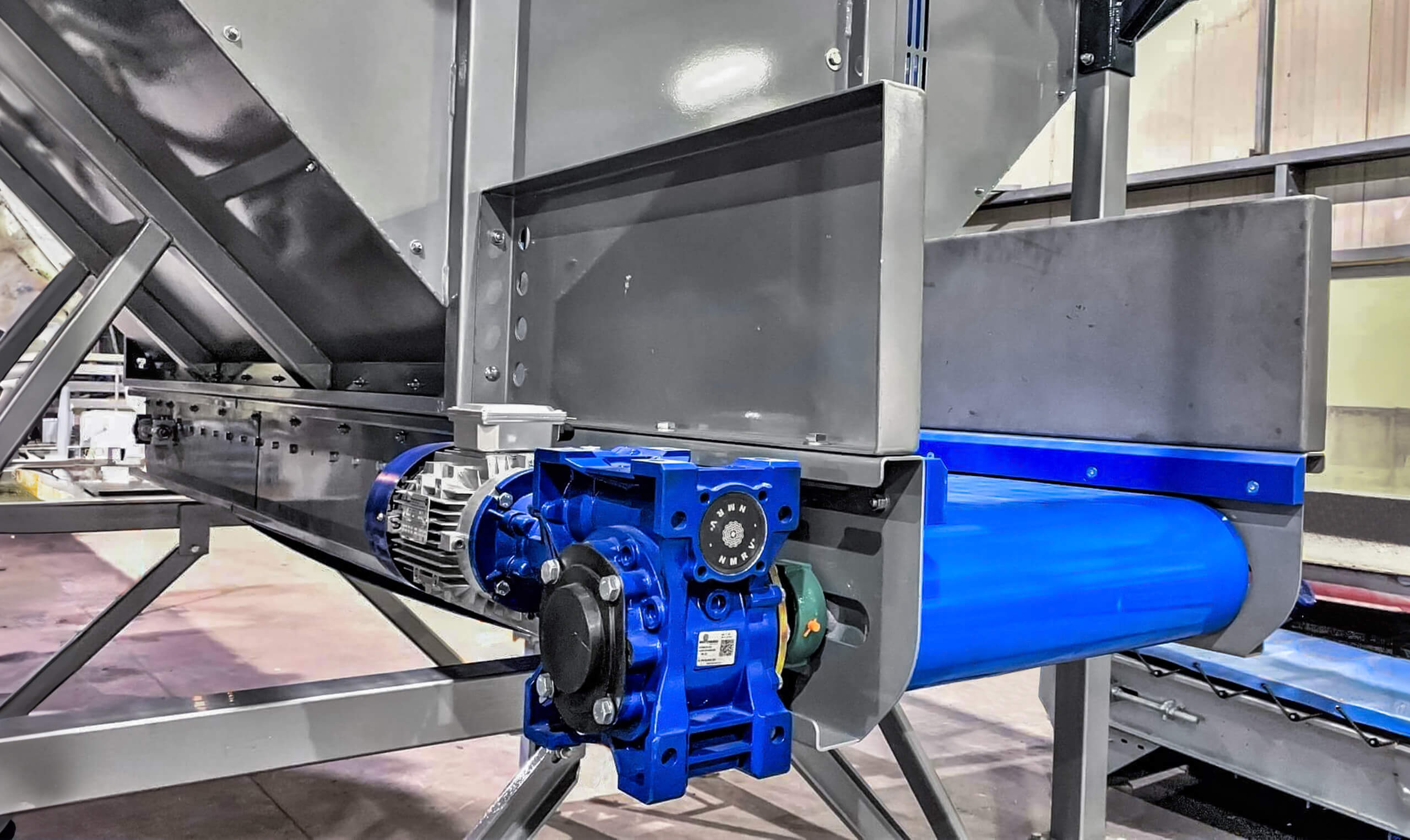

- Extra motor
0.37 kW
An extra 0.37 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
0.75 kW
An extra 0.75 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
1.1 kW
An extra 1.1 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
1.5 kW
An extra 1.5 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
2.2 kW
An extra 2.2 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
3 kW
An extra 3 kW motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
0.37 kW middle
An extra 0.37 kW middle motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
0.75 kW middle
An extra 0.75 kW middle motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
1.1 kW middle
An extra 1.1 kW middle motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
1.5 kW middle
An extra 1.5 kW middle motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
2.2 kW middle
An extra 2.2 kW middle motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
3 kW middle
An extra 3 kW middle motor is included to make sure the belt can move both ways. If this option is selected, the originally selected power (kW) must be divided between the two motors
