Skin separator SK
Allround Vegetable Processing manufactures a range of skin separators that effectively remove loose pieces, skin, branches, and leaves from produce prior to the washing process.
Allround Vegetable Processing manufactures a range of skin separators that effectively remove loose pieces, skin, branches, and leaves from produce prior to the washing process.

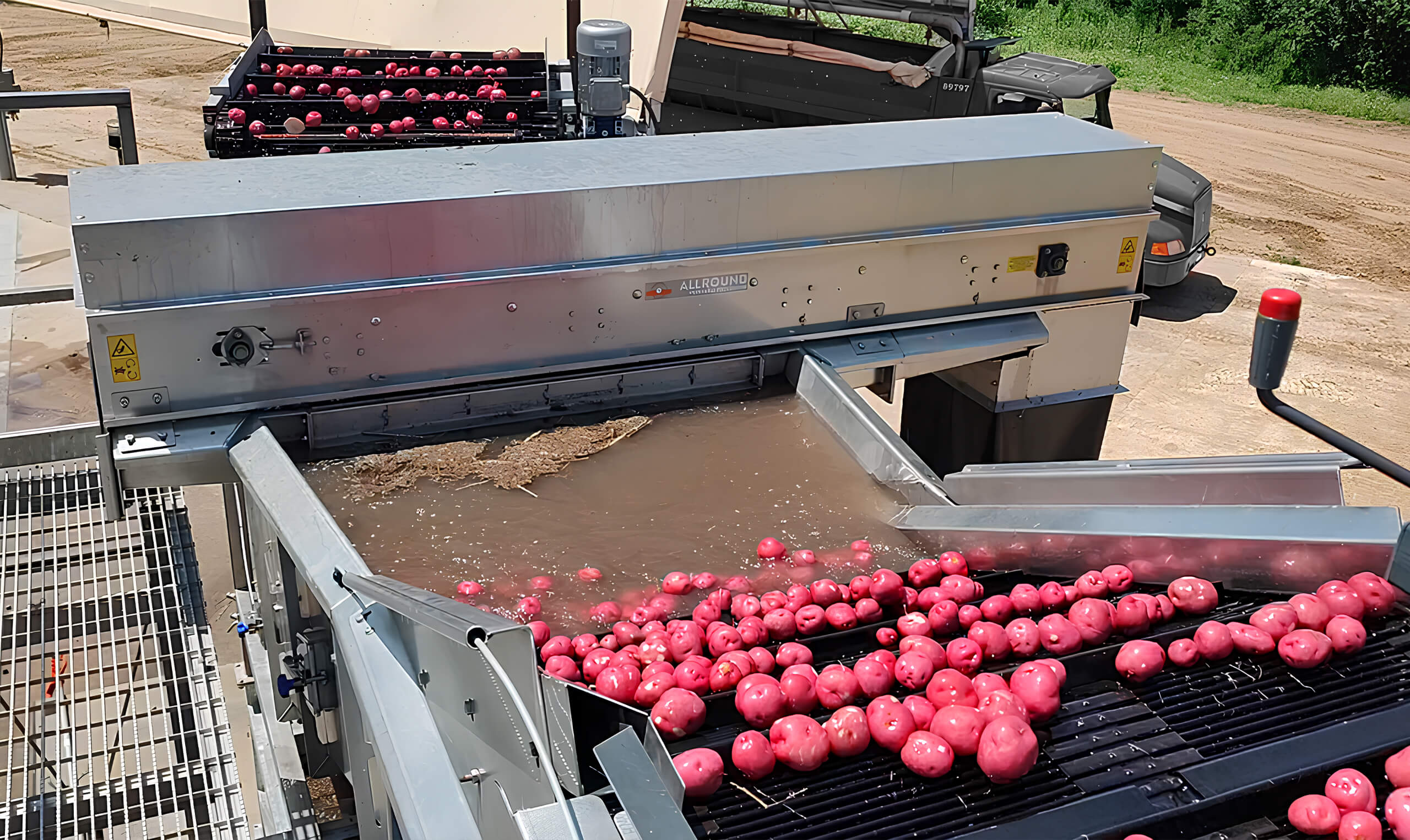

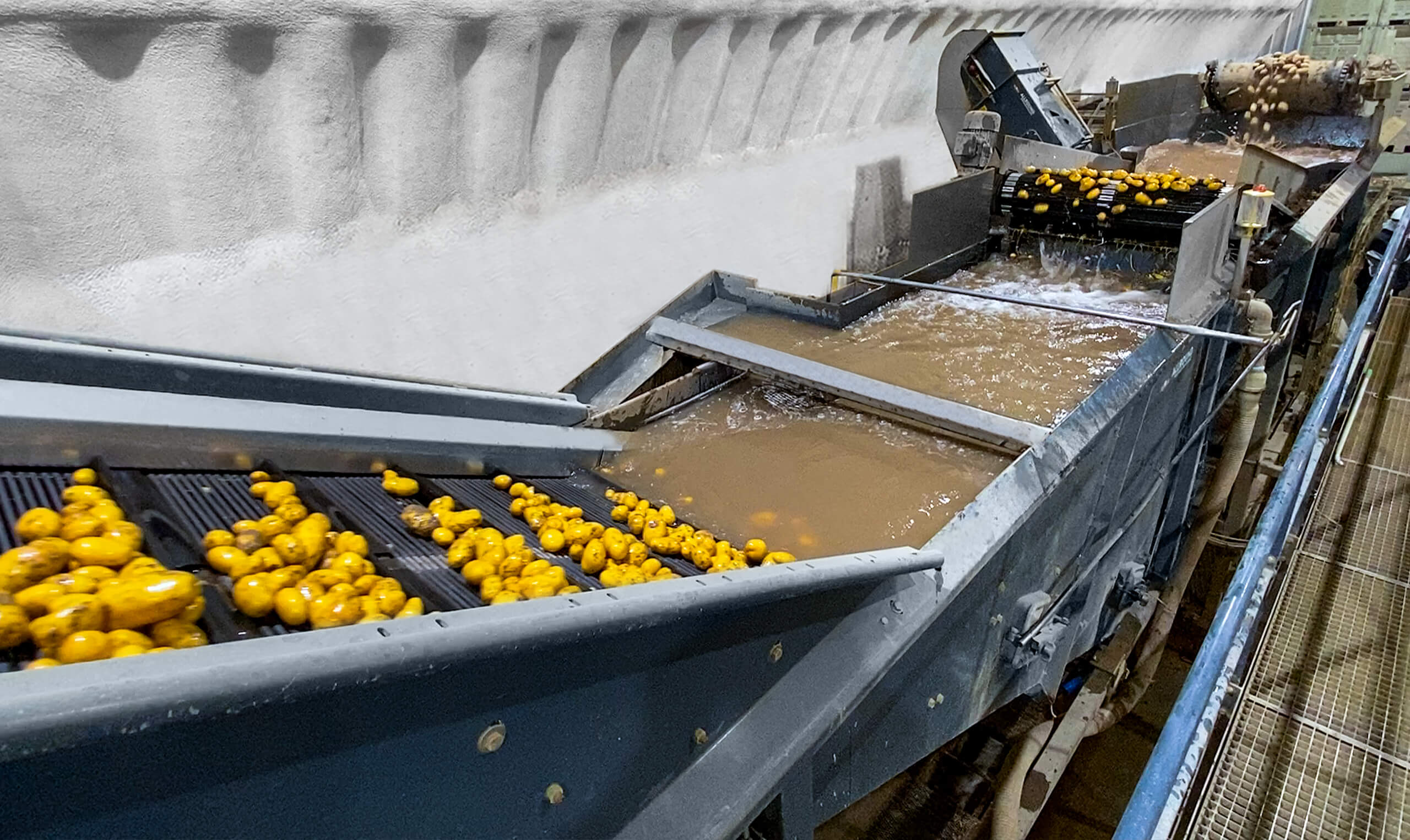

The skin separators work on different density principal, that the product is heavier than the pieces that are to be taken out and therefore separates them. A floating waste is carried out from the machine together either with the stream of water or optionally dirt mill can be integrated on top of the skin separator. Optionally a recirculation tank can be included on demand which receives the used water from the skin separator.
In conjunction with the filter belt on top of the recirculation tank, dirt is separated from the used water streamed from the skin separator.
Allround standard skin separator comes in a painted mild steel frame with bearings and drive/idle rollers are made of mild steel. However, on demand, it can supplied in stainless steel AISI304, but bearings and drive/idle rollers are of mild steel.
Allround standard skin separator comes with a 5 mm spacing rubber coated mild steel 30 mm cleat height product conveyor. However, on demand, it can supplied in stainless steel.
Characteristics
- Model available in 100 & 160 cm width of the belt
- Effective removal of loose pieces, skin, branches, and leaves from produce prior to washing
- On demand, spray tube can be integrated into the produce conveyor to further clean produce
- Water management can be done manually or automatically with valves and level meters
- 5 mm spaced and 30 mm cleat height rubber coated product conveyor in mild steel or stainless steel
- The subframe can be made from painted mild steel, stainless steel AISI304, and galvanized mild steel
Specifications
| SK 100 | SK 160 | |
|---|---|---|
| Width of the belt (in cm) | 100 | 160 |
Options
- Material and treatment (frame)
- Material and treatment (product conveyor)
The cleats height is always 30 mm
The gap size is 5 mm
The cleats height is always 30 mm
The gap size is 5 mm
- Electrical control
- Material and treatment (electrical panel)
- Water management
- Waste collection
- Cleaning
- Material and treatment (subframe)
- Height of subframe
- Water collection
