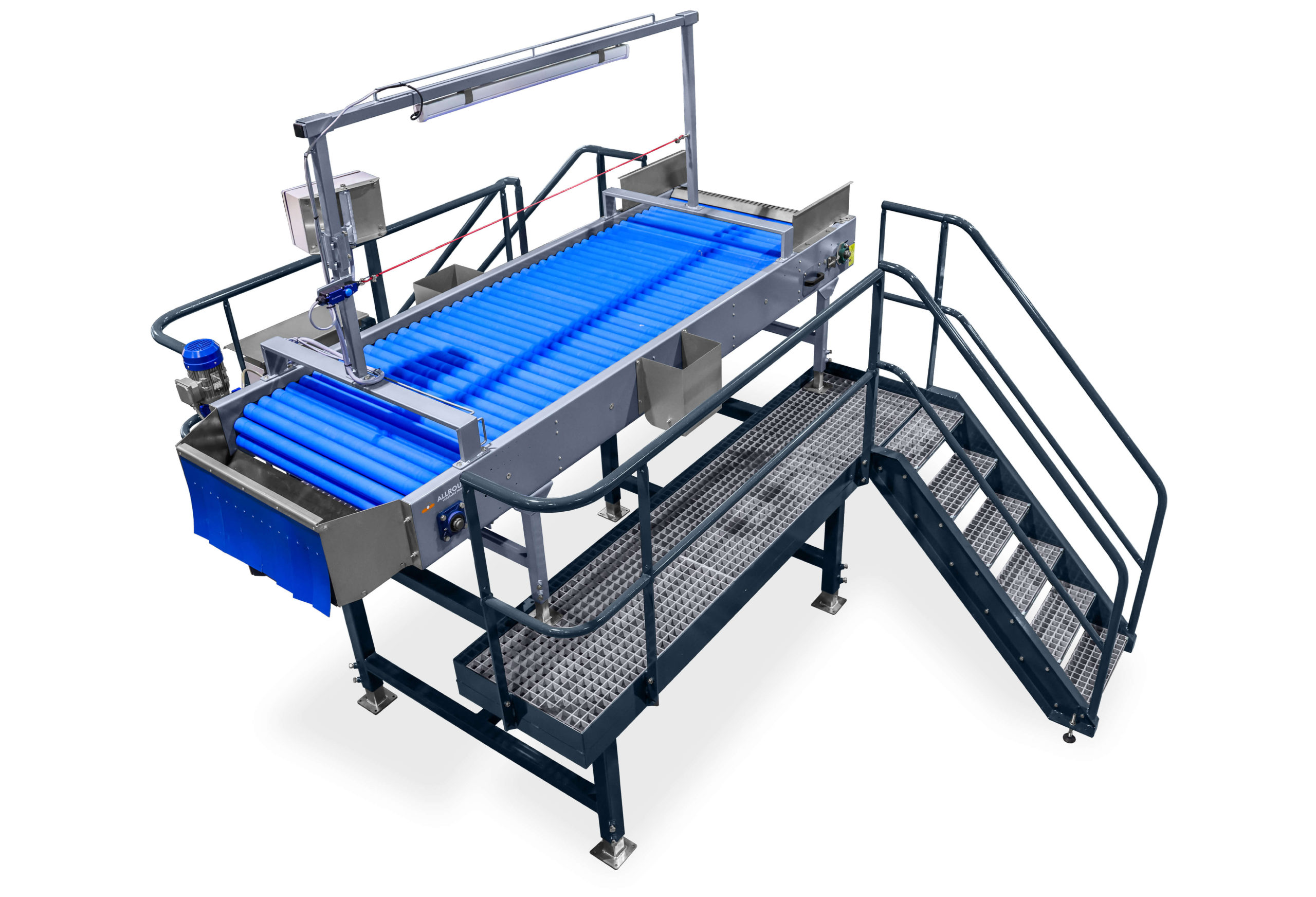

Inspection unit RI

Allround roller inspection tables are designed for round products. The produce is transported and rotated over rollers so the produce can be inspected.

Product Information

Allround roller inspection tables are designed for round products. The produce is transported and rotated over rollers so the produce can be inspected. Waste and rejected produce can be picked out. This type is meant for standing only. An outfeed chute to separate the waste of the aisle is included. Allround offers roller inspection tables in various lengths and widths, depending on the needs of the customer.

Characteristics

  • On demand, the electrical panel can be made from stainless steel AISI304 or painted mild steel

  • On demand, the rollers in the inspection table are made from stainless steel AISI304 or PVC

  • Waste chutes are included on the side. The chutes will guide waste to a transport conveyor or box

  • In the middle of the conveyor, an aisle is included. There is a separate passage in the outfeed chute

  • Light strips are added to the inspection unit to make the product more visible

  • A safety cord is included. By pulling this safety cord, the machine/line will stop

  • On demand, a conveyor within the machine is mounted to control the roller speed (not transport speed)

  • A frequency inverter is included so that the roller speed is adjustable

Specifications

  RI 60 RI 80 RI 100 RI 120 RI 140
Width of the roller (in cm) 60 80 100 120 140
Length of the machine (in cm) 125 to 650, steps of 25 cm 125 to 650, steps of 25 cm 125 to 650, steps of 25 cm 125 to 650, steps of 25 cm 125 to 650, steps of 25 cm

Options

  • Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel. The bearings and drive/idle rollers are from mild steel
Stainless steel
Frame is made from stainless steel AISI304. The bearings and drive/idle rollers are from mild steel
  • Rollers
Stainless steel Ø 30 mm
The rollers in de inspection table are made from stainless steel AISI304
The roller diameter is Ø 30 mm
The pitch of the chain is 3,8 cm
The gap size is 8 mm
PVC Ø 32 mm
The rollers in de inspection table are made from PVC
The roller diameter is Ø 32 mm
The pitch of the chain is 3,8 cm
The gap size is 6 mm
PVC Ø 56 mm
The rollers in de inspection table are made from PVC
The roller diameter is Ø 56 mm
The pitch of the chain is 6,3 cm
The gap size is 7 mm
  • Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors and control panel. The length of the cable is 5, 10, 15 or 20 meter
Central control in line
Motors and necessary sensors
  • Frequency inverter
Speed adjustment
A frequency inverter is used to control the speed
  • Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel AISI304
  • Material and treatment (legs)*
Stainless steel
It is made from stainless steel AISI304
Painted mild steel
It is made from painted mild steel
Galvanized steel
It is made from galvanized steel
  • Length of legs*
Length of legs
0 to 7 meter
  • Waste collection – chute*
Chute
Waste chute is included on the side. The chute will guide waste to a transport conveyor or box
  • Waste collection – aisle*
Aisle
In the middle of the belt an aisle is included. There is a separate passage in the outfeed chute
  • Light strip*
Light strip
Light strip is added to the inspection unit to make the product more visible
  • Safety cord*
Safety cord
A safety cord is included. By pulling this safety cord the machine or line will stop
  • Roller speed*
Fixed
A belt within the machine is mounted to control the roller speed (not transport speed)
Adjustable
A belt within the machine is mounted to control the roller speed (not transport speed). A frequency inverter is included so that the roller speed is adjustable
