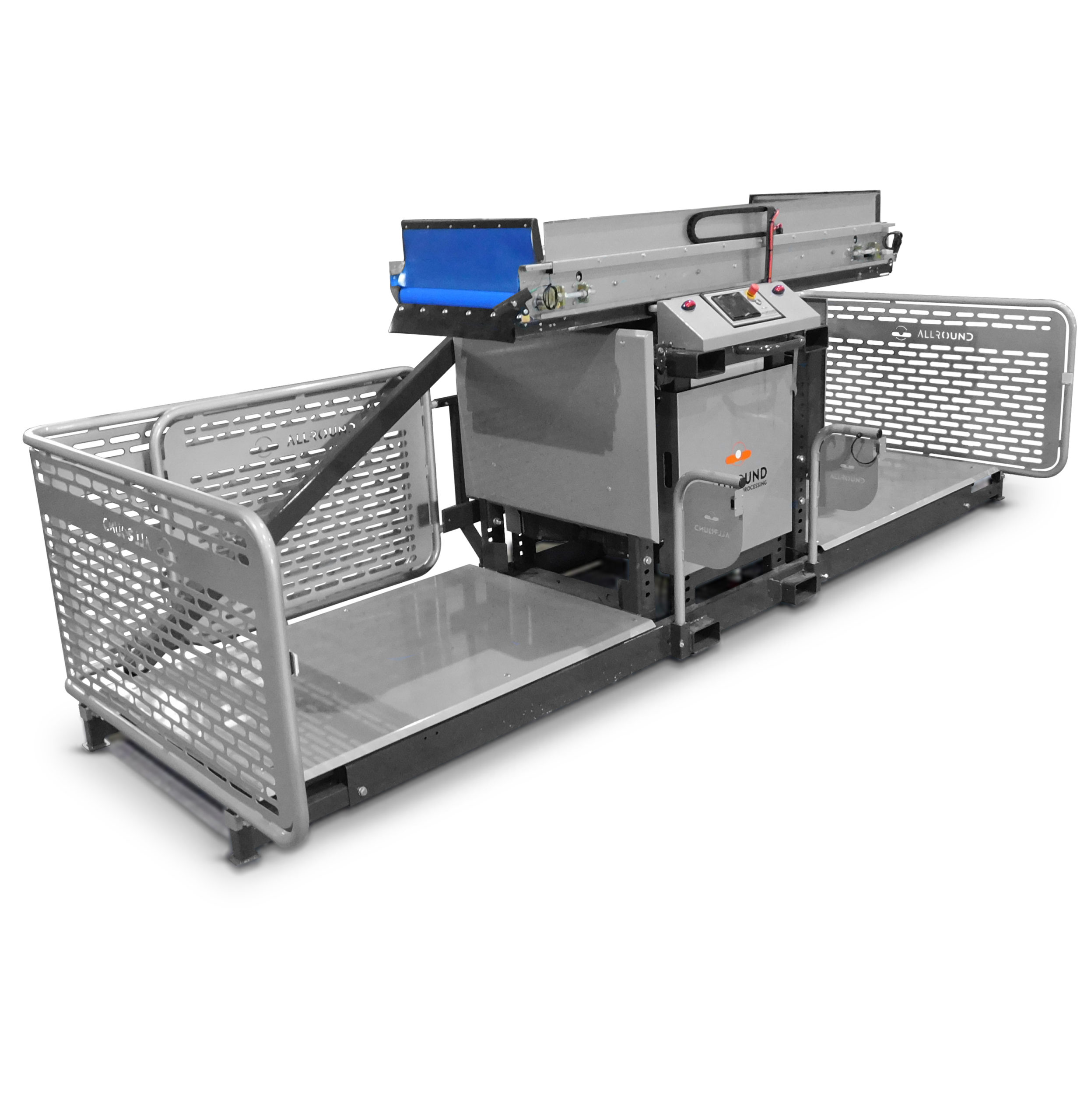

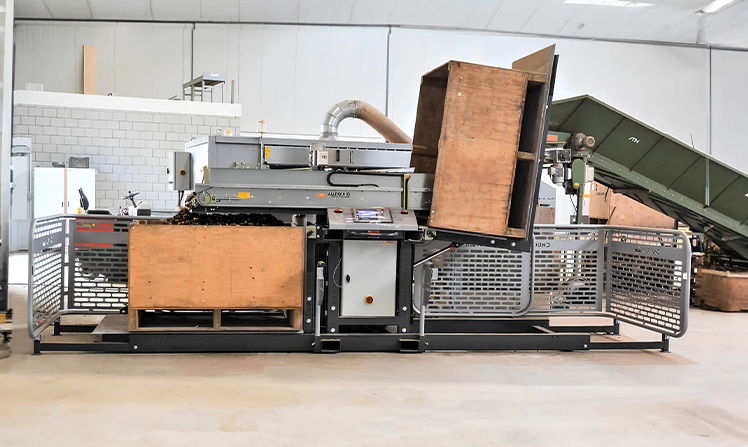

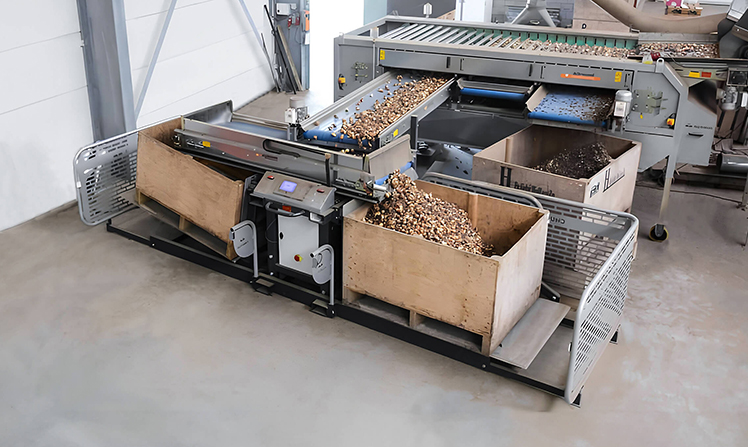

The horizontal box filler is used to fill boxes. After the box is placed, the box tilts to the upper position and the horizontal conveyor moves inside the box and starts filling. While the box is being filled, the box lowers, and the belt moves. Therefore, the produce is equally distributed over the box. Because the box filler can hold 2 boxes, the machine can fill without interruptions.
On demand, the Frame can be made from painted mild steel or galvanized steel. The rest of the machine is stainless steel.
Characteristics
- The maximum width of the box is 120 cm
- The length of the box is between 91 and 180 cm
- The maximum height of the box is 135 cm
- The angel of rotation is 80 degrees
- The box will stop rotating when the light sensor is activated

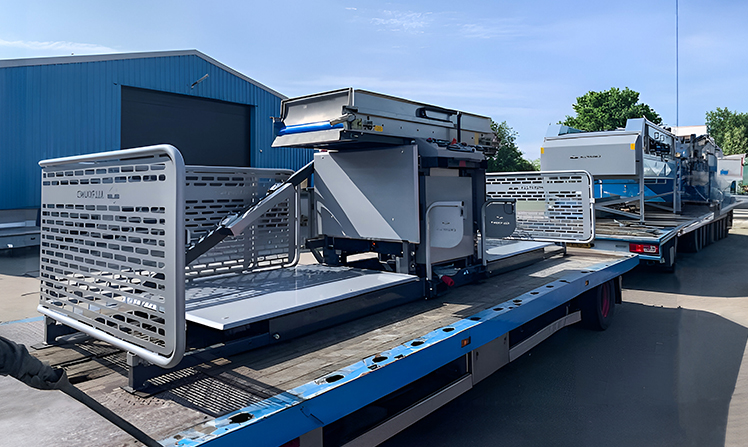

- Forklift tubes so the box filler is easy to move
- Produce level sensor signals for when to adjust the placement of horizontal conveyor & rotation of the box according to the produce level in the box
- Box detection sensor system prevents produce loss on the floor. Box Filler will start once the box is correctly located in the machine
- The tower light alerts the forklift operator when a box is full
Specifications
| Model | HBF 75 |
|---|---|
| Width of the belt (cm) | 75 |
| Length of the box (cm) | Between 91 and 180 |
| Maximum height of the box (cm) | 135 |
Options
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel
Galvanized
Frame is made from galvanized steel. The rest of the machine is stainless steel
- Electrical control
No electric
Motors and necessary sensors
Stand-alone
Motors, necessary sensors, switch box and control box
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel
