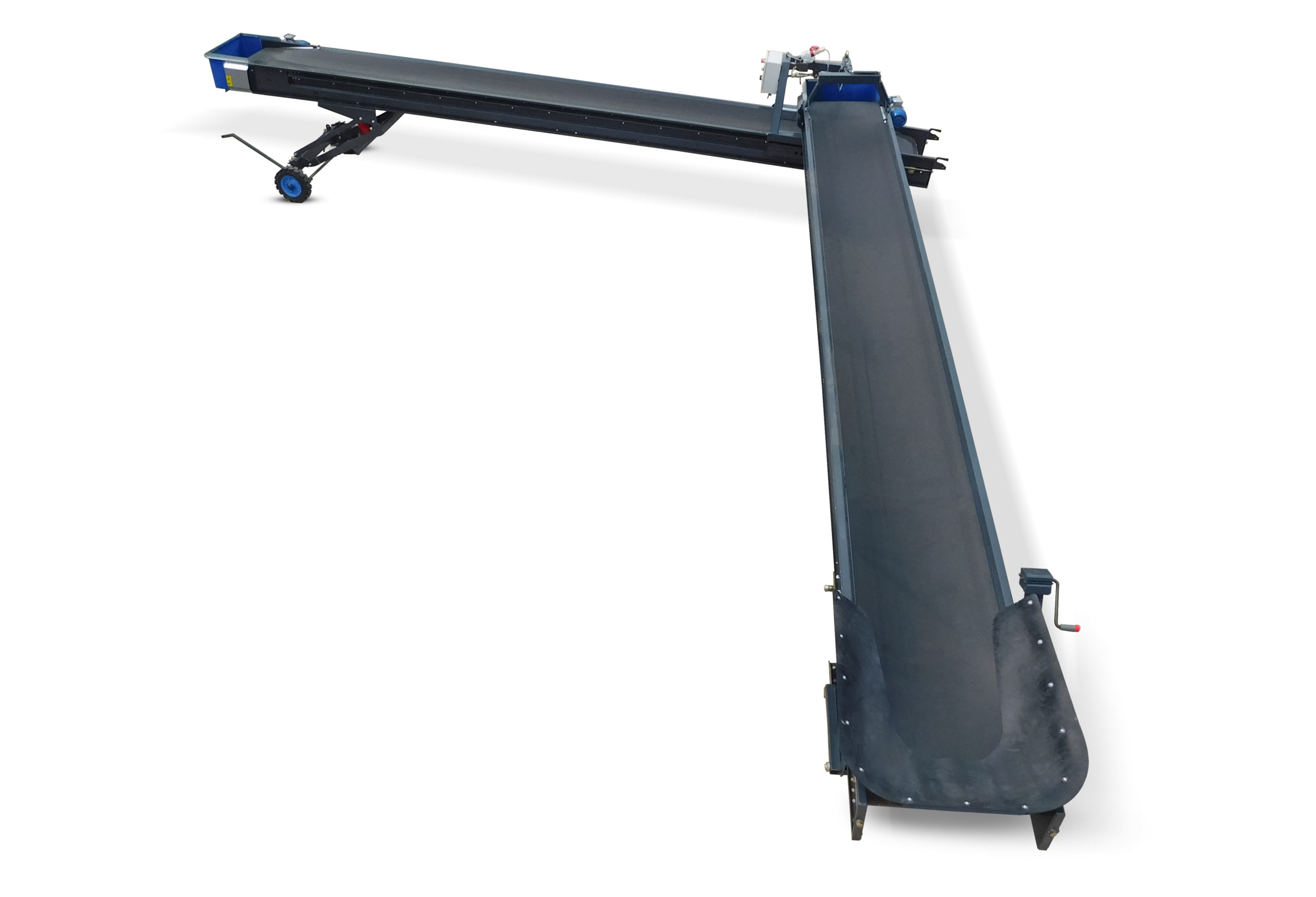

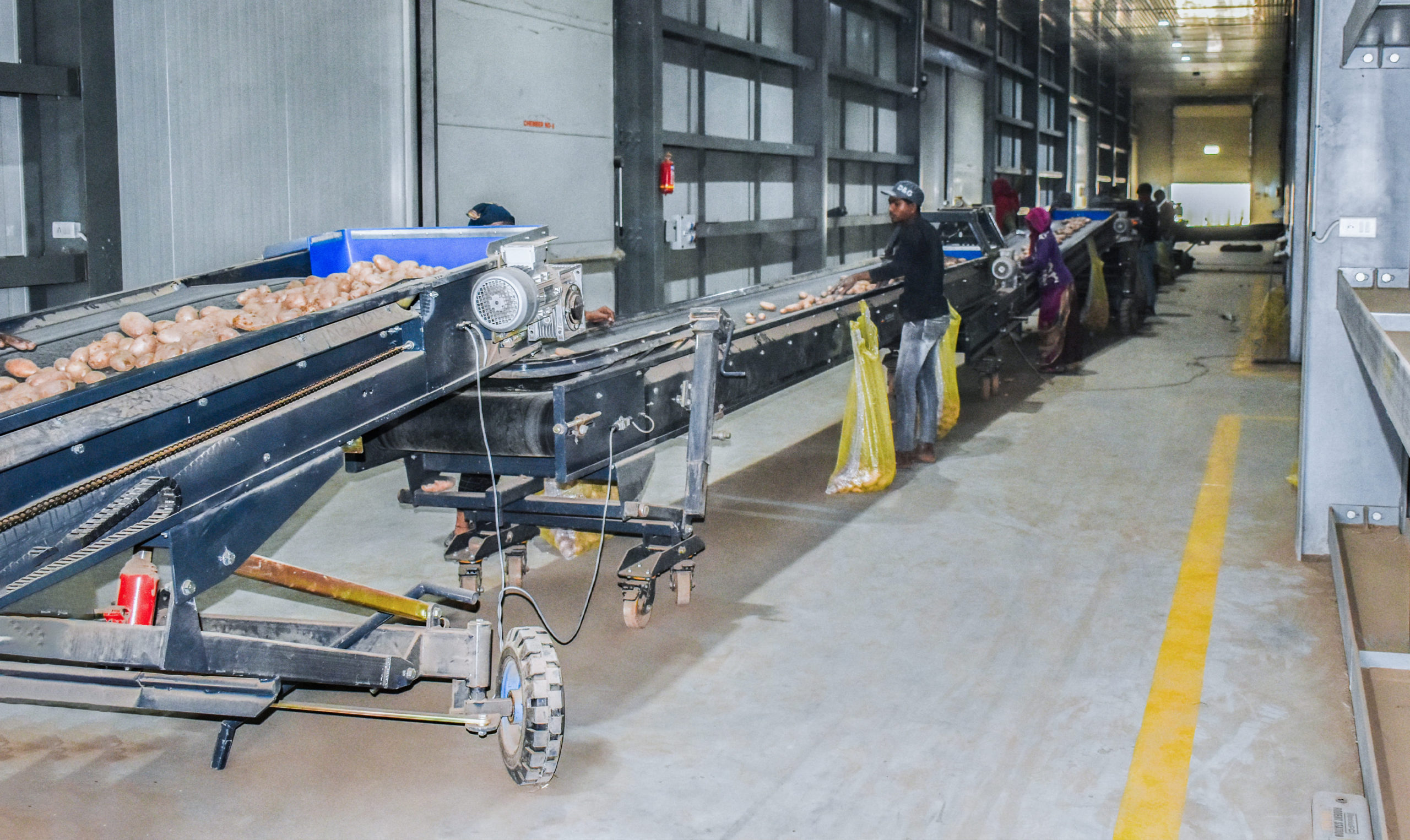

The duo telescopic conveyor is mainly used in cold storage for loading and unloading produce, transferring it from the reception area to the chamber or vice versa. Designed specifically for produce transporting, it features two conveyors placed on top of each other, which can be expanded and contracted, making it highly flexible for different storage requirements.

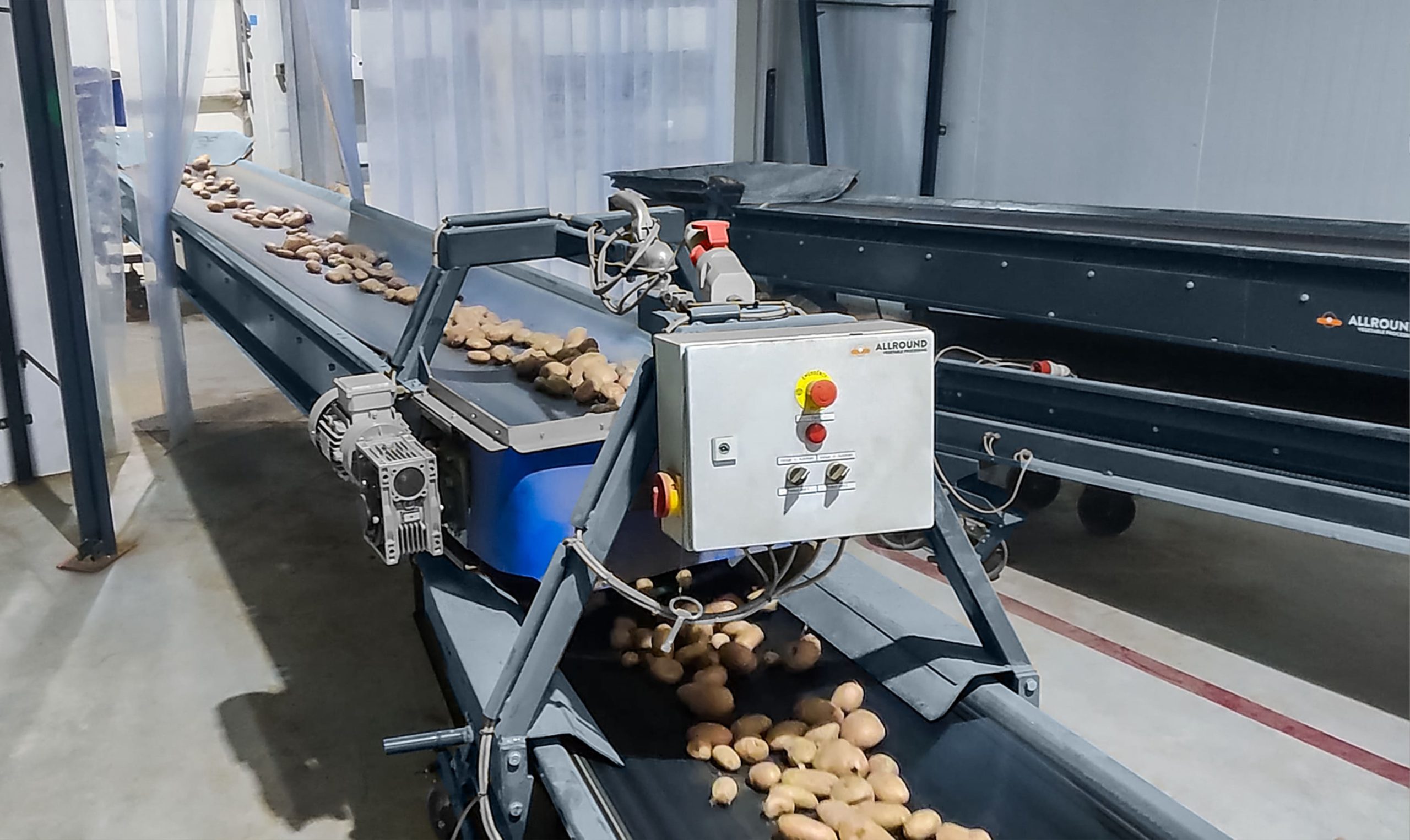

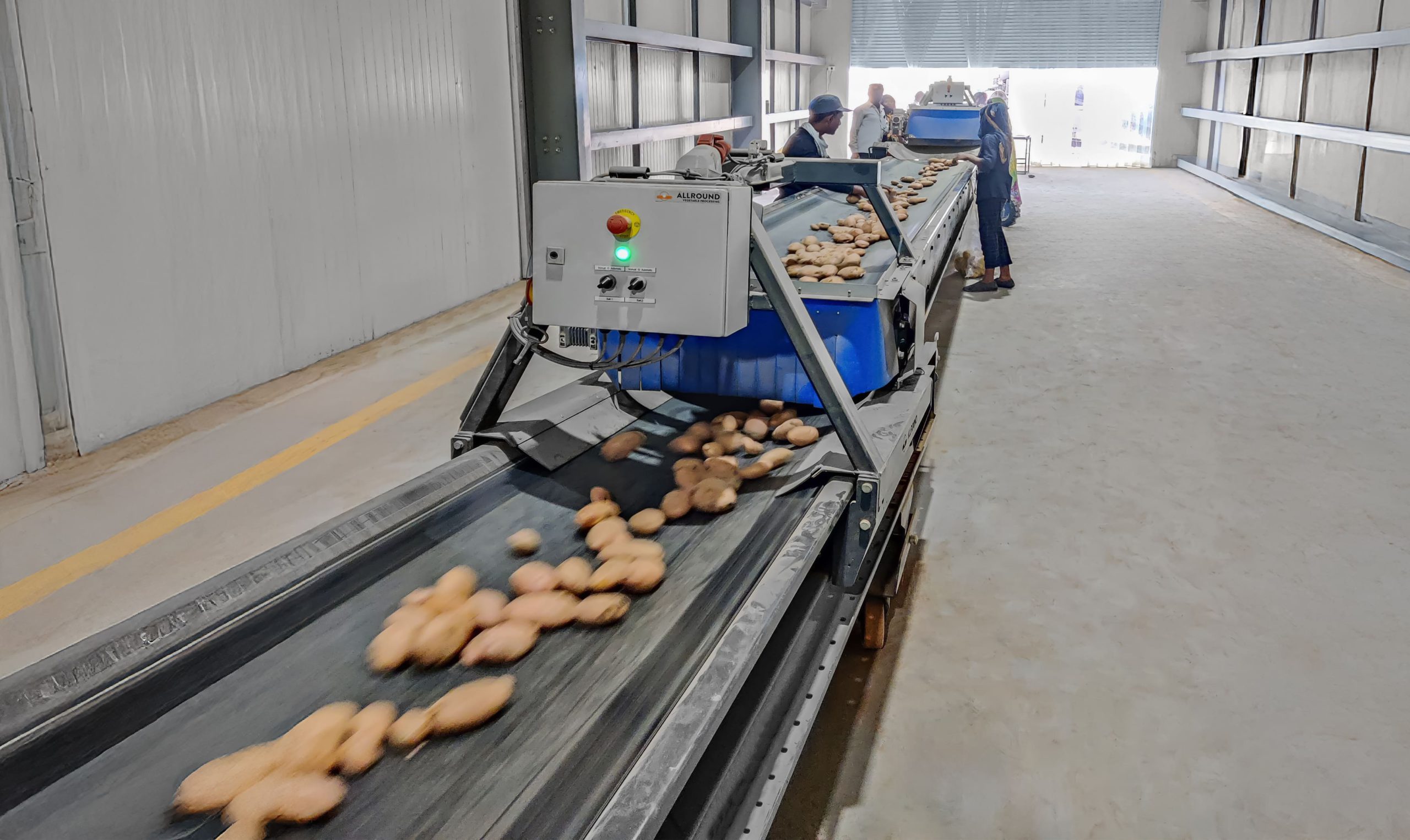

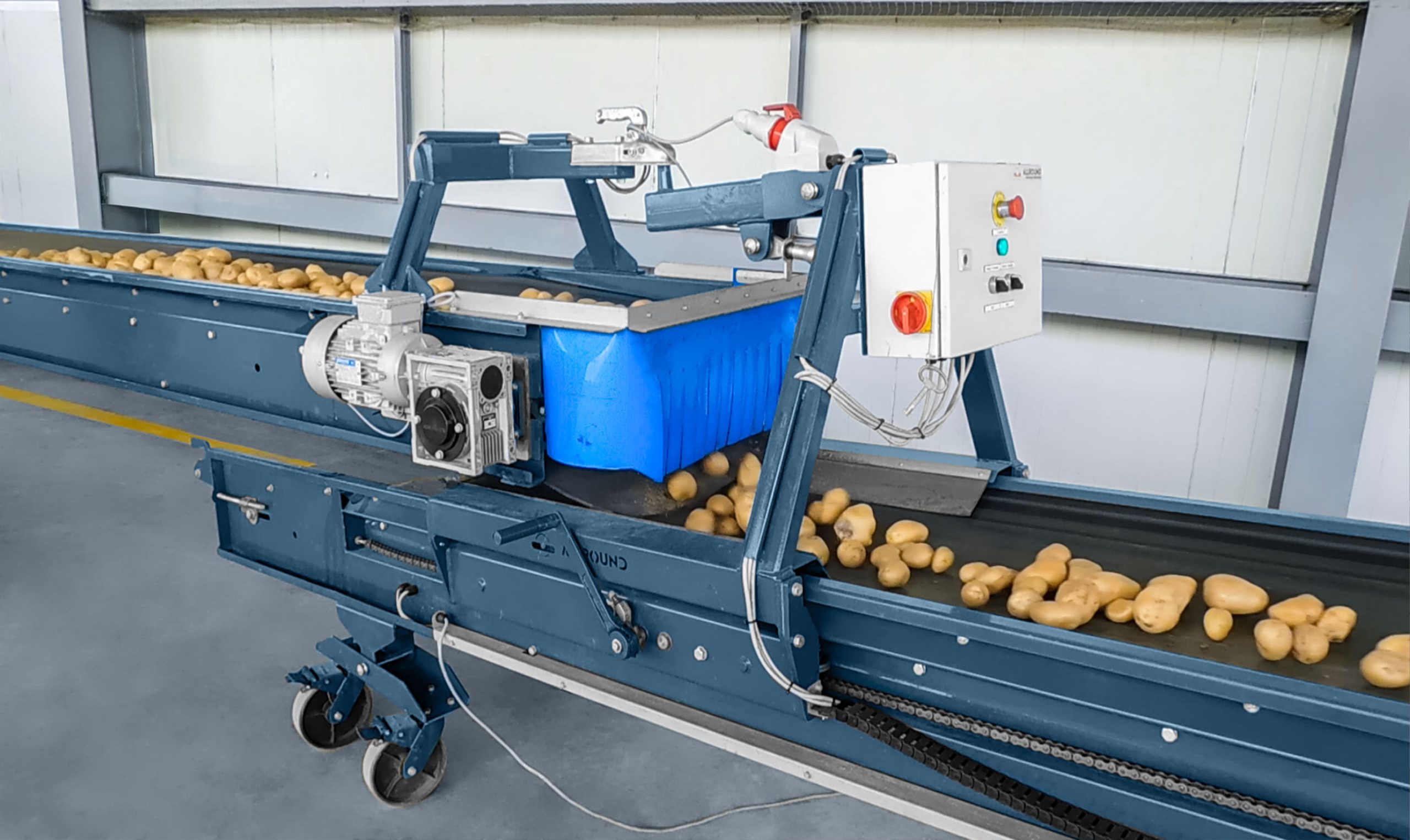

The produce starts on the upper conveyor, which drops it onto the lower one for continued transport. While the upper conveyor is fixed, the bottom conveyor can be moved to adjust both the total length and angle (2 directions) of the machine. The belts are usually placed behind a spacefinder or pickup scooter and is designed in such a manner that the whole storage facility can be utilized.
Characteristics
- The total length of the conveyors is between 886 cm and 1350 cm
- The width of the belts is 80 cm
- The infeed height is 103 cm, and the outfeed height is between 77 cm and 135 cm
- Heavy duty, robust construction
- The bottom conveyor enables two-way adjustment of length and angle
- Placed after a spacefinder or scooter, the belts ensure full storage utilization
The belt is made of PVC
The frame can be made from painted mild steel or stainless steel AISI304. But the bearings and drive/idle rollers are always made from mild steel
Specifications
| ATC 750 | |
|---|---|
| Total length of the conveyors (in cm) | 886 – 1350 |
| width of the belts (in cm) | 80 |
| Infeed height (in cm) | 103 |
| outfeed height (in cm) | 77 – 135 |
Options
- Material and treatment (frame)
- Belt
- Electrical control
- Material and treatment (electrical panel)
