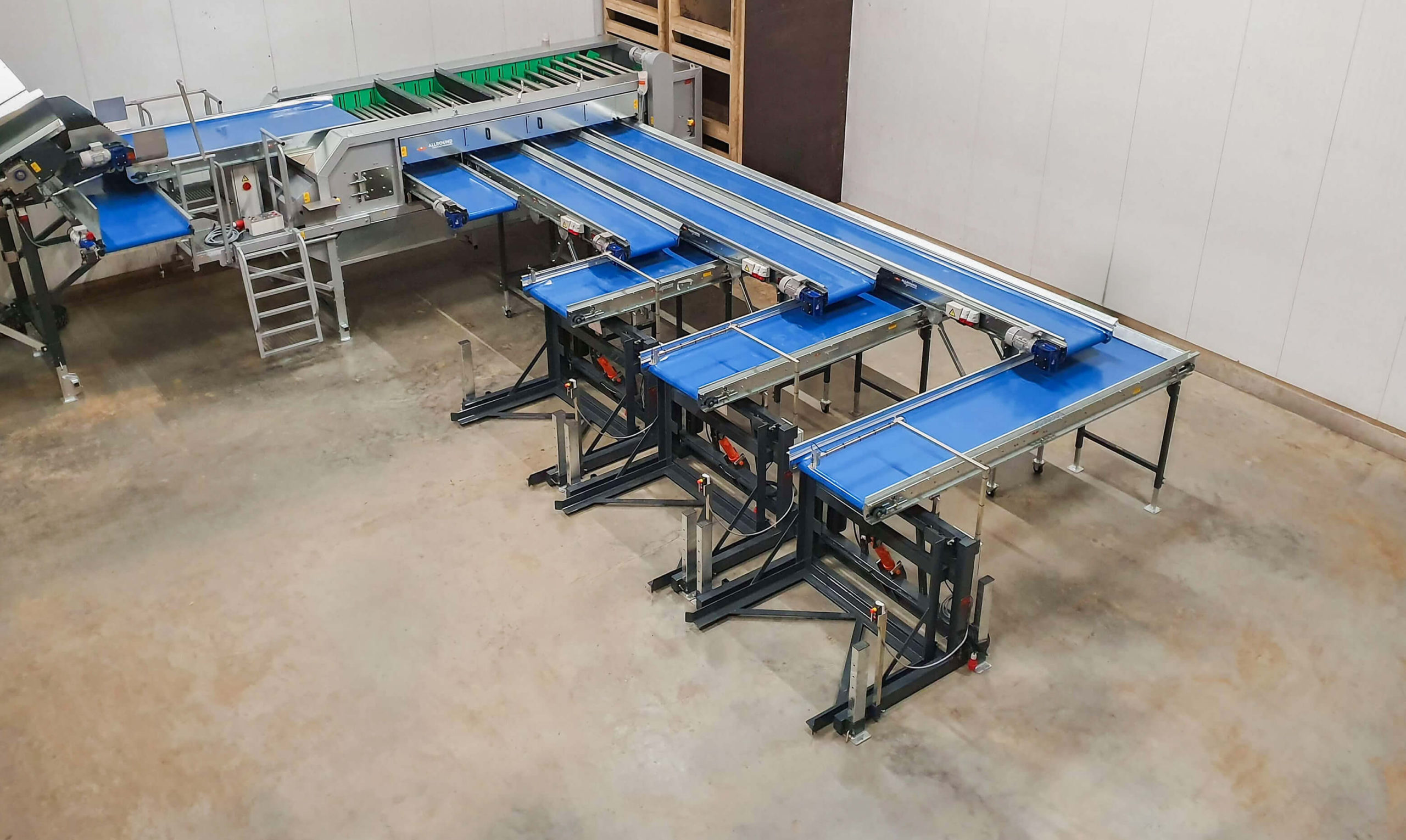

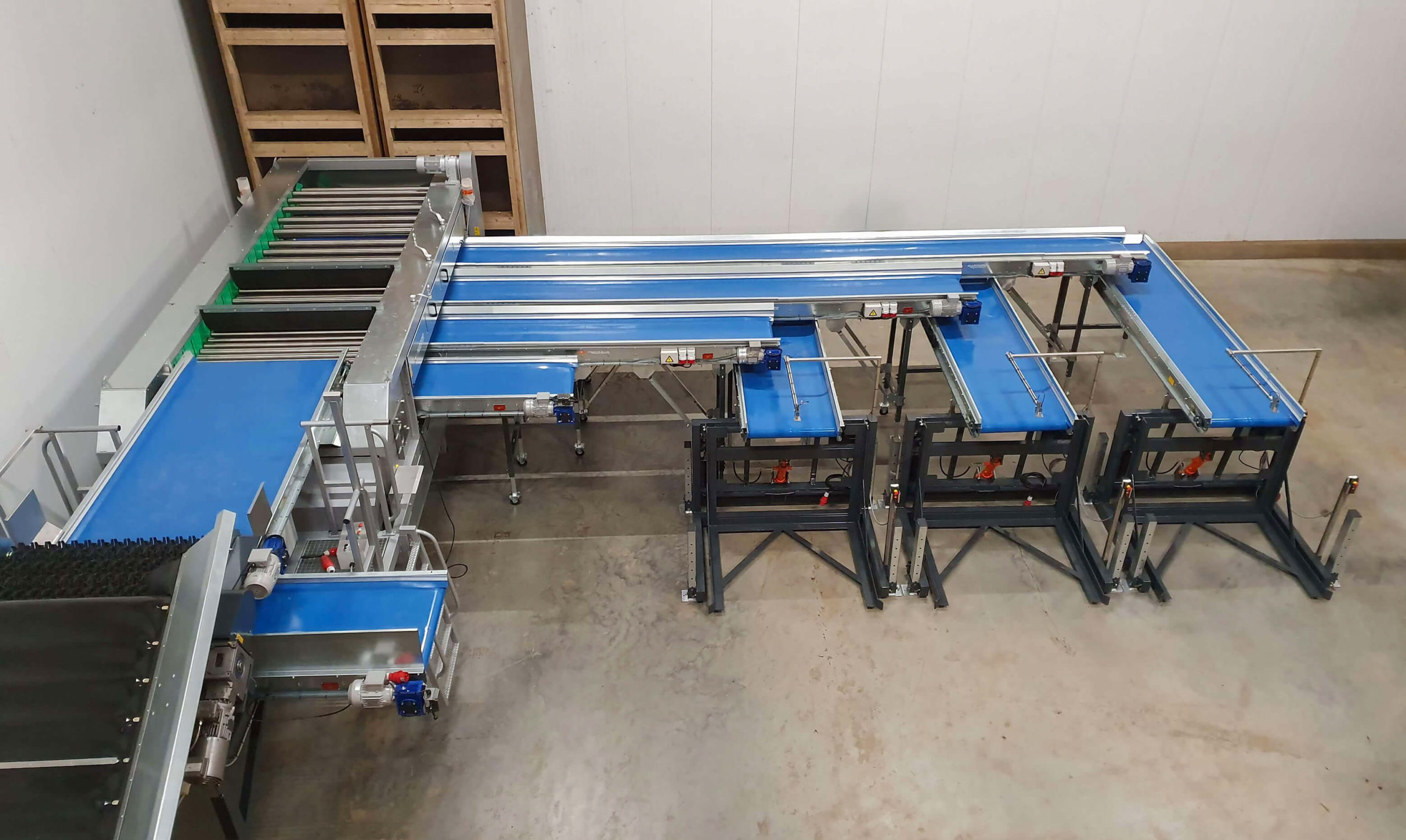

The reverse box filler is used to fill boxes. After the box is placed, the box tilts to the upper position and then the box is ready to be filled. While the box is being filled, the box lowers. A sensor detects when the box needs to be stopped or lowered.
We have models are available in 120, 160, 180, and 240 cm belt widths. On demand, Safety fences with a sensor are included. The sensor detects if someone walks between the fences, which will stop the machine from functioning. The frame is made from painted mild steel and zinc plating. The bearings and drive/idle rollers are made of mild steel.
Characteristics
- Models are available in 120, 160, 180, and 240 cm belt widths
- The maximum width of the box is 120 cm
- The dept of the box is between 92 cm and 140 cm
- The height of the box is between 92 cm and 140 cm
- The angel of rotation is 80 degrees
- The box will stop rotating when the light sensor is activated
Specifications
| Model | ZR 120 | ZR 160 | ZR 180 | ZR 240 |
|---|---|---|---|---|
| Width of the machine (cm) | 120 | 160 | 180 | 240 |
Options
- Material and treatment (frame)
Painted mild steel
Frame is made from painted mild steel and zinc plating. The bearings and drive/idle rollers are from mild steel
Galvanized
Frame is made from galvanized steel
- Electrical control
No electric
Motors only. Wiring, additional sensors and/or control panel are not included
Stand-alone
Motors, necessary sensors, switch box and control box
Central control in line
Motors and necessary sensors
- Material and treatment (electrical panel)
Painted mild steel
The electrical panel is made from painted mild steel
Stainless steel
The electrical panel is made from stainless steel
- Safety fence
Fence
Safety fences with a sensor are included. The sensor detects if someone walks between the fences and will stop the functioning of the machine
