Big bag filler VBBF
This vertical big bag filler is used to fill big bags or boxes. Vertical belts are mounted on the frame to fill the big bags as well as a transport belt to switch direction.

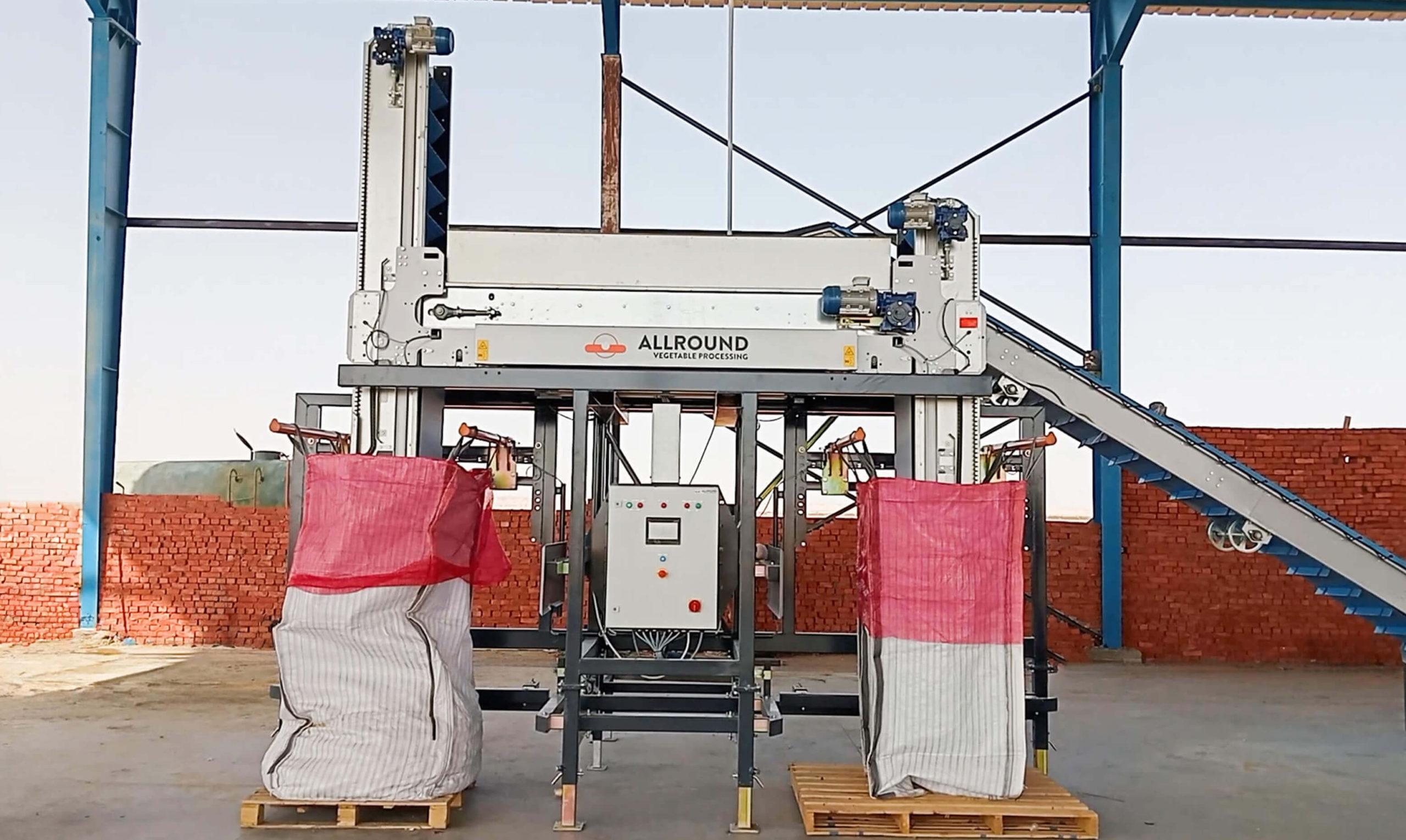

This vertical big bag filler is used to fill big bags or boxes. Vertical belts are mounted on the frame to fill the big bags as well as a transport belt to switch direction. Because the vertical big bag filler can hold 2 big bags/boxes, the machine can fill without interruptions. When the hooks are assembled, big bags can be filled. When the hooks are disassembled, boxes can be filled.
The vertical big bag filler lowers and stops just before it reaches the bottom of a box or bag. The product sensor in the vertical filler detects the product and moves up as it fills the box or bag.
Fingers/cleats on the vertical big bag filler gently convey produce into the box or bag, Once the box or bag is full, produce feed stops until a replacement empty box or bag is detected. The feed conveyor will reverse and fill the second box or bag, allowing for continuous filling.
Characteristics
- Depending on your product size conveyor is available in 11 and 16-cm opening sizes
Various cleats like fingers, THW, THW interrupted
On demand, weighing units can be integrated with machines
Soft rubber fingers on the vertical belt to gently support and convey produce into box with minimal drop
Reversible conveyor (fitted on dual head configuration only)* enables continuous filling. The conveyor automatically directs produce towards the empty box when the opposite box is full
A standard support frame for easy integration into the processing line. Accepts most common box dimensions. Customizable for bags or extra tall boxes and bags
Box locating bars for correct box positioning. Stops the box from damaging the support frame and machine
Box detection sensor system prevents produce loss on the floor. Box Filler will start once the box is correctly located under the Vertical belt
Produce level sensor signals for when to adjust the vertical belt height and when a box is full
Specifications
| Model | VBBF 275 | VBBF 350 |
|---|---|---|
| Length of the horizontal belt (cm) | 275 | 350 |
| Height of the vertical belt (cm) | 300 | 300 |
| Width of the belt (cm) | 60 | 60 |
| Opening size of the vertical belt (cm) | 11 or 16 | 11 or 16 |
Options
- Material and treatment (frame)
- Cleats
- Electrical control
- Material and treatment (electrical panel)
- Weighing
